Norfolk & Western 2-8-8-2 (Class Y)

Last revised: July 18, 2026

The Norfolk & Western Railway (N&W) developed one of the most successful and enduring fleets of 2-8-8-2 compound articulated steam locomotives in North America. Known as the Class Y (or “Chesapeake” type Mallets), these powerful machines hauled heavy coal traffic over the steep grades of the Blue Ridge Mountains and Pocahontas Division for nearly five decades.

N&W’s Roanoke Shops (East End Shops) refined the design from experimental beginnings in 1910 into highly efficient, home-built masterpieces that remained in service until the very end of steam on the railroad in 1960. Unlike most railroads that abandoned compound Mallets in favor of simple-expansion articulateds, N&W continued optimizing the compound principle for superior fuel economy and tractive effort in drag service.

Today, two examples are preserved; Class Y-3a #2050 at the Illinois Railway Museum and Class Y-6a #2156 on display at the National Museum of Transportation in St. Louis. Interestingly, when Wick Moorman was president and CEO of Norfolk Southern the railroad paid homage to its heritage by featuring some photo ops of #2156 along the old N&W main line.

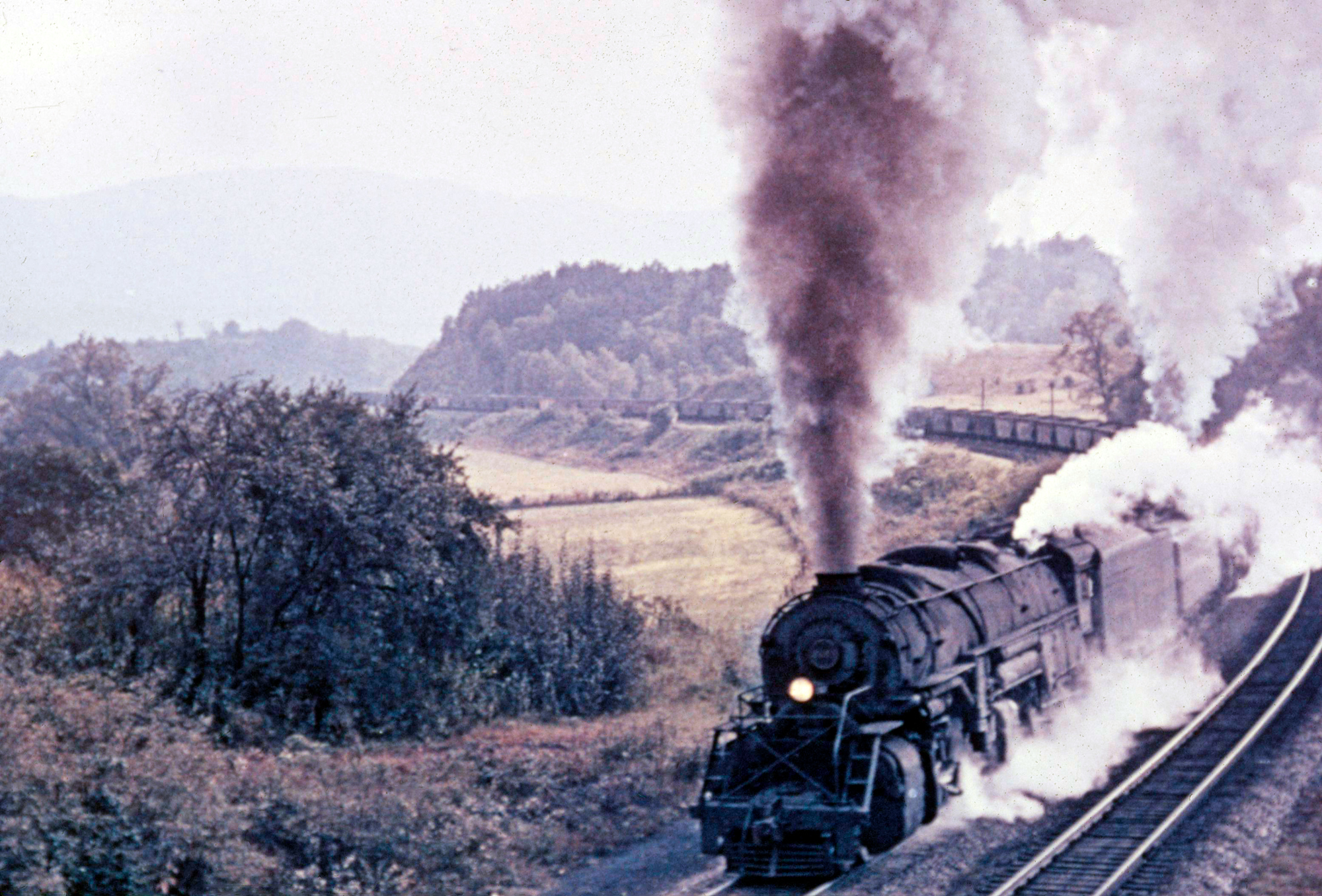

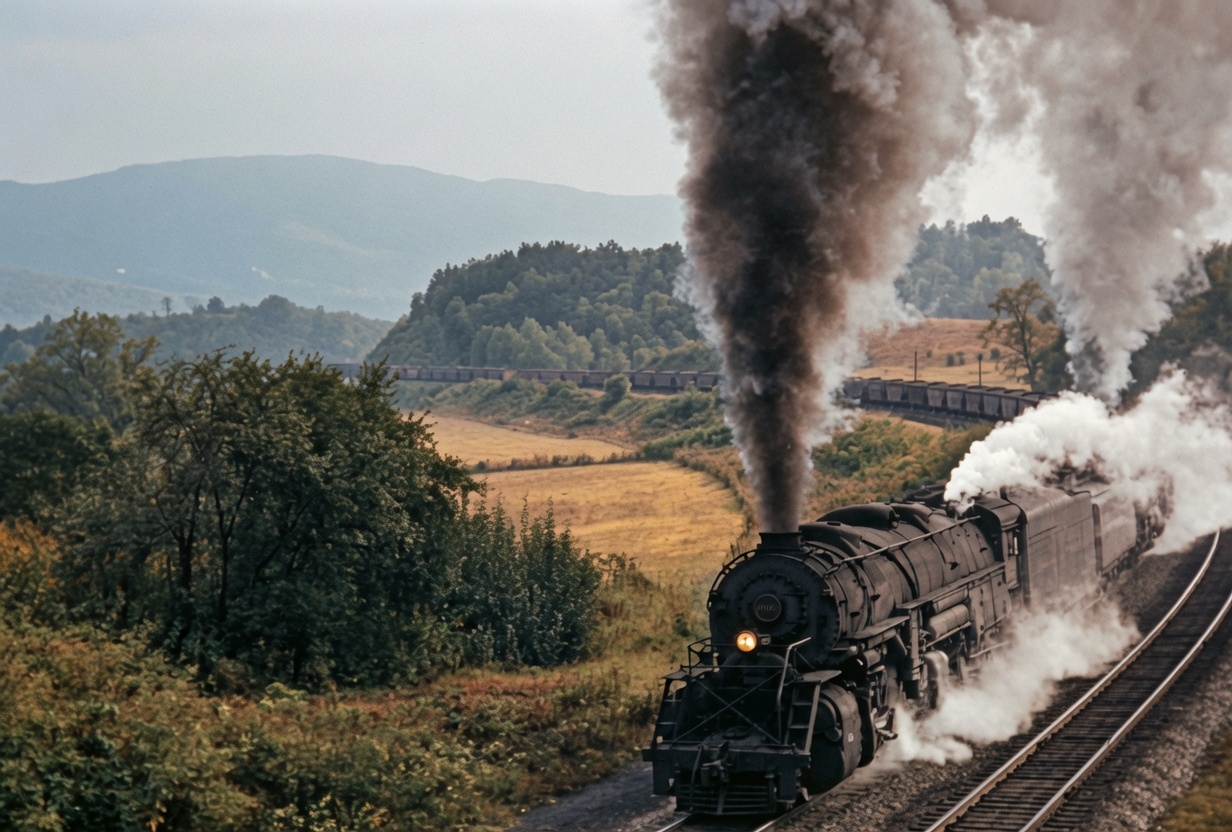

A pair of Norfolk & Western's big 2-8-8-2's charge upgrade near Blue Ridge Summit, Virginia with an eastbound coal drag during the mid-1950's. A.C. Kalmbach photo. Author's collection.

The Class Y's were an outgrowth of Norfolk & Western's first successful articulated Mallets, the 2-6-6-2 Class Z's. The 2-8-8-2's first entered service on the railroad in 1912 when it was experimenting with the new concept of compound Mallets.

This design was all the rage after the B&O successfully demonstrated its awesome tractive effort in slow drag service in 1904 by testing 0-6-6-0 #2400, "Old Maude." The first five were numbered 995-999 and given Class Y-1, products of the Baldwin Locomotive Works.

However, unproven and lacking any previous historical study these initial 2-8-8-2's (sometimes referred to as the "Chesapeake" type, which was used by the Chesapeake & Ohio Railway although it was first tested on the Southern Pacific and referred to there as the Mallet Consolidation) were mechanically problematic and not well received by the N&W. They were all scrapped by 1924.

Shortly thereafter the railroad tested Chesapeake & Ohio's successful 2-6-6-2's and was very impressed with their abilities; by 1918 it had rostered a large fleet (nearly 200) based from the C&O's design.

Learning a great deal about the compound Mallet design the N&W went back to the 2-8-8-2 wheel arrangement in 1918; some it built itself while others came from Baldwin. These examples were given Class Y-2 and numbered 1700-1730.

They carried low, 56-inch drivers (for increased traction at slow speeds), weighed around 526,000 pounds (engine only), and offered nearly 111,000 pounds of tractive effort. The Y-2's were followed up soon after by the Y-3's of 1919.

These variants proved the largest single class of 2-8-8-2's the N&W ever rostered with eighty (2000-2079) in service by 1923; the first 50 were manufactured to USRA's standard heavy 2-8-8-2 design while 30 others (Class Y-3a) were built in 1923. Most of these locomotives were manufactured by Alco's Richmond or Schenectady works while Baldwin produced five.

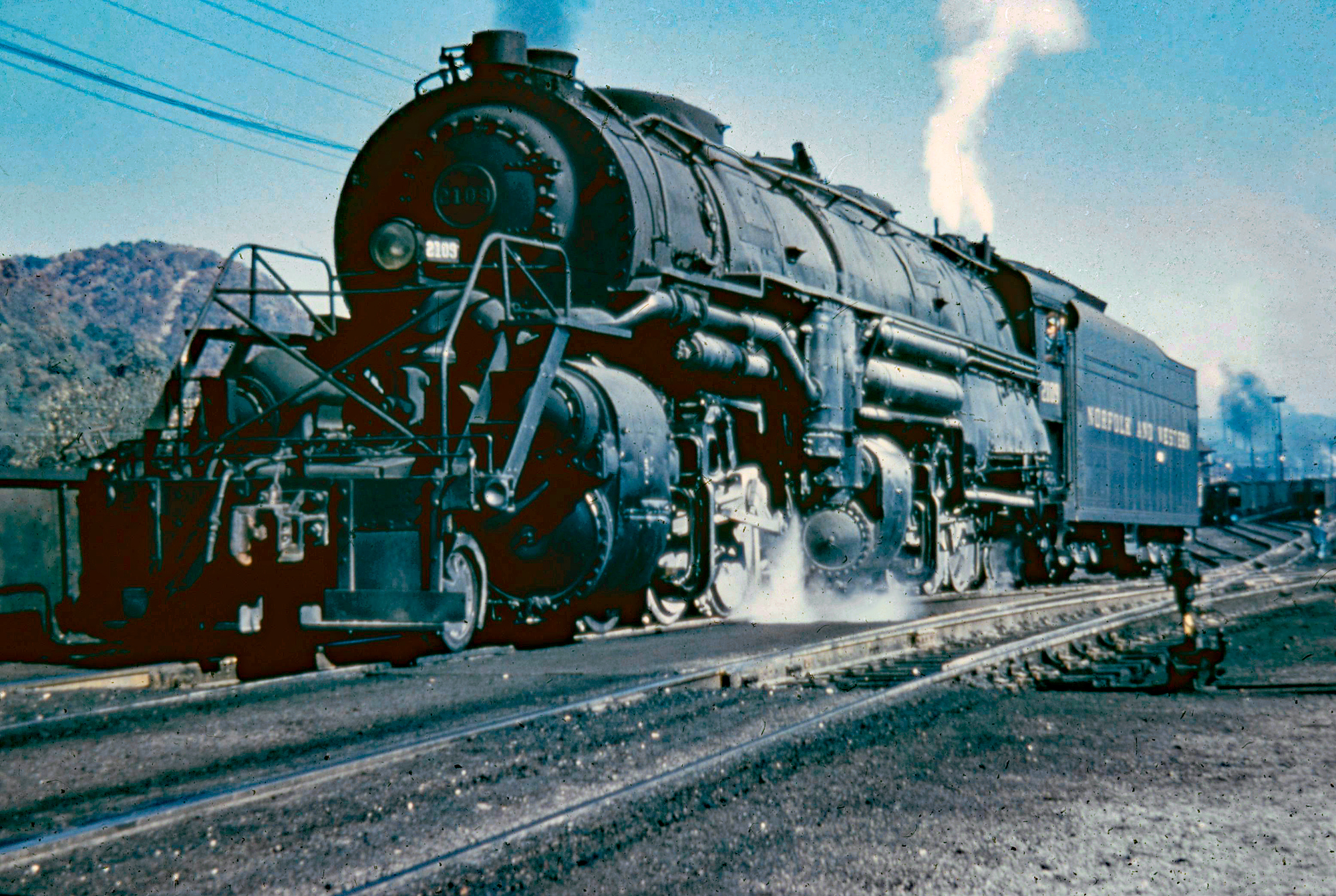

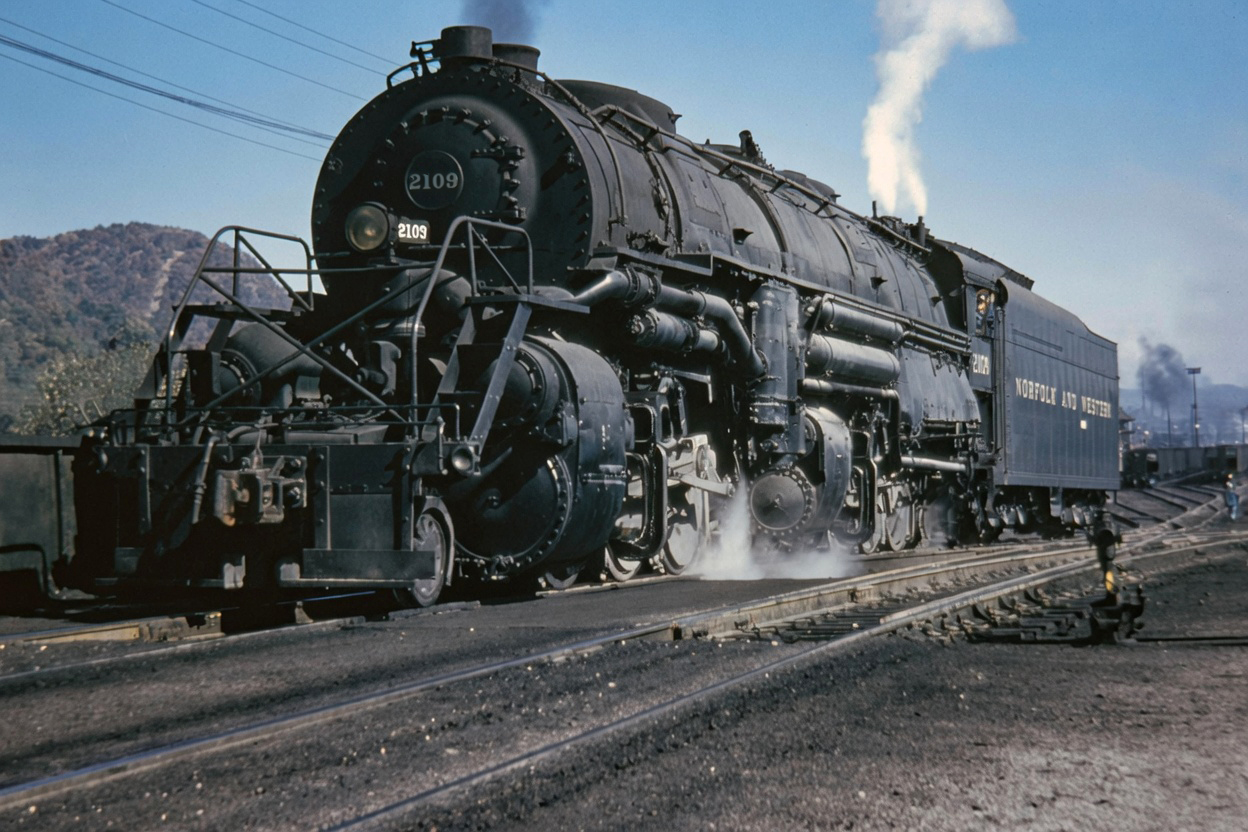

Norfolk & Western 2-8-8-2 #2109 (Class Y4a) was photographed climbing the hump in the yard at Portsmouth, Ohio during the 1950's. American-Rails.com collection.

The Y-3's were similar to the Y-2's but were somewhat heavier and offered slightly more tractive effort (around 114,000 pounds) with 57-inch drivers (found on all future variants).

The 2-8-8-2's were N&W's main stable of power in freight service during the late steam era. Thomas Dixon, Jr. notes in his book, "Norfolk & Western Steam: The Last 30 Years," the railroad came to roster a total of 232 2-8-8-2's ranging from Class Y-1 through Y-6b.

They were the workhorse of freight operations and many, even the earlier classes (except the Y-1's), could still be found in service during the postwar years while the newer variants survived until the final days of steam.

The railroad liked the wheel arrangement so much it was still building 2-8-8-2's into the early 1950s! Following the Y-3's were the Y-4's of 1927. These 10 examples, originally designated Y-3b, were numbered 2080-2089, and built by Alco's Richmond facility in 1927.

From an historical perspective they were the last commercially-built steam locomotives N&W ever purchased (all future locomotives were built in-house at the famous Roanoke Shops) and some of the last produced at that plant before it closed in September of 1927.

Next up were the Y-5's, a batch of 30 outshopped between 1930-1931, numbered 2090-2119. Perhaps not surprisingly given the company's stature, these home-built machines were far more powerful than any previous 2-8-8-2 the railroad then had in service; they weighed 583,000 pounds and offered 127,00 pounds of tractive effort while boiler pressure reached 300 psi.

The Y-5's were not based from USRA recommendations signaling just how far the N&W had evolved in building high quality steam locomotives. They were so powerful a single Y-5 could handle 5,000 tons between Bluefield, West Virginia and Roanoke, Virginia, alone; 12,000 tons between Eckman and Williamson, West Virginia; and 8,000 tons between Roanoke and Crewe, Virginia.

The final class included the Y-6 and its variants. The initial batch rolled out of Roanoke between 1936 and 1940; numbered 2120-2154 they were roughly as powerful as the Y-5's. They differed in their technological advancements including roller bearings on all journals (greatly reducing wear and maintenance) and automatic lubricators on virtually all moving parts.

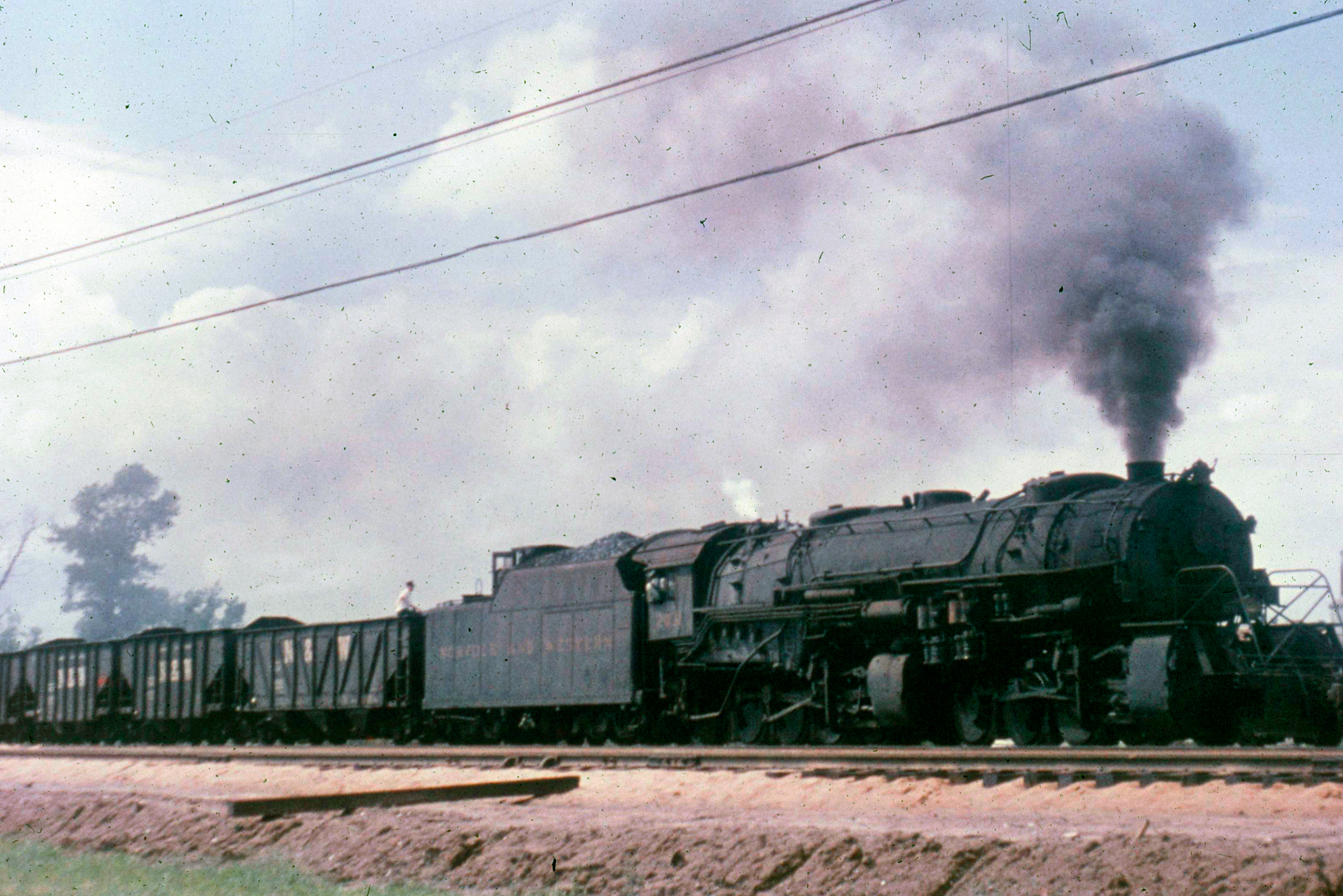

A big Norfolk & Western 2-8-8-2, #2031 (Y-3), switches a string of empty coal hoppers at the massive Lambert's Point Yard in Norfolk, Virginia during the 1950's. The train is adjacent to the Jeff Robertson Park. Dr. S.D. Marty photo. Author's collection.

By World War II the N&W's Roanoke Shops were master steam builders that they claimed their products could best diesels in tonnage-hauled and servicing periods. This wasn't just an empty statement. In 1954 the N&W tested an A-B-B-A set of Electro-Motive F7's against Y-6b #2197 and, at the time, wasn't impressed enough with the diesels to place orders.

The Y-6's were followed up by the Y-6a's of 1942 (#2155-2170) and the most powerful and efficient of all, the Y-6b's. These locomotives, #2171-2200 were outshopped between April of 1948 and April of 1952.

The railroad used all of its experience and wisdom over the years in developing its compounds to produce a locomotive that could exert 5,500 drawbar horsepower; no single-engine diesel was available with such horsepower until the 1990s. The Y-6b's could be found on freight assignments all across the N&W's system.

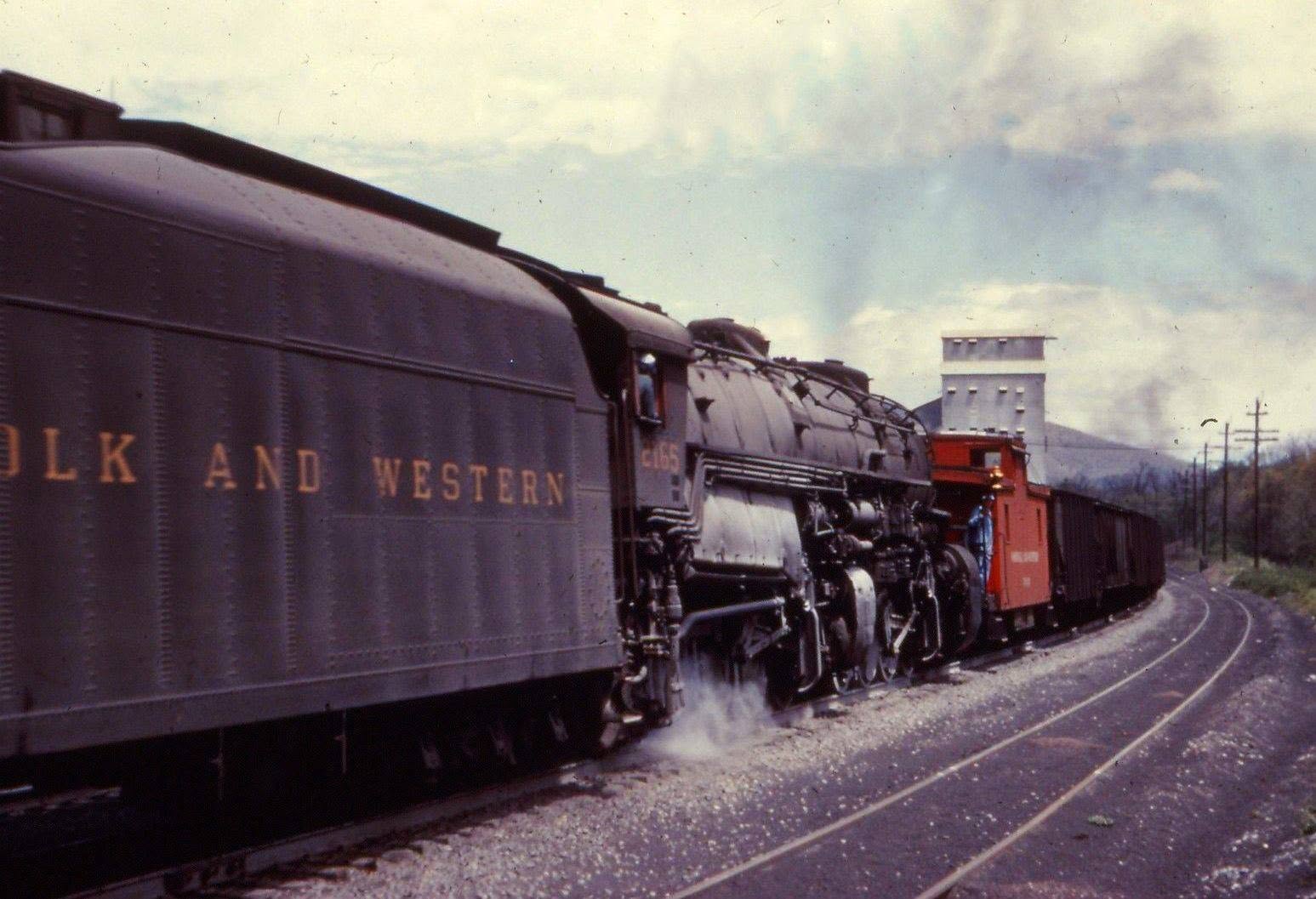

One of the Norfolk & Western's powerful 2-8-8-2 Mallet compounds, #2165 (Y-6), shoves an eastbound coal drag up the west side of Blue Ridge, Virginia near Blue Ridge Station. Photographer unknown.

Key Specifications Summary

Common features across most classes: 2-8-8-2 Whyte arrangement, compound expansion (high-pressure cylinders rear: typically 25" × 32"; low-pressure front: 39" × 32"), Baker valve gear with piston valves, Type A superheater, coal fuel.

Major variations (approximate; exact figures varied with modifications):

Early Classes (Y1/Y2 era)

Drivers: 56"
Boiler pressure: 200–270 psi (later)
Tractive effort (compound): ~67,000–104,000+ lbs; simple/starting higher
Loco weight: ~390,000–535,000 lbs
Tender: Smaller capacities initially (e.g., 9,000–12,000 gal water)

USRA-Based (Y3/Y3a/Y4)

Drivers: 57" (later often 58")
Boiler pressure: 240 psi (as built) → 270 psi (modified)
Tractive effort (compound): ~101,000–114,000 lbs; simple ~137,000 lbs (modified)
Loco weight: ~531,000–567,000 lbs
Tender (modified): 30 tons coal / 22,000 gal water

Modern N&W Designs (Y5/Y6 series)

Drivers: 57–58"
Boiler pressure: 300 psi
Grate area: 106.2 sq ft
Cylinders: HP 25" × 32"; LP 39" × 32"
Tractive effort (Y6/Y6a compound): ~127,000–152,000 lbs (simple higher); Y6b up to ~170,000 lbs with booster/mods and added lead weight on front engine
Loco weight: Y5/Y6 ~583,000 lbs (adhesive ~523,000 lbs); Y6b ~611,500 lbs (adhesive ~548,500 lbs)
Total weight (engine + tender): ~961,000–990,000 lbs
Tender (later classes): 30 tons coal / 22,000 US gal water
Power output: Up to ~5,500–5,600 dbhp at 25 mph for Y6b; top speed ~50 mph
Other: Roller bearings (later classes), automatic lubrication, Worthington feedwater heaters (BL or SA types)

Complete Roster by Class

Class Y1 (Baldwin, 1910): 995–999 (5 locomotives). All scrapped by 1924.

Class Y2 / Y2a (Roanoke Shops & Baldwin, 1918–1924): 1700–1730 (31 locomotives total). Many rebuilt to Y2a; some sold during WWII; remainder retired 1940s–early 1950s.

Class Y3 (ALCO Schenectady & Baldwin, 1919): 2000–2049 (50 locomotives). Extensively modified; retired 1956–1959. Some sold to other railroads.

Class Y3a (ALCO Richmond, 1923): 2050–2079 (30 locomotives). One preserved: No. 2050 (Illinois Railway Museum, Union, IL; static display; originally used as a stationary boiler after retirement).

Class Y4 (ex-Y3b) (ALCO Richmond, 1927): 2080–2089 (10 locomotives). Retired ~1958.

Class Y5 (incl. rebuilt Y4a) (Roanoke Shops, 1930–1931; rebuilds 1940–1941): 2090–2119 (30 locomotives). Many modernized to Y6-era standards.

Class Y6 (Roanoke Shops, 1936–1940): 2120–2154 (35 locomotives).

Class Y6a (Roanoke Shops, 1942): 2155–2170 (16 locomotives). No. 2156 preserved (Museum of Transportation, St. Louis, MO; static display, not operational).

Class Y6b (Roanoke Shops, 1948–1952): 2171–2200 (30 locomotives). The final evolution; many operated into 1960. No examples preserved.

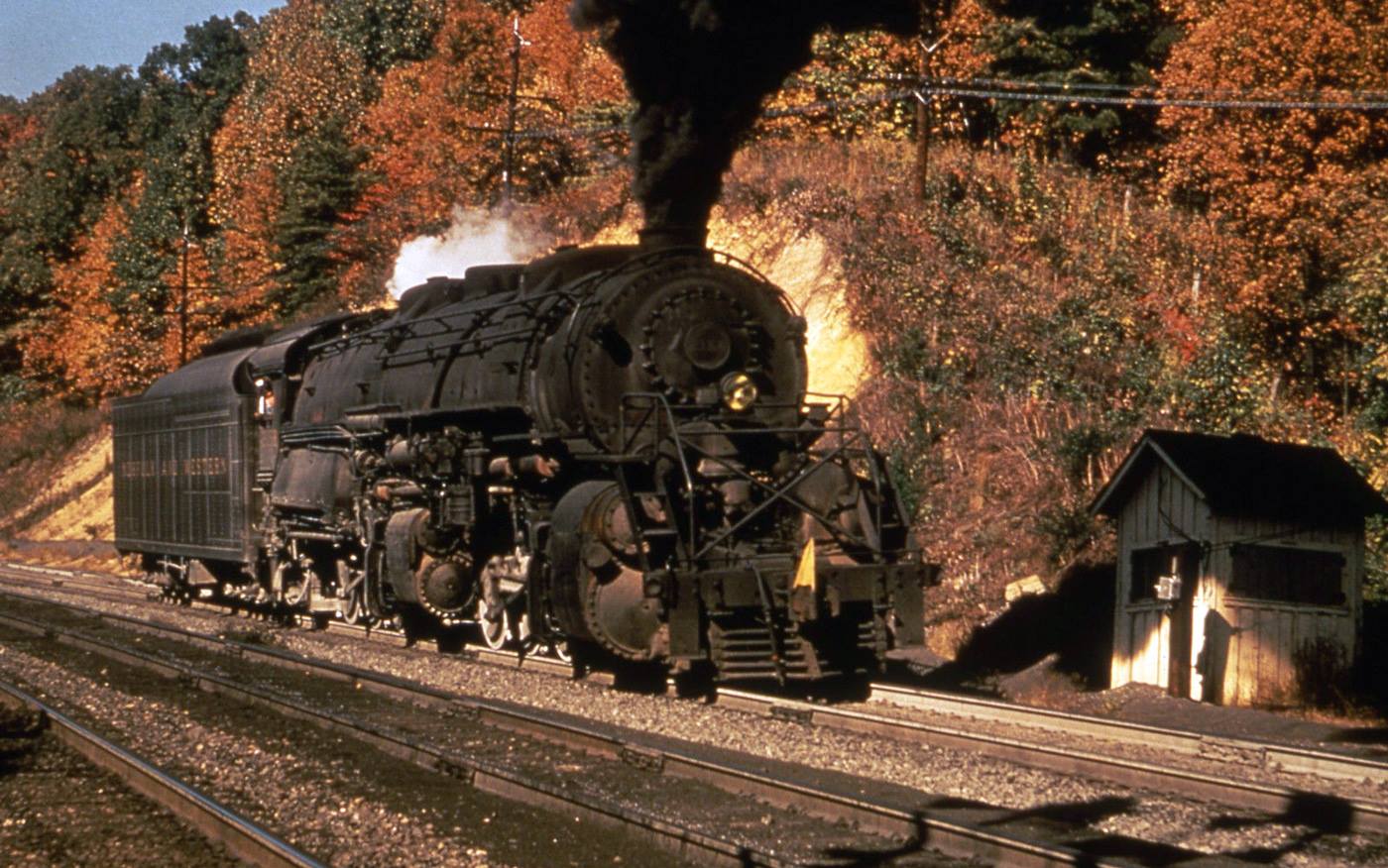

What appears to be Norfolk & Western 2-8-8-2 #2152 (a Class Y6 compound) runs light at Villamont, Virginia (helper service?) in a scene dating to either the 1940s or early 1950s.

Operations and Performance

The Y-class locomotives were the backbone of N&W freight service, especially coal drags. A single Y5 or Y6 could handle 5,000 tons over Bluefield–Roanoke, up to 12,000–14,500 tons on flatter segments, and substantial trains east of Roanoke or on other divisions. They also served in general merchandise freight, mine switching, hump yard work, and as helpers/bankers.

Their compound design provided excellent efficiency at road speeds, while the ability to admit live steam to the low-pressure cylinders (or use reducing/booster valves on later units) delivered massive starting tractive effort for heavy trains on grades. N&W maintained them meticulously; many ran into the late 1950s even as dieselization progressed.

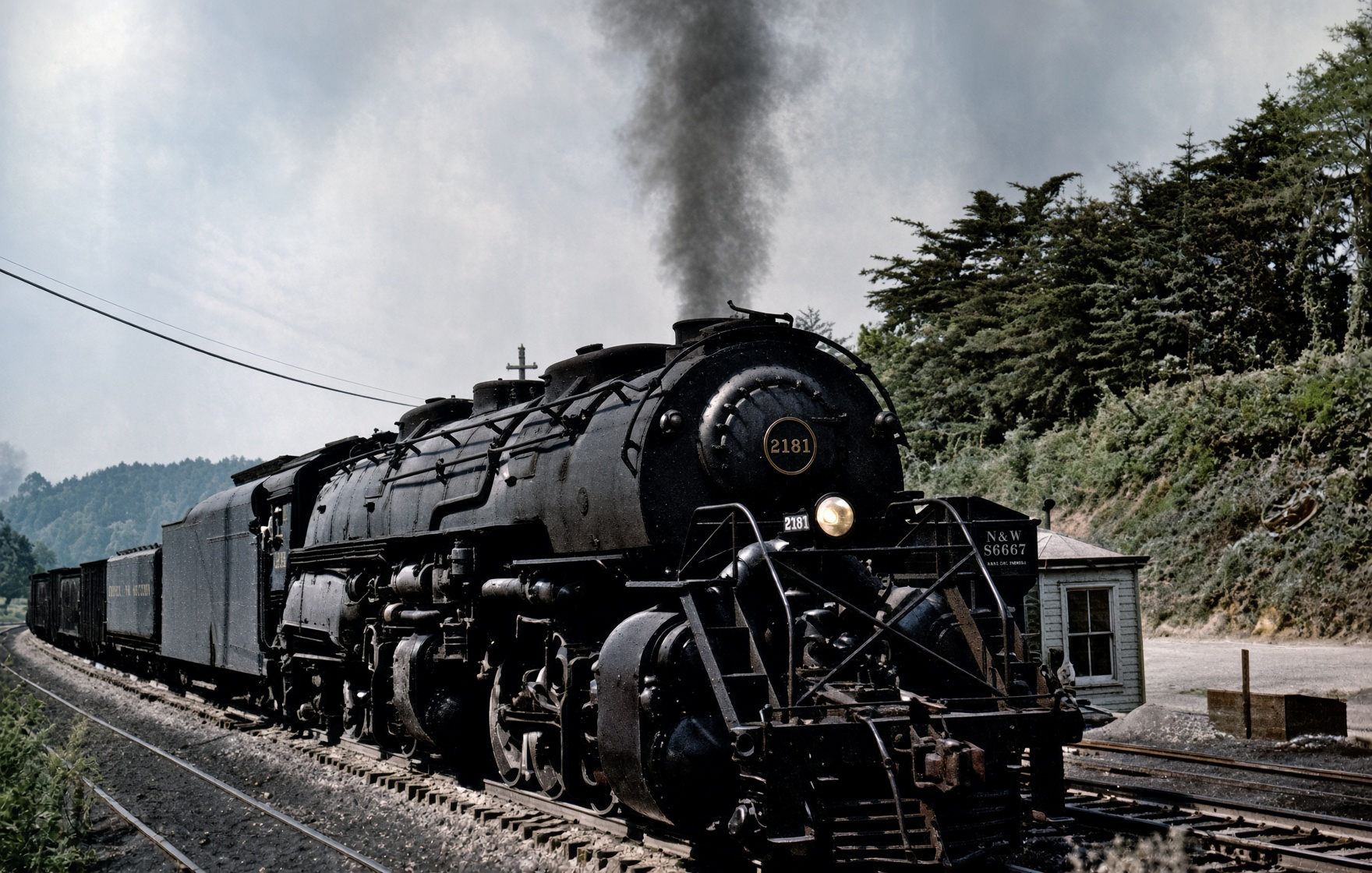

Norfolk & Western 2-8-8-2 #2181 (Class Y6b) begins its assault up Blue Ridge Grade out of Roanoke, Virginia with an eastbound coal drag in the summer of 1957. Richard Cook photo.

As Mr. Dixon notes the earlier Y-6's and Y-6a's, as well as many of the Y-5's, were overhauled to match similar specifications to the Y-6b's. Interestingly, only one year after the F7 test N&W began placing orders for diesels from Electro-Motive in 1955. However, it didn't purchase covered wagons and instead wound up with a fleet of 301 GP9's. It would eventually roster several models from EMD, those of Alco, and a few from General Electric.

Had the secondary steam market for parts and supplies not dwindled away in the postwar era the N&W would likely have continued running steam at least into the 1960s. The Y-6b's had the honor of closing out N&W's legendary steam era when #2190 departed for the final time from Williamson, West Virginia on May 6, 1960.

The Y class represents a remarkable story of continuous improvement: from problematic experiments to locomotives that could outperform early diesels in specific heavy-drag service while burning coal efficiently. Roanoke Shops’ in-house construction of the later generations (especially the Y6b) remains one of the great achievements of American steam locomotive engineering.
