Alco "RS-2" Locomotives

The RS2 was Alco's second entrant in its Road Switcher series. Buoyed by the success of its earlier RS1 model, the American Locomotive Company released a more powerful version following the end of World War II.

Externally, the RS2 closely resembles the RS3, cataloged a few years later. However, it was somewhat less powerful.  At the time of the RS2's production, Alco was the leader in road-switchers.

The company had pioneered the concept, providing a rare moment in which Electro-Motive was the one playing catch up.  The RS-1's were viewed favorably by the industry as railroads were quite pleased with the new lightweight, yet powerful concept.

The RS2 sold better than its earlier counterpart proving its predecessor was not a fluke.  In addition, new styling and increased horsepower paved the way for the very popular RS3.

It is a true shame the builder could not build upon these early successes; with EMD's GP7 release in the late 1940's it cornered the road-switcher market.  Today, the model is the least preserved of the early RS series, only a handful survive.

A sharp Toledo, Peoria & Western RS2, #204 (completed in September, 1949) idles on ready track at the railroad's primary terminal in Peoria, Illinois during June, 1963. Roger Puta photo.

The Alco RS2 is sometimes a forgotten model in the builder's early road-switcher series.  Interestingly, there are few differences between the RS2 and RS3 although the former was the first to employ Alco's very own model 244 prime mover.

Before this time the builder had employed engines supplied from McIntosh & Seymour (the model 539T), which proved to be fairly reliable in the early RS1, S1, S2, and original HH models (early switchers of the 1930s).

While the model 244 did prove its worth in the RS2 and later RS3 for secondary and light branch line duties it suffered from the same issues as the 539T in standard road service. Alco had tried the M&S prime mover in its original DL series for main line applications although mechanical issues resulted in few being sold.

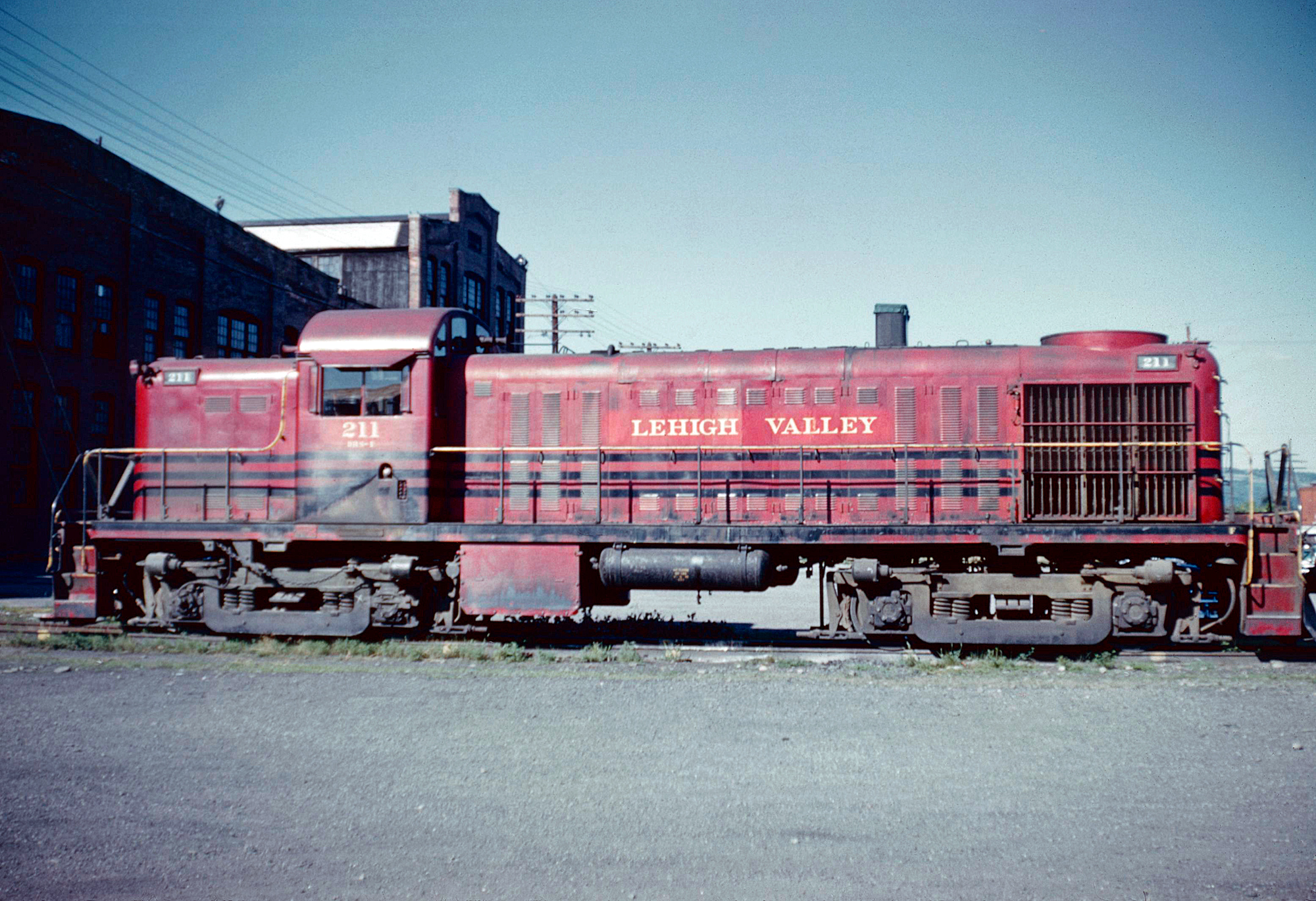

A new Lehigh Valley RS2 works local service at Roselle Park, New Jersey circa 1950. Stephen Bogen photo.

The 244 experienced problems in Alco's model FA and PA, released in 1946 with the RS2.  These two cab designs, one meant for freight service (FA) and the other designed to haul passenger trains (PA), replaced the DL models.

They were clad in an attractive carbody and offered excellent tractive effort but suffered mechanical issues, primarily due to the fact that the manufacturer had not spent enough research and development on the prime mover.

It was said that after World War II had ended and manufacturers were once again free of wartime restrictions Alco management wanted the 244 engine ready for production by no later than early 1946. Interestingly, despite the model's problems in heavy-haul service it proved to be quite successful in the switcher and small road switcher deigns.

Elgin, Joliet & Eastern RS2 #808 hustles a string of loaded hoppers eastbound at Whiting, Indiana on February 10, 1963. Roger Puta photo.

The Alco RS2 debuted at 1,500 horsepower, which would increase to 1,600 before production ended in March of 1950.

The first railroads to receive theirs included the Delaware & Hudson Railway and Detroit & Mackinac between November and December of 1946 (both lines remained loyal Alco customers practically until Alco left the locomotive market during the late 1960s).

Perhaps the most noticeable difference between the RS1 and RS2, outwardly, was the latter's updated, beveled carbody design also used on its successor, the RS3. With added streamlining some railroads found the RS2 more practical in passenger service than the RS1 (despite the fact that both could be equipped for such).

Monon RS2 #56 appears to be laying over at the yard in Hammond, Indiana on November 26, 1965. Note the BL2 and C628 in the background. Roger Puta photo.

Mechanically, the RS2 used air brakes and compressors from Westinghouse while the model 752 traction motors were produced by General Electric.

The B-B truck setup (two powered axles per truck) could produce 42,500 pounds of tractive effort (nearly 10,000 pounds more than the RS1) and the RS2 came equipped with dynamic brakes.

At 55 feet, 5 inches in length it was about the same size as the earlier RS1 while the later RS3 was just slightly longer. With the RS2s finely designed carbody, horsepower, and other attributes it came to be used in applications far outside of what Alco had intended as railroads found the model quite utilitarian in either passenger service or as auxiliary power in heavy drag service.

Alco RS2 Data Sheet

Alco Class404-DL-240
Entered Production10/30/1946 (Detroit & Mackinac #467)
Years Produced10/30/1946-4/1950
Model SpecificationE1661/A/B/C (MLW = ME5000R)
Engine244, V-12
Engine BuilderAlco
Horsepower1,500 (Increased to 1,600 HP in variant E1661C.)
Carbody StylingAlco
Length (Between Coupler Pulling Faces)56'
Weight240,000 lbs. (Optional ballasting.)
Dynamic BrakesOptional
TrucksB-B
Truck TypeSwing Bolster, Drop-Side Equalizer (AAR Type-B)
Truck Wheelbase9' 4"
Wheel Size40"
Traction MotorsGE 726 (4) (Upgraded to GE 752 [4] in variant E1661A.)
Traction GeneratorGT564A (Upgraded to GT564C in variant E1661A.)
Gear Ratio74:18
Tractive Effort Rating42,500 lbs. at 11 MPH.
Top Speed65 MPH

Production Roster Of Alco RS2's (USA)

Owner Road Number(s) Quantity Date Built
Alco Demonstrators1500 (1st/2nd), 150131947-1948
Alton & Southern28-42151947-1948
Altantic & Danville101-10661949
Belt Railway Of Chicago450-45891949
Birmingham Southern15011949
Boston & Maine1501-1504, 1530-153491949
Carolina & North-Western1-441948
Chesapeake & Ohio5500-550121949
Chicago & North Western150311948
Chicago Great Western50-5781949
Danville & Western1-221949
Delaware & Hudson4000-4025261946-1949
Detroit & Mackinac466-469, 481, 461061946-1948
Elgin, Joliet & Eastern800-809101948-1949
Erie900-913, 950-954191949
Frisco550-55451949
Great Northern200-219201947-1950
Green Bay & Western301-30441950
Gulf, Mobile & Ohio1501-1514141948-1949
Kennecott Copper100-107, 902-903101948-1949
Lake Superior & Ishpeming1501-150331949
Lehigh & New England651-663131949
Lehigh Valley210-21451949-1950
Macon, Dublin & Savannah1700-170231949
Maine Central551-55551949
Missouri-Illinois Railway6111949
Monon21-2991947
Napierville Junction Railway4050-405121950
New Haven500-516171947-1948
New York Central8200-8222231948-1950
Oliver Iron Mining1100-100781947-1948
Rock Island450-45451948
St. Louis & Belleville Electric Railway70011949
Seaboard Air Line1600-1628291949-1950
Southern2101-2130301949
Spokane, Portland & Seattle60-6231949-1950
Texas Pacific-Missouri Pacific Terminal21-2331948-1949
Toledo, Peoria & Western200-20671948-1949
Union Pacific1191-119551948-1949
Union Railroad601-612121948-1949
Western Maryland180-18451947-1950
Youngstown & Northern23111948

Production Roster of Montreal Locomotive Works (MLW) RS2's

Owner Road Number(s) Construction Number Completion Date
Roberval & Saguenay207609512/30/1949
Ontario Northland1302760961/20/1950
Ontario Northland1303760971/27/1950
Napierville Junction (Delaware & Hudson)4050760981/1/1950
Napierville Junction (Delaware & Hudson)4051760991/1/1950
Canadian Pacific8405761004/10/1950
Canadian Pacific8406761014/10/1950
Canadian Pacific8407761024/28/1950
Canadian Pacific8408761034/28/1950

Sources:

  • Foster, Gerald. A Field Guide To Trains. New York: Houghton Mifflin, 1996.

  • Kirkland, John F. Diesel Builders, The:  Volume Two, American Locomotive Company And Montreal Locomotive Works. Glendale: Interurban Press, 1989.

  • Pinkepank, Jerry A. Diesel Spotter's Guide.  Milwaukee: Kalmbach Publishing Company, 1967.

  • Solomon, Brian. Alco Locomotives. Minneapolis: Voyageur Press, 2009.


Maine Central RS2 #553 is seen here in the yard at Bangor, Maine on February 7, 1970. Roger Puta photo.

From a sales standpoint the RS2 was modestly successful outshopping more than 400 units (as noted in the chart above, which lists every buyer of the locomotive).

Perhaps more importantly, though, dozens of large and small railroads all over the country purchased the RS2 as well as a few private industries.  The locomotive's success set the stage for the RS3, cataloged a few years later.

It should be noted that Alco's Canadian arm, the Montreal Locomotive Works, also produced eight models total between the Canadian Pacific, Ontario Northland, and Roberval & Saguenay.   To read more about other Alco Road-Switcher (RS) models please visit the Diesel Locomotives section of the site, which can be reached from the top of this page.
