Baldwin "DT-6-6-2000" Locomotives

The Baldwin DT-6-6-2000 was one of the most interesting models released by a major manufacturer.

This design was a specialized type of locomotive intended for use in heavy drag service over short distances, such as on terminal railroads or moving cuts of cars between local yards.

Believing that there was a market for such Baldwin released the DT-6-6-2000 directly after World War II, one of first models to employ the company's own prime mover. For a switcher, it was massive and, ironically longer than virtually every road switcher or cab unit on the market at that time.

As John Kirkland explains in "The Diesel Builders: Volume Three," the locomotive featured dual control stands for maximum flexibility, thus allowing operation in either direction without turning the locomotive since visibility was the same on either side of the unit.

Ironically, for a design geared towards switching, the DT-6-6-2000 retained a high-hood on both ends, thus restricting a crew's 360-degree view from either the ground (seeing the engineer) or the cab.

Unfortunately, the design had mechanical issues and railroads were never really interested in such a specialized locomotive resulting in fewer than 50 constructed when production had ended.

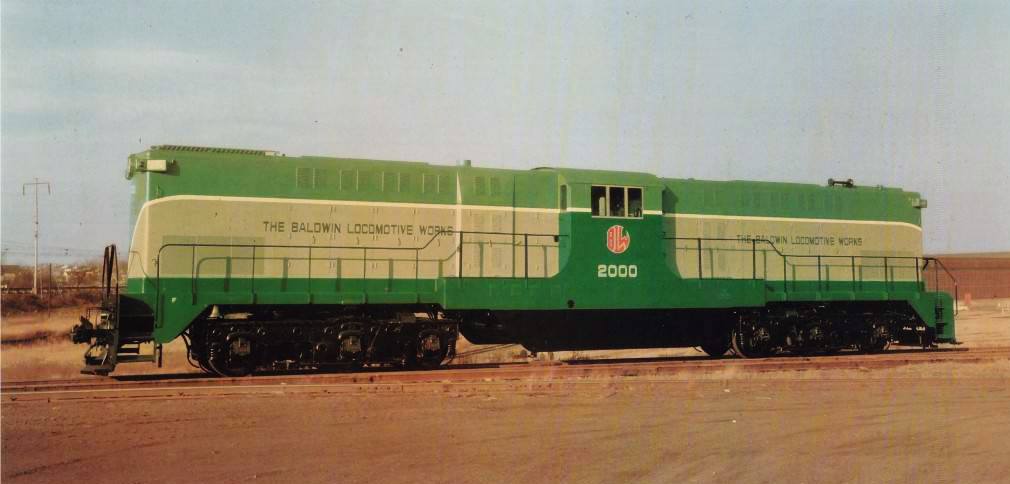

A Baldwin Locomotive Works builder's photo featuring one of its massive DT-6-6-2000 transfer switchers, demonstrator #2000, in December, 1948. This unit became Santa Fe #2606. Unfortunately, the transfer market never really took off and coupled with Baldwin's chronic reliability issues few of these sold. Despite their problems, Baldwin's diesels could certainly pull thanks to their powerful Westinghouse traction motors. For this reason, short line SMS Rail Lines in New Jersey still employs a rather sizable fleet of Baldwins in freight service.

The Baldwin DT-6-6-2000 was an incredibly large switcher, originally cataloged by the company during May of 1946.  At over 70 feet in length and weighing a hefty 360,000 pounds or 180 tons, the switcher was certainly one of the largest, longest, and heaviest of its kind ever built.

It utilized two of Baldwin's 608NA model prime movers, using a C-C truck setup (i.e., three axles per truck) and produced 2,000 horsepower.

Perhaps most unique to the model was that despite its incredible length the locomotive featured a centered cab giving it the appearance of a common switcher only on steroids.

Unfortunately, its size and locomotive of the cab made visibility rather poor for the crew.  The locomotive was also fairly tall at 14 feet to the top of the cab.

During the 1940s Baldwin still shrugged the notion of diesels being employed in main line freight services. The company also held the philosophy that those models it did produce should be customized to either whatever the railroad requested or for a specific job/task.

This notion harkened back to the days of steam, which were nearly almost manufactured and tailored to a railroad's specific needs.

As a result the DT-6-6-2000 was born. The switcher's classification was similarly based from the steam era and is why it includes many letters, dashes, and numbers.

The "DT" referred to Diesel Transfer while the first "6" referred to six overall axles; the second "6" referred to six powered traction motors; and "2000" stood for the horsepower rating.

Elgin, Joliet & Eastern DT-6-6-2000 #920 (rebuilt with Electro-Motive prime movers by this date) is on a caboose hop at Griffith, Indiana in January, 1965. Roger Puta photo.

As it turned out there was not much of a market for the transfer switcher; Baldwin ultimately only sold 46 units by the time production had ended in February of 1950.

The Elgin, Joliet & Eastern Railway purchased the most, 27 (including one of the demonstrators), and actually became quite famous for its fleet of DT-6-6-2000s although they would later be re-powered with Electro-Motive's reliable model 567 prime movers, extending their service lives through the mid-1970s.

In any event, the locomotive could not be questioned for its astronomically high tractive effort, something no other switcher could match; 105,000 pounds starting and 62,250 pounds continuous.

If you were wanting to move long cuts of heavy loaded cars the DT-6-6-2000 was certainly up to the task.  Baldwin also released an updated version of the transfer switcher, the RT624, but it would sell even fewer than its predecessor.

Today, one Baldwin DT-6-6-2000 remains preserved; former Minneapolis, Northfield & Southern Railway #21 at the Illinois Railway Museum. For more information about the DT-6-6-2000s and all Baldwin transfer switcher models please refer to the chart below.

The original DT-6-6-2000 variant was Elgin, Joliet & Eastern #100 completed on May 13, 1946.  As a test-bed unit it was slightly different from the production DT-6-6-2000's with normally aspirated, 8-cylinder engines and no crosswalks.  The latter was a feature requested on production DT-6-6-2000's, increasing their overall length by nearly 4 feet.

Elgin, Joliet & Eastern #100 Data Sheet

Delivery Date5/13/1956
Baldwin Class0-6-6-0-1000/2 NA5
Engine608NA, 8-Cylinder In-Line (2)
Engine BuilderDe La Vergne
Horsepower2000
Carbody StylingBaldwin
Length (Between Coupler Pulling Faces)70' 6"
Weight365,000 Lbs
Height (Top Of Rail To Top Of Cab)14'
Width10'
TrucksC-C
Truck TypeGSC Rigid Bolster
Truck Wheelbase13'
Wheel Size42"
Traction Motors370F (6), Westinghouse
Traction Generator480C, Westinghouse
Auxiliary GeneratorYG40D, Westinghouse
Gear Ratio15:63
Tractive Effort Rating64,200 Lbs at 9.4 MPH.
Top Speed60 MPH

Baldwin DT-6-6-2000 Data Sheet

Entered Production3/3/1948 (Elgin, Joliet & Eastern #101)
Years Produced3/3/1948 - 8/23/1950
Baldwin ClassDT-6-6-1000/2 SC
Engine606SC, 6-Cylinder In-Line, Supercharged
Engine BuilderDe La Vergne
TurbochargerModel H-503 (Elliott Company)
Horsepower2000
RPM625
Carbody StylingBaldwin
Length (Between Coupler Pulling Faces)74'
Weight354,000 Lbs (Optional ballasting up to 375,000 Lbs.)
Height (Top Of Rail To Top Of Cab)14'
Width10'
TrucksC-C
Truck TypeGSC Rigid Bolster
Truck Wheelbase13'
Wheel Size42"
Traction Motors370F (6), Westinghouse
Traction Generator480C, Westinghouse
Auxiliary GeneratorYG40D, Westinghouse
Gear Ratio15:63
Tractive Effort Rating64,200 Lbs at 9.4 MPH.
Top Speed60 MPH

Baldwin DT-6-6-2000 Production Roster

Owner Road Number Baldwin Serial Number Construction Number Completion Date
Elgin, Joliet & Eastern1011737093/3/1948
Elgin, Joliet & Eastern1022737103/7/1948
Elgin, Joliet & Eastern1033737113/13/1948
Elgin, Joliet & Eastern1044737123/19/1948
Elgin, Joliet & Eastern1055737134/1/1948
Elgin, Joliet & Eastern1066737143/31/1948
Elgin, Joliet & Eastern1077737154/8/1948
Elgin, Joliet & Eastern1088737164/21/1948
Elgin, Joliet & Eastern1099737174/23/1948
Elgin, Joliet & Eastern11010737184/29/1948
Atchison, Topeka & Santa Fe260011737486/3/1948
Elgin, Joliet & Eastern11112737195/6/1948
Elgin, Joliet & Eastern11213737205/7/1948
Elgin, Joliet & Eastern11314737215/24/1948
Elgin, Joliet & Eastern11415737226/5/1948
Elgin, Joliet & Eastern11516737236/7/1948
Elgin, Joliet & Eastern11617737246/25/1948
Elgin, Joliet & Eastern11718737257/1/1948
Elgin, Joliet & Eastern11819737267/6/1948
Elgin, Joliet & Eastern11920737277/12/1948
Elgin, Joliet & Eastern12021737288/2/1948
Elgin, Joliet & Eastern12122737299/9/1948
Elgin, Joliet & Eastern12223737308/13/1948
Elgin, Joliet & Eastern12324737319/13/1948
Elgin, Joliet & Eastern12425737329/13/1948
Elgin, Joliet & Eastern12526737339/13/1948
Trona Railway5027741234/22/1949
Trona Railway5128741244/22/1949
St. Louis Southwestern Railway (Cotton Belt)26029735325/28/1948
Minneapolis, Northfield & Southern20307413712/17/1948
Minneapolis, Northfield & Southern21317413812/30/1948
Minneapolis, Northfield & Southern2232741391/12/1949
Minneapolis, Northfield & Southern2333741401/14/1949
Minneapolis, Northfield & Southern2434741411/18/1949
Baldwin Locomotive Works2000 (2nd): Became Santa Fe #2606357398012/1/1948
Atchison, Topeka & Santa Fe260136744348/10/1949
Atchison, Topeka & Santa Fe260237744357/26/1949
Atchison, Topeka & Santa Fe2603387443611/23/1949
Atchison, Topeka & Santa Fe2604397443712/8/1949
Atchison, Topeka & Santa Fe2605407443811/29/1949
Duluth, South Shore & Atlantic300417466810/25/1949
Duluth, South Shore & Atlantic301427466910/23/1949
Duluth, South Shore & Atlantic302437467010/24/1949
Baldwin Locomotive Works2001 (2nd): Became Elgin, Joliet & Eastern #12644746712/1/1950
Duluth, South Shore & Atlantic30345746728/23/1950

Sources:

  • Foster, Gerald. A Field Guide To Trains. New York: Houghton Mifflin, 1996.

  • Kirkland, John F. Diesel Builders, The:  Volume Two, American Locomotive Company And Montreal Locomotive Works. Glendale: Interurban Press, 1989.

  • Pinkepank, Jerry A. Diesel Spotter's Guide.  Milwaukee: Kalmbach Publishing Company, 1967.

  • Solomon, Brian.  Baldwin Locomotives.  Minneapolis:  Voyageur Press, 2009.


Minneapolis, Northfield & Southern DT-6-6-2000 #21 is seen here preserved at the Illinois Railway Museum in Union, Illinois on July 17, 1994. Doug Kroll photo.

For more information on Baldwin locomotives the book by the same name, a Brian Solomon title, provides an in-depth history of the company from its earliest days beginning in the 1930s to its final years constructing diesels during the mid-20th century.

It 160 pages in length and, as with every Solomon book, offers a rich collection of large, sharp photos to enjoy.
