GE "U25B" Locomotives

The U25B was General Electric's entry into diesel locomotive manufacturing as an independent builder.  The company, however, was no stranger to locomotive production.

As Brian Solomon notes in his book, "GE Locomotives," it built its first electric locomotive for main line applications in 1893.  It was a simple two-axle design that weighed 30 tons and could operate at speeds up to 30 mph.

From this early period GE began refining electrical gearing and aided the Baltimore & Ohio in the electrification of its Howard Street Tunnel project in 1895.

It then teamed up with American Locomotive in the further development of electric locomotives for main line service.  However, whereas Alco designed the carbodies and was responsible for manufacturing, GE supplied most electrical parts and components.

By 1904 the company was competing head-to-head with Westinghouse/Baldwin in electric traction systems.

As such, GE was well suited for the future diesel locomotive market.  It started small, supplying generator and electric equipment for the first diesel-electric built for Southern Pacific in 1904-1905.  A year later it built its first gas-electric car (1906).

A trio of Erie Lackawanna U25B's, a little more than a year old, are stopped next to the depot in Binghamton, New York with a westbound freight in November, 1966. Author's collection.

In 1917, GE was back at it when it began testing an experimental model utilizing a GM-50 prime mover (a V-8 diesel engine designed by GE).

A year later it launched formal production of these 225 horsepower machines; the line was largely considered a failure although a few were sold; one to the Jay Street Connecting Railroad (#4), another to the city of Baltimore and finally one to the U.S. Army.

GE then went on to produce a successful line of switchers beginning in 1940 such as the 25-tonner, 44-tonner, 80-tonner, 125-tonner, and more.

At the same time, GE continued its partnership with Alco when the Schenectady builder began production of main line diesels in late 1939.

For more than a decade the duo tried to keep pace with General Motors' Electro-Motive Division, with mixed results.  During this time, GE provided electrical components while Alco designed the carbodies and supplied the prime mover.

The two manufactured an array of now classic models like the FA, PA, RS1, and RS3.  However, Alco was failing to keep pace with EMD.


U25B History And Background

A leader in many sectors outside of railroading, GE decided to end its partnership with Alco in 1953 and strike out on its own.

After severing ties, GE ramped up production at its Erie, Pennsylvania facility to develop its own road switcher.

GE elected to build a new design entirely from scratch.  The very first was an unclassified, testbed set of A-B-B-A cab units which somewhat resembled an EMD F model although with a less graceful carbody.

The quartet was out-shopped in September, 1954 and featured Cooper-Bessemer FVA12LT engines capable of producing 1,200 horsepower per unit.

The set tested on the Erie Railroad and even wore Erie colors although remained wholly GE-owned.  After testing that ran through 1959, they were returned to the Erie plant and rebuilt with 2,000 horsepower, FVBL12T engines.  GE subsequently reclassified the locomotives as the UM20B.

They were then painted in Union Pacific colors and given numbers 620-620B and 621-621B, remaining in service until October, 1963.

In 1956 General Electric built 10 model UD18's for Mexican carrier Ferrocarriles Nacionales de México (NdeM).  They sported an 7FDL12 prime mover capable of producing 1,800 horsepower.

The units also featured a road-switcher carbody that closely resembled what became GE's first production design, the U25B.

With ample resources available, the company spared no expense marketing this new locomotive.  GE would ultimately build four different sets of U25B demonstrators that totaled 16 units (all but the original two were sold).

As Greg McDonnell notes in his book, "U-Boats," the U25B featured an array of groundbreaking technologies such as "a central air system, pressurized engine and control compartments, advanced wheel slip control, and an improved cooling system."

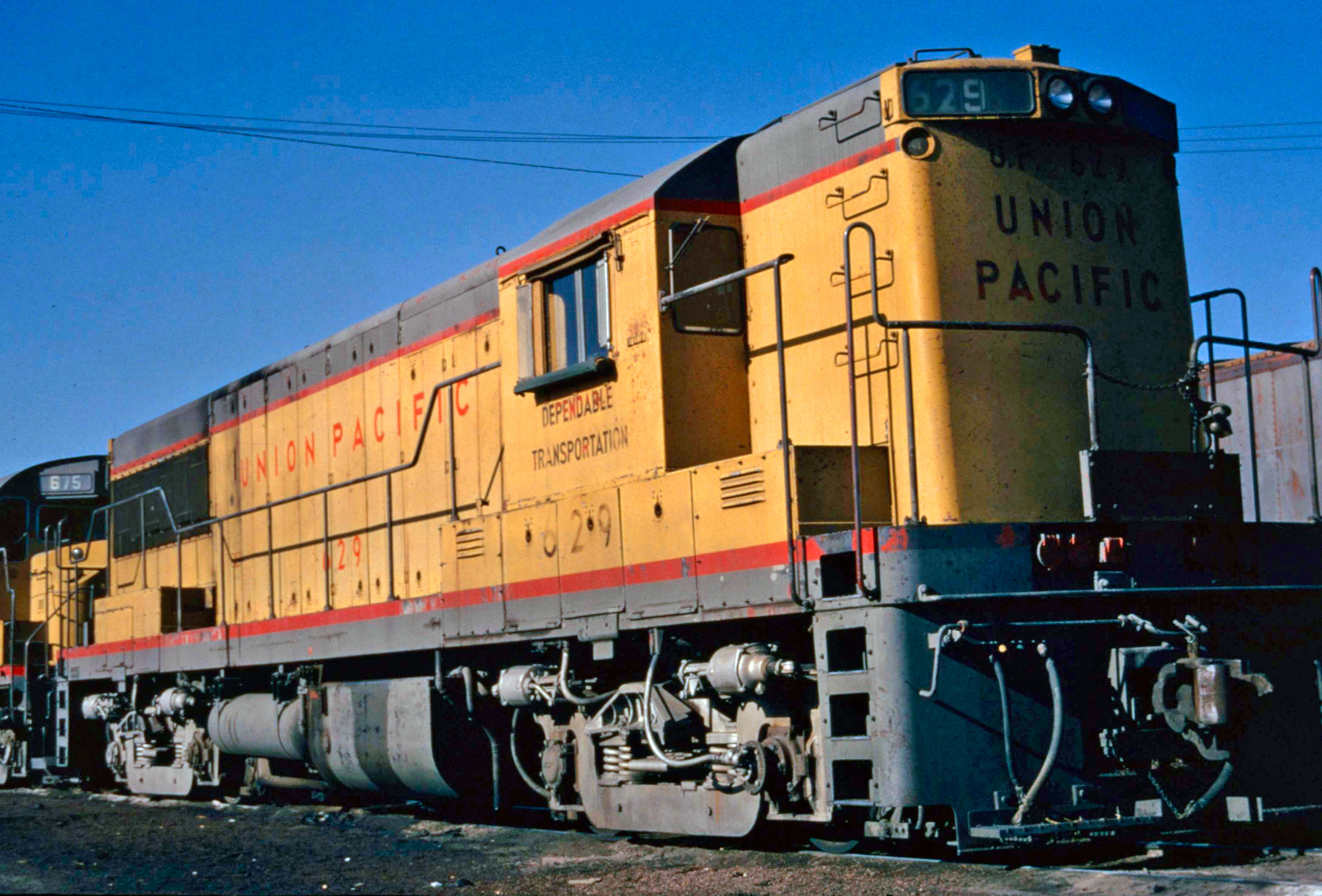

Union Pacific U25B #629, featuring a classic high, short hood, was photographed here in Denver, Colorado on April 8, 1971. Also note the rare RS27 in the background, built as Alco demonstrator #640-2. Author's collection.

In May and June of 1959, GE released its initial two U25B demonstrators, #751-752.  At the time these locomotives were referred to as the "XP24" which stood for:

  • Export Test Unit, 2400 Horsepower

The pair spent about a year testing around the country before being sent back to Erie where they were upgraded to 2,500 horsepower and reclassified as the U25B.

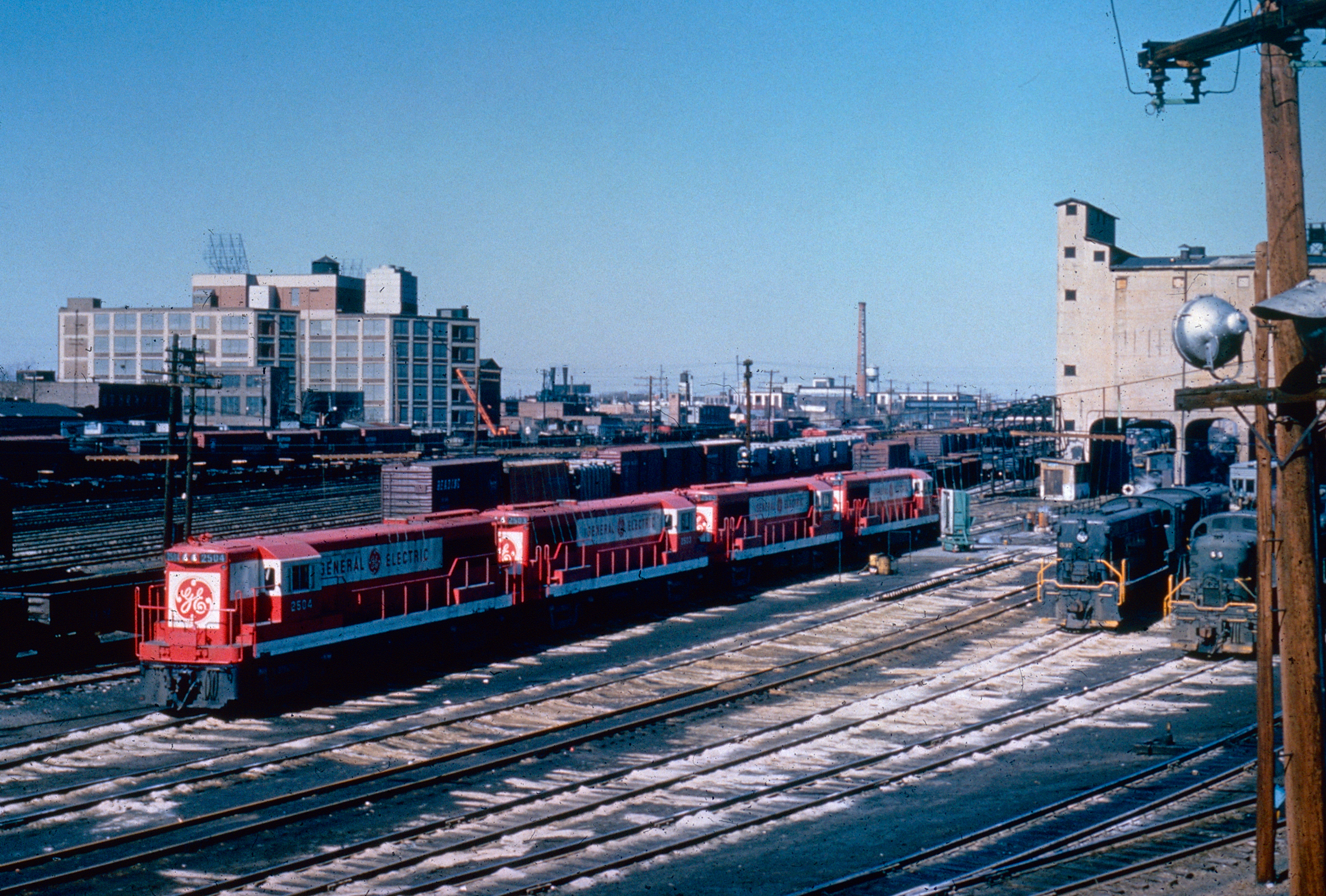

General Electric U25B demonstrators, #2501-2504, layover at the Reading's Erie Avenue Yard in Philadelphia during April of 1962. #2501, furthest to the right, was a low-nose variant while the other three units all wore high, short hoods. The quartet was later purchased by Union Pacific (#633-636) in July of that year. Author's collection.

The new model's designation was as follows:

  • "U" referred to GE's Universal Series

  • "25" designated the horsepower rating (2,500)

  • "B" referred to the unit's four-axle, B-B truck design

The locomotive utilized an updated version of the company's new prime mover, the 7FDL16 prime mover.  It was a spin-off of the Copper-Bessemer designs from which it was based.

When GE elected to enter main line locomotive production it had selected Copper-Bessemer power plants for its new models.  The engine was a four-cycle, turbo-charged variant somewhat similar to Alco's model 251.

With the resources, expertise, and electrical components already in its arsenal, GE simply had to refine its product and greatly increase the engine's horsepower output.

The company did both and its efforts paid off.  Railroads quickly came to like the model's simplicity, horsepower, and ease of maintenance.

A relatively light locomotive for a road switcher, weighing just 126 tons, it could produce excellent tractive effort for its size; 75,000 pounds starting and 64,000 pounds continuous.

The U25B was not without its issues, notably GE's new 7FDL16 engine.  However, the company provided warranties and troubleshooting support; both not only increased sales of the U25B but also future models.


U25B Data Sheet

Entered Production4/1959 (GE Demonstrator #751 and #752)
Years Produced4/1959 - 2/1966
GE ClassU25B
Engine7FDL16 (16 cylinder)
Engine BuilderGeneral Electric
Horsepower2500
RPM1050
Length60' 2"
Height (Top Of Rail To Top Of Cab)14' 2"
Width9' 11"
Weight252,000 Lbs
Fuel Capacity1,700 or 2,900 Gallons
Air Compressor3CDC (Westinghouse)
Air Brake Schedule26L (Westinghouse)
TrucksB-B
Truck TypeSwing Bolster, Drop-Side Equalizer (GSC)
Truck Wheelbase9' 4"
Wheel Size40"
Traction Motors752 (4), GE
Traction GeneratorGT598, GE
Auxiliary GeneratorGY27, GE
MU (Multiple-Unit)Yes
Dynamic BrakesOptional
Gear Ratio74:18
Tractive Effort (Starting)75,000 Lbs
Tractive Effort (Continuous)64,000 Lbs at 10.7 mph
Top Speed70 mph

U25B Production Roster

Owner Road Number Serial Number Order Number Completion Date Quantity
General Electric (Demonstrator)751*33505-4/19591
General Electric (Demonstrator)752*33506-6/19591
General Electric (Demonstrator)753-756**34220-3422313111/1962-2/19613
Union Pacific625-627***34224-3422613108/19613
St. Louis-San Francisco Railway (Frisco)800***34227131112/19611
Union Pacific628***3422813008/19611
St. Louis-San Francisco Railway (Frisco)803***34229131112/19611
Union Pacific631***3423013005/19621
St. Louis-San Francisco Railway (Frisco)801***34231131111/19611
St. Louis-San Francisco Railway (Frisco)802***34232131111/19611
Union Pacific630***3423313005/19621
Union Pacific632***3423513005/19621
General Electric (Demonstrator)2501-2502****34234, 3423613002/19622
Union Pacific629***3423813005/19621
General Electric (Demonstrator)2503-2504*****34237, 3423913002/19622
Southern Pacific7500-750534240-3424513253/1962-4/19626
Santa Fe1600-160334246-3424913214/19624
Santa Fe1604-160734250-3425313215/19624
Wabash5003425413305/19621
Wabash5143425513305/19621
Wabash502-50534256-3425913305/19623
Santa Fe1608-161534277-3428413712/19638
Wabash506-50834519-3452113308/19623
Wabash5013452213308/19621
Wabash5103452313308/19621
Wabash5093452413308/19621
Wabash5113452513308/19621
Wabash512-51334526-3452713308/19622
Pennsylvania2500-250634528-3453413458/19627
Union Pacific637-64034535-3453813408/1962-9/19624
Pennsylvania2507-252834539-3456013619/1962-10/196222
General Electric (Demonstrator)51-54******34561-34562, 34564-34565136412/19624
St. Louis-San Francisco Railway (Frisco)8113456313647/19631
Chesapeake & Ohio2500-250434566-3457013838/19635
St. Louis-San Francisco Railway (Frisco)8093457113647/19631
St. Louis-San Francisco Railway (Frisco)8103457213647/19631
St. Louis-San Francisco Railway (Frisco)8083457313647/19631
Southern Pacific7515-752734685-3469713723/196313
Southern Pacific7506-751434698-3470613763/1963-4/19639
Rock Island200-20534707-3471213785/19636
Louisville & Nashville1600-160434713-3471713796/19635
Rock Island206-21134718-3472313789/1963-10/19636
Chesapeake & Ohio2505-250734724-3472613838/19633
Louisville & Nashville1605-160834727-3473013798/19634
Chesapeake & Ohio2508-253734731-34760138110/1963-1/196430
Louisville & Nashville1609-161234761-34764138411/1963-12/19634
Southern Pacific7528-756434765-3480114051/1964-3/196437
Great Northern2500-250634962-3496814154/19647
Great Northern2507-250834984-3498514154/19642
New York Central2500-252934986-3501514181/1964-9/196430
Rock Island212-22435111-3512314214/1964-6/196413
Pennsylvania2529-253335124-3512814239/19645
Louisville & Nashville1613-162635130-3514314266/1964-10/196414
Erie Lackawanna2501-251235160-3517114329/1964-10/196412
Chicago, Burlington & Quincy100-10535194-3519914359/1964-10/19646
New York, New Haven & Hartford2500-250935394-35403143710/196410
New York Central2530-255935423-35452144211/1964-2/196530
St. Louis-San Francisco Railway (Frisco)816-82335522-3552914393/19658
Pennsylvania2534-254835530-3554414442/1965-3/196515
Great Northern2509-252335566-3558014514/1965-5/196515
Norfolk & Western35153558114462/19651
Milwaukee Road380-39135632-3564314536/1965-8/196512
Erie Lackawanna2513-252735652-3566614567/1965-9/196515
New York Central2561-256935691-3569914587/1965-9/19659
New York Central25603570014589/19651
Rock Island225-23835701-3571414529/1965-10/196514
New York, New Haven & Hartford2510-252535718-35733145710/1965-11/196516
St. Louis-San Francisco Railway (Frisco)824-83135761-3576814591/1966-2/19668
Pennsylvania2649-265835773-35782146311/1965-12/196510

6* When outshopped in April, 1959 these U25B's were originally designated as the XP24 (Export Test Unit, 2400 Horsepower).

Both were sent back to GE's Erie, Pennsylvania plant in 1960, upgraded to 2,500 horsepower, and subsequently painted in a blue and cream livery.

They were ultimately never sold and remained at GE's plant.

** All built with the high, short hood.  Acquired by the St. Louis-San Francisco Railway (Frisco) in December, 1961 becoming #804-807.

*** Featured high, short hoods.

**** #2501 featured a low nose while #2502 sported a high, short hood.  Became Union Pacific #633 and #635 in July, 1962.

***** Both featured a high, short hood.  Became Union Pacific #634 and #636 in July, 1962.

****** All built with a low nose.  Acquired by the St. Louis-San Francisco Railway (Frisco) in July, 1963 becoming #812-815.

Sources:

  • Foster, Gerald. A Field Guide To Trains. New York: Houghton Mifflin, 1996.

  • Marre, Louis A. Diesel Locomotives: The First 50 Years, A Guide To Diesels Built Before 1972.  Milwaukee: Kalmbach Publishing Company, 1995.

  • McDonnell, Greg. U-boats.  Toronto: Stoddart Publishing, 1994.

  • Pinkepank, Jerry A. Diesel Spotter's Guide.  Milwaukee: Kalmbach Publishing Company, 1967.

  • Solomon, Brian. GE Locomotives: 110 Years Of General Electric Motive Power. St. Paul: MBI Publishing, 2003.

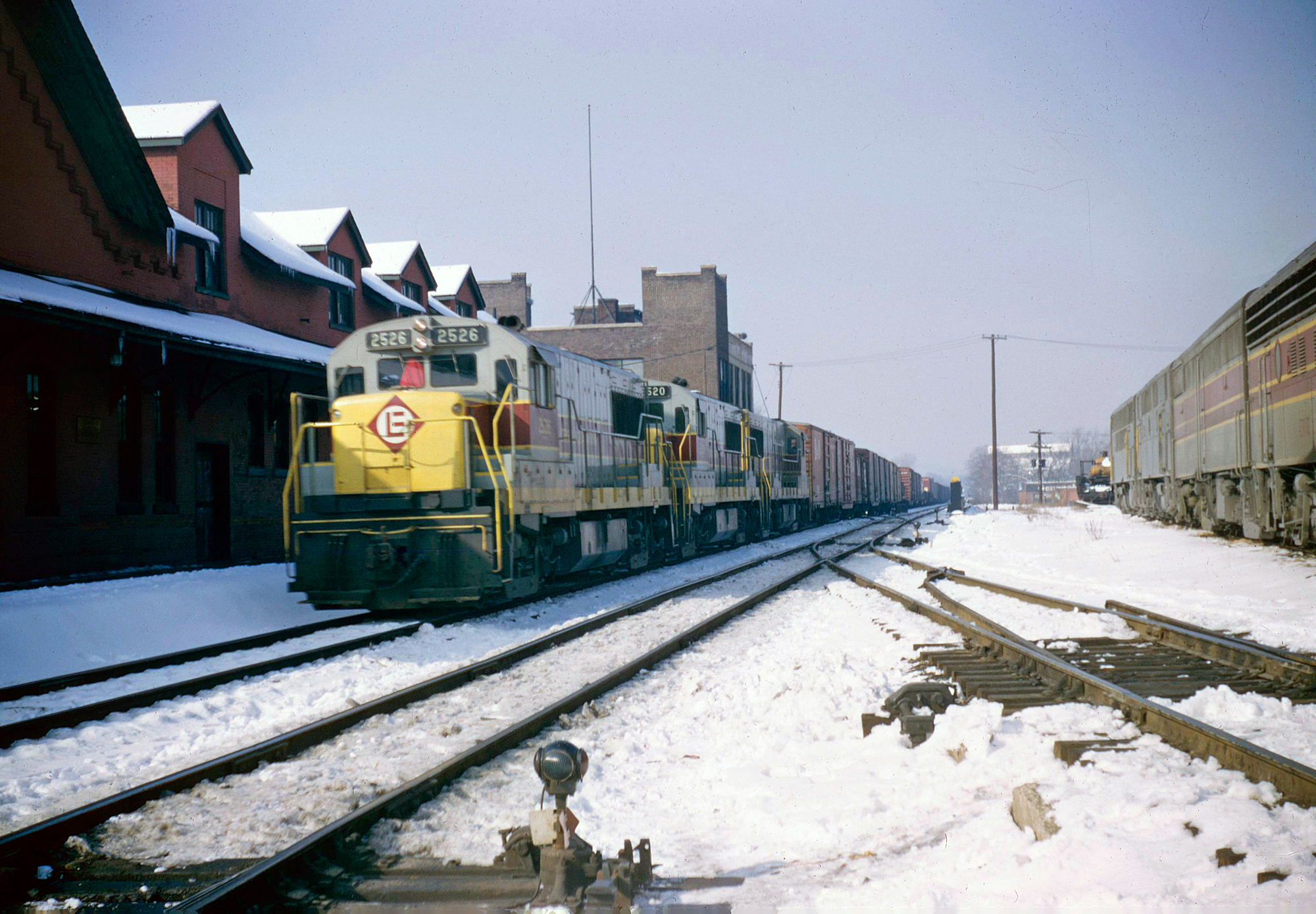

A trio of Erie Lackawanna U25B's, led by #2526, lead a general manifest east through Binghamton, New York during February of 1966. Author's collection.

When production had ended, GE had built some 478 U25B's (including the two initial demonstrators which never sold).  While sales were not jaw-dropping they were nevertheless solid for an entry-level model.

The U25B propelled GE into the locomotive market and future U-boat models continued to witness strong sales.

For Alco, of course, the U25B marked the beginning of the end. GE had done its homework and ever reactionary, Alco soon slipped into third place.  It exited the market altogether in 1969.

Today, at least seven GE U25Bs remain preserved around the country; Louisville & Nashville #1616, Milwaukee Road #387-388, New Haven #2525, New York Central #2500 and #2510, and Southern Pacific #7508.
