Alco "C-424" Locomotives

The Alco C424 was the manufacturer's second B-B, four-axle road switcher in the series debuting in 1963 along with its sister model, the C420.

While sales were modest for the C424, it proved to be the American Locomotive Company's (Alco) best selling Century design offering comparable horsepower, was reliable, and could out pull anything in its class (a hallmark the builder was now quite well known for).

While the less powerful C420 design featured an exterior carbody more similar to late Road Switcher (RS) series, the C424 employed a setup that was first used on the RS27 and which Centuries in general are now classically remembered.

Today, the ruggedness and reliability of these locomotives continues to show through as numerous examples of the C424 not only remained preserved but also are still used in freight service across the country.

Some locations where they can still be found hauling freight include the Western New York & Pennsylvania, Morristown & Erie, Buffalo Southern, and the Bath & Hammondsport Railroad.

One of Canadian National's C424's sits on the fuel rack at Winnipeg, Manitoba in October, 1971. Roger Puta photo.

On the Belt Railway of Chicago the locomotives became a railfan favorite.  The terminal road used its small fleet of six (#600-605) from the time they were purchased new from Alco in 1965-1966 until the early 2000's.

The Alco C424 (listed by the builder as its DL640A) began production in 1963 as a replacement for its RS27 line, which had stopped production a year earlier and sold poorly at just 27 units.

Very similar to the RS27 the C424 offered the same horsepower (2,400) and prime mover, Alco's 251B model. The design also closely resembled the RS27 with a flush, long hood and very short front, low hood (giving the unit a somewhat "stubby" appearance).

Alco did away with the notched corners on the C424's carbody, instead giving the nose a simple rounded look and the trailing long hood a raised edge for the number boards. Once again, Alco returned to General Electric for internal components such as traction motors and generators.

Other Century Models

C-415

C-420

C-425

C-430

C-628

C-630

C-636

C-643DH Diesel-Hydraulic

C-855

Fortunately the C424 sold better than its predecessor as a number of Class I railroads around the country picked up the model.

Additionally, smaller lines also purchased the design including Alco loyalists Green Bay & Western and Erie Mining while the Toledo, Peoria & Western also picked up a few units.

Unfortunately, while Alco sold nearly 200 C424s, 99 were built by the Montreal Locomotive Works for the Canadian Pacific, Canadian National, and Mexican line National de Mexico purchased another 45.

In general, most of the roads that bought the Alco C424 were returning customers, as the company could simply no longer attract new buyers and interest (which was mostly due to the fact that Alco still had a reputation for reliability issues despite having mostly corrected this problem years before).

Production ended on the model in early 1967 and despite the slow sales numbers (in comparison to models being produced by EMD who was selling thousands of GP35s and GP38s) the lines that purchased the C424 were generally quite happy with the models.

The Belt Railway of Chicago utilized C424's from the time they purchased new (1965) until the early 2000's. Here, #602 and #604 layover at Clearing Yard in July, 1986. Roger Puta photo.

For instance, the Reading used theirs in regular freight service until Conrail's creation in the spring of 1976 and the Green Bay & Western and Belt Railway of Chicago both employed theirs for decades before retirement or selling the units.

Canada's largest railroads, Canadian National and Canadian Pacific, both maintained sizable fleets of C424's (all manufactured by Alco's northern arm, the Montreal Locomotive Works). Here, CP Rail C424 #4239 lays over at Ste. Luc Yard in Montreal, Quebec on March 22, 1970. Roger Puta photo.

Additionally, the Canadian Pacific was still finding uses for their MLW M424s in the early 1990s. Today, along with preserved C424s you can still find them being used in freight service on short lines like the Apache Railway and Livonia, Avon & Lakeville.

Unfortunately, the future of those in service on the Arkansas & Missouri is in doubt as the railroad announced in July of 2013 it would be retiring much of its fleet by September after it had purchased three new SD70ACes from EMD.

Alco C424 Data Sheet

Entered Production5/1963 (Erie Lackawanna #2401)
Years Produced5/1963-5/16/1966
Model SpecificationDL640A
Engine251B, V-16
Horsepower2,400
RPM1,025
Carbody StylingAlco
Length (Between Coupler Pulling Faces)59' 4" (Originally 58' 10")
Weight260,000 Lbs.
Dynamic BrakesOptional
TrucksB-B
Truck TypeSwing Bolster, Drop-Side Equalizer (AAR Type-B)
Truck Wheelbase9' 4"
Wheel Size40"
Traction MotorsGE 752 (4)
Traction GeneratorGT581
Steam Generator-
Gear Ratio65:18
Tractive Effort Rating64,200 Lbs.
Top Speed75 MPH

Alco C424 Production Roster

Owner Road Number(s) Quantity Date Built
Belt Railway Of Chicago600-60561965-1966
Canadian National3200-324041 (MLW)1964-1967
Canadian Pacific8300-8332, 4233-425051 (MLW)1963-1966
Erie Lackawanna2401-2415151963
Erie Mining50011964

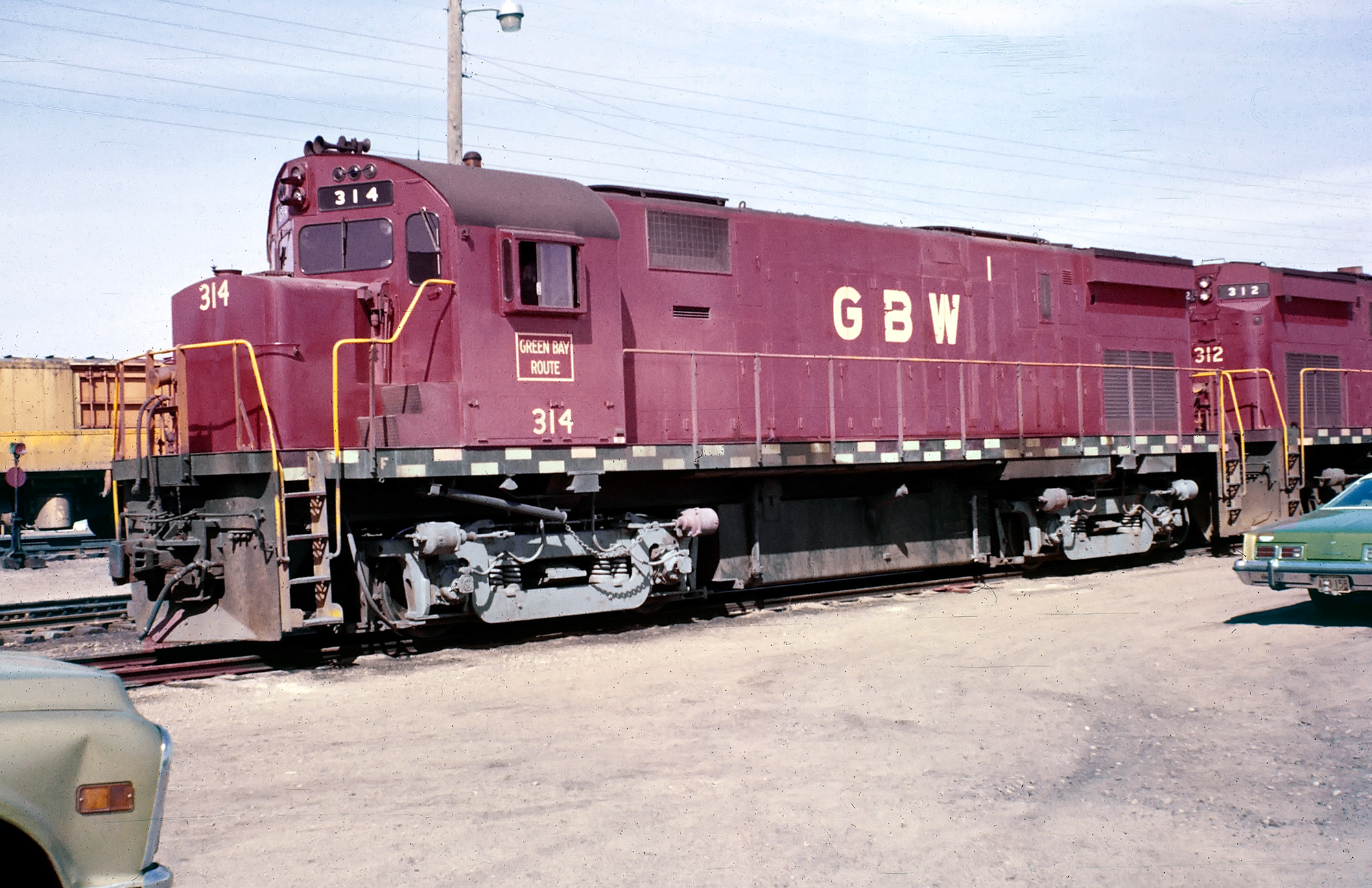

Green Bay & Western311-31441963-1965
Ferrocarril Nacional de México (NdeM)8100-8144451964-1965
Pennsylvania241511963

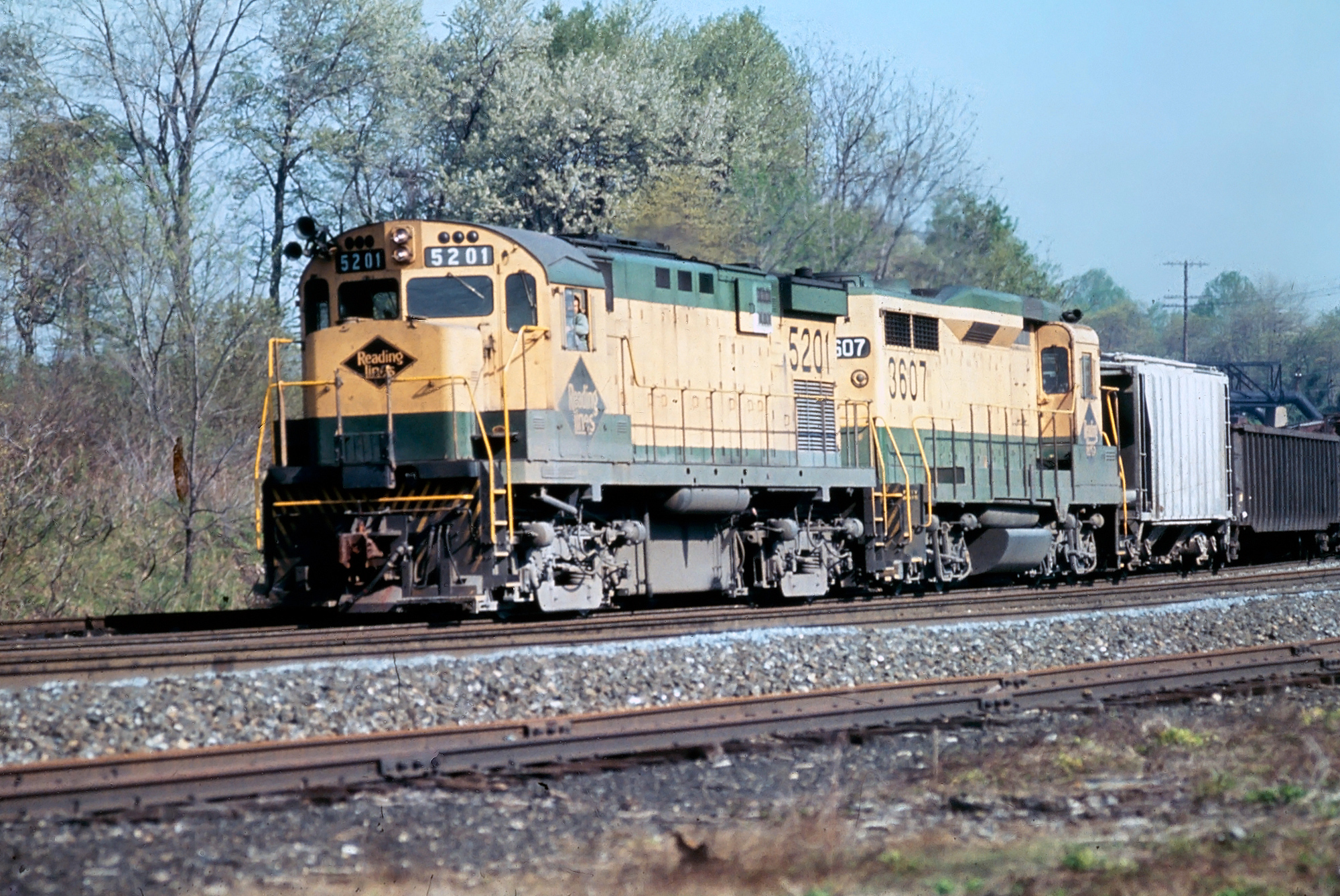

Reading5201-5210101963
Spokane, Portland & Seattle300-30671964
Toledo, Peoria & Western800-80121964
Wabash*B900-B90671964

* The Wabash Railroad's seven C424's, #B900-B906, were originally ordered for the Ferrocarril Nacional de México (NdeM) and expected to become #8000-8006 (construction numbers 3372-1 thru 3372-7).

However, through a lease-purchase contract they were sent to the Wabash and eventually became Norfolk & Western #3900-3906.  Afterwards, NdeM acquired seven additional C424's, construction numbers S-3380-1 thru S-3380-7 (#8100-8106).

By this time Alco's construction numbering system had changed from a five-digit number (in sequential order of completion) to a Sales Number along with however many locomotives a customer ordered.

Montreal Locomotive Works (MLW) C424 Production Roster

Owner Road Number(s) Construction Number(s) Completion Date
Canadian Pacific8300844134/1963
Canadian National3200-320184837-8483812/1964
Canadian Pacific4200-423284839-848703/1965-8/1965
Canadian Pacific4233-42503436-01 thru 3436-1812/1965-3/1966
Canadian National3202-32053443-01 thru 3443-043/1966-5/1966
Canadian National3206-32213444-01 thru 3443-165/1966-8/1966
Canadian National3222-32283477-01 thru 3477-071/1967-2/1967
Canadian National3229-32403478-01 thru 3478-122/1967-5/1967

Sources:

  • Foster, Gerald. A Field Guide To Trains. New York: Houghton Mifflin, 1996.

  • Kirkland, John F. Diesel Builders, The:  Volume Two, American Locomotive Company And Montreal Locomotive Works. Glendale: Interurban Press, 1989.

  • Pinkepank, Jerry A. Diesel Spotter's Guide.  Milwaukee: Kalmbach Publishing Company, 1967.

  • Solomon, Brian. Alco Locomotives. Minneapolis: Voyageur Press, 2009.


A nice, side-profile view of Green Bay & Western C424 #313 at Norwood Yard in Green Bay, Wisconsin during the spring of 1979. Doug Kroll photo.

Interestingly, it should be noted that during the 1960s General Electric was not selling considerably more locomotives than Alco.

Practically from the start of the diesel locomotive era in the late 1930s, through the early 1980s, EMD was a juggernaut, producing a seemingly endless array of reliable and proficient diesel models during this time, which left little room for the competition.
