GE "B36-7" Locomotives

The B36-7 was General Electric's most powerful four-axle "Dash 7" model.  It, along with the earlier B30-7, was designed for high-speed freight service over relatively level grades where high tractive effort was unnecessary.

By the time the model was cataloged, railroads had largely lost interest in such designs, citing increased maintenance costs associated with high horsepower designs.

Interestingly, General Electric continued to offer four-axle designs as late as 1990 with its B40-8W, part of its later "Dash 8" series.

The B36-7 was the final four-axle model to feature the Universal series, boxy carbody with a short nose and light beveling.

The later "Dash 8" series featured sharper lines and angles, a higher short nose, a more pronounced sharp "winged" radiator, and the first variants of General Electric's "wide cabs."

While the B36-7 had the fewest sales of the "Dash 7" line, ex-Seaboard units remained in use on CSX until late 2009. Today, all "Dash 7s" have been retired from Class I rosters.

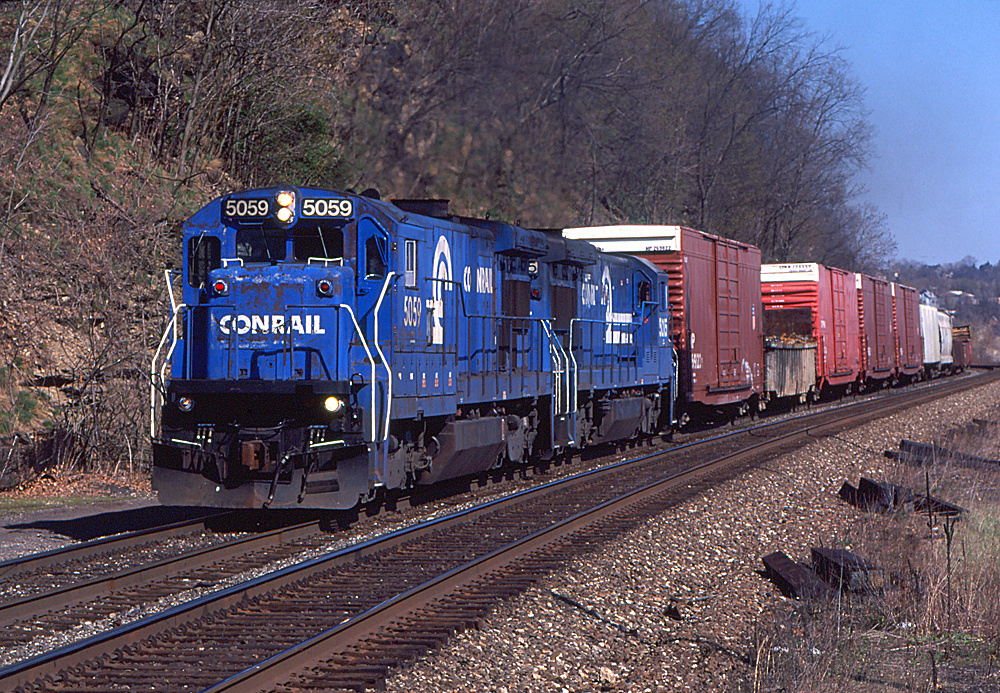

A pair of Conrail's aging B36-7's lead freight WICE-11 through Emsworth, Pennsylvania on April 20, 1997. Wade Massie photo.


B36-7 History And Background

As Greg McDonnell notes in his book, "Locomotives: The Modern Diesel & Electric Reference, 2nd Edition," the B36-7 was a direct successor to the earlier B30-7.

And typical of GE practice, it was not given much fanfare.  The first units were actually a group of upgraded B30-7's, St. Louis Southwestern Railway (Cotton Belt) #7770-7773, which rolled out of Erie in January of 1980.

These units were actually part of a larger batch of B30-7s Southern Pacific's subsidiary had ordered that year numbered 7774-7799.

They came equipped with a number of new GE gadgets including the builder's latest traction motors (752AF), GTA24 alternators, and the Sentry adhesion-control system.

The Southern Pacific was pleased with these testbed examples and the new model entered GE's catalog.  The first buyer was the Santa Fe, which picked up 16 examples in October and November, 1980.

Santa Fe B36-7 #7499 and other power lead trailers and other freight between the sidings of Becker and Sais, New Mexico on the "Transcon" main line in August, 1983. Roger Puta photo.

The B36-7 did not enjoy strong sales, outshopping roughly half as many units as the earlier B30-7.  In fact, the Seaboard System, alone, accounted for over half of all orders, acquiring 120 examples.

While both GE and EMD continued offering high horsepower, four axle models into the mid-1980s, most of the industry had given up on the design by that time.

Their lower tractive efforts made them undesirable in drag service and their six-motored counterparts could still handle freights at relatively high speeds when needed.

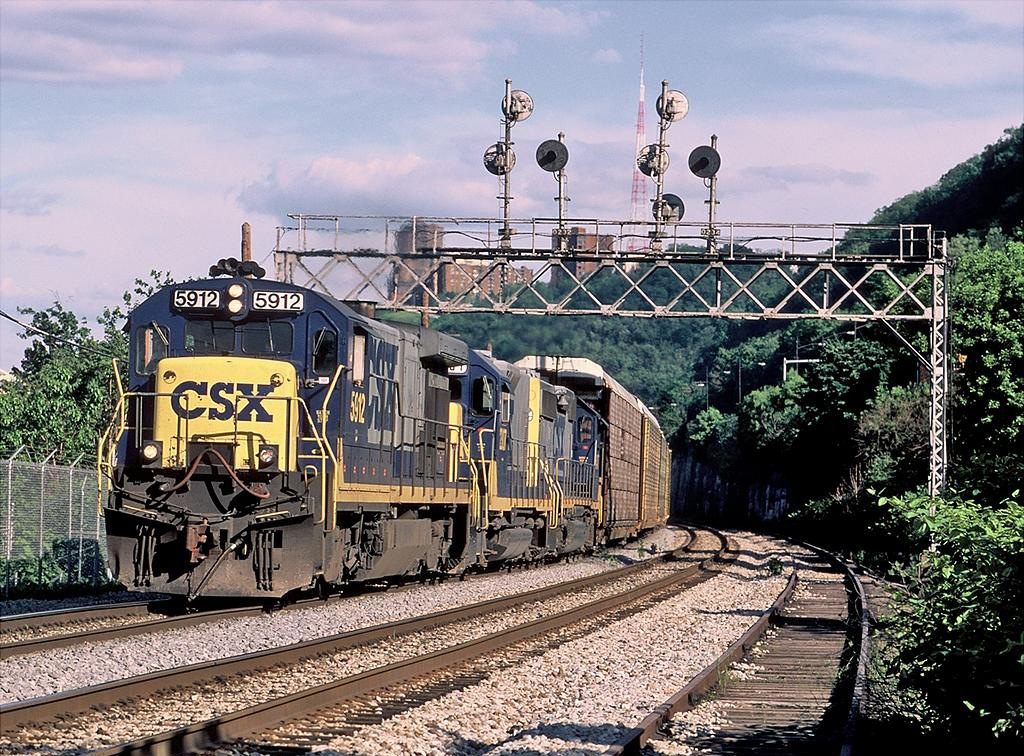

CSX B36-7 #5912 leads freight Q249 westbound along the Pittsburgh Subdivision as it rolls under a signal bridge near the Steel City on the late afternoon of June 8, 1997. Wade Massie photo.

From the railroads' standpoint, four-axle models lacked redundancy in addition to featuring higher maintenance costs typical of high horsepower locomotives.

The introduction of the "Dash 7" line brought with it new designations and meanings.  In regards to the B36-7:

  • "B" referred to a four-axle (B-B) locomotive.

  • "36" designated the horsepower rating of 3,600.

  • "7" indicated that the "Dash 7" line was introduced in 1977.

As always, the model came equipped with GE's 4-cycle model 7FDL16 prime mover utilizing the company's very reliable, and latest, 752AF traction motors. The locomotive could produce 70,000 pounds of starting effort and 63,250 pounds of continuous effort at 10.7 mph.

By the 1980s GE had a steady following by some, such as Conrail and Seaboard, the latter of which purchased the most.

Additionally, the Cerrejon Coal Project of Columbia acquired eight units. In all, General Electric sold some 230 examples by the time production was ended in September, 1985.

Despite sales being slow some B36-7's soldiered on in active revenue service for many years with the final units being retired from CSX in the late fall of 2009.


B36-7 Data Sheet

Entered Production1/1980 (St. Louis Southwestern #7770-7773)
Years Produced1/1980 - 9/1985
GE ClassB36-7
Engine7FDL16 (16 cylinder)
Engine BuilderGeneral Electric
Horsepower3600
RPM1050
Length62' 2"
Height (Top Of Rail To Top Of Cab)15' 4 1/2"
Width9' 11"
Weight259,000 - 280,000 Lbs
Fuel Capacity2,150 Gallons
Air Compressor3CDC (Westinghouse)
Air Brake Schedule26NL (Westinghouse)
TrucksB-B
Truck TypeFloating Bolster FB2 (GE)
Truck Wheelbase9' 0"
Wheel Size40"
Traction Motors752AF (4), GE
Traction AlternatorGTA24AC, GE
Auxiliary GeneratorGY27, GE
MU (Multiple-Unit)Yes
Dynamic BrakesYes
Gear Ratio83:20
Tractive Effort/Starting70,000 Lbs
Tractive Effort/Continuous63,250 Lbs at 10.7 mph
Top Speed70 mph


B36-7 Production Roster (Total = 230)

Owner Road Number Serial Number Order Number Completion Date Quantity
St. Louis Southwestern Railway (Southern Pacific)7770-777342784-4278714411/19804
Santa Fe7484-749943130-43145144710/1980-11/198016
Southern Railway3815-382043156-4316114313/19816
Exxon - Columbia1001-100443294-4329714418/19834
Exxon - Columbia1005-100843787-4379014029/19844
Southern Pacific7754-776943791-43806140311/1984-12/198416
Conrail5000-504844251-44299144312/198349
Conrail5049-505944400-44410144312/198311
Seaboard System5806-588044809-4488314052/1985-6/198575
Seaboard System5881-592544970-4501414067/1985-9/198545

Sources:

  • Foster, Gerald. A Field Guide To Trains. New York: Houghton Mifflin, 1996.

  • Marre, Louis A. and Pinkepank, Jerry A. Contemporary Diesel Spotter's Guide, The: A Comprehensive Reference Manual To Locomotives Since 1972.  Milwaukee: Kalmbach Publishing Company, 1989.

  • McDonnell, Greg. Locomotives: The Modern Diesel & Electric Reference, 2nd Edition. Buffalo: Boston Mills Press/Firefly Books, 2015.

  • Solomon, Brian. American Diesel Locomotive, The. Osceola: MBI Publishing, 2000.

  • Solomon, Brian.  GE and EMD Locomotives:  The Illustrated History.  Minneapolis:  Voyageur Press, 2014.

  • Solomon, Brian. GE Locomotives: 110 Years Of General Electric Motive Power. St. Paul: MBI Publishing, 2003.

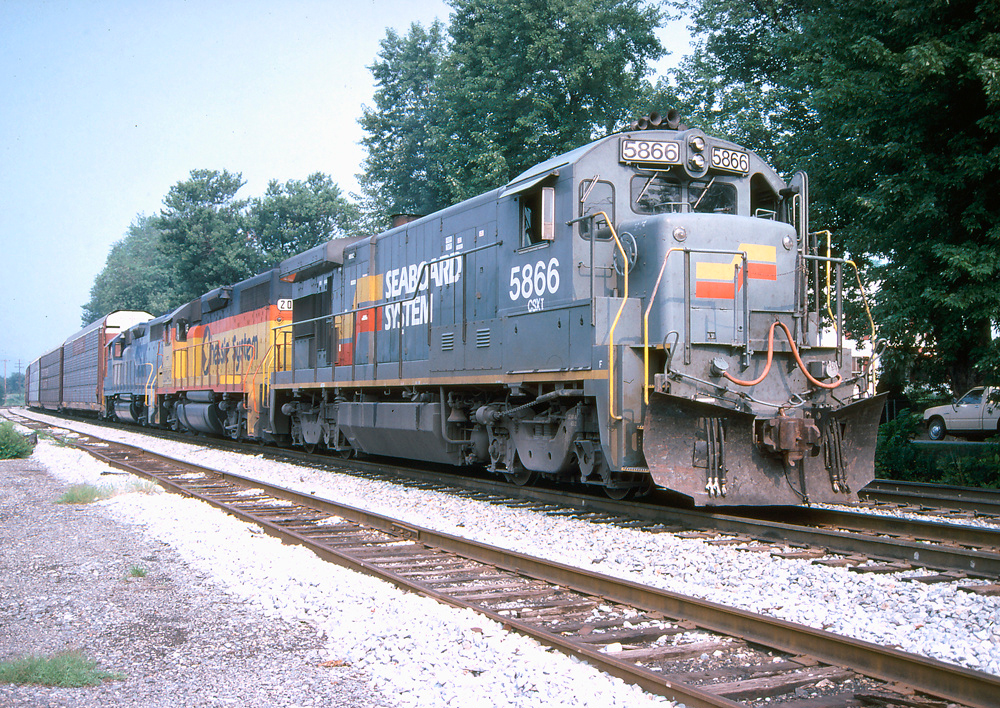

A Seaboard B36-7, now patched for CSX, leads an autorack train through Brunswick, Maryland on August 11, 1988. Wade Massie photo.

Earlier, Conrail's original fleet of B36-7s were put out to pasture between 2000 and 2001. For GE and EMD, realized by the 1980s that interest in four-axle, high-horsepower locomotives had all but evaporated.

It did catalog the B32-8/W, B36-8, B39-8, and B40-8/W in the mid/late-1980s but, in total, these models sold a combined 400+ examples.

Not even Electro-Motive could sway railroads to acquire its final four-axle models; the GP50, GP59, and GP60 sold slightly better at a little over 700 examples.
