GE "B39-8" and "B39-8E" Locomotives

The B39-8 was born as one of General Electric's "Dash 8" prototype models.  The new line featured the latest in GE advancements, most notably in the area of microprocessors.

The B39-8 was a high horsepower, four-axle road-switcher that initially saw three units manufactured in 1984.  This set tested on the Santa Fe and while painted in AT&SF colors were wholly-owned GE products.

At the time, GE was carrying out trials of four different pre-production "Dash 8" locomotives on four different railroads; all were built in a variety of horsepower ratings and axle settings.

Most railroads were pleased enough with the results they wound up purchasing the prototypes.  For General Electric, the testbeds became known as "Classics" while their cataloged variants were referred to as "Enhanced" Dash 8s.

While there were some differences between the two, most were external in nature and included a cab flush with the roofline (the prototypes featured Standard Cabs slightly lower than the roofline), angled radiator vents, and an overall more symmetric appearance.

In the end, GE did sell a few B39-8s to Southern Pacific.  In addition, its own lease fleet saw more than 100 B39-8Es completed, which were used extensively by Class I carriers.

A pair of LMX B39-8E's, #8593 and #8523, were photographed here in Cheyenne, Wyoming on June 17, 1990. Vincent Porreca photo. Author's collection.


B39-8 History And Background

The Dash 8 series changed the game for General Electric as the builder pulled ahead of Electro-Motive permanently thanks to innovative technological developments in the area of microprocessors.

The use of computers was a turning point in locomotive development as maintenance was reduced and motive power could remain in service for longer periods.  EMD was struggling in this arena with its latest SD50 series, which was initially plagued with microprocessor issues.

As production ramped up, GE began selling hundreds in Dash 8 line, and then thousands in the later Dash 9 series of the 1990s.  The Dash 8 continued the model designations from the earlier Dash 7 line. In regards to the B39-8E:

  • "B" referred to a four-axle (B-B) locomotive.

  • "39" designated the horsepower rating of 3,900.

  • "8" indicated that the "Dash 8" line was introduced in 1982.

  • "E" designated "Enhanced."

The original B39-8s included a series of three units completed for the Santa Fe in 1984, #7400-7402.  These locomotives were part of a larger group GE was testing in a variety of a horsepower ratings and axle settings.

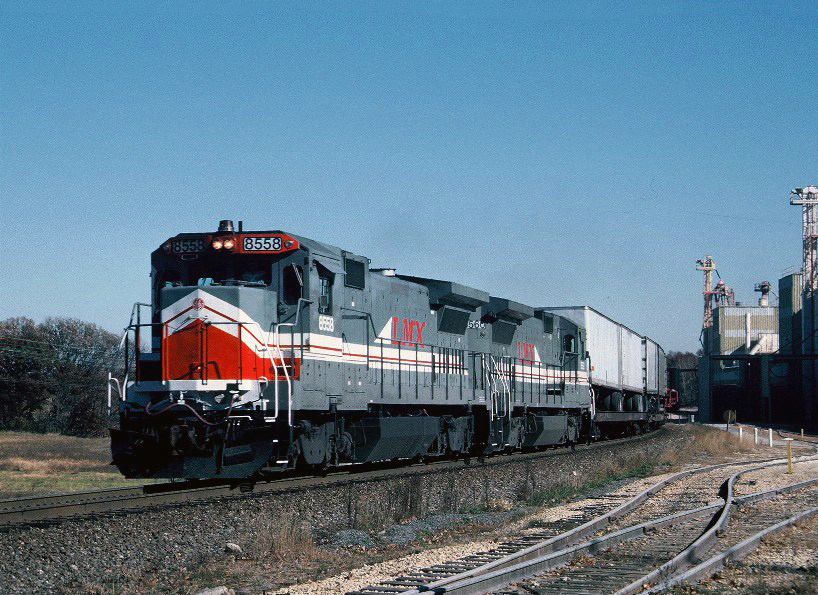

General Electric's LMX Leasing division included the largest fleet of B39-8's (102). Here, a pair of B39-8E's are westbound on the Burlington Northern (former Chicago, Burlington & Quincy) just west of Oregon, Illinois on October 21, 1989. Brian Rackley photo.

Other railroads to operate versions of these prototypes included the Burlington Northern (B32-8), Conrail (C32-8), and Norfolk Southern (C39-8).

What General Electric later dubbed "Classic" Dash 8s the locomotives were very similar to their cataloged counterparts but lacked the refinements incorporated after road testing was complete.

While the "Classics" featured a "bulge" behind the cab (housing dynamic brakes and the equipment blower), Dash 7-style winged rear radiator with flush vents, and a cab that sat slightly below the roofline, production Dash 8s were different.

LMX B39-8E #8560 was photographed here at Longmont, Colorado operating on the Burlington Northern on September 11, 1993 Vincent Porreca photo. Author's collection.

GE dubbed the cataloged variants as "Enhanced" Dash 8s (i.e., B39-8E) and these featured a cab flush with the roofline, lower nose, equipment blower and dynamic brakes that seamlessly melded into the carbody, and angled radiator vents.

Finally, the classic "notch" present on the Dash 7s was gone.  This feature, located just ahead of the exhaust stack to the radiator cab, was needed then to house the relocated oil cooler.

It was an easy spotting feature over the earlier U-boats.  GE was able to eliminate this slight bulge in the "Enhanced" Dash 8 locomotives.  For instance, note the LMX B39-8s featured on this page, which no longer have the notch present.

LMX Leasing B39-8E #8504 leads trailers through Milledgeville, Illinois on the Burlington Northern on April 30, 1988. Brian Rackley photo.

During the 1980s General Electric was still producing locomotives with its Standard Cab; this included the B39-8 and B39-8E.  However, the company was also working on its now-common North American Safety Cab design.

The wide cab eventually became FRA-mandated in the name of safety, but during the 1980s was only a new feature being incorporated into locomotive designs.

The first GE unit to feature the cab was testbed #606 (later renumbered 808 in 1986 when the locomotive was upgraded to 3,900 horsepower).


B39-8 And B39-8E Data Sheet

Entered Production1/1984 (Santa Fe/GE #7400)
Years Produced1/1984 - 4/1988
GE ClassB39-8, B39-8E
Engine7FDL16 (16 cylinder)
Engine BuilderGeneral Electric
Horsepower3900
RPM1050
Length66' 4"
Height (Top Of Rail To Top Of Cab)15' 4 1/2"
Width9' 11"
Weight274,000 - 280,000 Lbs
Fuel Capacity3,150 Gallons
Air Compressor3CDC (Westinghouse)
Air Brake Schedule26L (Westinghouse)
TrucksB-B
Truck TypeFloating Bolster FB2 (GE)
Truck Wheelbase9' 0"
Wheel Size40"
Traction Motors752AG (4), GE
Traction AlternatorGMG186, GE
Auxiliary GeneratorGY27, GE
MU (Multiple-Unit)Yes
Dynamic BrakesYes
Gear Ratio83:20
Tractive Effort/Starting70,000 Lbs
Tractive Effort/Continuous68,000 Lbs at 18.3 mph
Top Speed70 mph


B39-8 Production Roster

Owner Road Number Serial Number Order Number Completion Date Quantity
Santa Fe74004314813101/19841
Santa Fe7401-740244493-4449413209/19842
Southern Pacific8000-803945509-4554814118/1987-9/198740

B39-8E Production Roster

Owner Road Number Serial Number Order Number Completion Date Quantity
General Electric (Demonstrator)808429991301-11/19841
General Electric Leasing (LMX)8500-859945409-45508141010/1987-4/1988100
General Electric Leasing (LMX)8503 (2nd), 8540 (2nd)45654-4565514104/19882

Sources:

  • Foster, Gerald. A Field Guide To Trains. New York: Houghton Mifflin, 1996.

  • Marre, Louis A. and Pinkepank, Jerry A. Contemporary Diesel Spotter's Guide, The: A Comprehensive Reference Manual To Locomotives Since 1972.  Milwaukee: Kalmbach Publishing Company, 1989.

  • McDonnell, Greg. Locomotives: The Modern Diesel & Electric Reference, 2nd Edition. Buffalo: Boston Mills Press/Firefly Books, 2015.

  • Solomon, Brian. American Diesel Locomotive, The. Osceola: MBI Publishing, 2000.

  • Solomon, Brian.  GE and EMD Locomotives:  The Illustrated History.  Minneapolis:  Voyageur Press, 2014.

  • Solomon, Brian. GE Locomotives: 110 Years Of General Electric Motive Power. St. Paul: MBI Publishing, 2003.


LMX Leasing B39-8E #8542 runs the Burlington Northern (ex-Chicago, Burlington & Quincy) as it hustles trailers eastbound west of Flag Center, Illinois on the morning of February 27, 1988. Note the fuel tender behind the locomotive, a BN trademark of that era. Brian Rackley photo.

This original design appeared quite different from the common version found in later Dash 8 models (and future Dash 9s).  It featured three small front windshields and was less angled than the two-piece, rectangular windshields that became common GE trademarks.

The LMX B39-8Es were a ubiquitous sight all across the country.  They were maintained at the former Chicago, Burlington & Quincy shops in Lincoln, Nebraska and often found in service on Burlington Northern.

Today, many of these B-39Es remain in use at various short lines and industrial settings throughout the country; some still even wear their original "LMX" grey and red livery.
