NYC 4-6-4 #5344, "Commodore Vanderbilt"

Published: July 31, 2025

With the Chicago, Burlington & Quincy and Union Pacific debuting the streamliner concept in early 1934 the new concept quickly caught on across the industry as a way to lure travelers back to the rails following the economic downturn.

The New York Central wasted no time entering the fray itself and quickly set about debuting its own sleek trainset, launching the home-built Mercury in 1936 between Detroit and Cleveland.

However, even prior to this the railroad dabbled in streamlining one of its locomotives. The "Commodore Vanderbilt," one its 4-6-4s, is credited as America's first streamlined steam locomotive, debuting on December 27, 1934.

It initially led the 20th Century Limited and in 1939 was streamlined again as a "Dreyfuss Hudson." It was unceremoniously scrapped at Collinwood, Ohio in 1954 (by then having lost most of its streamlined shrouding).

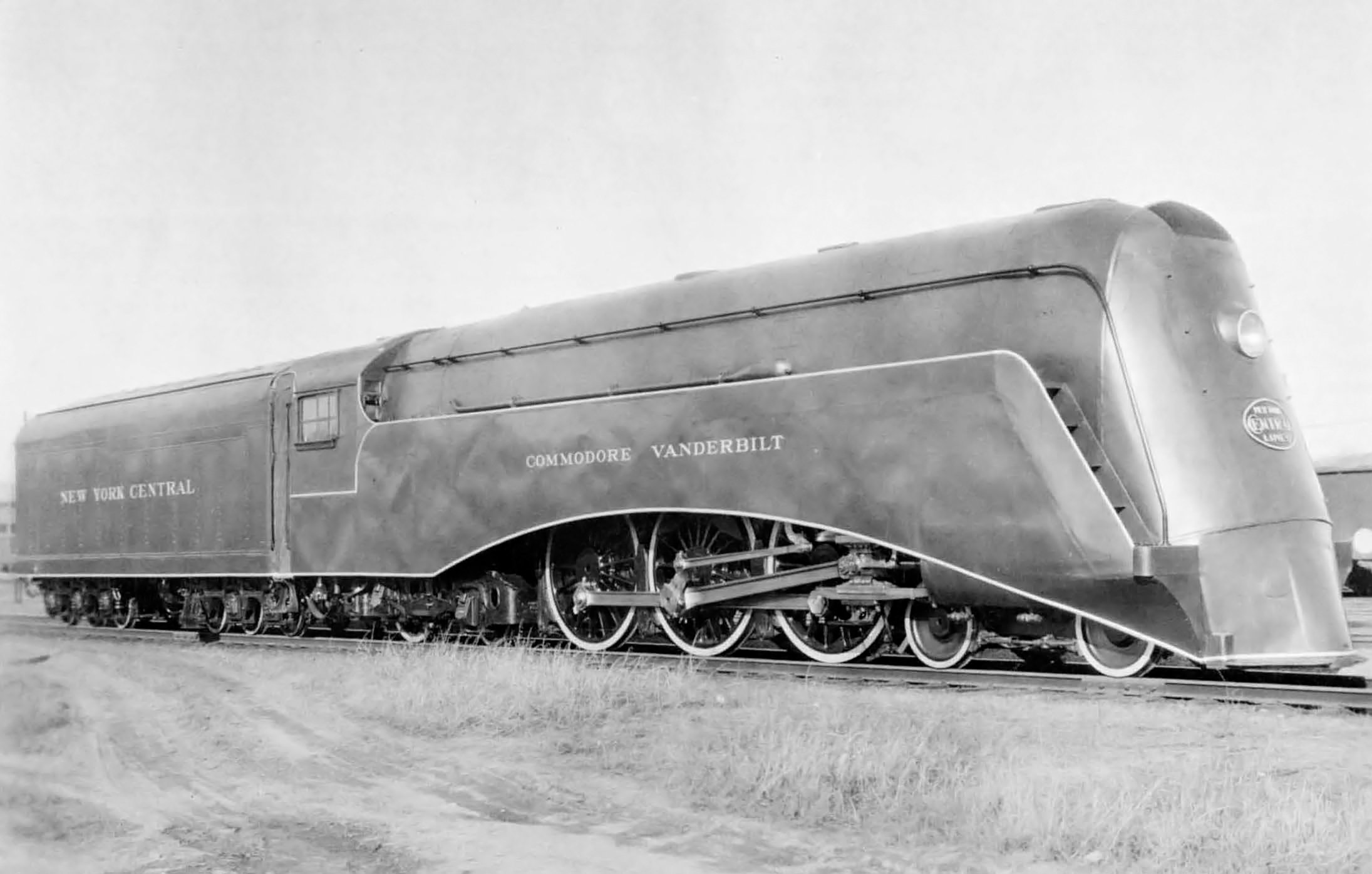

Seen here is a publicity photo of New York Central's recently rebuilt 4-6-4 #5344 (J-1e) named the "Commodore Vanderbilt."

In the 1930s, streamlining was seen as the future, and New York Central took the lead in designing its own sleek steam locomotive. At the time the thought went beyond just visual appeal as there was a strong belief streamlining would also improve operational efficiency. During wind tunnel tests streamlined shrouds were found to do just that by cutting wind drag by over 90%.

By December 1934, NYC had applied streamlined, wind-resistant shrouds to J-1 Hudson No. 5344, based on a design attributed to Carl F. Kantola, an engineer from their Equipment Design Department. While not the first streamlined train, this was America's first streamlined steam locomotive.

Called "Commodore Vanderbilt," it had a design reminiscent of an upside-down bathtub and was used to power Central's premier train, the 20th Century Limited. Although streamlined steam locomotives gained popularity in the 1930s and 1940s, the "Commodore's" shrouding was short-lived due to high maintenance costs caused by sheet metal covering most of the locomotive’s machinery, negating the performance benefits.

Data Sheet

Class	J1a-J1e	J1e #5344 (1939)
Road Number(s)	5200-5404	5344
Builder	Alco	NYC
Year	1927	1939
Valve Gear	Baker	Baker
Driver Wheelbase	14' 0"	14' 0"
Engine Wheelbase	40' 4"	40' 4"
Overall Wheelbase	83' 7 ½"	83' 7 ½"
Weight on Drivers	189,000 Lbs	201,000 Lbs
Engine Weight	359,800 Lbs	370,000
Tender Weight (Loaded)	316,400 Lbs	304,400 Lbs
Total Engine and Tender Weight	676,200 Lbs	674,400 Lbs
Tender Water Capacity (Gallons)	12,500	14,000
Tender Fuel Capacity (Coal/Tons)	24	28
Minimum Weight of Rail	105 Lbs	112 Lbs
Driver Diameter	79"	79"
Boiler Pressure (psi)	225	250
High Pressure Cylinders (diameter x stroke)	25" x 28"	23 ¾" x 28"
Tractive Effort	42,366 Lbs	42,483 Lbs
Booster	10,900 Lbs	10,900 Lbs
Factor of Adhesion	4.46	4.73

New York Central 4-6-4 #5344 (Class J-1e), named the "Commodore Vanderbilt," departs Chicago's LaSalle Street Station with the flagship "20th Century Limited", circa 1934. Photographer unknown.

Later, NYC 5344 received more visually appealing shrouds, making it one of the few steam locomotives to have two different streamlining treatments.

In 1935, following her brief stint leading the 20th Century, it lead the Commodore Vanderbilt after being outfitted with the infamous streamlined casing, humorously dubbed the "upside down bathtub." Carl Kantola, who masterminded the CV's design, shared that wind tunnel experiments pointed to a significant 30% reduction in head-end drag at speeds between 60-80 mph.

5344 was a trailblazer in other aspects too. In September 1935, she transitioned to solid driving wheel centers. This upgrade coincided with the addition of Timken roller-bearing main and side rods, as well as lightweight reciprocating parts, marking their debut on the New York Central. The engine's valve motion was recalibrated for a limited cutoff with 14-inch piston valves. Kantola further mentioned that in 1938, 5344 received a fresh streamline visage reminiscent of Dreyfus's style.

Subsequently, New York Central adopted other streamlining designs that were both visually appealing and easier to maintain for their fast passenger locomotives.
