Alco's "RSD-7": An Unsuccessful, 2250 HP Model

Last revised: July 20, 2024

By: Adam Burns

The RSD7, a remarkably robust six-axle locomotive, represented a significant advancement in the company's catalog, surpassing any previous model produced by the company. Notably, it was not conceived to rival Electro-Motive, then the unquestioned leader in the industry.

Rather, the focus was decidedly set on competing against Fairbanks Morse's acclaimed H24-66 "Train Master," a powerhouse in the locomotive market renowned for its exceptional force. Yet, this strategic decision would contribute to Alco's downfall, as the builder fell short in anticipating the market's evolving demands.

Ironically, the company bears the distinction of pioneering the invention of the road-switcher - an innovation that remains central to the industry's primary road power today. Regrettably, the management overlooked the potential of this landmark achievement for fostering enduring success.

During the RSD7's developmental phase, railroads were yet to embrace six-axle diesels, let alone high horsepower models. Consequently, the novel design added to the growing series of challenges confronted by the American Locomotive Company (Alco), underlining a concerning trend for the organization.

Unhappily, the limited production run of the RSD7, which numbered just 29 examples, has meant that none were preserved. This unfortunate reality marks a poignant moment in the ever-evolving narrative of locomotive history.

Photos

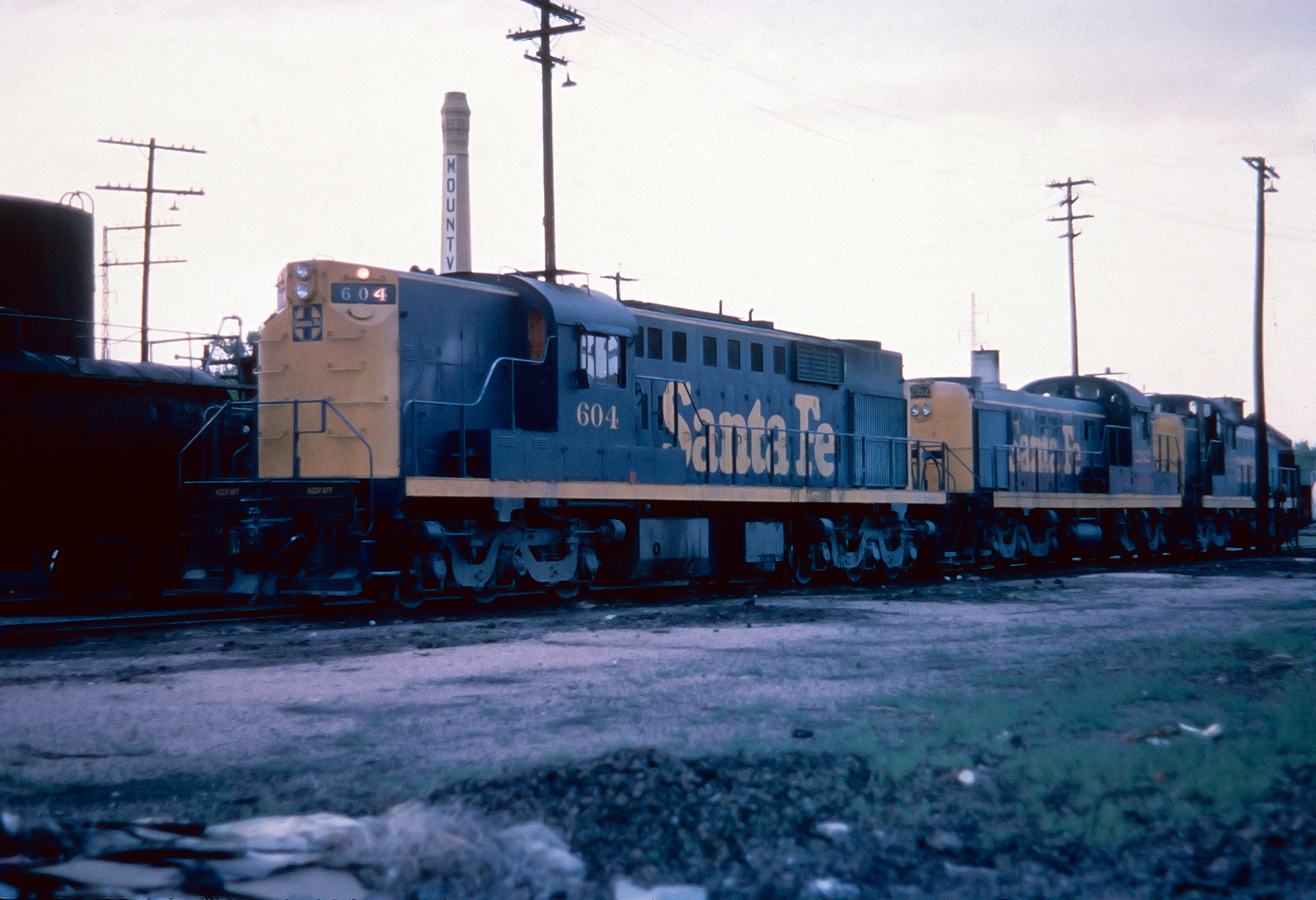

o2091285176253727829867192808028078.jpgSanta Fe RSD7 #604 and a pair of RSD5's (including #2162) layover at Colorado & Southern's Rice Yard in Denver, Colorado, circa 1962. American-Rails.com collection.

Overview

The Fairbanks Morse Company dated back to the 1830s and became highly regarded in later years for its durable marine diesel engines.

However, in the mid-1940s it decided to enter the highly competitive diesel locomotive market, making a name for itself via its opposed-piston prime movers. Interestingly, when FM decided to release the H24-66 model it had been building locomotives for less than 10 years.

The design was nearly a decade ahead of itself as high horsepower, six-axle locomotives had yet to catch on with railroads. However, for some reason Alco decided that it needed to offer its own version of FM's Train Master.

Oddly, the company should have known the design was unpopular as its previous five other six-axle models had sold a combined 666 units (the RSD1, RSC2, RSC3, RSD4, and RSD5).

While the RSD5 (a modestly successful model, in comparison to how six-axle locomotives were selling at the time) was still in production, Alco released the RSD7.

The locomotive began production in 1955 and used the builder's standard prime mover of the time, the 244 model. It was the last model to use this engine prior to Alco's introduction of the 251 prime mover.

Horsepower

The RSD7 was the last Alco model to use this engine as the RS11 (and later versions of the FA and PA) would use the company's newer, and much more reliable model 251B.

The RSD7 could originally produce 2,250 horsepower although  after initial sales proved quite poor it increased this to 2,400 horsepower, which directly matched the FM's H24-66. The locomotive saw a major change in how Alco produced road switchers.

Despite having originally pioneered the design, the Schenectady builder took a cue from EMD and began producing its later road switchers, beginning with the RSD7, with hoods that ran flush with the top of the cab.

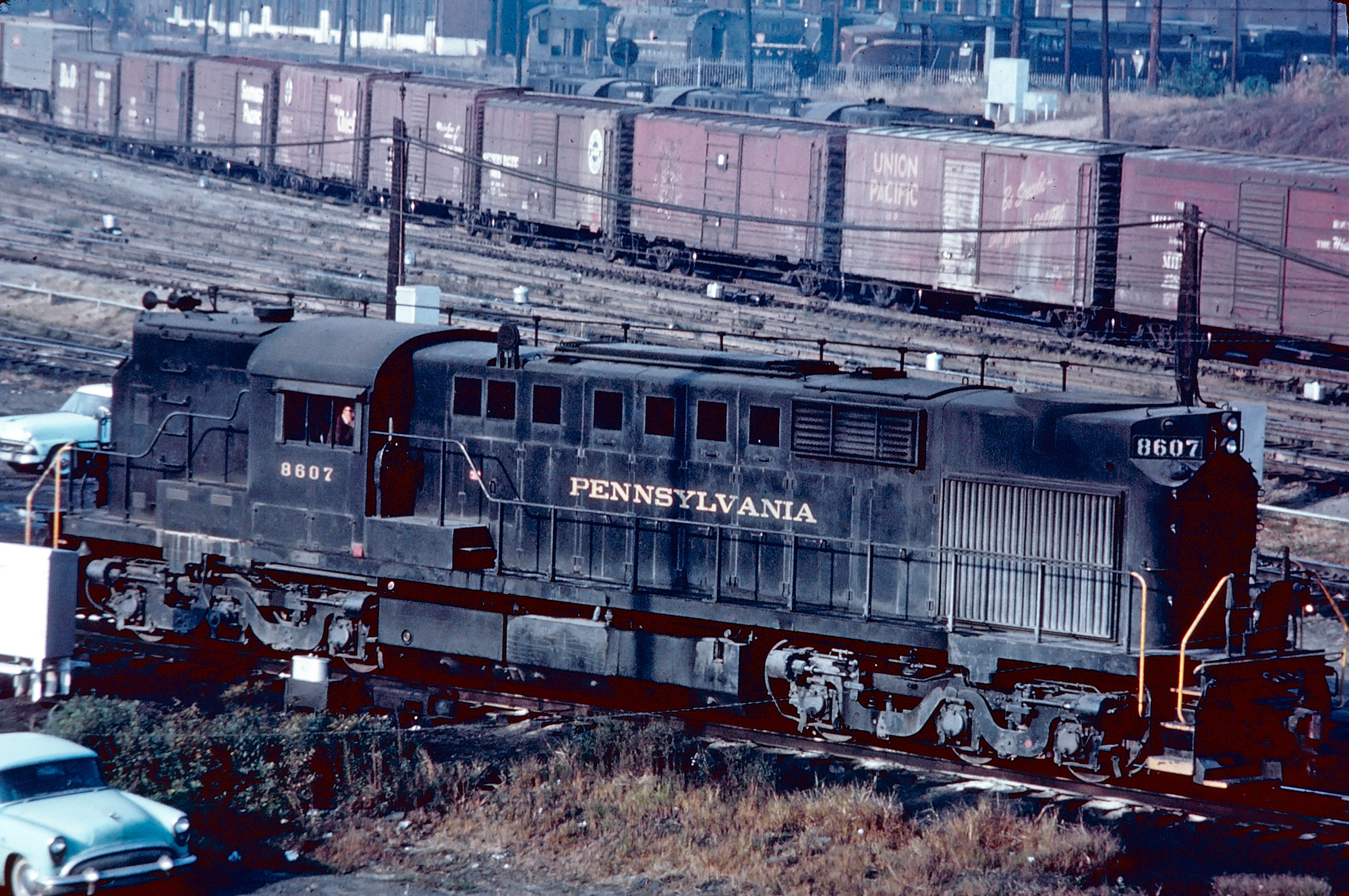

01927325351252162783582763874893.jpgPennsylvania RSD7 #8607 is seen here in Altoona, Pennsylvania in September, 1964. Note Baldwin "Sharknose" cab units, Fairbanks-Morse power, and even 44-ton switchers near the Erecting & Machine Shop in the background. Fred Byerly photo. American-Rails.com collection.

Savvy diesel spotters can easily identify Alco's version, however, by the notched corners. The RSD7 proved one of the most powerful RS series designs Alco produced and also offered some of the highest tractive efforts; 95,600 pounds starting and 69,800 continuous, which also included dynamic braking.

These later models released by Alco were some of the last built in conjunction with GE, as by 1959 the latter began producing its own line of diesels, the Universal series.

Reception

Unfortunately, the RSD7 saw little success, selling only 29 units to three Class I railroads; Chesapeake & Ohio, Pennsylvania, and Santa Fe (along with Alco's two demonstrators, #DL600 and #DL601).

Even more unfortunate, the H24-66, also considered a failure by FM, sold some 127 TMs nearly five times more than the RSD7.

Data Sheet and Specifications

Alco Class606-DL-366
Entered Production1/11/1954 (Santa Fe #600)
Years Produced1/11/1954-4/5/1956
Model SpecificationDL600/A
Engine244, V-16
Horsepower2,250 (Increased to 2,450 HP in variant DL600A)
RPM1,000
Carbody StylingAlco
Length (Between Coupler Pulling Faces)65' 1" (66' 7" in DL600A)
Weight366,000 Lbs./DL600: 360,000 Lbs./DL600A (Optional ballasting to 400,000 Lbs. in DL600A)
Dynamic BrakesOptional
TrucksC-C
Truck TypeTrimount
Truck Wheelbase12' 6"
Wheel Size40"
Traction MotorsGE 752 (6)
Traction GeneratorGT586
Steam Generator-
Gear Ratio65:18/DL600, (Optional in DL600A: 74:18 [Top speed of 65 MPH.], 65:1)
Tractive Effort Rating78,750 Lbs. at 5.5 MPH
Top Speed75 MPH

Production Roster

Total Built = 29

Owner Road Number(s) Serial Number(s) Date Built
Alco (Demonstrator) DL600, DL601 (became Santa Fe #600-601) 80960, 81088 1/1954, 2/1954
Santa Fe 602-606 81106-81110 10/1955 - 11/1955
Santa Fe 607-611 81121-81125 11/1955
Chesapeake & Ohio 6800-6811 81901-81912 2/1956 - 4/1956
Pennsylvania 8606-8610 81745-81749 12/1955

Sources

  • Foster, Gerald. A Field Guide To Trains. New York: Houghton Mifflin, 1996.
  • Kirkland, John F. Diesel Builders, The:  Volume Two, American Locomotive Company And Montreal Locomotive Works. Glendale: Interurban Press, 1989.
  • Pinkepank, Jerry A. Diesel Spotter's Guide.  Milwaukee: Kalmbach Publishing Company, 1967.
  • Solomon, Brian. Alco Locomotives. Minneapolis: Voyageur Press, 2009.

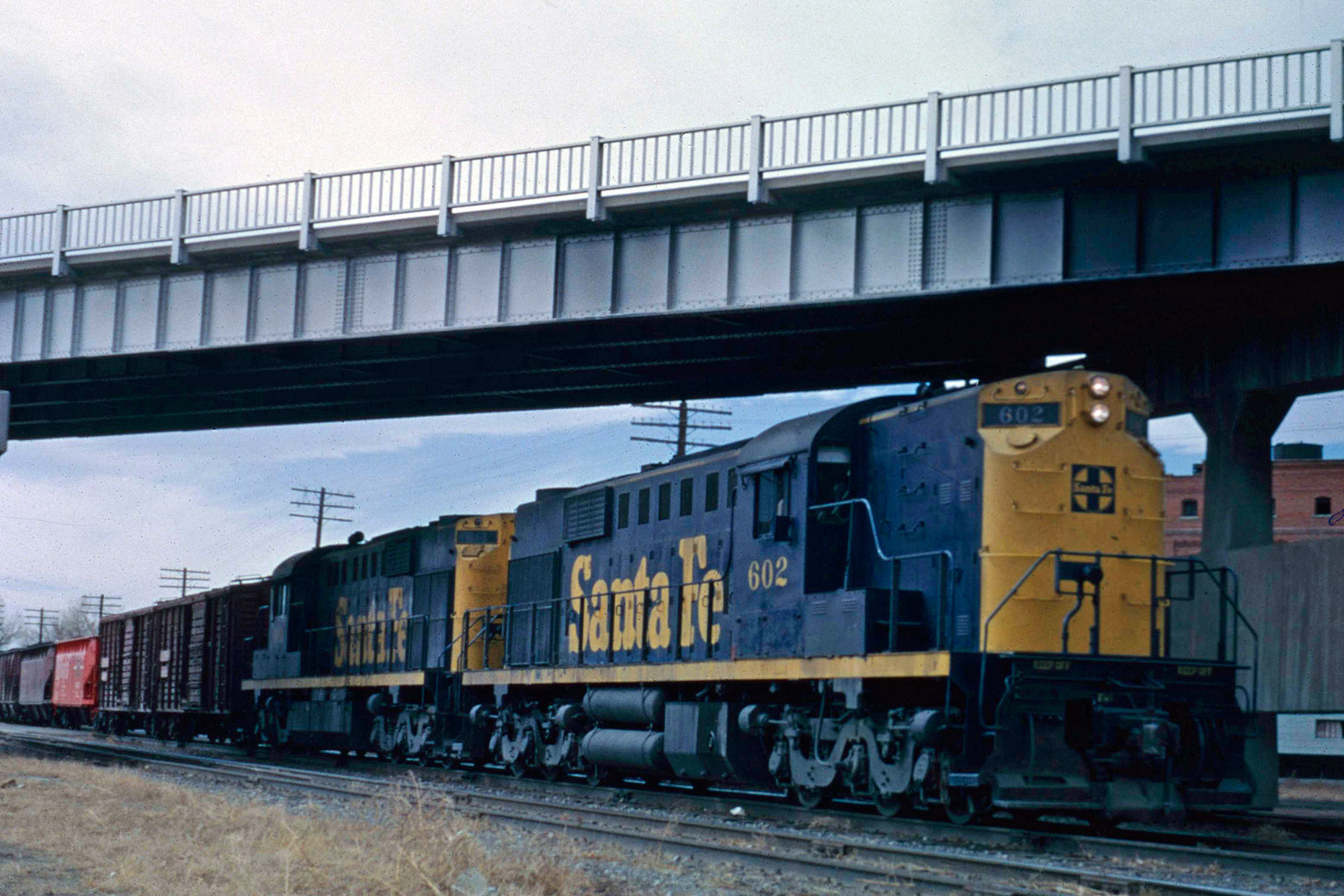

Santa Fe RSD7 #602 appears to be carrying out switching chores in Denver, Colorado on October 31, 1961. American-Rails.com collection.

Alco's six axle models were meant to provide a sizable increase in traction; for instance, the ten purchased by the Atchison, Topeka & Santa Fe were used exclusively in helper service along the railroad's high grades in New Mexico and Colorado, such as Raton Pass.

Despite this now obvious economic advantage, railroads had yet to bite on six-axle locomotives.  Ironically, FM and Alco were both just a few years away from missing the market; EMD began selling increasingly more six-axle designs during the transition decade of the 1960s such as the SD35, SD38, and the incredibly popular SD40 series.
