EMD "645" Engine

Last revised: March 27, 2023

By: Adam Burns

The Electro-Motive Division's model 645 prime mover further advanced the builder's dominance in the locomotive marketplace.

The diesel engine was born from a need to offer increased horsepower since the reliable model 567, which had been in production since 1938 and finally reached the limit of its capabilities.

The new prime mover was first tested in the early 1960s and with this success entered production a few years later.  The 645 went on to power nearly all of EMD's popular second-generation models from the GP38 through the iconic SD40-2.

During that time, thousands of these prime movers were produced.  Today, given the high level of success of this engine and the numerous locomotives it powered countless remain in regular freight service a scenario that is unlikely to change for many years to come.

History

The 645's success closely mirrors its earlier counterpart's; EMD once again did its homework and developed a rugged engine that was easy to maintain.

Perhaps most fascinating is that despite the builder's downfall that began in the 1980's, its 567 and 645 engines have stood the test of time.  They remain a preferred power plant even today.

Photos

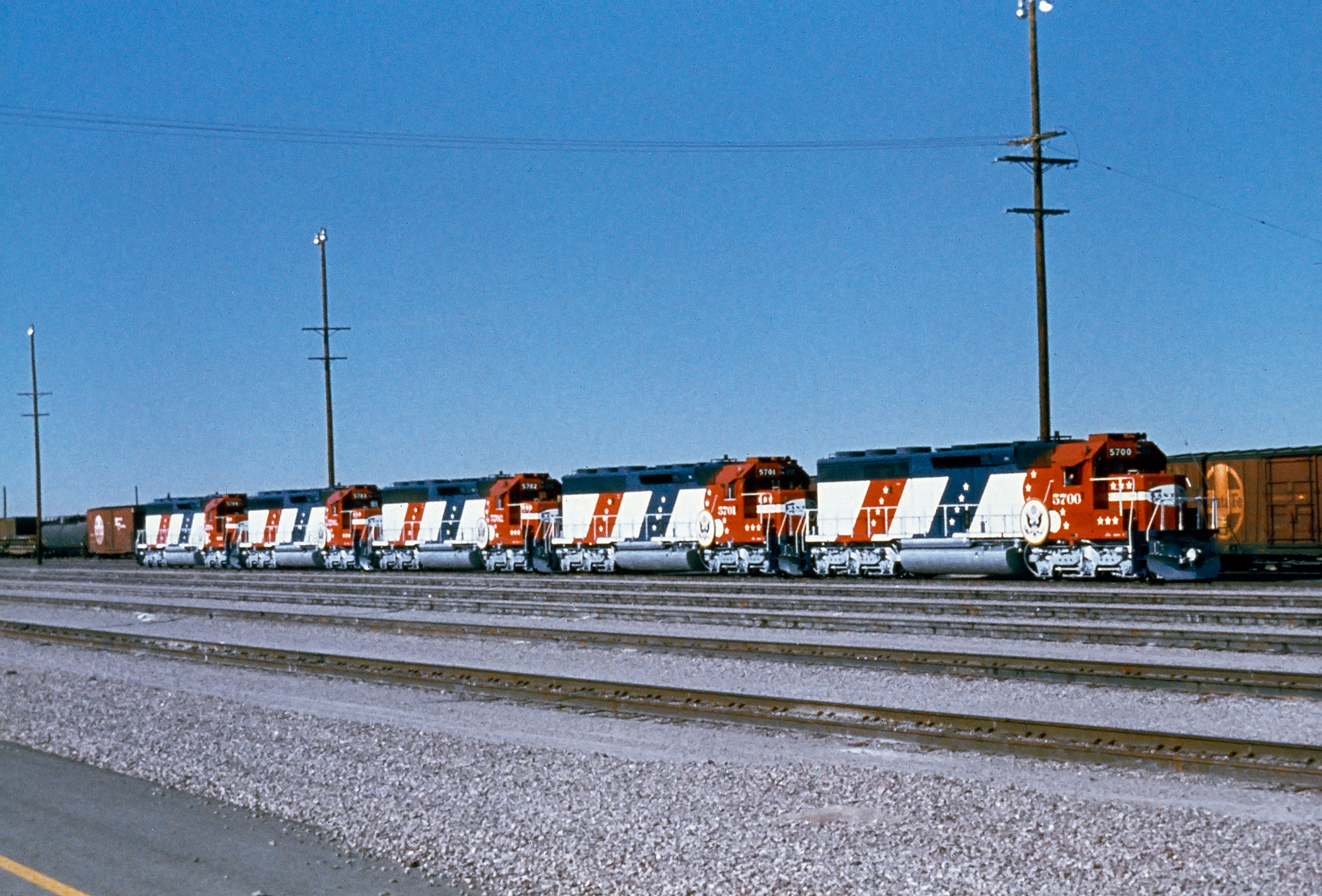

Santa Fe's five "Bicentennial" SD45-2's (#5700-5704) were gathered for a group photo at Barstow, California on December 21, 1976. Mike Bledsoe photo. American-Rails.com collection.

Development

By the early 1960s Electro-Motive's groundbreaking and reliable model 567 had run its course in terms of advancement and horsepower availability.

Some of the final models to carry it (the 567D3A) included the SD35 and GP30/GP35, all of which offered 2,500 horsepower and were the first second-generation designs EMD cataloged.  The 645 engine was intended to further push horsepower output as trains were becoming larger and heavier.

However, while EMD normally went its own way during that era the need for a more powerful prime mover may have also been spurred by the competition.  In 1963 Alco released the 2,800 horsepower, six-axle C628.

While that particular Century model only saw a tic less than two hundred sales the move kicked off a horsepower race among the three builders (including General Electric) for the rest of the decade.

Specifications

Builder
Electro-Motive Division (General Motors)
Years Produced
1/1966 - 7/1984
Type
2-Stroke, "Vee"
Bore & Stroke
9 1/16" x 10"
Cylinder Displacement
645 Cubic Inches
Aspiration

Roots Blower (645E)

Turbo (645E3 and 645E3A)

Compression Ratio

14.5:1 (645E and 645 E3)

16:1 (645E3A)

RPM
900-950
Cylinders

8

12

16

20

Horsepower Ratings
1000, 1500, 2000, 2300, 3000, 3300, 3600, 4200
Models Utilizing
GP38/GP38AC/GP38-2, GP40/GP40X/GP40P/GP40-2/GP40P-2, SD38/SD38-2/SD38AC/SD39/SDL39, SD40/SD40-2/SD40X/SD40A/SD40-2SS/SDP40, SD45/SD45-2/SDP45/SD45X, GP50, SD50, SD50S

In many ways the 645 prime mover was very similar to the 567 except that to achieve more power it offered greater displacement, 645 cubic inches (hence its name) as opposed to 567.

The engine featured the same deck and stroke height as its predecessor but the bore was widened from 8 1/2 inches to 9 1/16 inches and speed was increased from 800-900 to 900-950 rpm.

As always EMD made sure the new power plant included redundancy wherever possible allowing parts to be swapped among many various models.

Interestingly, this even carried over into late era 567 designs, which could accept many 645 parts giving railroads the ability to further extend the service lives of EMD's original prime mover (and it was just another way that Electro-Motive continued to dominate the market).

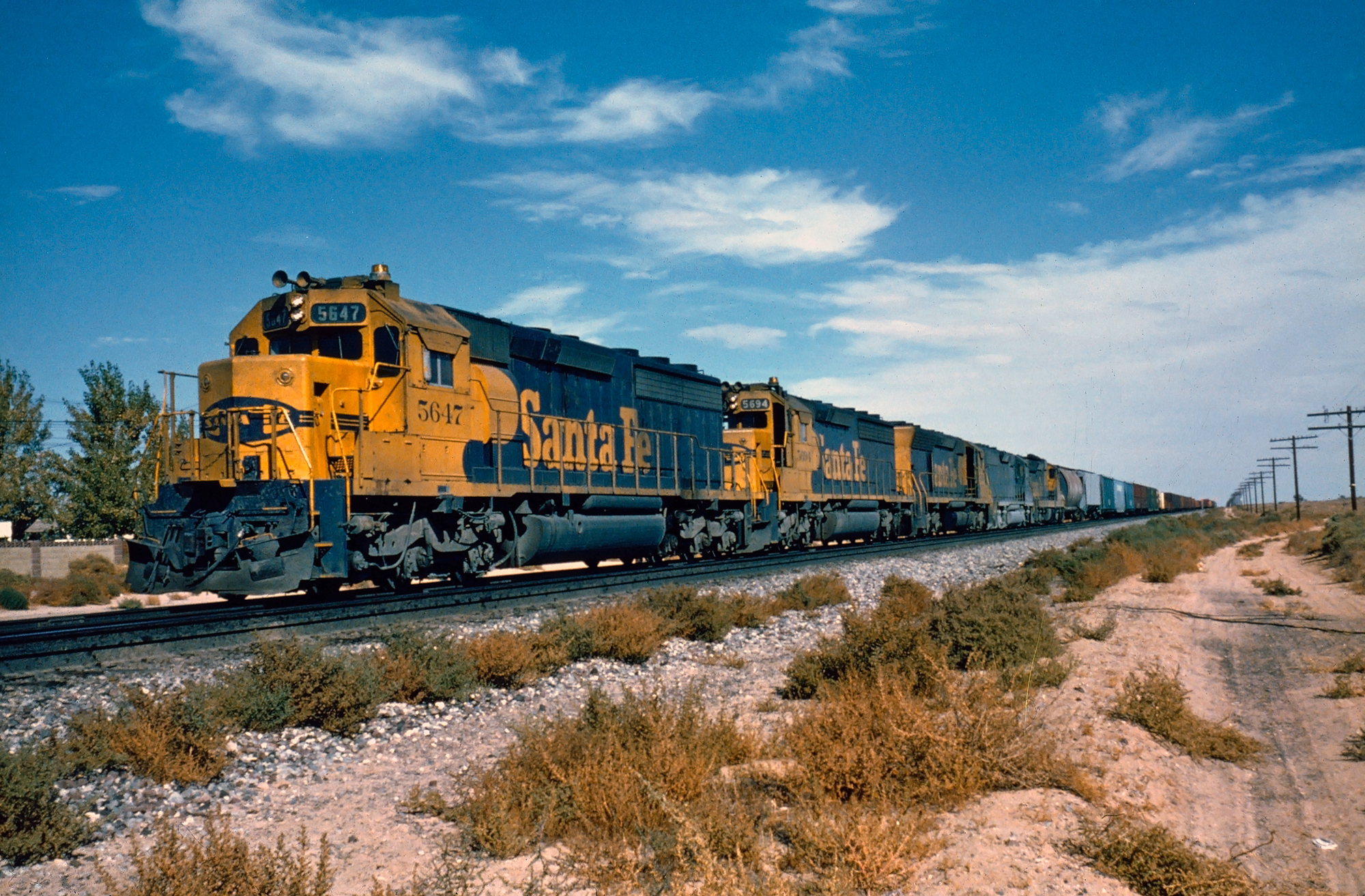

Santa Fe SD45-2 #5647 and a quartet of other units, including a leased Baltimore & Ohio GP40, lead a westbound general manifest through Clovis, New Mexico, circa 1980. Mike Bledsoe photo. American-Rails.com collection.

The 645 was first introduced on a testbed SD40 in 1964.  That year, during July Electro-Motive manufactured a demonstrator in what became part of its turbocharged, 645 series road-switchers.

This design sported the 16-cylinder 645E3 engine and could produce a hefty 3,000 horsepower.

The prime mover was also similar to the 567 in other ways; it was a two-stroke "V" design and as originally designed "was aspirated using 'uniflow' air scavenging forced by a cam-driven Roots blower running at roughly twice the engine speed" according to Brian Solomon's book Electro-Motive, E Units And F Units

Interestingly enough, while EMD produced nearly ten SD40 and GP40 demonstrators (combined) the first actual model it cataloged with a 645 was the SD45 of 1965.

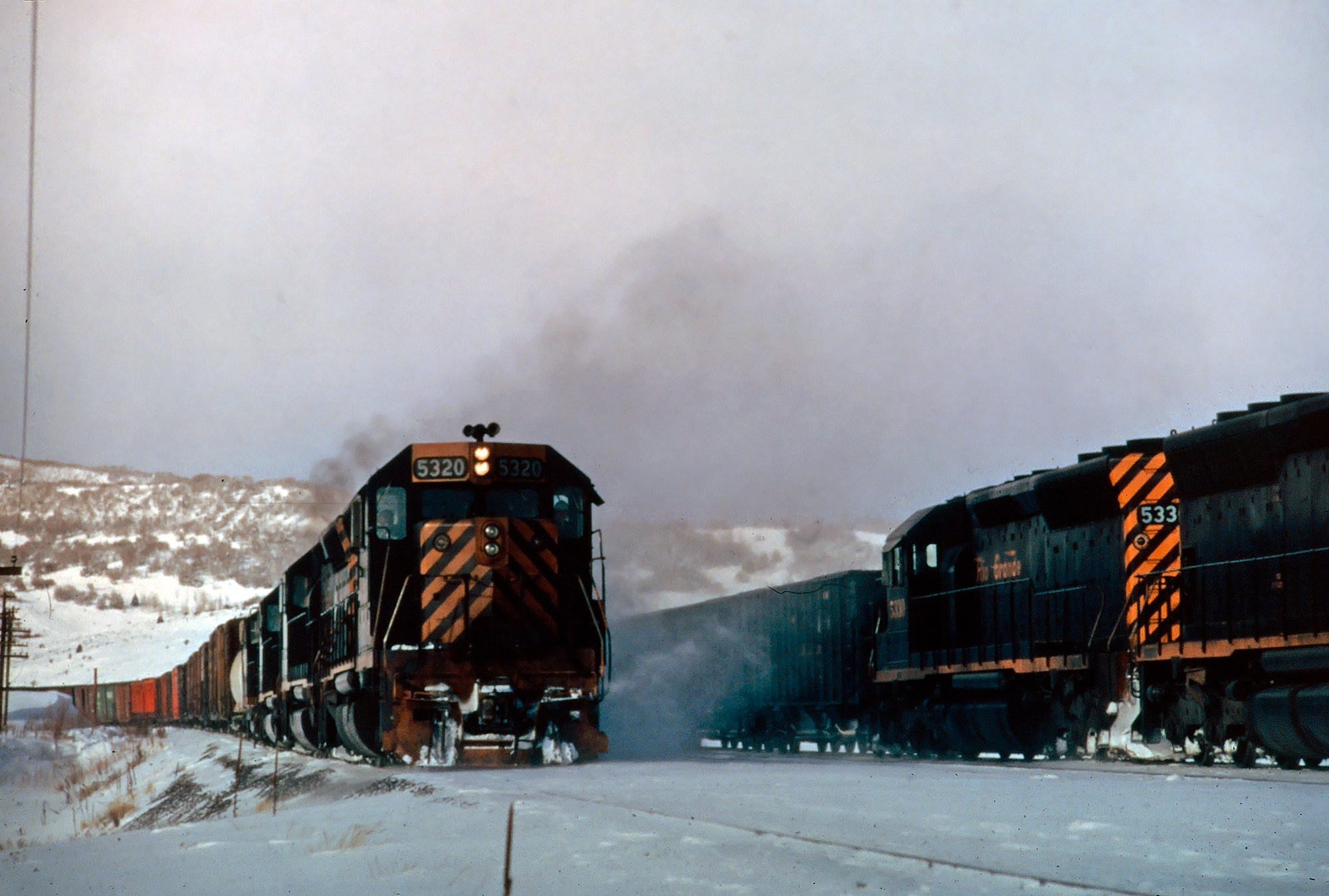

3602035827372385438673983897389.jpgA busy scene along the Rio Grande at Soldier Summit in Utah, circa 1975. Closest to the photographer is SD45 #5320. American-Rails.com collection.

Horsepower

The locomotive went into production during February of that year and was a monster, offering 3,600 horsepower via a 20-cylinder model 645E3 prime mover.

The '45 series was manufactured as several variants built through 1975 with more than 1,250 SD45s alone outshopped.

However, the original design ran into teething problems early on causing broken crankshafts.  Electro-Motive was quickly able to diagnose and fix the problem but when the SD40, featuring a 16-cylinder 645, was unveiled a year later most railroads opted for it instead.

This series saw earth-shattering sales numbers given the locomotive's impeccable reliability and just-right horsepower rating.

EMD went on to build nearly 1,300 SD40s and more than 3,900 SD40-2s before production ended in 1980 (this does not include the several hundred sales of other variants like the SD40T-2, SDP40, and SD40X).

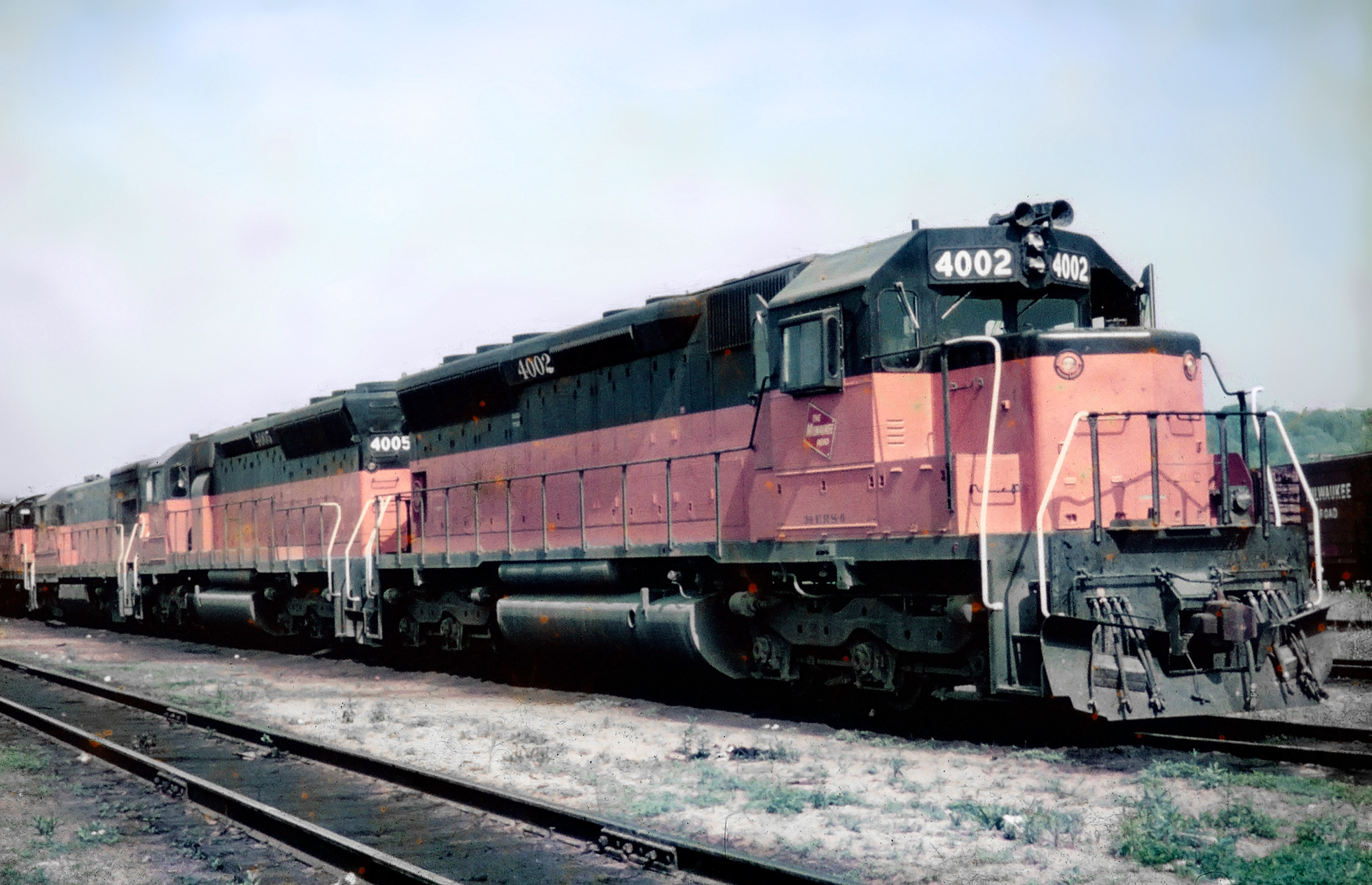

72359298352136276289328967892709378.jpgA pair of Milwaukee Road SD45's, only a few months old, at Pigs Eye Yard in St. Paul, Minnesota; June, 1968. Fred Byerly photo. American-Rails.com collection.

Electro-Motive also correctly read the market with moderately powered four-axle Geeps like the GP38/AC/-2, GP39/-2, and GP40/-2 all cataloged at the same time with their six-axle counterparts.

Today, most Class Is no longer purchase B-B road-switchers.  However, during the 1960s and 1970s this was still the norm and these Geeps sold thousands through the 1980s.

Reliability, which had never come into question with EMD products became an issue during the 1980s as late models featuring the 645F like the GP50, GP60, SD50, and SD60 suffered from mechanical and microprocessor problems.

This allowed General Electric to jump ahead of EMD, which still holds true today.  Interestingly, GE now even offers 645 replacement parts and services to rebuild the prime movers.

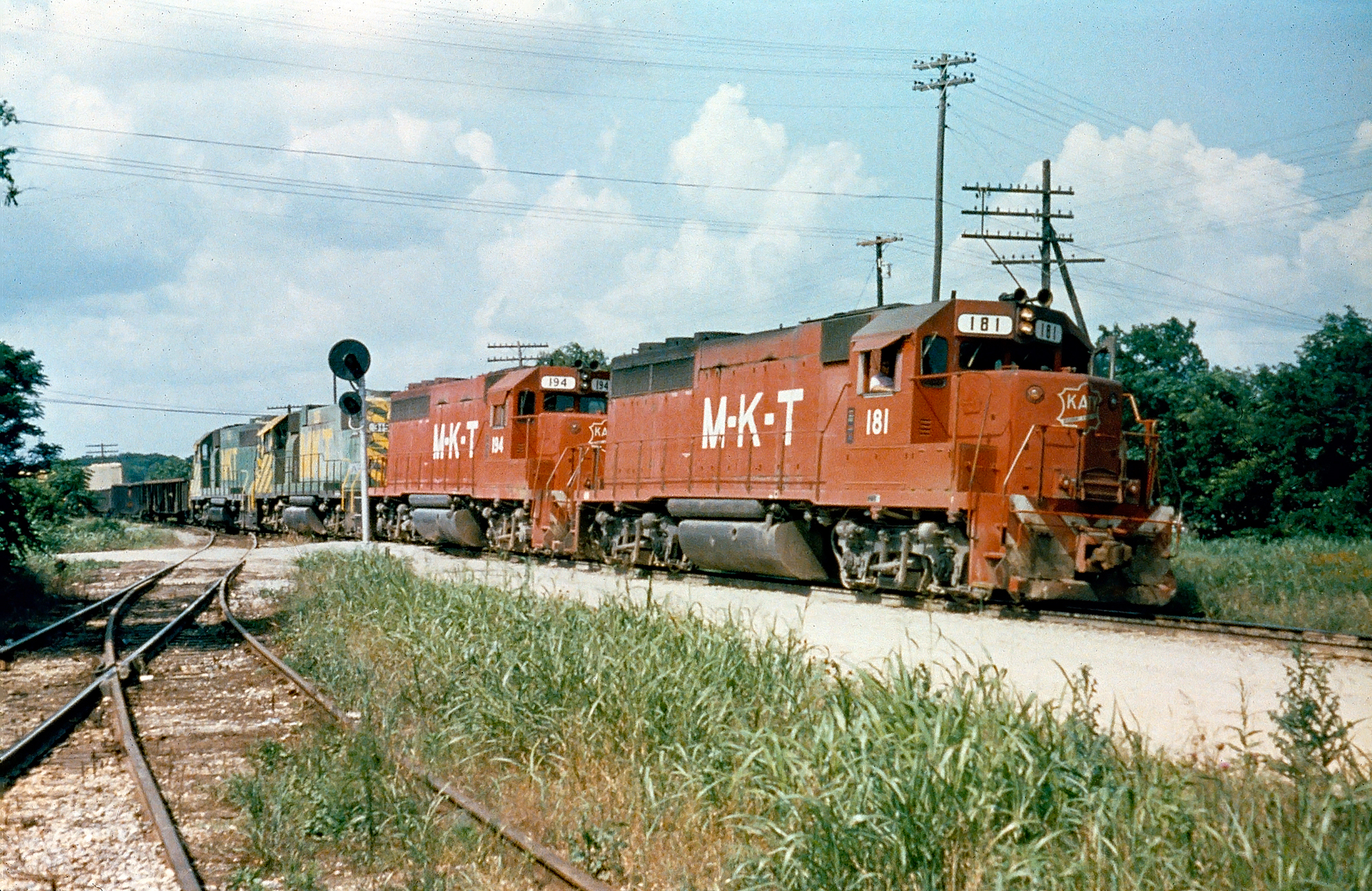

Missouri-Kansas-Texas (Katy) GP40s #181 and #194, along with GP38-2 #315 and another unit, roll through Taylor, Texas, circa 1978. Mike Bledsoe photo. American-Rails.com collection.

Today, Electro-Motive's last dominant diesel engine design remains in regular use within hundreds of locomotives all across the country thanks to the builder's incredible success during the second-generation era.

The current Electro-Motive Diesel, Inc. owned by Progress Rail (a division of Caterpillar) still produces the 645 by request although the successor 710 prime mover is primarily used in production of the SD70 series.

Sources

  • Boyd, Jim. American Freight Train, The. Osceola: MBI Publishing, 2001.
  • Marre, Louis A. and Pinkepank, Jerry A. Contemporary Diesel Spotter's Guide, The: A Comprehensive Reference Manual To Locomotives Since 1972.  Milwaukee: Kalmbach Publishing Company, 1989.
  • Marre, Louis A. Contemporary Diesel Spotter's Guide, The: A Comprehensive Reference Manual To Locomotives Since 1972, Including Rebuilding, Upgrading, And Leasing Programs (2nd Edition).  Milwaukee: Kalmbach Publishing Company, 1995.
  • Solomon, Brian. American Diesel Locomotive, The. Osceola: MBI Publishing, 2000.
  • Solomon, Brian.  EMD Locomotives.  Minneapolis: MBI Publishing Company, 2006.
  • Solomon, Brian.  GE and EMD Locomotives:  The Illustrated History.  Minneapolis:  Voyageur Press, 2014.
