Baldwin "DRS-6-4-1500" Locomotives

The DRS-6-4-1500 was very similar to its sister model (DRS-6-6-1500), save for its A1A-A1A trucks (center-axle unpowered).

All of Baldwin's early road switchers were manufactured at roughly the same time, featuring only different truck setups (B-B, C-C, or A1A-A1A).

Interestingly, the locomotive sold far better to foreign lines with more than twice as many purchased, mostly to French-controlled operations in North Africa.

During the time period in which Baldwin released the DRS-6-4-1500 railroads were still not particularly interested in six-axle designs.

This was not an issue related exclusively to the Eddystone builder; similar locomotives offered by American Locomotive (Alco) and even Electro-Motive's SD7 and SD9 sold relatively poorly.

Baldwin is often regarded as the greatest of all the steam builders, producing rugged and reliable locomotives which railroads operated for generations.

Numerous examples of preserved today and some continue to operate.  Unfortunately, its management failed to recognize the diesel's potential and merely shrugged it off.

As such, the company was entirely unprepared when Electro-Motive's FT took the industry by storm.

It also struggled to gauge the model types of greatest interest. Astonishingly, Baldwin exited the market less than 10 years after building its last steam locomotive.


A Baldwin company photo of Chicago & North Western's only DRS-6-4-1500, #1504, circa 1948.


DRS-6-4-1500 History And Background

The Baldwin DRS-6-4-1500 utilized the builder's 608 SC model prime mover that could produce 1,500 horsepower.

The primary difference between the DRS-6-4-1500 and DRS-4-4-1500 was that the former utilized an A1A truck arrangement, meaning that there were three axles per truck but only the outside axles featured traction motors.

As was the case with nearly all of Baldwin's diesel designs, Westinghouse supplied the company with all of the DRS-6-4-1500's needed internal components such as traction motors, generators, and air equipment.

The model offered comparable tractive effort to Alco's RSC2 at 58,200 starting and 42,500 continuous (although Alco's model did offer slightly better starting effort).

A Baldwin company photo of what is probably its DRS-6-4-1500 demonstrator, circa 1946.

Once again, poor engineering led to few sales for the DRS-6-4-1500, although it proved more successful than its sister model.

The locomotive sold 97 units to a handful of Class I railroads including the Norfolk Southern (original), Southern Pacific, and Chicago & North Western as well as the Savannah & Atlanta Railway (Southern).

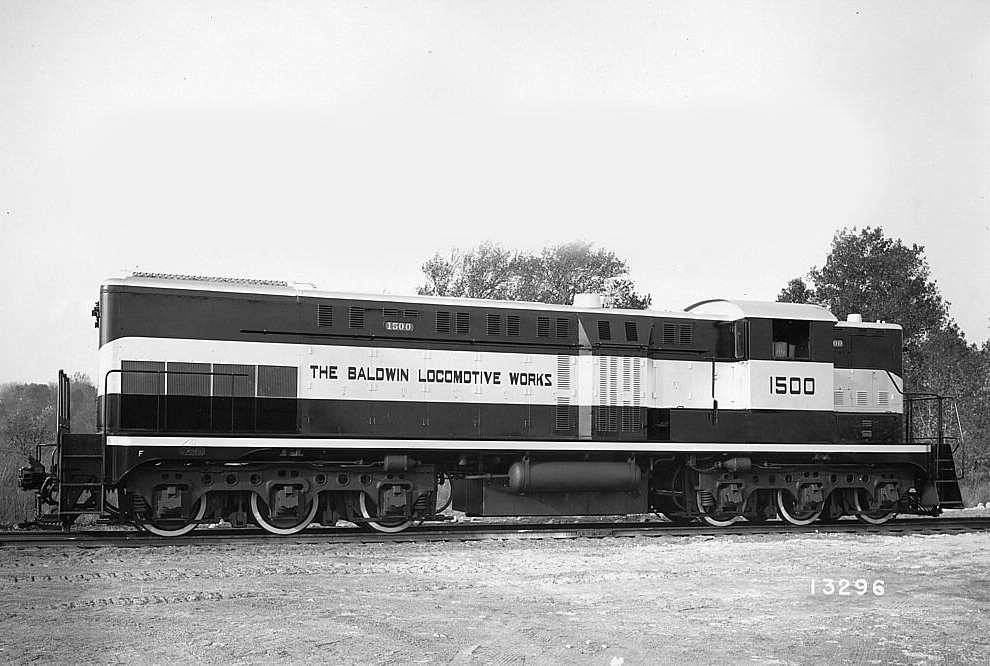

A company photo of Baldwin DRS-6-4-1500 demonstrator #1500 taken circa 1946.

Additionally, Union Pacific and Kennecott Copper purchased Baldwin demonstrators 1500 and 1501 (Kennecott, however, requested that its unit, Demo #1501, be reequipped with B-B trucks).

Baldwin did have a very pleasing carbody design with its DRS series that offered crews good visibility. It also carried the standard look of a road switcher with a short front hood, offset cab, and trailing long hood.

A Baldwin Locomotive Works photo featuring Norfolk Southern DRS-6-4-1500 #1501 circa 1947.

Baldwin's classification system for its initial road-switcher series was loosely based from the old Whyte Notation in describing steam locomotive types.

For instance, using the DRS-4-4-1500 model as an example the DRS referred to:

  • Diesel Road Switcher unit

  • The first number, 6, was the designation of six total axles

  • The second number, 4, referred to four powered traction motors

  • 1500 stood for the horsepower rating


Baldwin DRS-6-4-1500 Data Sheet

Entered Production9/30/1946 (French Supply Council-Algeria #040-DA-1)
Years Produced9/30/1946 - 7/2/1952
Baldwin ClassDRS-6-4-1500/1 SC
Engine608SC, 6-Cylinder In-Line, Supercharged
Engine BuilderDe La Vergne
Horsepower1500
Carbody StylingBaldwin
Length (Between Coupler Pulling Faces)58'
Weight256,000 Lbs*
Height (Top Of Rail To Top Of Cab)14'
Width10' 2"
TrucksA1A-A1A
Truck TypeGSC Swing Bolster-Inside Frame Equalizers**
Truck Wheelbase11' 6"
Wheel Size42"
Traction Motors370F (4), Westinghouse
Traction Generator471A, Westinghouse
Auxiliary GeneratorYG42A, Westinghouse
Gear Ratio15:63 or 19:60
Tractive Effort Rating42,800 Lbs at 10.5 MPH (15:63) or 32,200 Lbs at 14.0 MPH (19:60)
Top Speed65 MPH (15:63) or 82 MPH (19:60)

*  Weight on drivers was 170,000 pounds.

** The eleven units acquired by the Savannah & Atlanta, #100-110, utilized a unique floating bolster truck with an elastomeric suspension system.


Baldwin DRS-6-4-1500 Production Roster

Owner Road Number Baldwin Serial Number Construction Number Completion Date
French Supply Council-Algeria040-DA-117263012/26/1946
French Supply Council-Algeria040-DA-10127263112/4/1946
French Supply Council-Algeria040-DA-237263212/6/1946
French Supply Council-Algeria040-DA-347263312/11/1946
French Supply Council-Algeria040-DA-457263412/19/1946
French Supply Council-Algeria040-DA-567263512/23/1946
French Supply Council-Algeria040-DA-677263612/31/1946
French Supply Council-Algeria040-DA-1028726371/19/1947
French Supply Council-Algeria040-DA-1039726381/18/1947
French Supply Council-Algeria040-DA-10410726391/26/1947
French Supply Council-Algeria040-DA-105117264012/26/1946
French Supply Council-Algeria040-DA-712726411/15/1947
French Supply Council-Algeria040-DA-813726421/9/1947
French Supply Council-Algeria040-DA-914726431/16/1947
French Supply Council-Algeria040-DA-1015726442/10/1947
French Supply Council-Morocco040-DA-1116726454/2/1947
French Supply Council-Morocco040-DA-1217726464/14/1947
French Supply Council-Morocco040-DA-1318726473/22/1947
French Supply Council-Morocco040-DA-1419726484/16/1947
French Supply Council-Morocco040-DA-1520726494/25/1947
French Supply Council-Morocco040-DA-20121726504/26/1947
French Supply Council-Morocco040-DA-20222726515/5/1947
French Supply Council-Morocco040-DA-20323726525/23/1947
French Supply Council-Morocco040-DA-20424726535/29/1947
Columbus & Greenville601257262410/8/1946
Columbus & Greenville602267262512/17/1946
Columbus & Greenville603277262612/23/1946
Columbus & Greenville604287262712/21/1947
Columbus & Greenville60529726281/22/1947
Baldwin Locomotive Works1500*30726291/25/1947
French Supply Council-Tunisia040-DA-30131732162/5/1947
French Supply Council-Tunisia040-DA-302327321712/28/1946
French Supply Council-Tunisia040-DA-30333732181/6/1947
French Supply Council-Tunisia040-DA-30434732191/8/1947
French Supply Council-Morocco040-DA-205357334910/27/1947
French Supply Council-Morocco040-DA-206367335011/4/1947
French Supply Council-Algeria040-DB-137733277/19/1947
French Supply Council-Algeria040-DB-238733287/15/1947
French Supply Council-Algeria040-DB-339733297/19/1947
French Supply Council-Algeria040-DB-440733307/23/1947
French Supply Council-Algeria040-DB-541733318/2/1947
French Supply Council-Algeria040-DB-642733328/1/1947
French Supply Council-Algeria040-DB-7437333310/23/1947
French Supply Council-Algeria040-DB-8447333410/23/1947
French Supply Council-Algeria040-DB-9457333511/6/1947
French Supply Council-Algeria040-DB-10467333611/8/1947
French Supply Council-Algeria040-DB-1147733371/8/1948
French Supply Council-Algeria040-DB-1248733381/9/1948
French Supply Council-Algeria040-DB-13497333912/20/1947
French Supply Council-Algeria040-DB-1450733401/13/1948
French Supply Council-Algeria040-DB-15517334112/23/1947
French Supply Council-Algeria040-DB-16527334212/13/1947
French Supply Council-Algeria040-DB-17537334312/13/1947
French Supply Council-Algeria040-DB-1854733441/25/1948
French Supply Council-Algeria040-DB-1955733451/25/1948
French Supply Council-Algeria040-DB-2056733463/22/1948
French Supply Council-Algeria040-DB-2157733472/6/1948
French Supply Council-Algeria040-DB-2258733481/30/1948
French Supply Council-Algeria040-DB-2359733652/21/1948
French Supply Council-Algeria040-DB-2460733662/21/1948
French Supply Council-Algeria040-DB-2561733672/25/1948
Baldwin Locomotive Works1501**62734743/14/1948
Chicago & North Western150466734787/15/1948
Norfolk Southern1501677348710/7/1947
Norfolk Southern150268734882/7/1948
Norfolk Southern150369734892/20/1948
Norfolk Southern150470734902/20/1948
Norfolk Southern150571734912/28/1948
Norfolk Southern150672734922/28/1948
Norfolk Southern150773734933/13/1948
Norfolk Southern150874734943/13/1948
Norfolk Southern150975734953/31/1948
Norfolk Southern151076734963/31/1948
Southern Pacific520077736548/22/1948
Southern Pacific5201787365512/16/1948
Southern Pacific5202797365612/21/1948
Savannah & Atlanta (Southern)10083736605/11/1948
Savannah & Atlanta (Southern)10184736615/13/1948
Savannah & Atlanta (Southern)10285736625/24/1948
Savannah & Atlanta (Southern)10386736635/25/1948
Savannah & Atlanta (Southern)10487736646/1/1948
Savannah & Atlanta (Southern)10588736656/4/1948
Savannah & Atlanta (Southern)10689736666/8/1948
Savannah & Atlanta (Southern)10790736676/9/1948
Savannah & Atlanta (Southern)10588736656/4/1948
French Supply Council-Morocco040-DA-306917428712/30/1949
French Supply Council-Morocco040-DA-307927428812/30/1949
French Supply Council-Morocco040-DA-30893751087/2/1951
French Supply Council-Morocco040-DA-30994751097/2/1951
French Supply Council-Morocco040-DC-33195755247/2/1952
French Supply Council-Morocco040-DC-33296725257/2/1952
French Supply Council-Morocco040-DC-33397725267/2/1952

Serial numbers 63-65 and 80-82 were left vacant by Baldwin.

*  Became Union Pacific #1250 (1/25/1948)

** Became Kennecott Copper #901 (Utah Copper Division) in October, 1948

French Supply Council Of North Africa (Morocco) units #040-DC-331 through #040-DC-333 were equipped with Baldwin's updated 608A prime mover (found in the latest "All Service"  line: AS16, AS416, and AS616), only de-rated from 1,600 to 1,500 horsepower.

Sources:

  • Foster, Gerald. A Field Guide To Trains. New York: Houghton Mifflin, 1996.

  • Kirkland, John F. Diesel Builders, The:  Volume Three, Baldwin Locomotive Works. Pasadena: Interurban Press, 1994.

  • Pinkepank, Jerry A. Diesel Spotter's Guide.  Milwaukee: Kalmbach Publishing Company, 1967.

  • Solomon, Brian.  Baldwin Locomotives.  Minneapolis:  Voyageur Press, 2009.

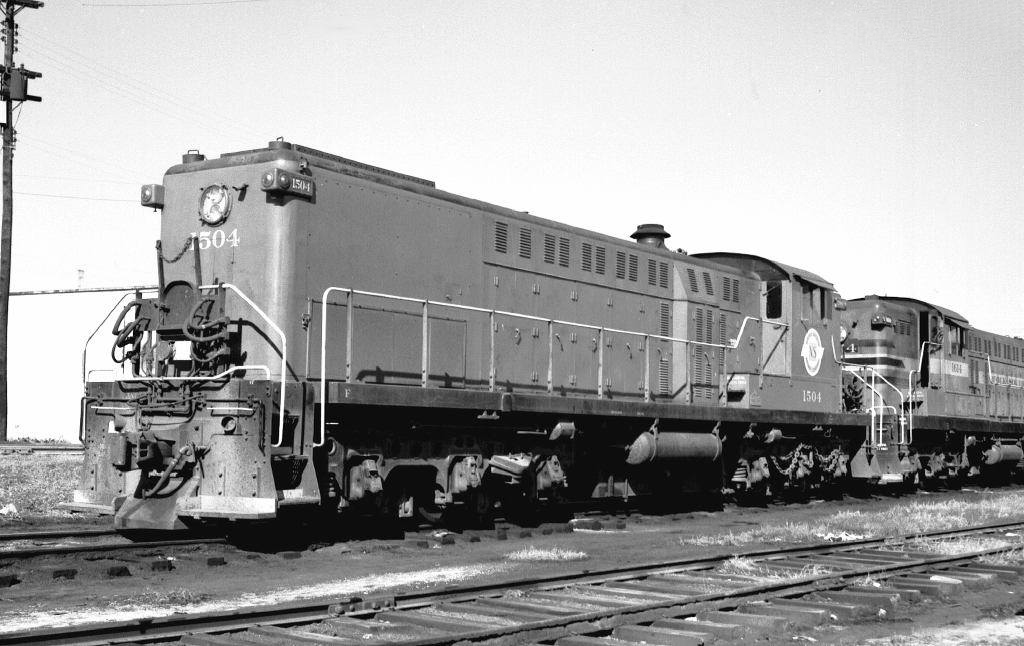

A late-era scene of Norfolk Southern DRS-6-4-1500 #1504, probably taken soon before the unit was retired. Warren Calloway photo.

The model designed for foreign sale in Africa was listed as the DRS-6-4-1500E. Essentially the same locomotive its one noticeable difference was the end cab setup it employed, making it appear as a rather large switcher.

Three different African lines purchased the DRS-6-4-1500E including the:

  • Office des Chemins de fer Algériens (43)

  • Office National des Chemins de Fer du Maroc (15)

  • Tunisian Railways (4)

Today, one DRS-6-4-1500 survives, Columbus & Greenville #601 on display in Columbus, Mississippi.
