Alco "RSD-1" Locomotives


Last revised: June 13, 2023

By: Adam Burns

The RSD-1 was the first road switcher of its kind to feature six-axles. However, when the model debuted railroads had yet to embrace the diesel locomotive for main line service, let alone show interest in a six-axle curiosity whose benefits had yet to be understood.

The American Locomotive Company's six-axle RS1 came in two variations, the six-motored RSD-1 (C-C) and six-axled RSC-1 (A1A-A1A).

While the RSD-1 saw roughly half the sales of its four-axle counterpart it was beloved by the US Army, who interestingly ended up as Alco's only customer for the model.

Today, nearly a dozen RSD-1s are preserved around the country while a few are still operational including U.S. Army #8652 at the North Alabama Railway Museum (Huntsville) and former Tennessee Coal & Iron Railroad #601 (built as U.S. Army #8009) at the Orange Empire Railway Museum in Perris, California.

Photos

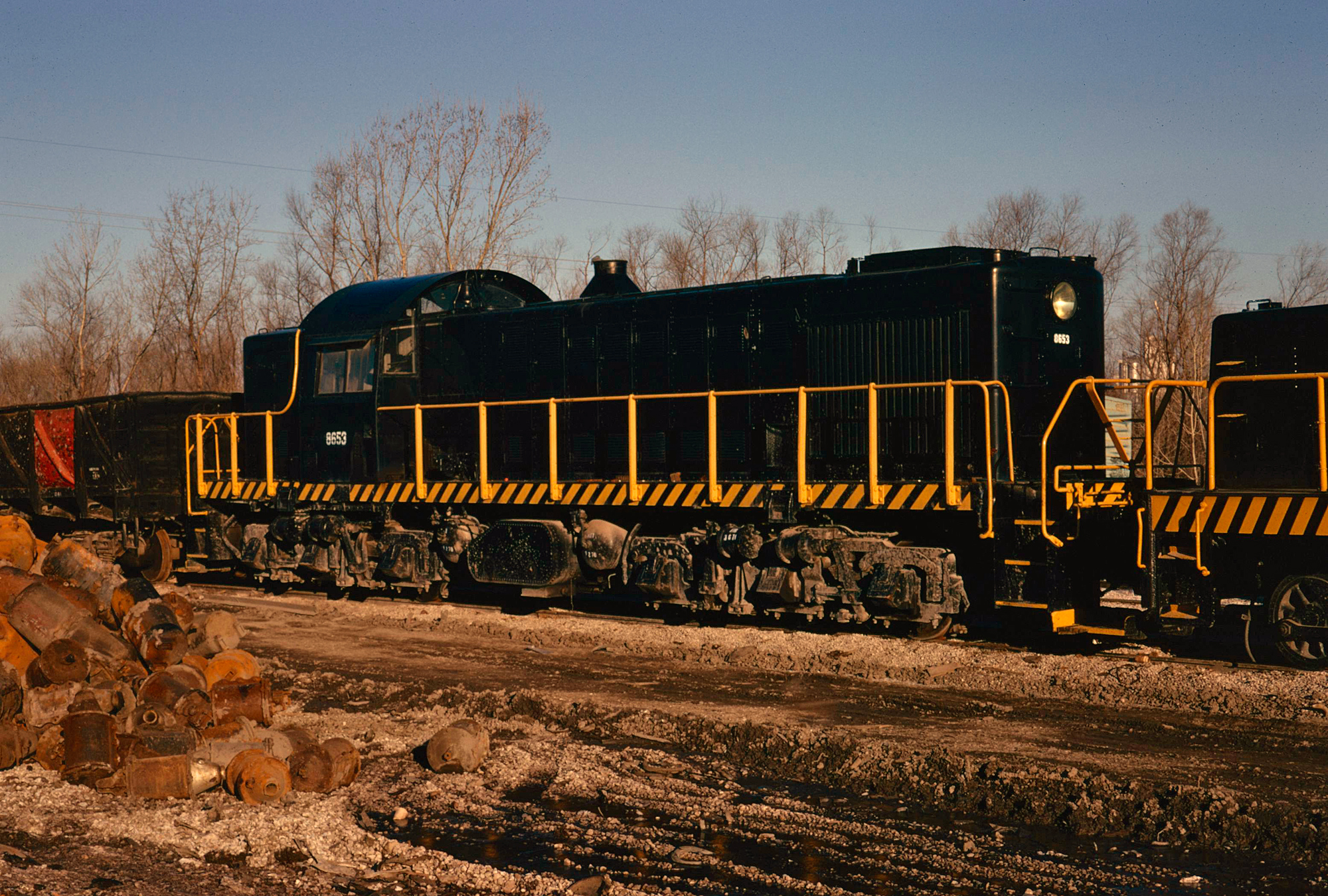

A former U.S. Army RSD-1, #8653, in service; March 17, 1973. Location not listed. Vincent Porreca photo. American-Rails.com collection.

Overview

It should be noted that while historians and railfans often index the six-axle RS-1 model as either an RSD-1 or RSC-1, Alco itself made no such distinction. The builder cataloged them all as RS-1s and only differentiated the three by their designation numbers.

This is further reinforced in John Kirkland's book, "The Diesel Builder's: Volume Two."  It appears railfans came up with the separate designations on their own after studying Alco construction files.  Ironically, this work was even provided to Alco department heads in 1965, for reference use only.

According to Brian Solomon's "The American Diesel Locomotive" the three were classified as follows:

  • RS-1's as E1640, E1641, E1641A

  • RSD-1's as E1645, E1646, E1647

  • RSC-1's as E1651

Alco's use of only designation numbers can likely be explained by the fact that the builder never really intended to develop a six-axle RS-1 and did so only upon request from the Department of Defense.

The Army liked the RS-1 for its light weight and sufficient horsepower, allowing it to be used in switching applications on bases while handling heavy loads.

With World War II's onset, the Army wondered if a six-motored design would not only offer more tractive effort but could also handle Europe's lighter rails more effectively as the locomotive's axle loading would be reduced.


Data Sheet and Specifications

(Original 13, #8000-#8012)

Alco Class606-DL-319
Entered Production11/1942
Years Produced11/1942-2/1943
Model SpecificationE1640
Engine539T, 6-Cylinder In-Line, Turbocharged
Engine BuilderMcIntosh & Seymour
Horsepower1,000
Carbody StylingAlco/U.S. Army
Length (Between Coupler Faces)55' 11.75"
Weight257,000 Lbs.
Dynamic BrakesYes
TrucksC-C
Truck TypeTrimount*
Wheelbase11' 3"
Wheel Size40"
Traction MotorsGE 731 (6)
Traction GeneratorGT533
Gear Ratio16:75
Tractive Effort Rating34,000 Lbs. at 8 MPH; up to 43,000 Lbs. at 5.5 MPH.
Top Speed60 MPH

* These appear to be a version of the Trimount and probably developed by James G. Blunt based on the large journals utilized.  This truck was never replicated, even on standard production RSD-1's.

It was used solely on the original thirteen RS-1's requisitioned by the War Department since Alco had to retrofit C-C trucks on a frame designed for only four-axles.

(#8013-#8056), Construction Numbers 70634-70677

Alco Class606-DL-319
Entered Production11/1942
Years Produced11/1942-2/1943
Model SpecificationE1645
Engine539T, 6-Cylinder In-Line, Turbocharged
Engine BuilderMcIntosh & Seymour
Horsepower1,000
Carbody StylingAlco/U.S. Army
Length (Between Coupler Faces)55' 11.75"
Weight261,000 Lbs.
Dynamic BrakesYes
TrucksC-C
Truck TypeTrimount*
Wheelbase11' 3"
Wheel Size40"
Traction MotorsGE 731 (6)
Traction GeneratorGT533
Gear Ratio16:75
Tractive Effort Rating34,000 Lbs. at 8 MPH; up to 43,000 Lbs. at 5.5 MPH.
Top Speed60 MPH

(#8000-#8099), Construction Numbers 72073-72172

Alco Class606-DL-319
Entered Production10/1944
Years Produced10/1944-8/1945
Model SpecificationE1646
Engine539T, 6-Cylinder In-Line, Turbocharged
Engine BuilderMcIntosh & Seymour
Horsepower1,000
Carbody StylingAlco/U.S. Army
Length (Between Coupler Faces)55' 11.75"
Weight286,000 Lbs.
Dynamic BrakesYes
TrucksC-C
Truck TypeTrimount*
Wheelbase11' 3"
Wheel Size40"
Traction MotorsGE 731 (6)
Traction GeneratorGT533
Gear Ratio16:75
Tractive Effort Rating34,000 Lbs. at 8 MPH; up to 43,000 Lbs. at 5.5 MPH.
Top Speed60 MPH

The first 70 locomotives in this batch, #8600-8669, were built to a broad, 5-foot gauge for operation in Russia.  In all, there were 144 RSD-1's built new, in addition to the 13 RS-1's requisitioned and converted into RSD-1's, for a total of 157 units built domestically.


It proved quite successful and the Army ordered several batches of RSD-1's beginning in 1942. Interestingly, with World War II ongoing and in desperate need of locomotives, the Army requisitioned the first 13 RS-1s built for the Rock Island, Milwaukee Road, New York, Susquehanna & Western, Atlanta & St. Andrews Bay, and Tennessee Coal, Iron & Railroad and had Alco convert them all into RSD-1's.

Internally, the RSD1 was identical to the RS1 featuring the turbocharged McIntosh & Seymore model 539T prime mover and the same length.

Alco went on to produce several version of its Road Switcher models in either six axles or six motors, such as the RSC-2, RSD-5, RSD-7, RSD-12, and RSD-15.


Prior to the start of World War II there were thirteen RS1's produced for five different railroads.  Please refer to the table below.  These locomotives were later requisitioned by the U.S. Army for use on the Trans-Iranian Railway to supply Russia with war materiel during the conflict.

New locomotives were later built for the original railroads (paid for by the U.S. government) to replace those requisitioned, in April and May of 1943 (1946 for the Tennessee Coal, Iron & Railroad).

Original 13 (Requisitioned By U.S. Army)

Railroad Road Number Construction Number Date Built Date Rebuilt U.S. War Department Number Replacement Construction Number
Rock Island748694243/194111/1942800570816
Rock Island749694253/194112/1942800670817
Atlanta & St. Andrews Bay901694263/19411/1943801070810
Atlanta & St. Andrews Bay902694273/19411/1943801170811
Tennessee Coal, Iron & Railroad600694284/194112/1942800875203
Tennessee Coal, Iron & Railroad601695664/19411/1943800975204
Milwaukee Road1678695676/194111/1942800270814
Milwaukee Road1679695686/194111/1942800370815
Rock Island746695698/194112/1942800770818
Rock Island747695708/194111/1942800470819
Atlanta & St. Andrews Bay903698006/19421/1943801270821
New York, Susquehanna & Western231699926/194211/1942800070812
New York, Susquehanna & Western233699936/194211/1942800170813

Production Rosters

RSD-1

Total Built = 150

Owner Road Numbers Serial Numbers Date Built
U.S. Army 8013-8033 70634-70654 11/1942 - 12/1942
U.S. Army 8034-8056 70655-70677 1/1943 - 2/1943
U.S. Army 8600-8649 72073-72122 10/1944 - 1/1945
U.S. Army 8650-8679 72123-72142 1/1945 - 2/1945
U.S. Army 8680-8699 72143-72172 2/1945 - 3/1945
Ferrocarriles Nacionales de México 5700-5705 74671-74676 1/1946, 4/1946, 5/1946

RSX-4 (MRS-1)

Total Built = 83

Owner Road Number(s) Serial Number(s) Date Built
U.S. Army B-2041, B-2042 80357-80358 4/1953
U.S. Army B-2043 80359 4/1953
U.S. Army B-2044 80360 4/1953
U.S. Army B-2045 thru B-2047 80361-80363 4/1953
U.S. Army B-2048 80364 4/1953
U.S. Army B-2049, B-2050 80365-80366 4/1953
U.S. Army B-2051 80367 4/1953
U.S. Army B-2052 80368 4/1953
U.S. Army B-2053 thru B-2055 80369-80371 4/1953
U.S. Army B-2056 80372 4/1953
U.S. Army B-2057 80373 4/1953
U.S. Army B-2058 80374 4/1953
U.S. Army B-2059 80375 4/1953
U.S. Army B-2060 80376 4/1953
U.S. Army B-2061 80377 4/1953
U.S. Army B-2062 80378 4/1953
U.S. Army B-2063 80379 4/1953
U.S. Army B-2064 80380 4/1953
U.S. Army B-2065 80381 4/1953
U.S. Army B-2066 80382 4/1953
U.S. Army B-2067 80383 4/1953
U.S. Army B-2068 80384 4/1953
U.S. Army B-2069 80385 4/1953
U.S. Army B-2070 80386 4/1953
U.S. Army B-2071 thru B-2072 80387-80388 4/1953
U.S. Army B-2073 80389 4/1953
U.S. Army B-2074 80390 4/1953
U.S. Army B-2075 80391 4/1953
U.S. Army B-2076 80392 4/1953
U.S. Army B-2077 80393 4/1953
U.S. Army B-2078 80394 4/1953
U.S. Army B-2079 80395 4/1953
U.S. Army B-2080 80396 4/1953
U.S. Army B-2081 80397 4/1953
U.S. Army B-2082 thru B-2084 80398-30400 4/1953
U.S. Army B-2085 80401 10/1953
U.S. Army B-2086 80402 10/1953
U.S. Army B-2087 thru B-2090 80403-80406 10/1953
U.S. Army 2091 80324 10/1953
U.S. Army 2092 to 2094 80325-80327 4/1953
U.S. Army 2095 80328 4/1853
U.S. Army 2096 80329 4/1953
U.S. Army 2097 80330 4/1953
U.S. Army 2098 80331 3/1953
U.S. Army 2099 80332 6/1953
U.S. Army 2100 80333 4/1953
U.S. Army 2101 80334 4/1953
U.S. Army 2102 80335 4/1953
U.S. Army 2103 80336 4/1953
U.S. Army 2104 80336 4/1953
U.S. Army 2105 80337 4/1953
U.S. Army 2106 thru 2108 80335-80337 4/1953
U.S. Army 2109 80338 4/1953
U.S. Army 2107 thru 2116 80339-80349 4/1953
U.S. Army 2117 80350 4/1953
U.S. Army 2118 80351 4/1953
U.S. Army 2119 80352 6/1953
U.S. Army 2120 80353 6/1953
U.S. Army 2121 80354 6/1953
U.S. Army 2122 80355 6/1953
U.S. Army 2123 80356 6/1953

RSC-1

Total Built = 4

Owner Road Numbers Serial Numbers Date Built
Sao Paulo Railway (Brazil) 500-503 75006-75009 9/1946

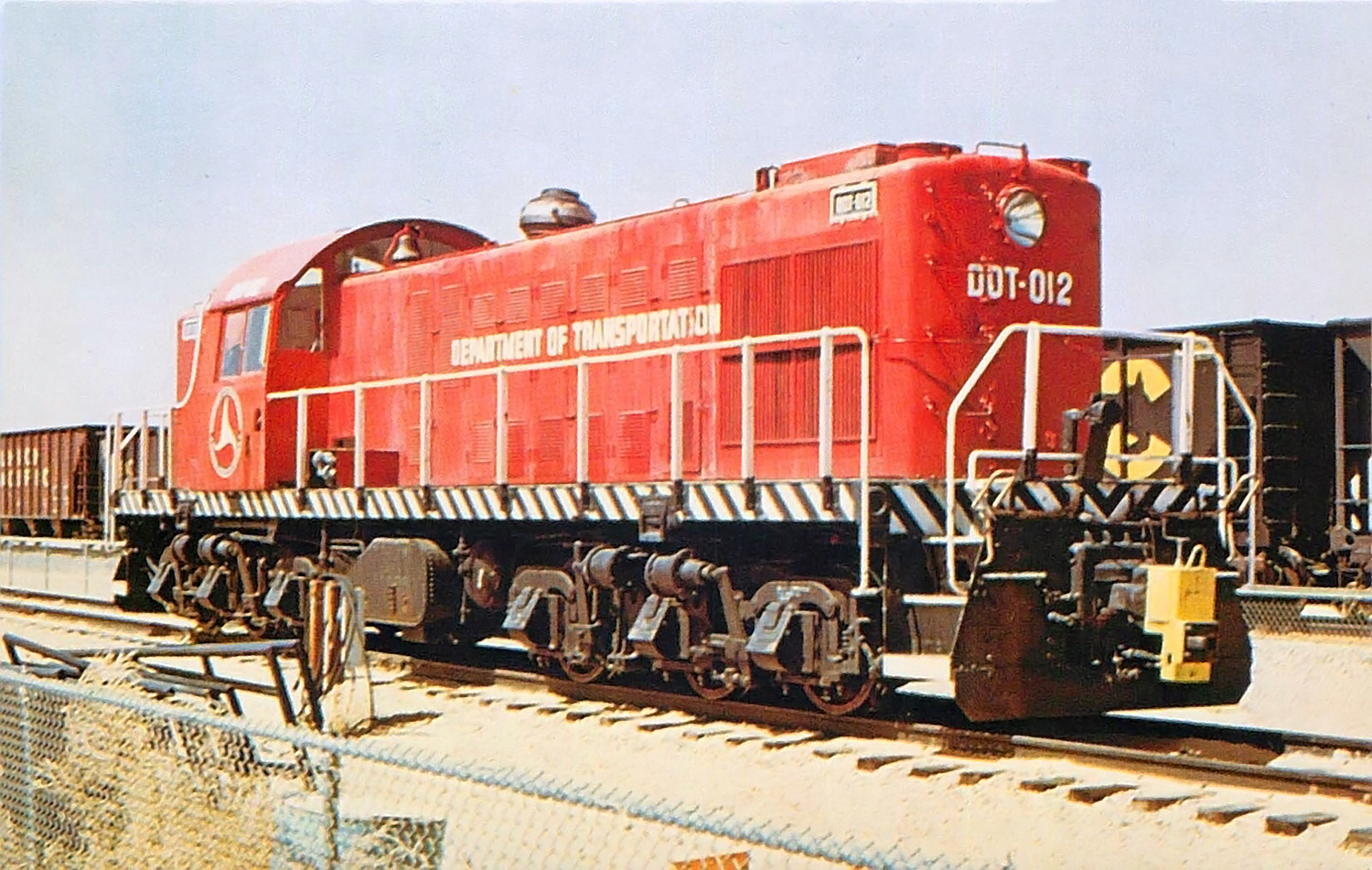

258203882680200009308.jpgDepartment of Transportation RSD-1 #012 is seen here on the test track in Pueblo, Colorado on April 18, 1980. This unit was built as Tennessee Coal & Iron #801, circa 1941, and later became U.S. Army #8009. Robert Harmen photo.

In all, over 154 six-axle RS-1's were produced; 146 for the U.S.  Army, six for National de Mexico, and four RSC-1s for Sao Paulo Railway of Brazil.

More information about these locomotives can be found in the production roster listed above.  Of the dozen units preserved four are known to be operational:

  • U.S. Army #8018 at the Orange Empire Railway Museum
  • U.S. Army RSD-1 #8652 at the North Alabama Railroad Museum
  • U.S. Army #8669 and #8677 at the Tennessee Valley Railroad Museum.
