EMD "SD75M"and "SD75I" Locomotives

Last revised: July 24, 2023

By: Adam Burns

The SD75M and SD75I were essentially a variant design of the builder's SD70 series except slightly more powerful (and also featured its popular steerable truck), all in an attempt to compete with General Electric's new C44-9W model of the time (which was then the leading model of the industry, eventually selling nearly 2,500 examples).

Unfortunately, both designs had little success competing with the C44-9W with only a few hundred examples of each ultimately manufactured.

The SD75M was essentially a special request by the Atchison, Topeka & Santa Fe Railway and the SD75I was purchased by Santa Fe successor Burlington Northern and Santa Fe, Canadian National, and the Ontario Northland.

Having been built only in the mid-1990s, you can still find the entire fleet of SD75M's and SD75I's in regular service today on the two Class I railroads which purchased the model, Canadian National and BNSF Railway.

Photos

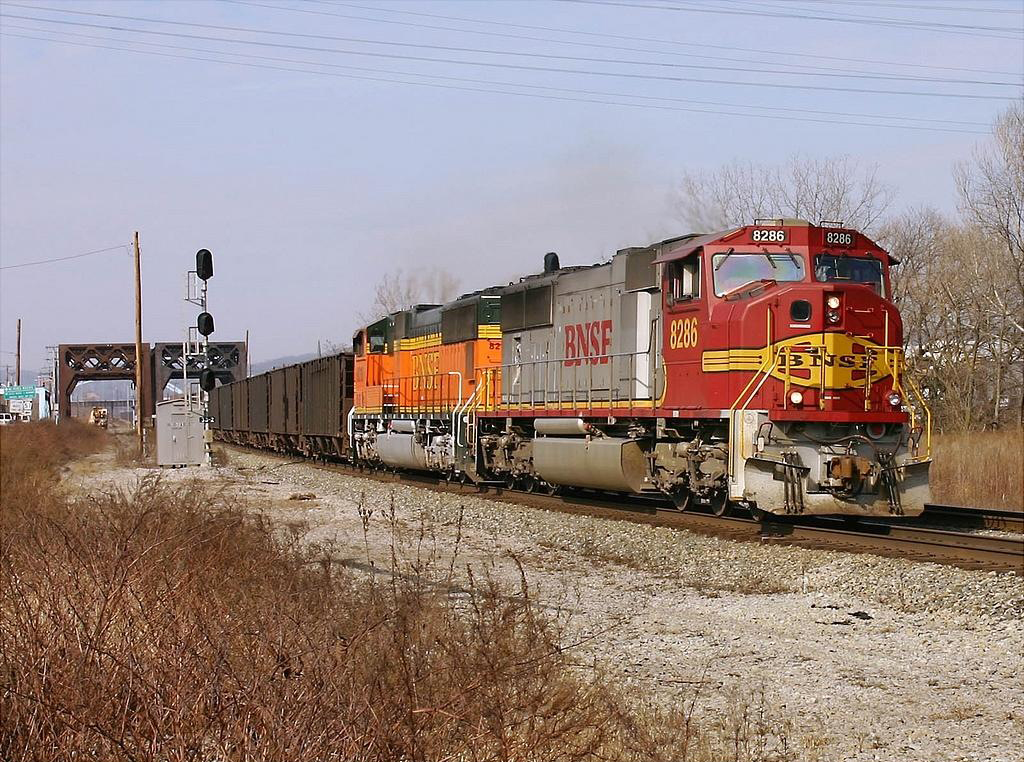

029532873528362806-20863870098.jpgBurlington Northern Santa Fe SD75I #8286 leads CSX train K180-16 over Chartiers Creek at Pittsburgh, Pennsylvania on February 19, 2004. This unit was later involved in a head-on collision on BNSF's Madill Subdivision. Wade Massie photo.

Development

The SD75M and SD75I were constructed at the same time, entering EMD's catalog in 1994. They utilized General Motors' 16-cylinder model 710G3B prime mover, which could produce 4,300 horsepower, a slight increase over the SD70 series which was rated at only 4,000 horsepower.

This bump in horsepower was to compete with GE's C44-9W released around the same time. The SD75 series was virtually identical to the SD70 designs of the time, save for the horsepower increase.

The models featured the same HTCR-II radial trucks and were rated at a powerful 137,000 pounds of continuous tractive effort (175,000 pounds starting, which was also the same as the SD70) using GM's model D90TR traction motors.

The HTCR-II was perhaps the most innovative new feature EMD has debuted in recent times. It allowed the truck to steer itself into curves reducing wear and maintenance costs for railroads.

The truck has become such a big selling point for EMD that some railroads have stated that is the primary reason why they still buy from the builder.

The primary differences in the two SD75 designs was with the cab itself. The EMD SD75M featured the wide, safety cab design (thus the "M" designation) while the SD75I featured the isolated cab (also known as the "Whisper Cab" by EMD).

The latter's cab was not directly attached to the the frame and had added insulation and rubber built around it to decrease vibration and engine noise (it can be distinguished from the SD75M by the seam which can be seen near the front of the nose).

Reception

Ultimately, only the Santa Fe and Canadian National purchased the SD75M and SD75I (the Ontario Northland Railway did purchase a few SD75Is) with a total of 207 of each model produced.

One reason why the SD75 variants were not successful from a sales standpoint is that they were basically a special order, as mentioned above. Not only were GE products more preferred by railroads but they also found the SD70 models suited their particular needs.

The Santa Fe received its order of SD70Ms between March and August, 1995, a total of 51 units numbered 200-250. Additionally, successor Burlington Northern and Santa Fe purchased another batch of 25 between December, 1995 and March, 1996 numbered 8251-8275.

Data Sheet and Specifications

Entered Production3/1995 (Santa Fe #200)
Years Produced (SD75M)3/1995 - 8/1995
Years Produced (SD75I)5/1996 - 12/1999
Engine (SD75M)710G3
Engine (SD75I)710G3C
Engine BuilderGM
Horsepower4300
RPM950
Cylinders16
Length72' 4"
Height (Top Of Rail To Top Of Cab)15' 7 ½"
Width10' 3"
Weight394,000 Lbs
Fuel Capacity3500 Gallons
Air CompressorGardner-Denver
Air Compressor ModelWBO
Air Brake ManufacturerWestinghouse
Air Brake Schedule26L
TrucksC-C
Truck TypeHTCR-II
Truck Wheelbase13' 7"
Wheel Size40"
Wheel Slip Control SystemEM2000es (EMD)
Traction MotorsD90TR (6), GM
Primary GeneratorAR20, GM
Auxiliary GeneratorGM (A8589)
AlternatorCA7A
MU (Multiple-Unit)Yes
Dynamic BrakesYes
Gear Ratio70:17
Tractive Effort (Starting)175,000 Lbs at 33%
Tractive Effort (Continuous)137,000 Lbs at 12 mph
Top Speed70 mph

The SD75I featured Canada's Safety Cab and Isolated Cab.

Production Rosters

SD75M

Total Built = 76

(Built at GMDD)

Owner Road Number(s) Serial Number(s) Completion Date
Santa Fe 200-250 946503-1 thru 946503-51 3/1995-8/1995
Burlington Northern & Santa Fe 8251-8275 956608-1 thru 956608-25 12/1995-3/1996

SD75I

Total Built = 207

Owner Road Number(s) Serial Number(s) Builder Completion Date
Canadian National 5626-5730 956616-1 thru 956616-105 GMDD 5/1996-12/1996
Canadian National 5731-5765 966726-1 thru 966726-35 GMDD 8/1997-12/1997
Burlington Northern & Santa Fe 8276-8301 966740-1 thru 966740-26 GMDD 10/1997-12/1997
Ontario Northland 2100-2105 976808-1 thru 976808-6 Assembled by Alstom Canada 5/1999-7/1999
Canadian National 5766-5800 976812-1 thru 976812-82 Assembled by Alstom Canada 1/1999-12/1999

As for the SD75I, Canadian National first began receiving its order between May and December, 1995, a total of five units numbered 5626-5730.

It received another 35 units, numbered 5626-5765, between August and December, 1997. Its final order came in 1999 when it received another 35 units numbered 5766-5800. BNSF picked up its only order of SD75Is between October and December, 1997 numbered 8276-8301.

Finally, the Ontario Northern received its only order of 6, numbered 2000-2006, between May and July, 1999. Today, you can still find SD75Is and SD75Ms in regular operation on CN and Santa Fe successor BNSF.

Sources

  • Foster, Gerald. A Field Guide To Trains. New York: Houghton Mifflin, 1996.
  • McDonnell, Greg. Locomotives: The Modern Diesel & Electric Reference, 2nd Edition. Buffalo: Boston Mills Press/Firefly Books, 2015.
  • Solomon, Brian. American Diesel Locomotive, The. Osceola: MBI Publishing, 2000.
  • Solomon, Brian.  EMD Locomotives.  Minneapolis: MBI Publishing Company, 2006.
  • Solomon, Brian.  GE and EMD Locomotives:  The Illustrated History.  Minneapolis:  Voyageur Press, 2014.
