GM's "Aerotrain" Concept (1956): A Radical Design

Last revised: August 25, 2024

The General Motors' Aerotrain was designed for two primary purposes:

Firstly, to lure the riding public back to the rails.

Secondly, to implement less expensive passenger services during an era of mounting losses and growing competition.

During those years GM was highly respected by the railroad industry for its incredibly reliable diesel locomotive models which consisted of its E and F designs as well as early General Purpose units.

The company had a very good idea, which was envisioned by its vice president of styling, although it seems not enough research and development was spent on the train.

Its general problems included a rough ride and under-powered locomotive. As a result, not a single railroad ordered a trainset despite extensive testing on both the New York Central and Pennsylvania. They were eventually purchased by the Rock Island and used in commuter service until 1966.

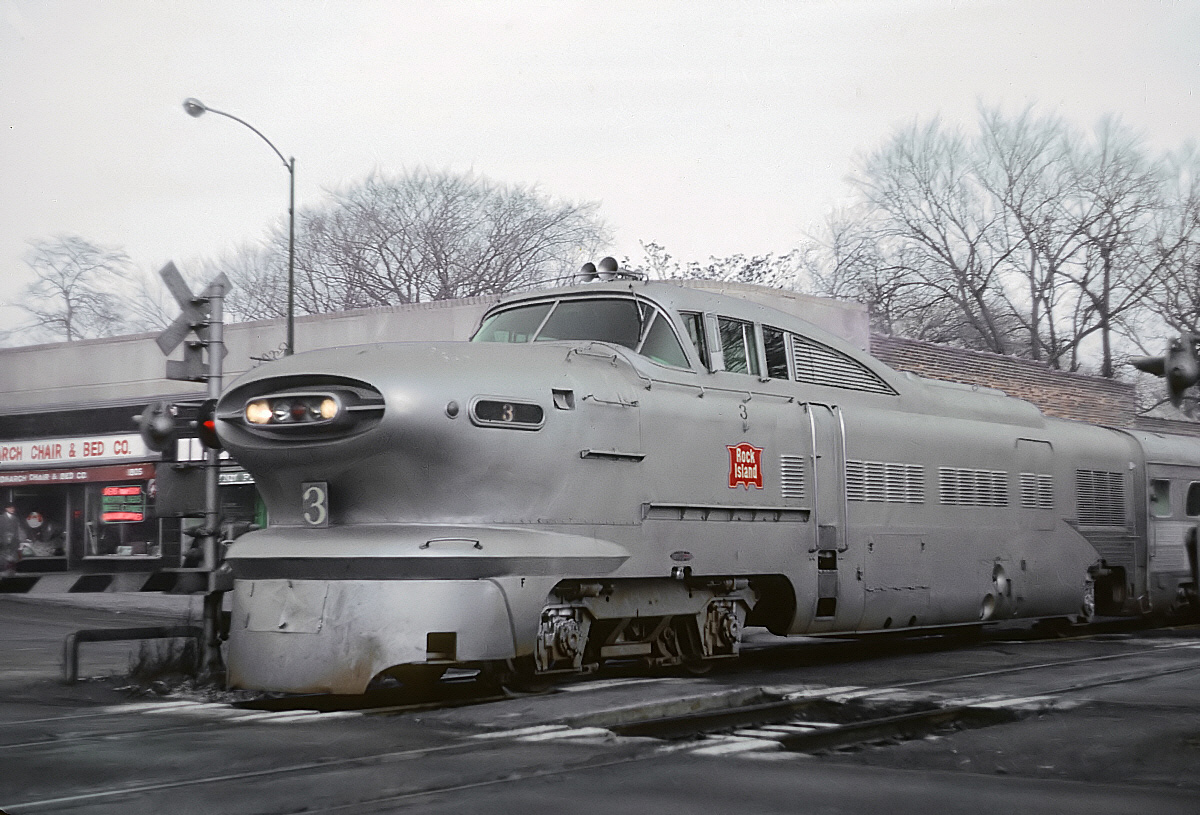

Rock Island LWT12 #3 works suburban service along the Beverly Branch in Chicago on December 31, 1964. Roger Puta photo.

History

With the surge in passenger and freight traffic during World War II railroads, in general, felt that this trend would continue following the conflict despite the fact that both had seen declining numbers from the time of the Great Depression in 1929 to the start of the war in 1941.

As such, between 1945 and 1955 many companies either streamlined much of their passenger fleet or further upgraded these trains spending millions of dollars over the decade. Unfortunately, the traveling public continued to leave the rails in favor of the other kinds of transport mentioned above.

Realizing this, General Motors' vice president of styling, Harley Earl, began to discuss the possibility of marketing a new streamlined train that would wow rail travelers and be cheap for railroads to operate.

Concept And Testing

The first concepts for what became the Aerotrain appeared to the public in the June, 1955 issue of Look Magazine.

At first, it was described as "Train Y" to readers and the article looked to awe them by stating that it could operate at speeds greater than 100 mph and be able to connect New York and Chicago in 10 1/2 hours or run along the NYC-Boston corridor in just 2 1/2 hours.

While Mr. Earl envisioned the train it was GM's Chief Designer of Special Projects, Chuck Jordan, who was actually tasked with bringing it into reality.

By the end of 1955 the design was in development and it was ready to debut on the Pennsylvania Railroad as the Pennsy Aerotrain in February of 1956 as trainset #1.

To market the new concept GM released flyers and pamphlets, featured the train in other magazines aside from Look, and even had a miniature scale model built to tour around the country.

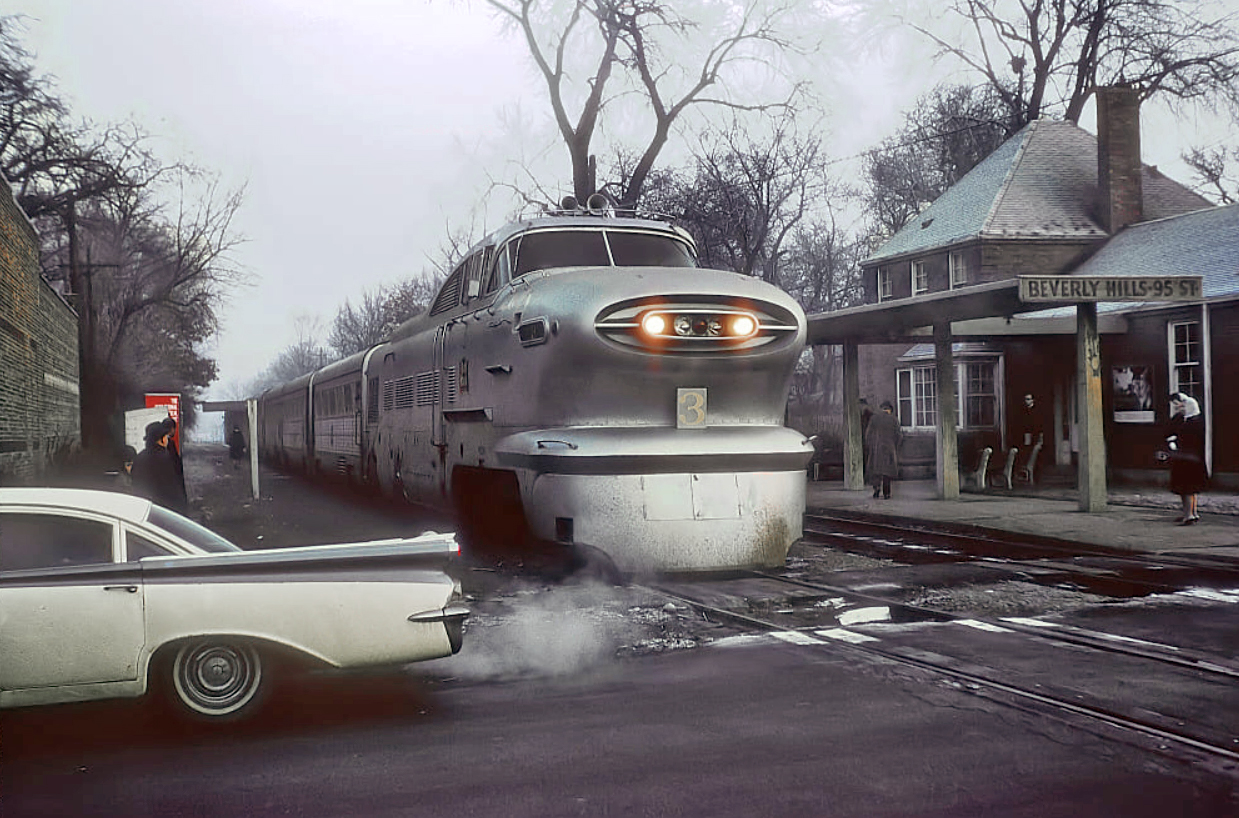

One of the Rock Island's old Aerotrain sets in commuter service at Beverly Hills/95th Street in Chicago; December, 1964. Rick Burn photo.

In truth, underneath the glam and glitter in showcasing its latest railroad invention, GM had a good idea with the train.

As it stated in its marketing pieces the industry was losing some $700 million annually on passenger trains by the 1950s, which nearly equaled what they were earning in freight revenue.

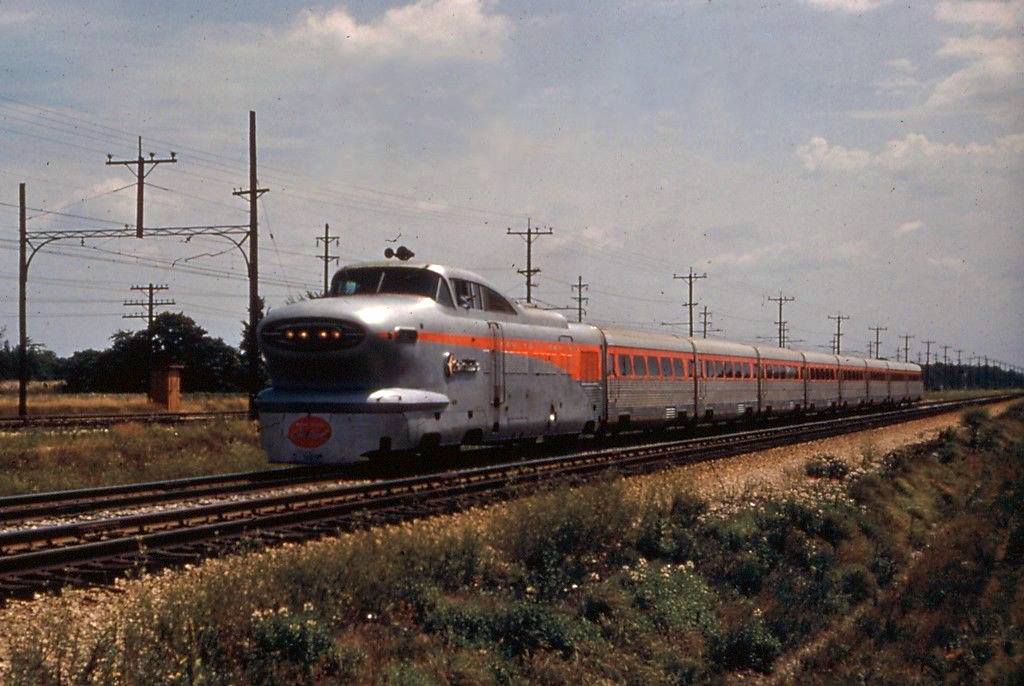

General Motors' "Aerotrain" tests on the New York Central during the 1950s. The lightweight concept was ultimately a failure producing a very rough ride; no railroad ever purchased a set. However, the Rock Island acquired the pair of demonstrators and used them in commuter service until the mid-1960s.

Consist And Specifications

Despite these losses railroads were required by federal law to continue providing such services even though highways, automobiles, and airlines were all subsidized on some level. The Aerotrain was powered by EMD's (GM's Electro-Motive Division which manufactured locomotives) LWT12 model diesel locomotive.

It utilized the company's tried and proven model 567C 12-cylinder prime mover that could produce 1,200 horsepower (essentially based from a SW1200 switcher). The unit featured a turret-like, raised cab and whose overall design resembled recent cars available for sale at the time.

The completed train sported a 10-car consist and ironically, was modeled against the very competition trying to put passenger trains out of business, the intercity bus. The cars were only 40 feet long, half the length of standard designs, thereby reducing the weight by 50%.

To also reduce weight the locomotive and cars were all built from aluminum and GM returned to a concept first used at the start of the streamliner era, semi-permanently coupled trainsets. In this case all of the cars and locomotive shared a truck, which further helped to trim weight.

To save space GM looked to the bus design and used the area beneath the cars to store luggage and other passenger items (this also resulted in no longer needing a dedicated baggage car).

With its air-suspension and high speeds travelers were meant to be "wowed" while General Motors touted to railroads that operational costs would be reduced from $2,500 per seat to just $1,000.

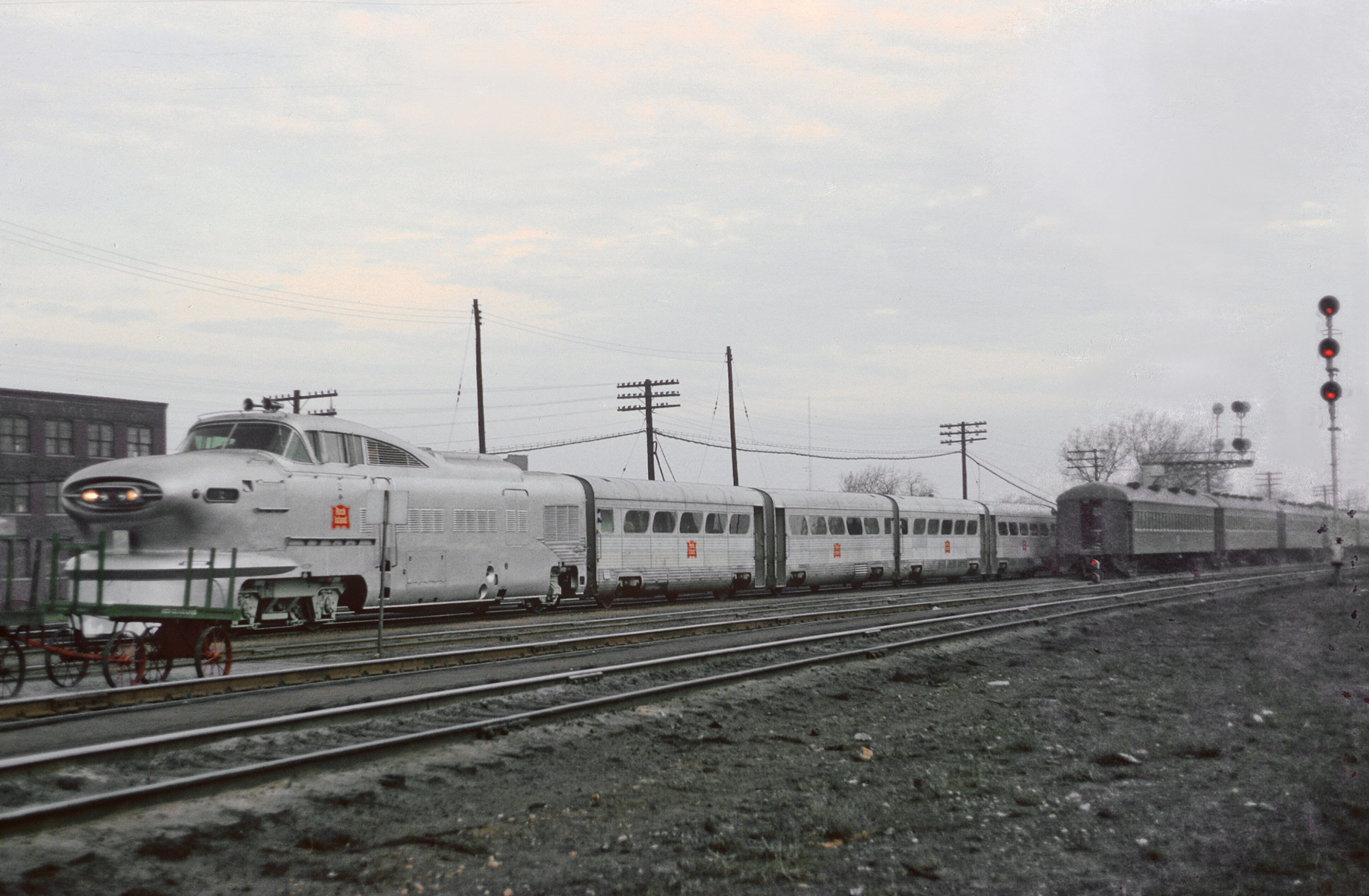

Rock Island "Aerotrain" set #2 has a commuter train at Chicago's Englewood Union Station on April 21, 1965. Roger Puta photo.

As a final advantage for railroads, GM designed the trainset to have new equipment simply replace worn out cars due to their low cost, instead of trying to preform repairs.

Soon after the Pennsy Aerotrain hit the rails between New York City and Pittsburgh, Pennsylvania the New York Central launched the second trainset, #2, between Cleveland and Chicago.

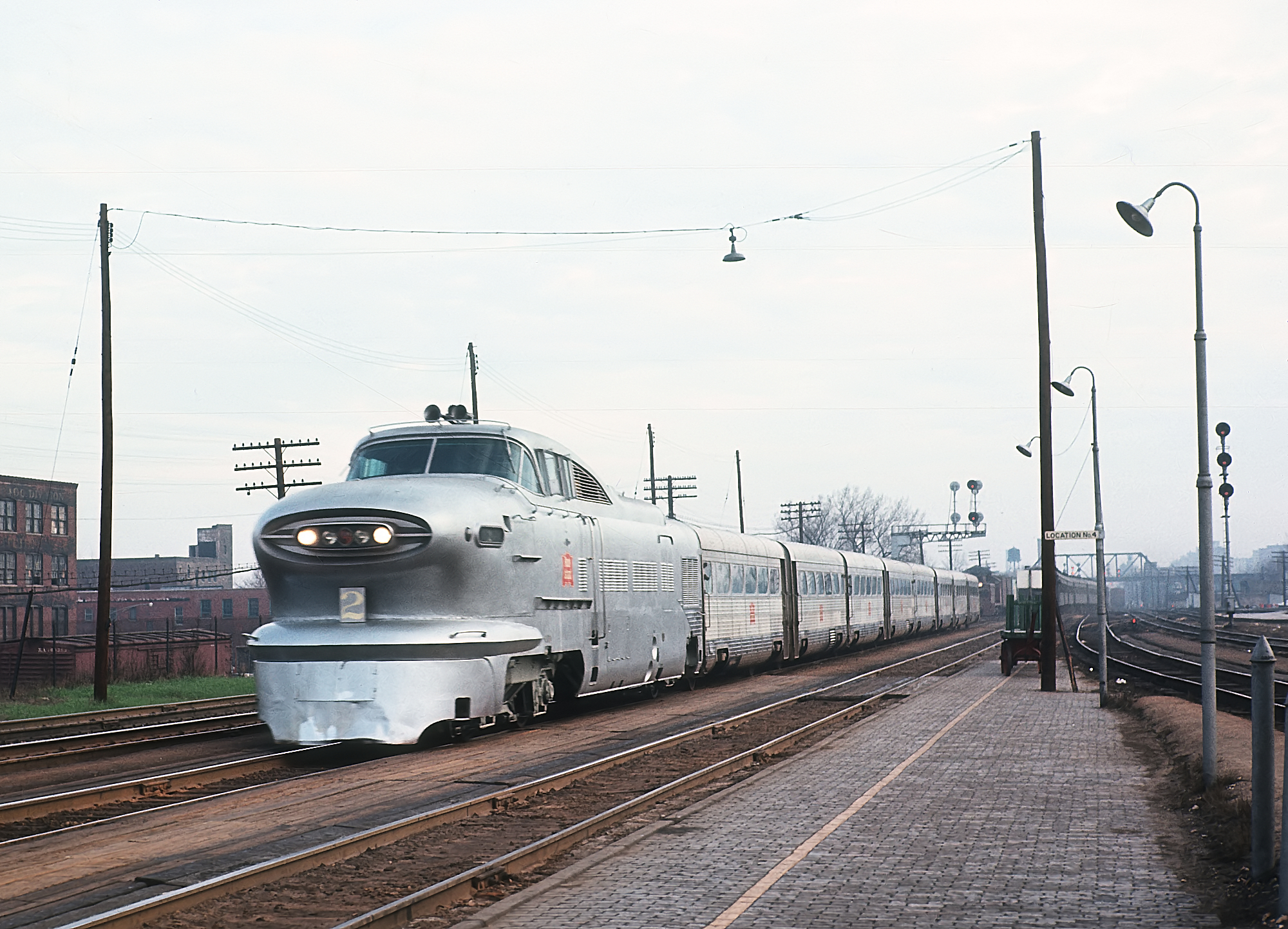

Rock Island's Aerotrain 2 set at Englewood Union Station during the morning commuter rush on April 21, 1965. Marty Bernard photo.

Reception

Despite General Motors' hope and claim that its futuristic train would "save an industry" this simply never happened. As it turned out the Aerotrain was far too light resulting in a rough ride for passengers.

There was also the issue with the locomotive, which was underpowered and had difficulty accelerating to reach its intended fast cruising speeds of near 100 mph.

For railroads they soon discovered the locomotive was also hard to maintain and somewhat difficult to keep running. For more reading about the trainset please click here.

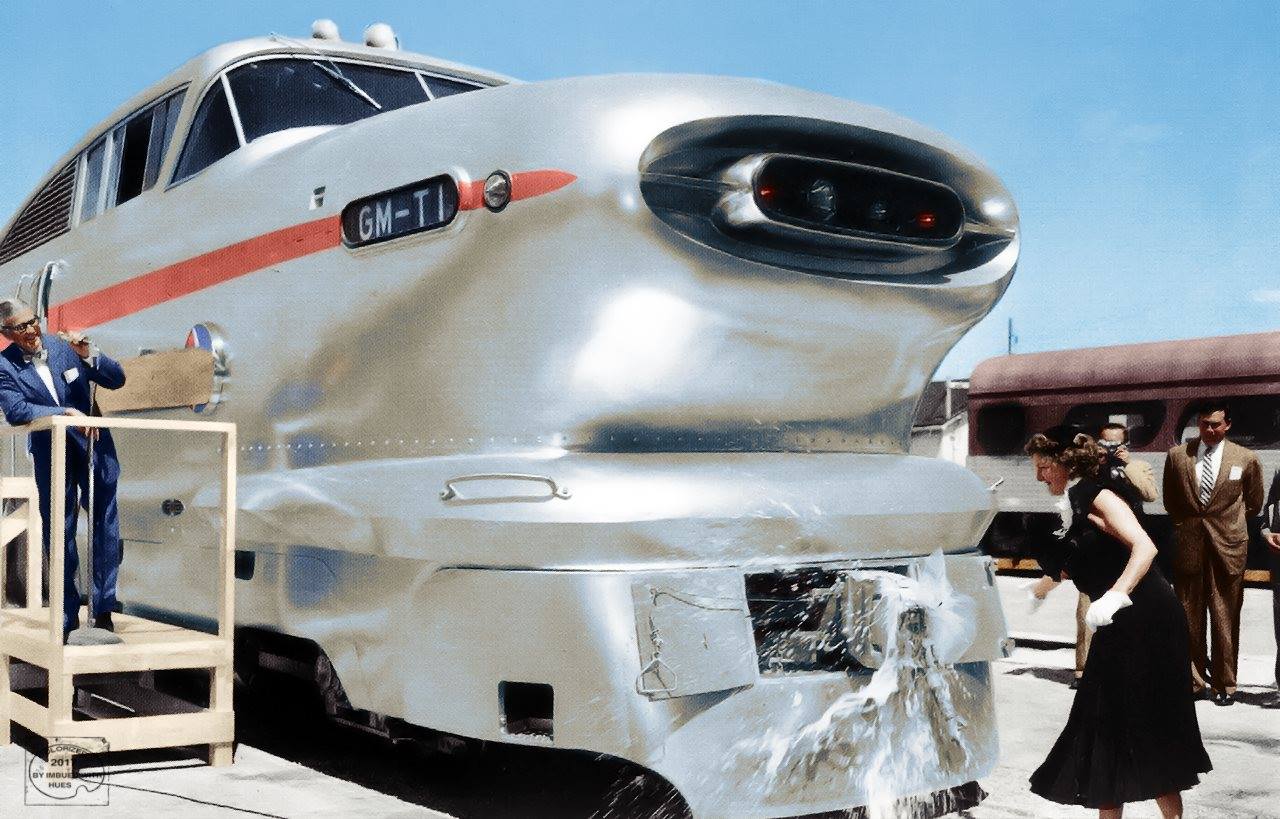

Christening the General Motors' "Aerotrain," circa 1956. There were two demonstrator sets produced, powered by a 1,200 horsepower LWT12 locomotive (pictured). One, each, tested on the New York Central and Pennsylvania but the single 567C 12-cylinder prime mover ultimately proved unable to offer sufficient power. In addition, the cars were too light which resulted in a rough, jarring ride. Touted as the "future in rail transportation" the sets were later sold to Rock Island and quietly spent their years working suburban service until the mid-1960's. Photo colorized by Patty Allison.

Rock Island Era and Preservation

The train went on to test with two other railroads including the Santa Fe (as its San Diegan) and the Union Pacific, which put it to work briefly on its City of Las Vegas.

During these demonstrator runs the trainsets logged more than 600,000 miles although ultimately, no companies were ever interested in purchasing sets and both the PRR and NYC had returned theirs to GM by 1957.

Interestingly, the Rock Island saw use for both in commuter service purchasing them soon after they were returned to General Motors.

Thus, they became perhaps the most eye-catching and interesting commuter trains ever operated, faithfully operating around Chicago for another decade until even the Rock had had enough and officially retired the sets in 1966. Parts of both sets are preserved, however.

Today, NYC's Aerotrain #2's locomotive resides at the National Railroad Museum in Green Bay, Wisconsin while the Museum Of Transportation in St. Louis keeps PRR's #1, which includes the locomotive (non-powered) and a few cars.
