California Railroads: Map, History, Abandoned Lines

Last revised: September 6, 2024

California railroads are, in a nutshell, entirely in a class by themselves.

While the state was late in being accessed by the nation’s ever growing rail grid compared to states like New York, Maryland, and Pennsylvania all of whom had over 300 miles of trackage by 1840.

- It’s first railroad did not appear until the 1850s although much of this is due to the then territory’s obscurity, until the Gold Rush of the 1840s changed everything. -

It did not take long for California to catch up! After the Gold Rush and completion of the Transcontinental Railroad, California's railroads exploded to over 2,000 miles by 1880.

History

Today, the state remains one of the top in the country with key main lines crisscrossing the state carrying both passengers, daily commuters, and plenty of freight.

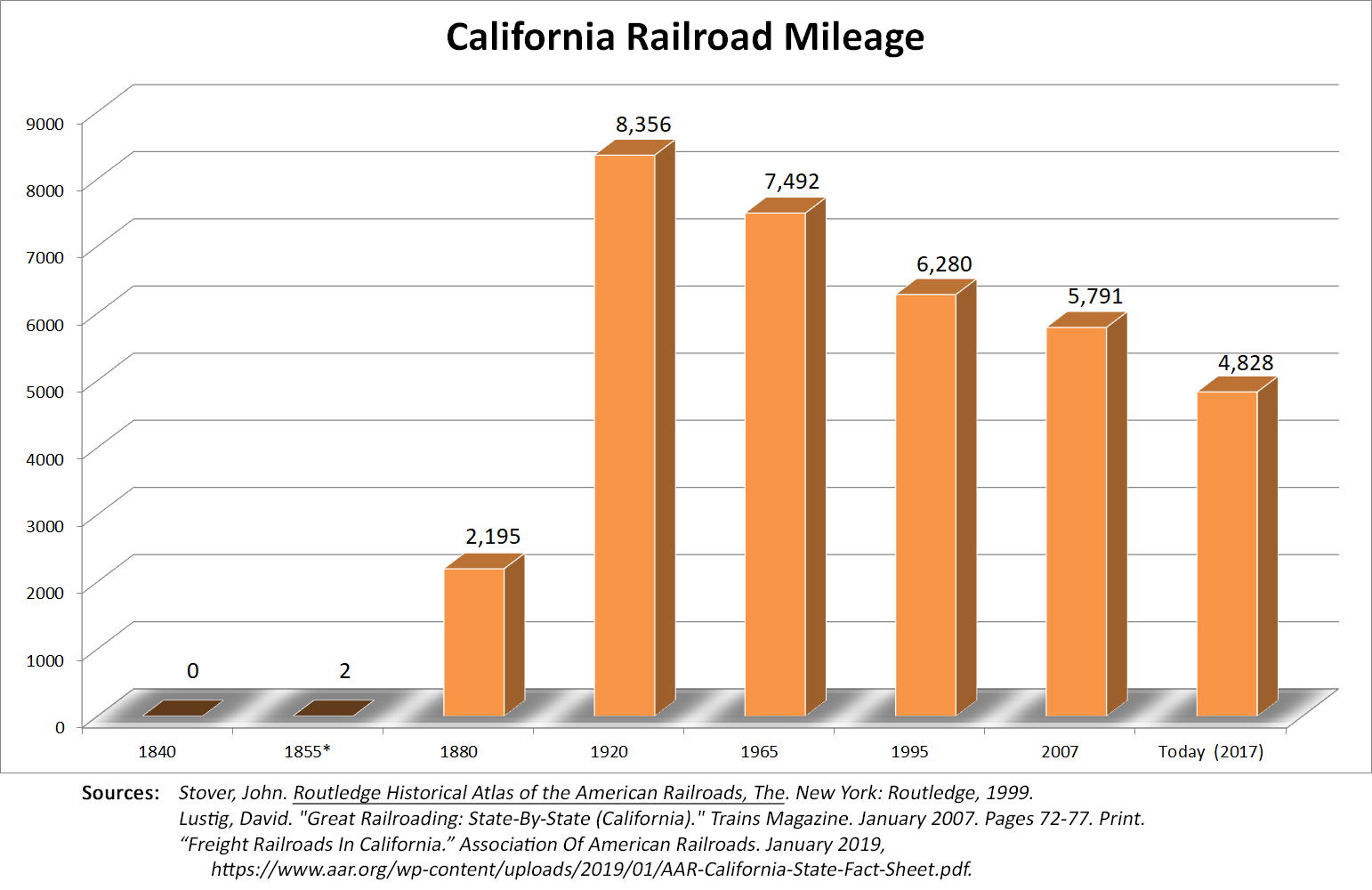

As can be seen in the below graph, California has abandoned roughly half of its all-time rail mileage. Defunct lines litter the state, many of which were secondary branch lines and agricultural corridors.

At one time a great deal of the state's booming farming industry, including perishables, shipped their product by rail. Today, much of this has been siphoned away by the trucking industry.

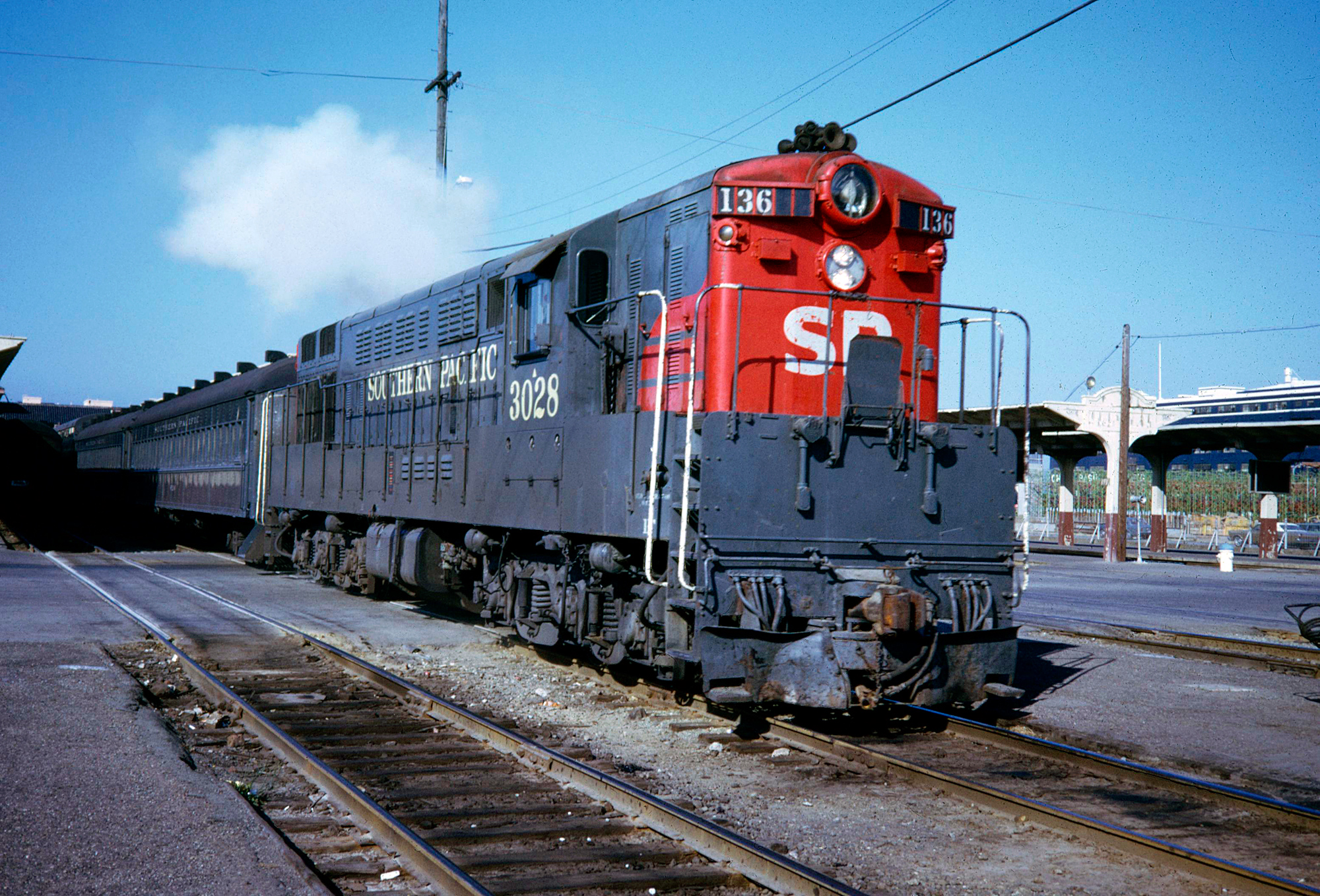

Southern Pacific "Train Master" #3028 has commuter run #136 at San Francisco's 3rd & Townsend Depot in April, 1973. American-Rails.com collection.

Standard-gauge railroads in California have their official beginning in 1856 when the Sacramento Valley Railroad completed its 22-mile line connecting Sacramento with Folsom, California.

However, it was the completion of the Transcontinental Railroad in 1869 between the Central Pacific (which would become part of the Southern Pacific) and Union Pacific that actually kicked off the state’s explosion of railroads and more importantly, its economy, as people began flocking to California in droves.

The Central Pacific Railroad got its start by the Pacific Railroad Act of 1862, created by Congress and signed into law by President Lincoln.

The CP was planned by Theodore Judah and financed by what became known as the "Big Four"; Leland Stanford, Collis Huntington, Charles Crocker, and Mark Hopkins.

The railroad began construction in 1863 and the rest, as they say, is history.

Abandoned Lines

California has lost roughly 3,500 miles of its infrastructure since the 1920's. Like most states, most of these abandonments occurred after 1965.

Despite such a large loss, most of the state's removed lines consist of secondary or agricultural branches operated predominantly by Southern Pacific. In addition, some Santa Fe and Union Pacific trackage has also been removed.

Notable abandonments include:

SP's fabled "Modoc Line" through northeastern California (which acted as inside gateway from its Cascade Line to Overland Route)

Northwestern Pacific Railroad running the northwestern coast to Eureka (officially out of service but unlikely to see trains ever again)

Pacific Electric Railway (the largest interurban in the U.S. operating 1,100 miles and serving Los Angeles and its suburbs of San Bernardino, Long Beach, Pasadena, Santa Ana, Hollywood, Redondo, Pomona, Riverside, Santa Monica, and San Fernando)

Most of the Sacramento Northern between San Francisco and Oroville

Logging operations, in particular the McCloud River Railroad and West Side Lumber

Most of the Tonopah & Tidewater Railroad which ran from a connection with the Santa Fe at Ludlow to Goldfield, Nevada. All operations ceased in 1940.

By 1880, eleven years after the completion of the transcontinental line California featured a staggering 2,185 route miles of railroads!

Today, the state holds over 6,000 miles of trackage with much of it concentrated around the its ten largest cities (the rest of which mostly fans outward north, south, east, and west in the way of key main lines).

State Mileage Chart

First Railroad

* California's very first railroad actually put into service was the Arcata & Mad River Railroad. According to Dr. George W. Hilton's book, "American Narrow Gauge Railroads," it was organized in 1854 by the Union Company as the Union Wharf & Plank Walk Company for the purpose of moving lumber from schooners docked at a pier in Union (Arcata) along Humboldt Bay near Eureka.

It used wooden rails via a horse tramway system and was built to a gauge of 3 feet, 9 1/4 inches. In 1855, 2 miles of this track was in service. In 1875 its name was changed to the Union Plank Walk & Railroad Company. It became the Arcata & Mad River Railroad in 1880 and throughout its corporate existence handled timber traffic.

By the early 20th century California was booming and so were its railroads. In all the state would find itself home to some of the most legendary and celebrated Class I railroads of all time.

These include names like the Union Pacific, Western Pacific, Santa Fe, and Southern Pacific. Of all these classic systems, the Southern Pacific stands far above the rest as it completely dominated California.

The “Espee” is as synonymous with the Golden State as the Pennsylvania Railroad is with the State of Pennsylvania.

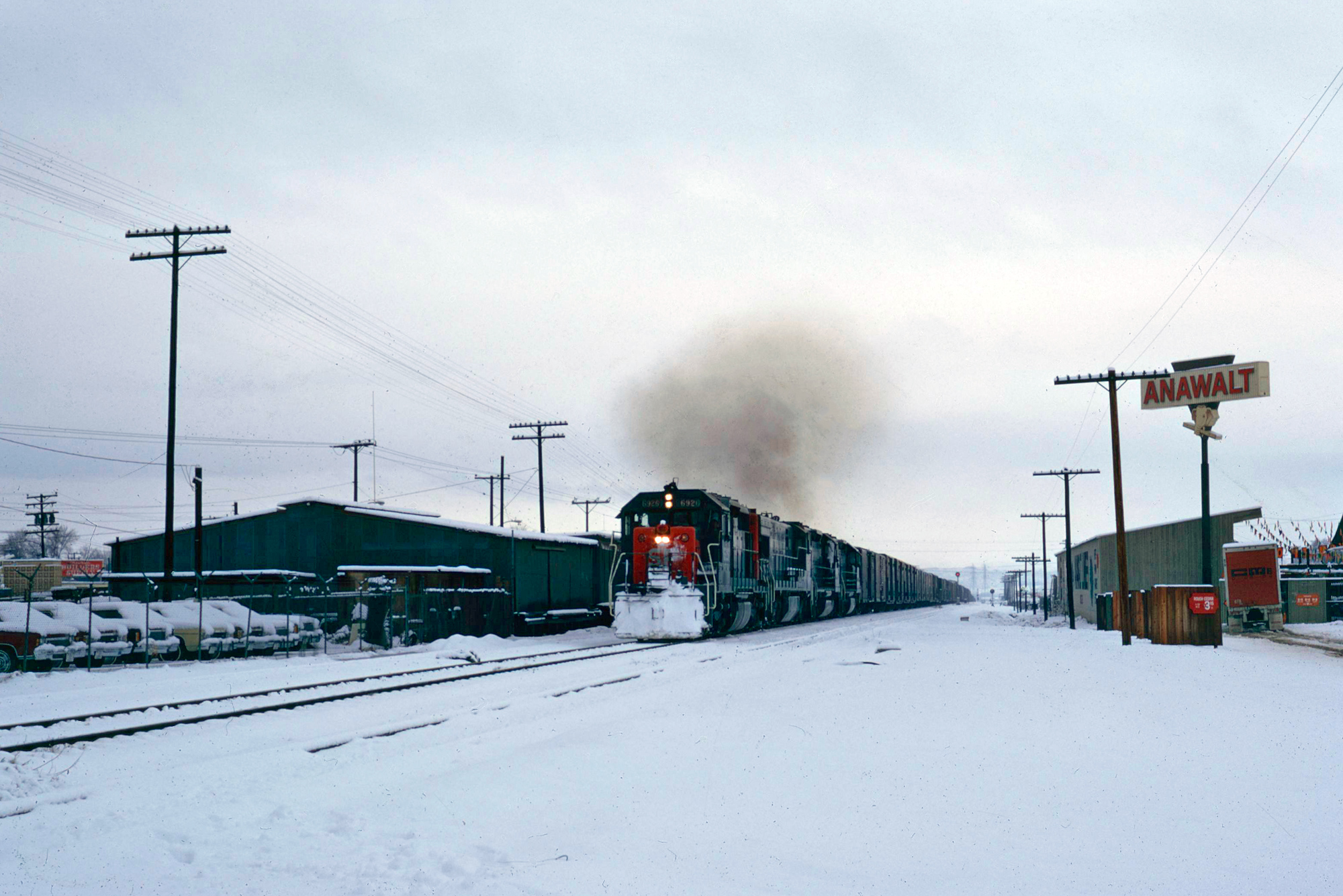

A rare winter storm has descended upon Newhall, California as Southern Pacific SD35 #6926 leads its train south/east through the town on January 4, 1974. Anawalt Lumber can be seen at right. American-Rails.com collection.

The SP served every large market in the state and likewise moved about every type of freight imaginable heading east.

Some of this included things like perishables from the San Joaquin Valley, a once massive operation that provided significant profits for the SP.

Today, however, these are little more than abandoned spurs and buildings dotting the valley where the railroad used to load and ice its cargo (the service died upon SP’s poor service in the late 1970s which today, while making a small comeback, still almost exclusively relies on trucks to move fresh goods such as lettuce, carrots, and cabbage).

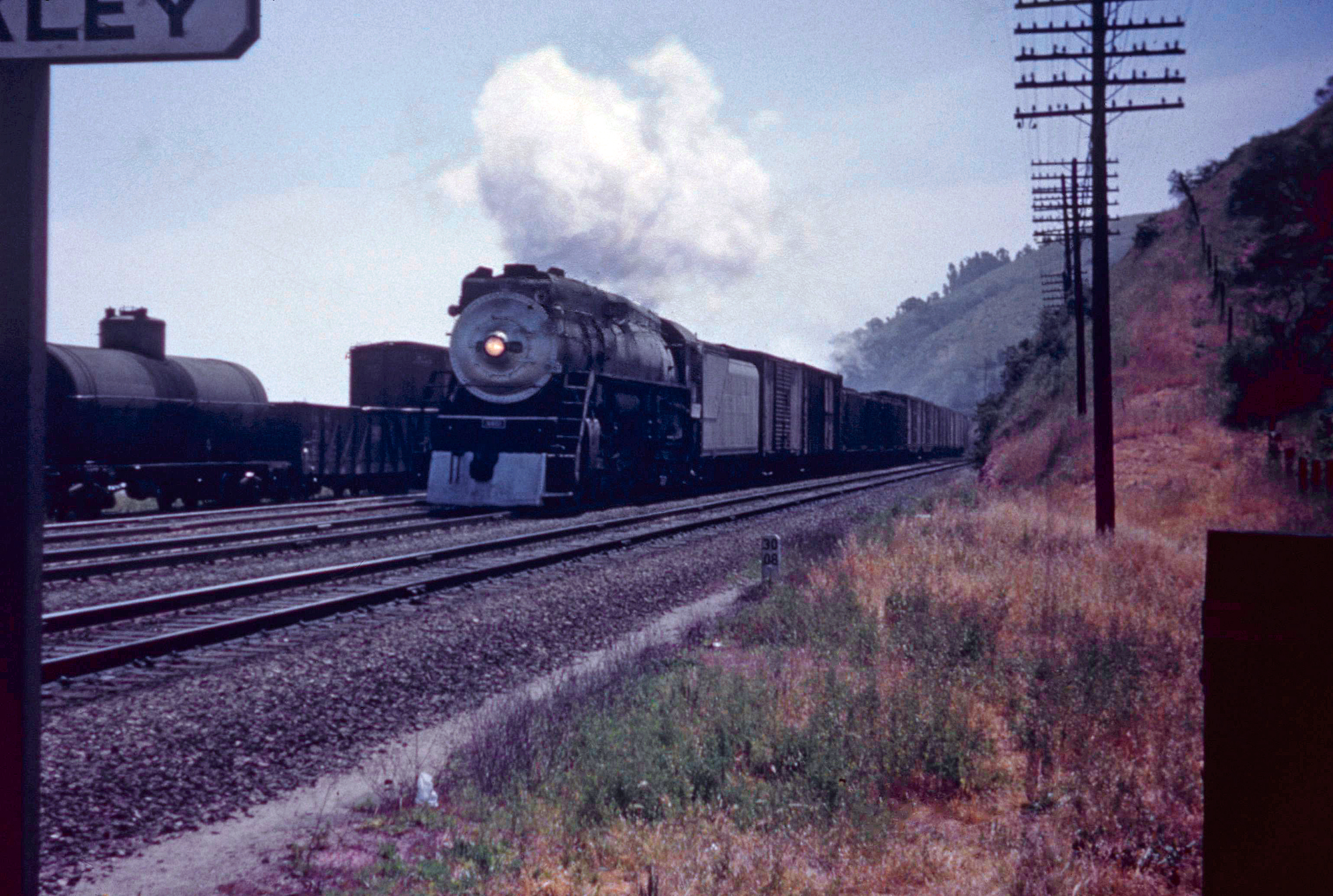

Southern Pacific 4-8-4 #4410 works freight service as the train heads west through Eckley, California along the Carquinez Strait on May 20, 1951. American-Rails.com collection.

Other traffic included merchandise, intermodal, and automotive parts.

While the former two are still bustling, automotive parts are another traffic source that has mostly dried up particularly in the once industrialized booming and bustling San Francisco bay area.

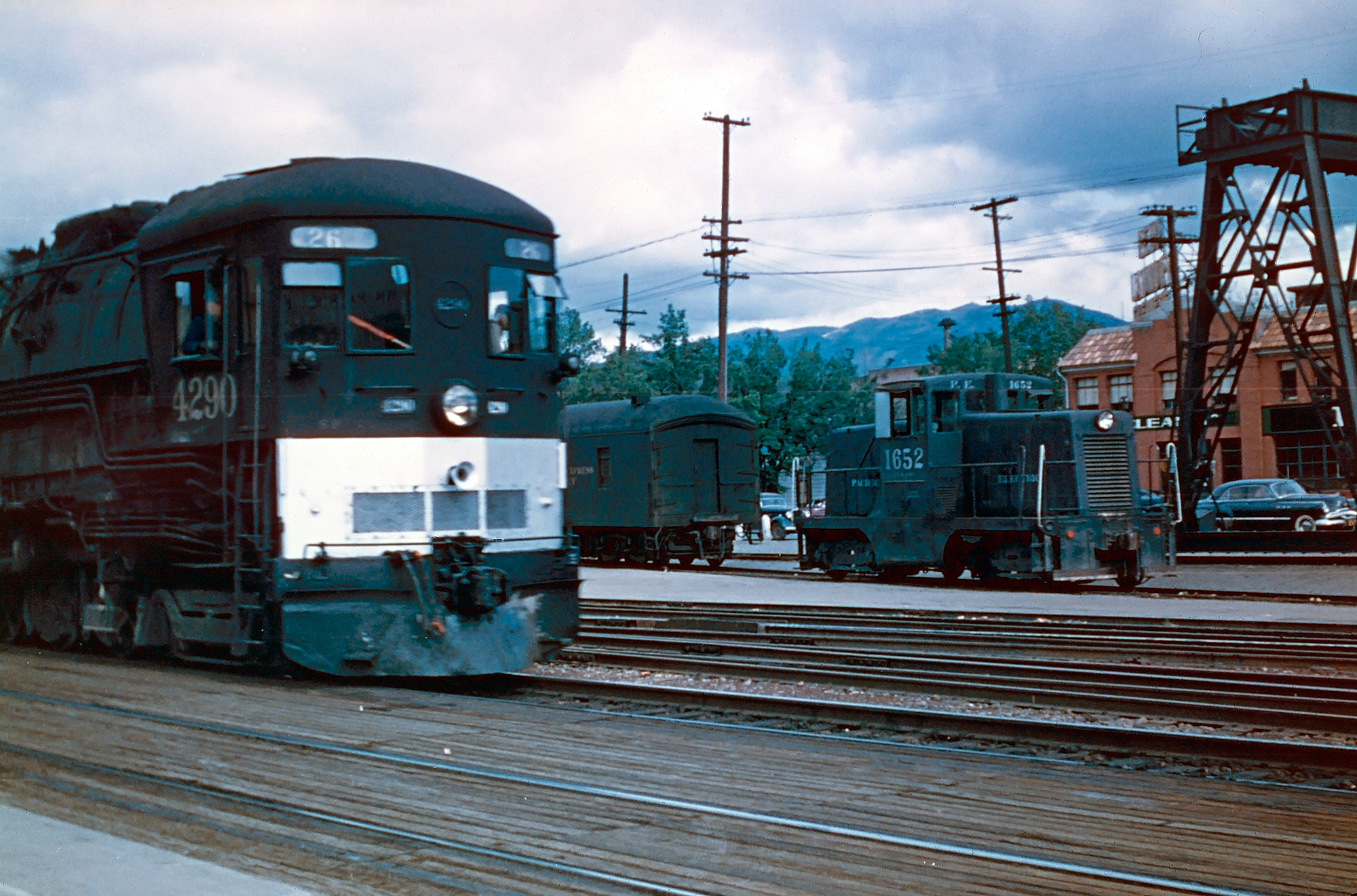

Southern Pacific 4-8-8-2 #4290 (AC-12) with freight #26 in Los Angeles during the summer of 1949. Pacific Electric 44-tonner #1652 can been seen a few tracks over. American-Rails.com collection.

At one time Southern Pacific dispatched several trains a day in and out of the city. However, by the 1970s this traffic began to disappear as plants in the area closed.

Today, San Francisco is completely devoid of almost all freight rail service and all that remains is commuter and light rail operations.

Even the Southern Pacific itself is gone. A once extremely dominate and profitable large western railroad, the Espee began to lose its way in the 1970s and by the 1980s was a mere shell of its former self.

Map (1922)

A 1922 map of California railroads, roughly during the industry's peak years, prepared by the California State Railroad Commission.

Interurbans

One aspect of California's railroad history often overlooked as its interurban/streetcar industry. In the West these systems were scattered and fewer in number than throughout the Midwest and East.

However, the Golden State boasted 1,295 miles of interurbans during its peak in the early 1900's.

According to the book, "The Electric Interurban Railways In America" by authors George Hilton and John Due, this ranked the state 3rd in all-time mileage. The most notable systems included:

Sacramento Northern Railway

Sacramento Valley West Side Electric Railway

Central California Traction Company

Tidewater Southern Railway

Petaluma & Santa Rosa Railroad

San Francisco, Napa & Calistoga Railway

Peninsular Railway

Visalia Electric Railroad

Pacific Coast Railway

Nevada County Traction Company

Watsonville Traction Company

Pacific Electric Railway

Alas, all were largely gone by World War II save for the Pacific Electric and Sacramento Northern which survived for a few more years as freight carriers.

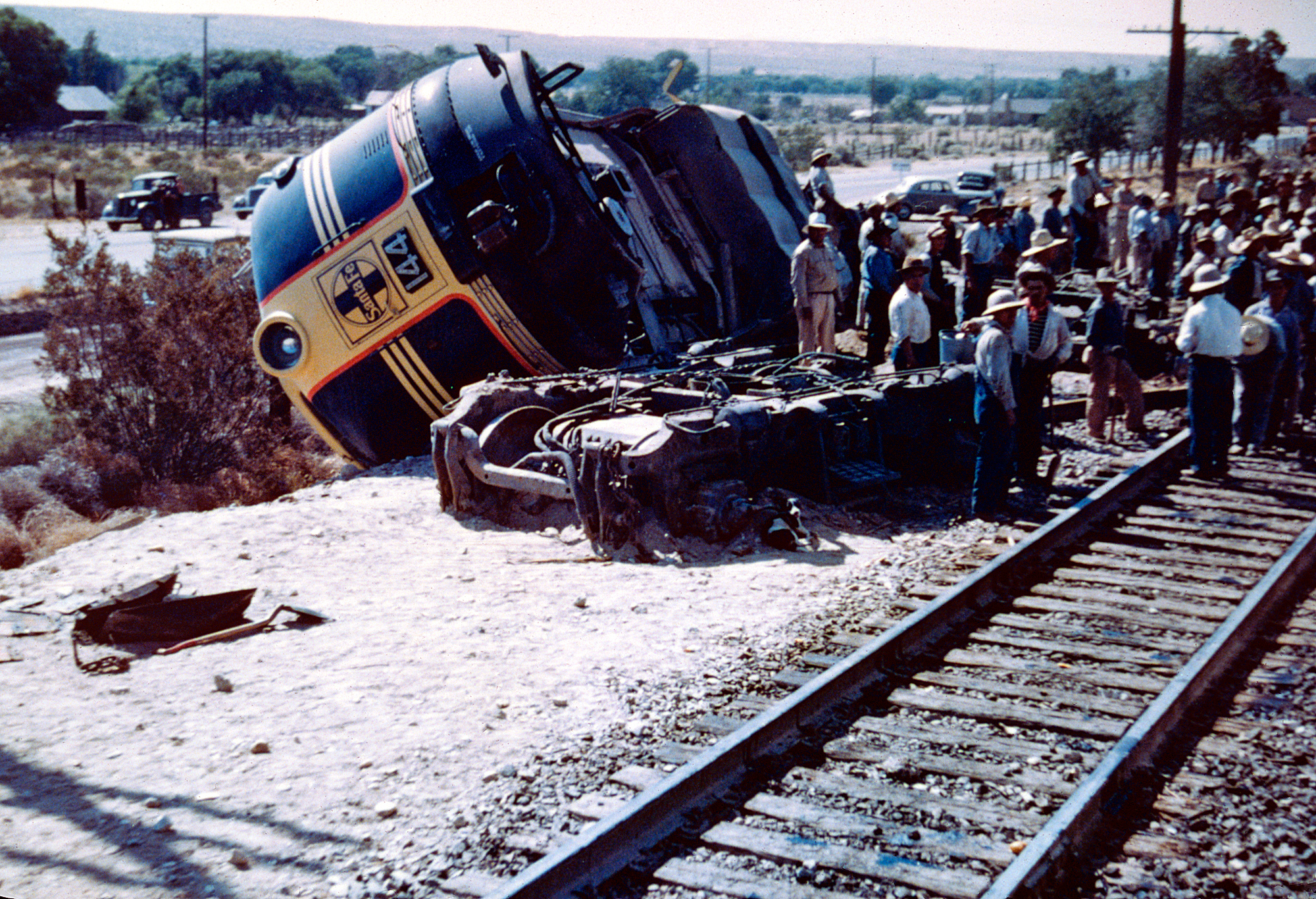

Santa Fe FT #144-L is off her trucks following a wreck/derailment at Oro Grande, California in July, 1945. The unit, just over a year old in this photo, was later returned to service. She was eventually traded in to EMD for new GP30's. Russ Cole photo. American-Rails.com collection.

The Denver & Rio Grande Western Railroad eventually purchased it in 1988, which assumed the Southern Pacific name.

In 1996 both of these venerable railroads disappeared into the Union Pacific fold.

Although the SP disappeared in the 1990s it left behind, and is famous for, several California railroad landmarks.

These include its two famous main lines, the Overland Route connecting northern California with Ogden, Utah and its Sunset Route, connecting most of southern California with much of the Southwest and Deep South.

From point to point the Sunset Route connects New Orleans with Los Angeles!

In all the Southern Pacific would grow to a system of over 15,000 miles in length, almost twice the size of the Union Pacific prior to the merger movement.

The SP is also noted for its Donner Pass in the Sierra Nevada Range and Tehachapi Loop near Tehachapi, California.

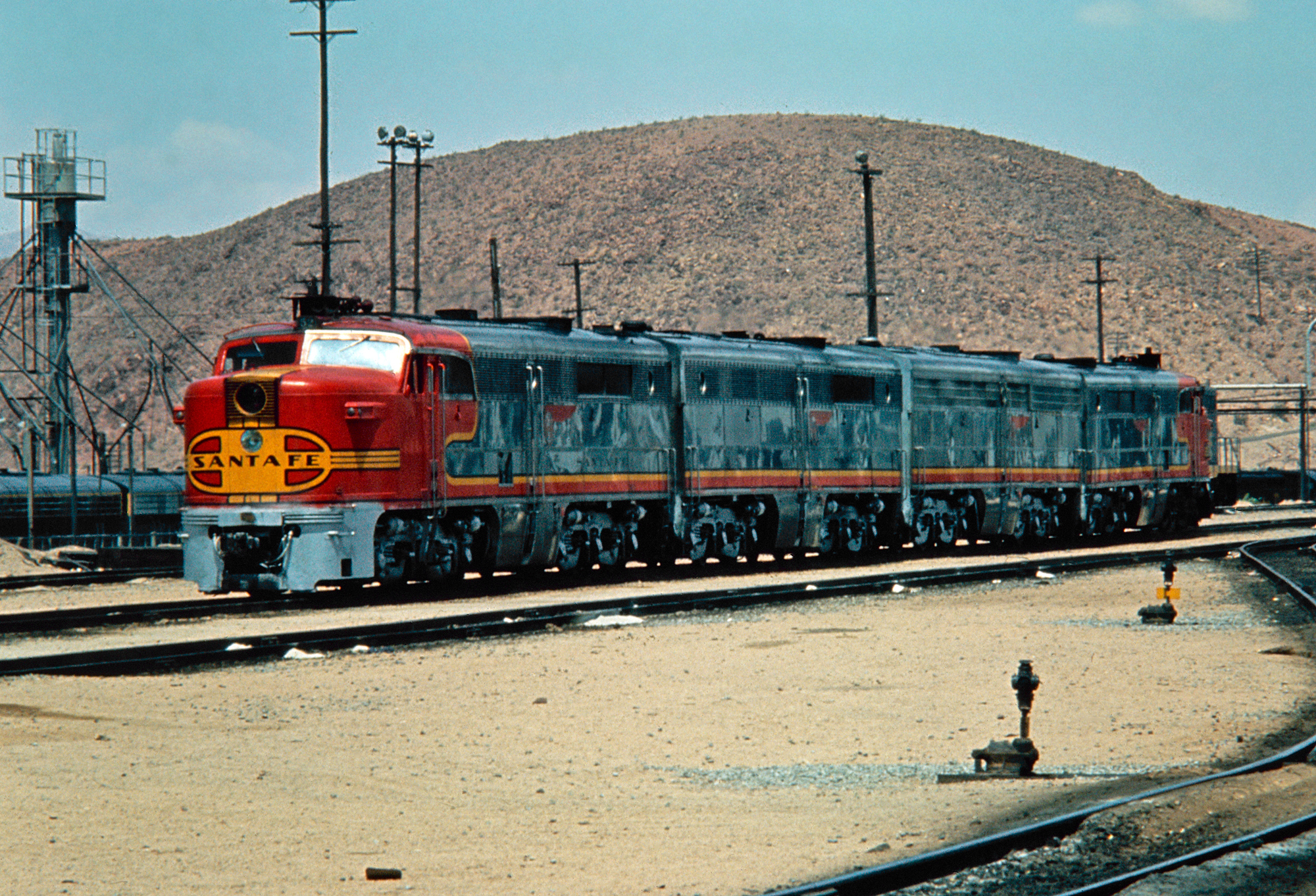

A Santa Fe PA-PB-PB-PA set lays over in Barstow, California during the 1960s. Closest to the photographer is PA-1 #52-L. American-Rails.com collection.

For all of its prestige in relation to California the Southern Pacific, of course, was not the only well-known railroad operating in the state.

The Western Pacific was another famed railroad to be found within California's borders.

The smallest of California's classic large systems, its Feather River Canyon main line between Reno and Sacramento (in all it connected the Bay Area with Salt Lake City, Utah) is arguably the state’s most beautiful route and it is still operated today by Union Pacific as an important main line.

Prior to the merger movement the Union Pacific did not have much of a presence in California although its main line connecting Salt Lake City and Los Angeles did provide the railroad with important sources of traffic and continues to do so even today.

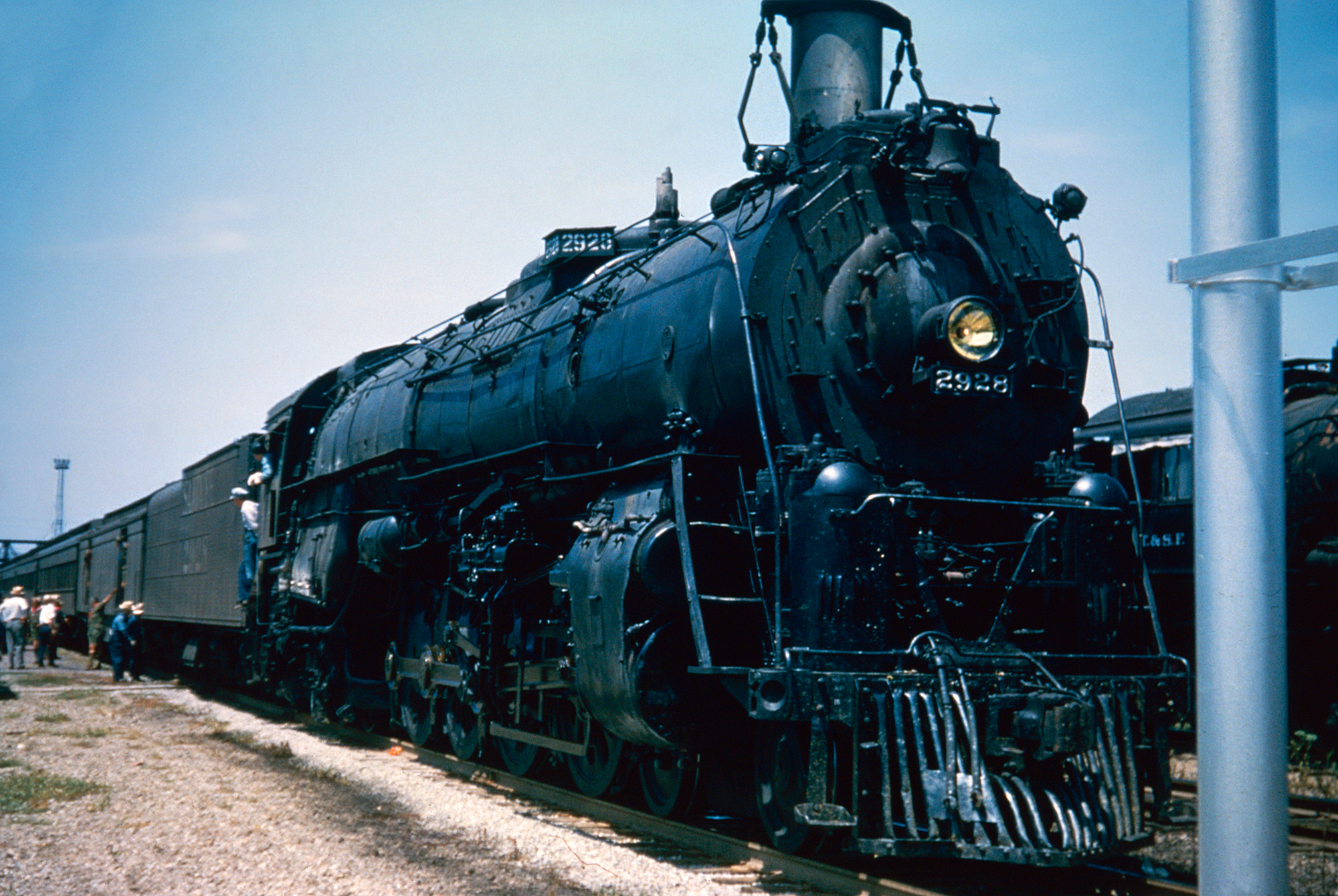

Santa Fe 4-8-4 #2928 has arrived in Los Angeles with Boy Scouts bound for the National Jamboree being held that year in nearby Irvine; July, 1953. The kids would complete the trip by bus to the campgrounds. American-Rails.com collection.

Statistics

First Railroad	Arcata & Mad River Railroad (1854)
Peak Mileage	8,356 (1920)
Current Mileage	4,971 (2020)
Current Railroads	27
Originated Rail Tons (2019)	64.0 million
Terminated Rail Tons (2019)	94.9 million
Originated Carloads (2019)	3,405,045
Terminated Carloads (2019)	3,099,467

Last, but certainly not least, was the Atchison, Topeka & Santa Fe Railway.

It was the Southern Pacific’s main competition in California and the Southwest as the two railroads competed for much of the same traffic.

The legendary Santa Fe system was massive stretching from Chicago to western Louisiana, as well as San Francisco and Los Angeles, although its Californian routes were never quite as strategic as the Espee’s.

The Santa Fe’s most well known California railroad landmark is Cajon Pass in the San Bernardino mountain range in the southern part of the state.

The ATSF is also celebrated for its many mission-style depots and stations it built in the southwest, including California. Today, Santa Fe’s lines in the Golden State are operated by its successor the BNSF Railway.

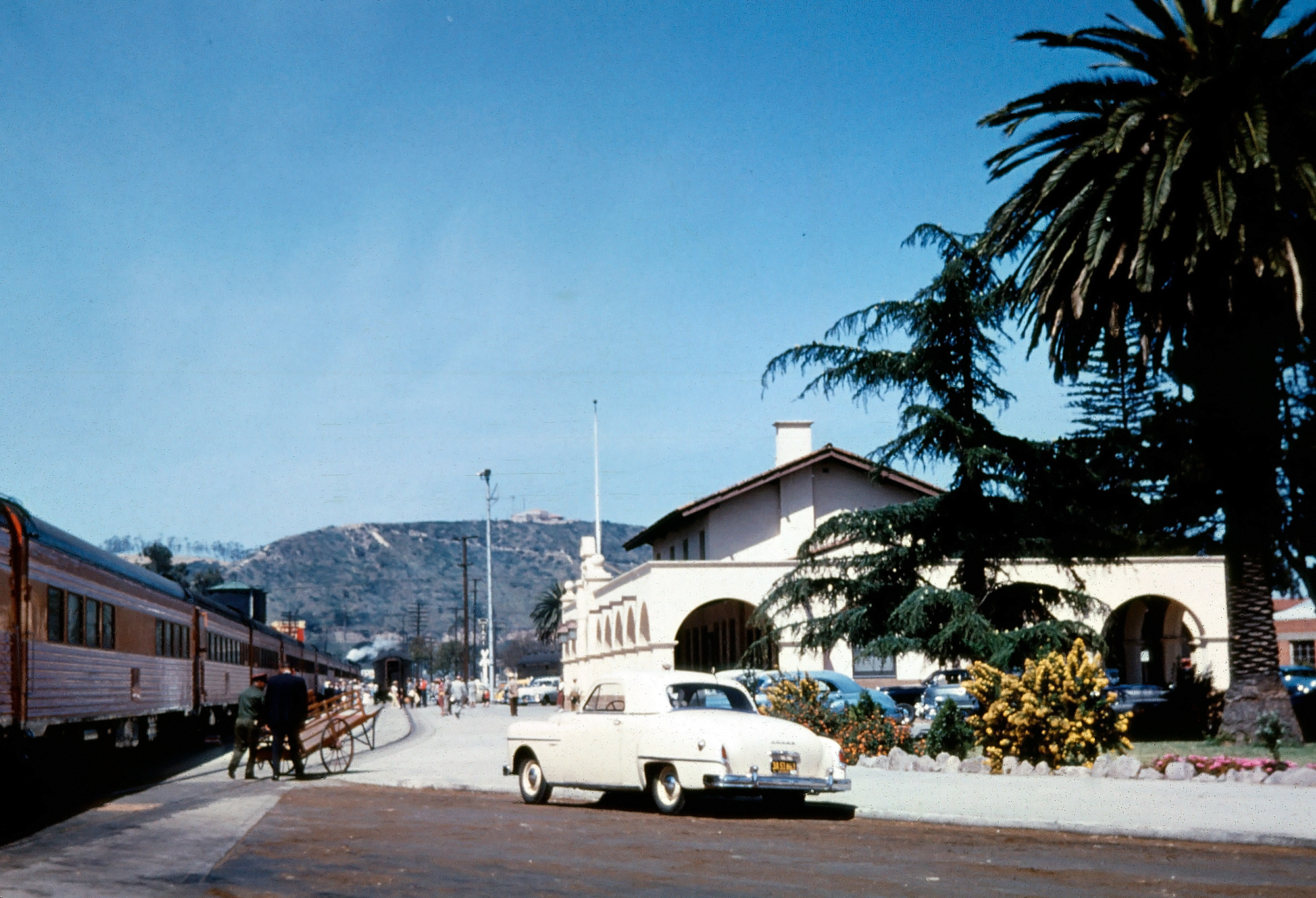

Southern Pacific's "Coast Daylight" stopped at Santa Barbara, California during the 1950s. A.C. Kalmbach photo. American-Rails.com collection.

Current Railroads

Union Pacific

BNSF Railway

Arizona & California Railroad

California Northern Railroad

Carrizo Gorge Railway

Central California Traction

Central Oregon & Pacific Railroad

Goose Lake Railway

Los Angeles Junction Railway

Modesto & Empire Traction

Modoc Northern Railroad

Oakland Terminal Railway

Pacific Harbor Line

Quincy Railroad

Richmond Pacific Railroad

Sacramento Valley Railroad

San Diego & Imperial Valley Railroad

Santa Cruz, Big Trees & Pacific Railway

Santa Maria Valley Railroad

San Diego & Arizona Eastern Railway

San Joaquin Valley Railroad

Sierra Northern Railway

Stockton Terminal & Eastern Railroad

Trona Railway

Ventura County Railroad

West Isle Line, Inc.

West Oakland Pacific Railroad

Yreka Western Railroad

A handsome A-B set of Southern Pacific F7's wearing the "Black Widow" livery, led by #6443, have a short passenger consist just east of Los Angeles, circa 1955. Gordon Glattenberg photo. American-Rails.com collection.

Museums and Attractions

Freight railroading aside, if you are a vacationer looking for places to visit or just a railfan who loves trains, California includes several museums and tourist lines.

Some of the state’s most recognized museums and tourist railroads include:

California State Railroad Museum (an enormously popular museum well known throughout the country, not just in California) located in the former Southern Pacific’s Sacramento Shops

California Western Railroad (The Skunk Train)

Napa Valley Wine Train

Niles Canyon Railway

Pacific Southwest Railroad Museum

Western Pacific Railroad Museum

Shasta Sunset Dinner Train

Western Railway Museum

Other non-freight railroads include California's ever-growing commuter, transit, and light rail systems.

The state is a leader in commuter rail and one reason behind this is its attempt to find ways to reduce its large amounts of carbon monoxide emissions, mostly from highway traffic.

The state’s commuter rail system includes the CalTrain (the Bay Area), Metrolink (Southern California), and Altamont Commuter Express (serving the Central valley and the Silicon valley).

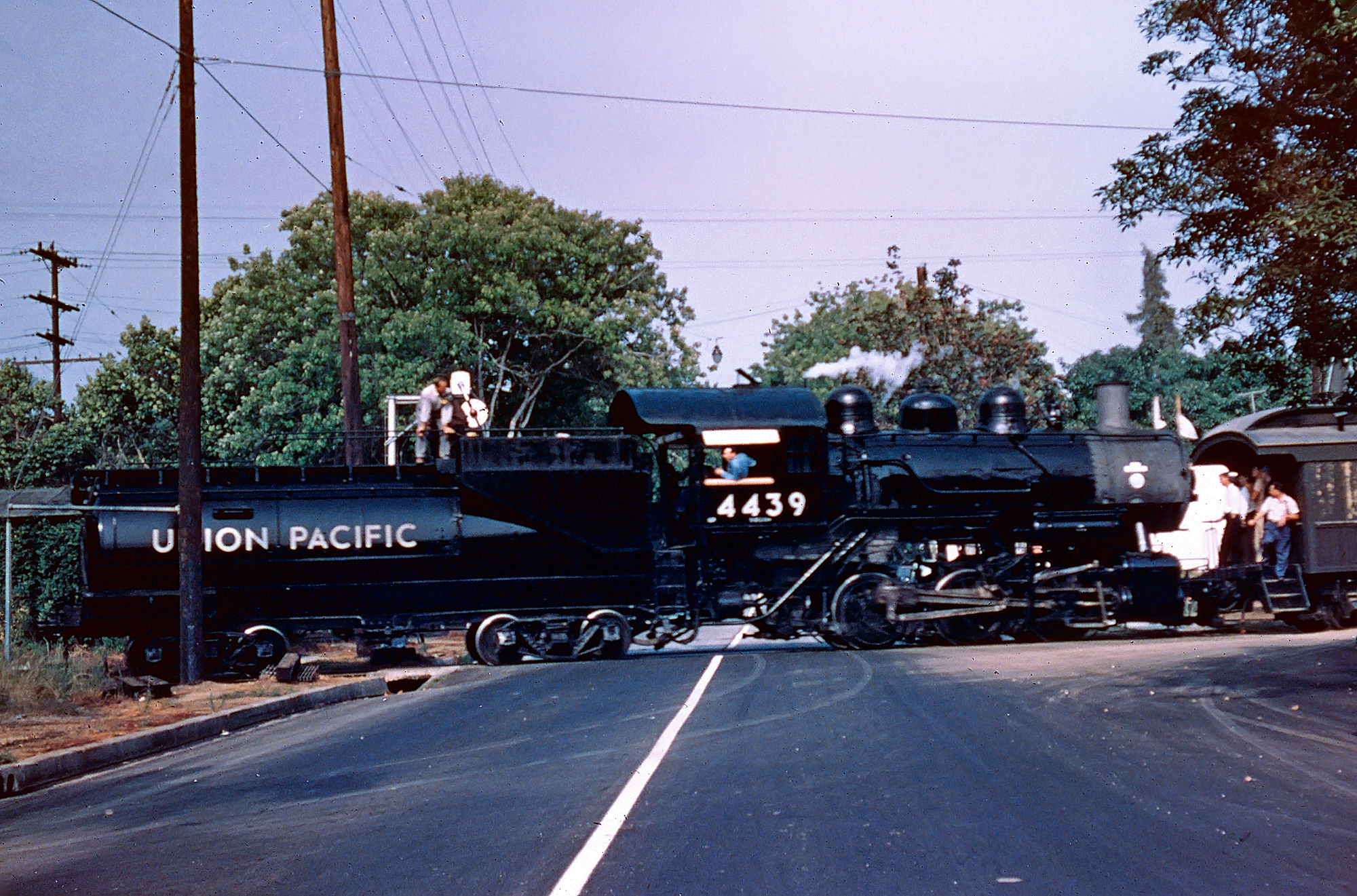

Union Pacific 0-6-0 switcher #4439 leads a fan trip at Whittier, California on June 9, 1956. Today, this line is abandoned. John Shaw photo. American-Rails.com collection.

Of course, the state is also home to plenty of local services like Amtrak’s Surfliner and Capitol Corridor operations part of the passenger carrier’s and state’s Amtrak California services as well as San Francisco’s famous trolley system.

In all, California offers a multitude of things to experience and see so my advice is to simply find what interests you the most and start there first!

Whether it is the famous engineering marvels like Tehachapi and Cajon or railroad museums like CSRM and the famous Napa Valley Wine Train, there really is something for everyone in California.

Most importantly, whatever you might decide to do first, if and when you visit the Golden State, just remember to have fun!

Photos

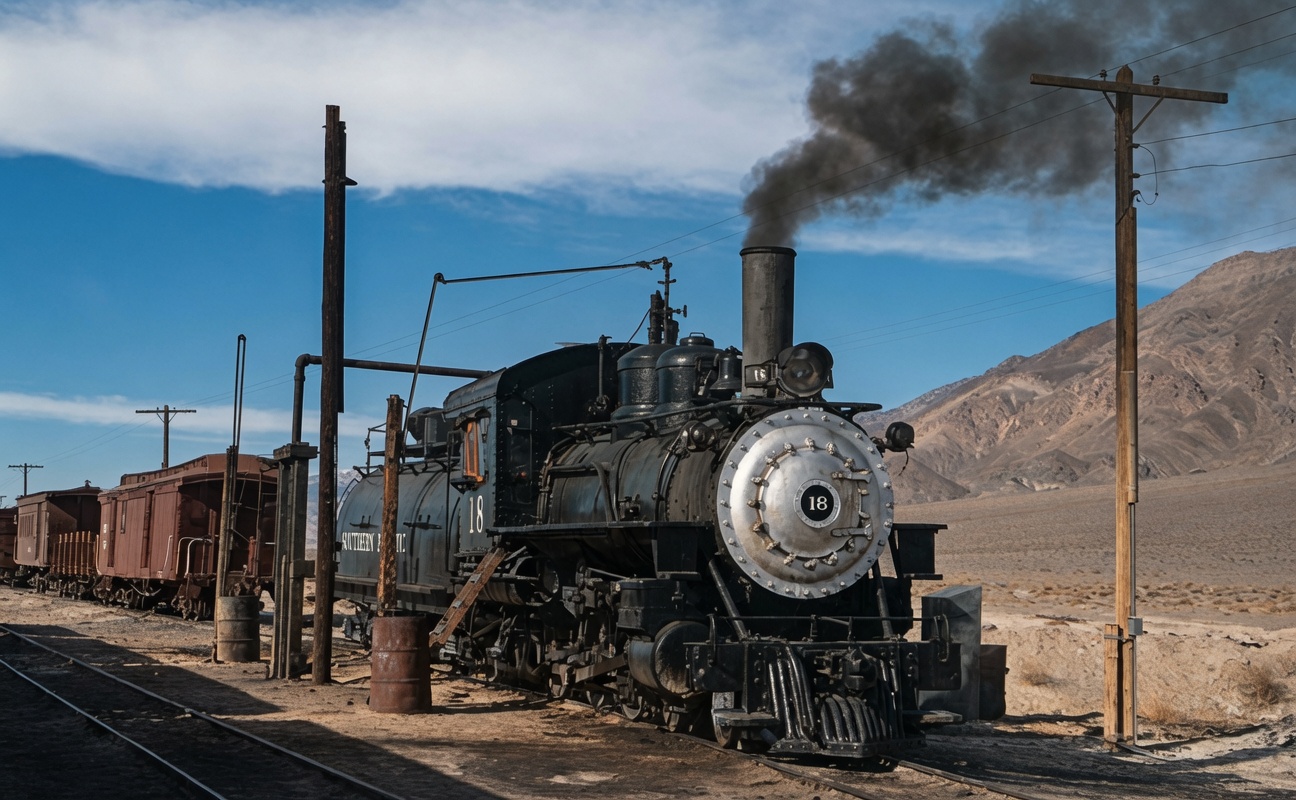

A little Southern Pacific narrow-gauge 4-6-0, #18 (originally built as Nevada-California-Oregon Railway #12 and acquired from that road in 1927), lays over between assignments at Owenyo, California along former Carson & Colorado trackage on February 21, 1954. In a scene that could date several decades earlier, the Ten-Wheeler would be replaced by a narrow-gauge diesel named "Little Giant" later that October. At the time, this remaining segment of the C&C;, known as the Owenyo Branch and Keeler Branch, handled mostly potash and soda. Today, all rail service in this part of the Mojave Desert is long gone. Donald Duke photo.

Santa Fe F7A #42C leads the "Last Run Of A PA" excursion as it lays over at Riverbank, California during April of 1969. With no PA to power this particular train refunds were offered to those who requested them. Drew Jacksich photo.

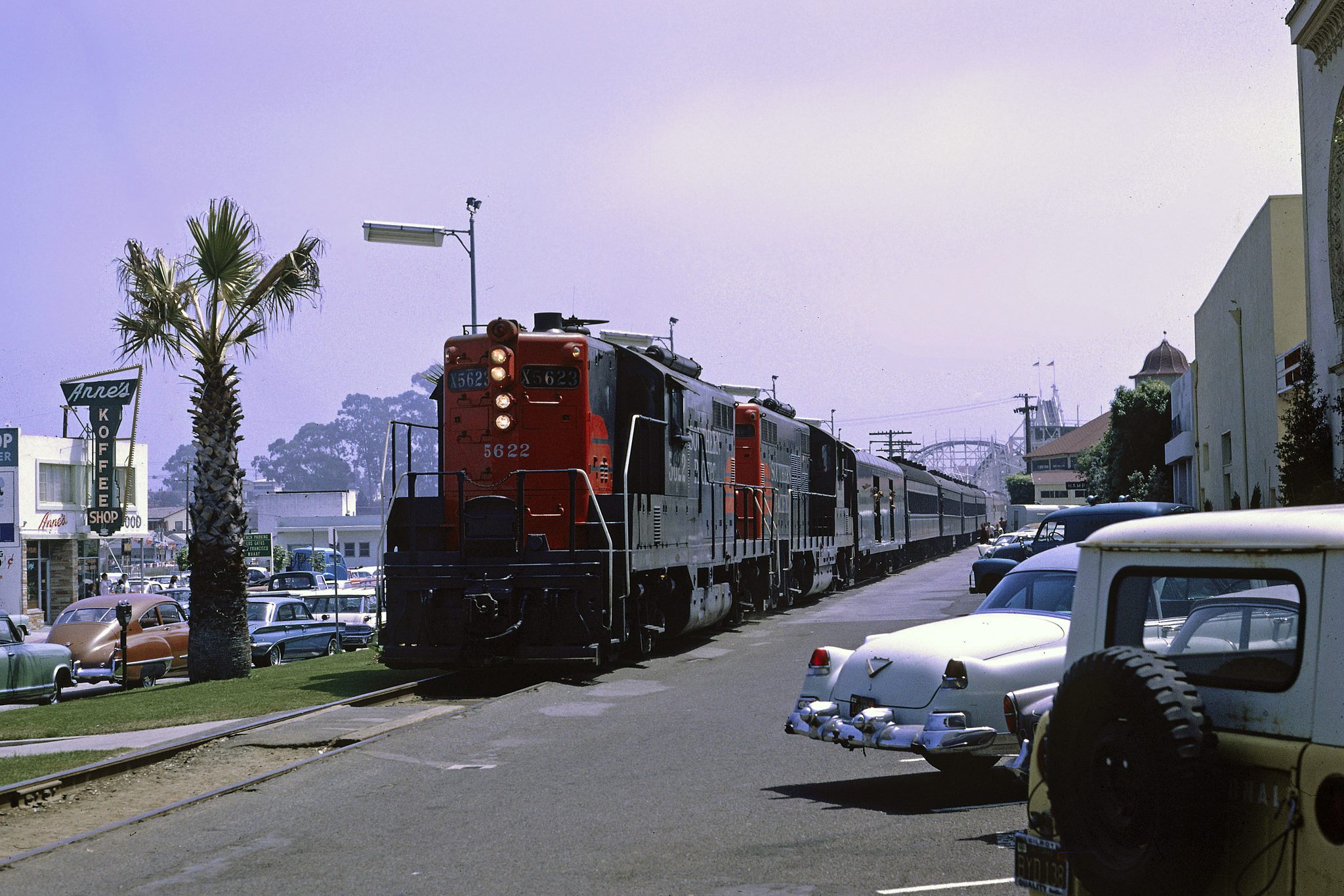

A pair of Southern Pacific GP9s, led by #5622, are in Santa Cruz, California with the final "Big Trees Picnic Train" excursion during August of 1965. Drew Jacksich photo.
