Chicago, North Shore & Milwaukee Railroad, "The North Shore Line"

Last revised: September 2, 2024

By: Adam Burns

The Chicago, North Shore & Milwaukee Railroad (reporting marks, CNSM), fondly remembered as "The North Shore Line," was one of the most successful interurban systems ever put together.

The history of the company dated as far back as the 1890s and in terms of the passenger traffic it carried during its peak years of operations, only the Pacific Electric Railway rivaled it for the busiest interurban in history.

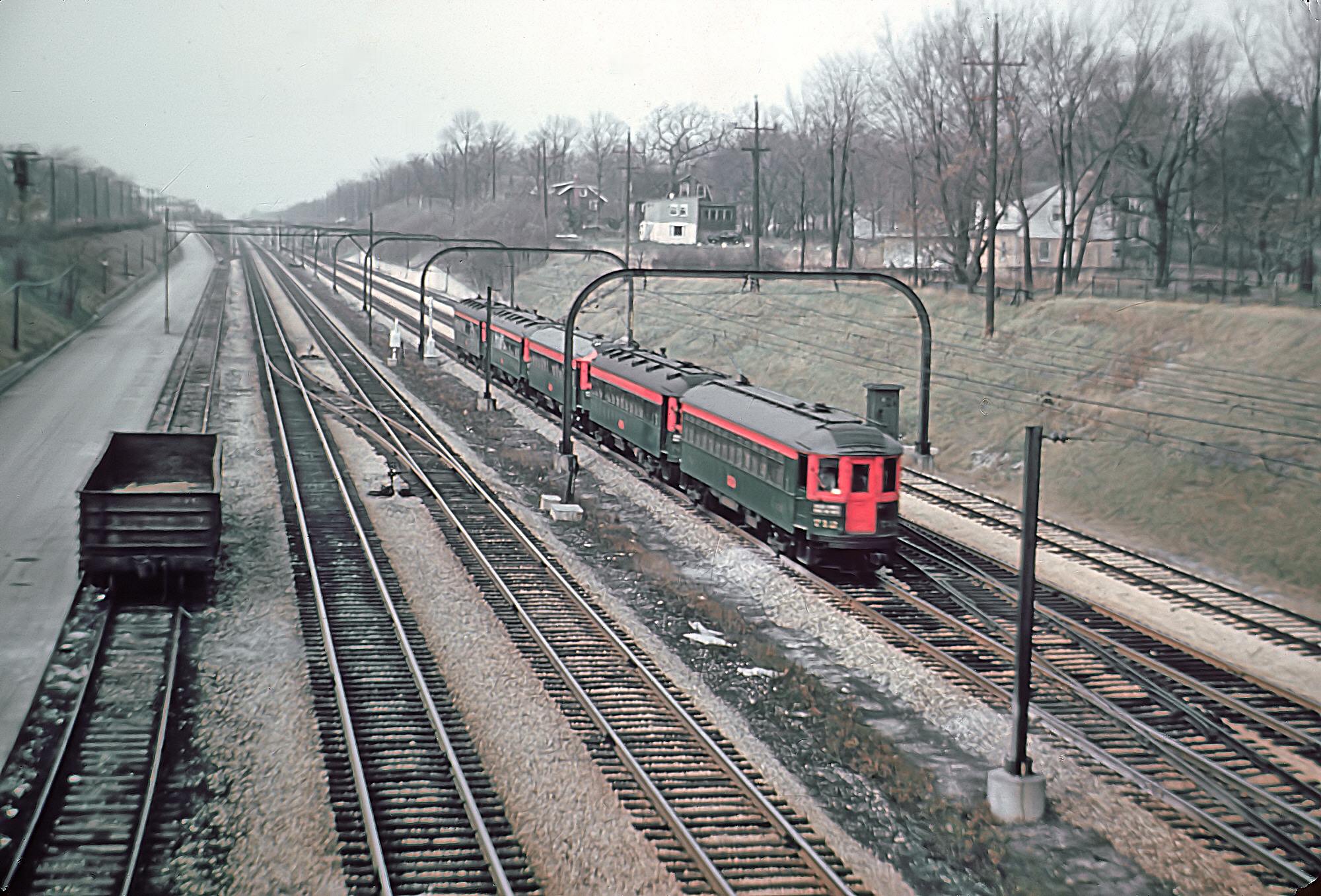

45669430_2014484575510136_2278748362645700608_n.jpgThe North Shore Line at the Pine Street overpass in Winnetka, Illinois; no date (likely late '50s). The C&NW main line can be seen at left. Today, nothing remains of the electrified North Shore. Rick Burn collection.

Unfortunately, the company's downfall was the plight of nearly all interurbans, the heavy reliance of passenger traffic could not sustain it forever and bankruptcy finally came after a long legal battle in the early 1960s.

The CNS&M once stretched from downtown Chicago to Milwaukee although today nearly nothing of this vast interurban remains with just a few segments remaining in use for Chicago commuter service.

There has, however, been talk by the state of Wisconsin to revive much of its section of the North Shore for renewed commuter service but this has plan has never been implemented to date.

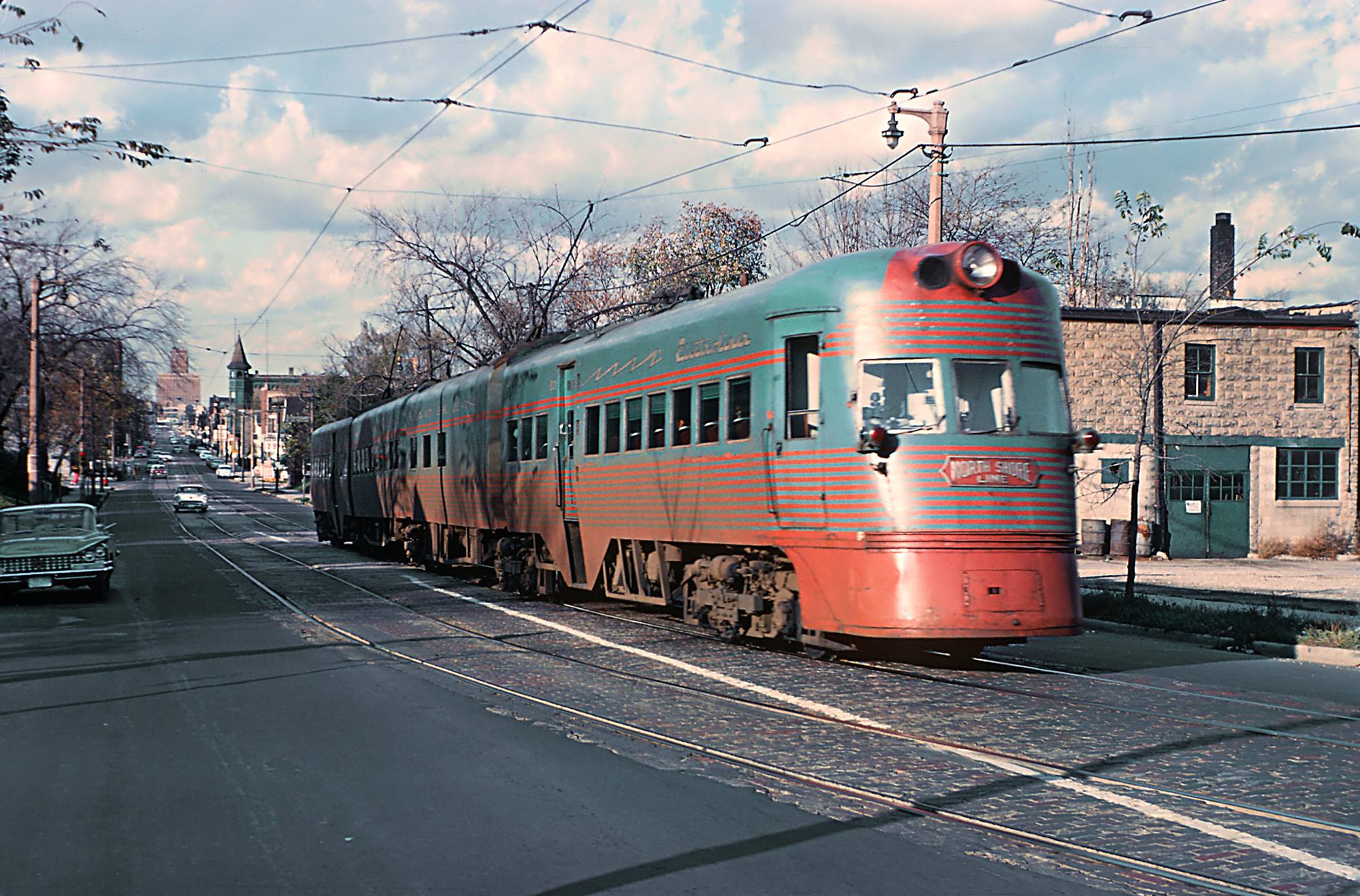

A North Shore Line "Electroliner" has train #805 on South 6th Street and West Scott Avenue in Milwaukee on October 21, 1962. Roger Puta photo.

History

The history of the North Shore Line begins in 1891 when the Waukegan & North Short Transit Company was chartered to operate a small street railway in Waukegan, a suburb of Chicago.

The company was subsequently renamed as the Bluff City Electric Interurban Street Railway in 1895 and launched service from downtown Waukegan to 10th Street in North Chicago

At A Glance

Headquarters
Chicago, Illinois
States Served
Illinois and Wisconsin
Dates Of Operation
1895 - January 21, 1963
Charter Date
1891
Route Miles (1930)
108
Track Gauge
4 Feet, 8 ½ Inches
Principal Lines

Milwaukee - Racine - Kenosha, Wisconsin - Zion - Waukegan, Illinois

Waukegan - Libertyville - Mundelein, Illinois

Waukegan - Dempster Street - Howard Street (Skokie, Illinois)

Waukegan - Lake Forest - Evanston - Chicago Loop

Slogan
The North Shore Line
Reporting Mark
CNSM
Successor
None

A year later in 1896 the line was built further to 22nd street, and two year later in 1898 reach Highland Park. It was then that the company was reorganized as the Chicago & Milwaukee Electric Railroad.

With the interurban industry exploding at the turn of the century and lines being built all over the Midwest, the C&ME also began a vast expansion.

In 1899 it continued its line from Highland Park to Evanston, 10 miles away via a short subway built underneath the tracks of the Chicago & North Western Railway.

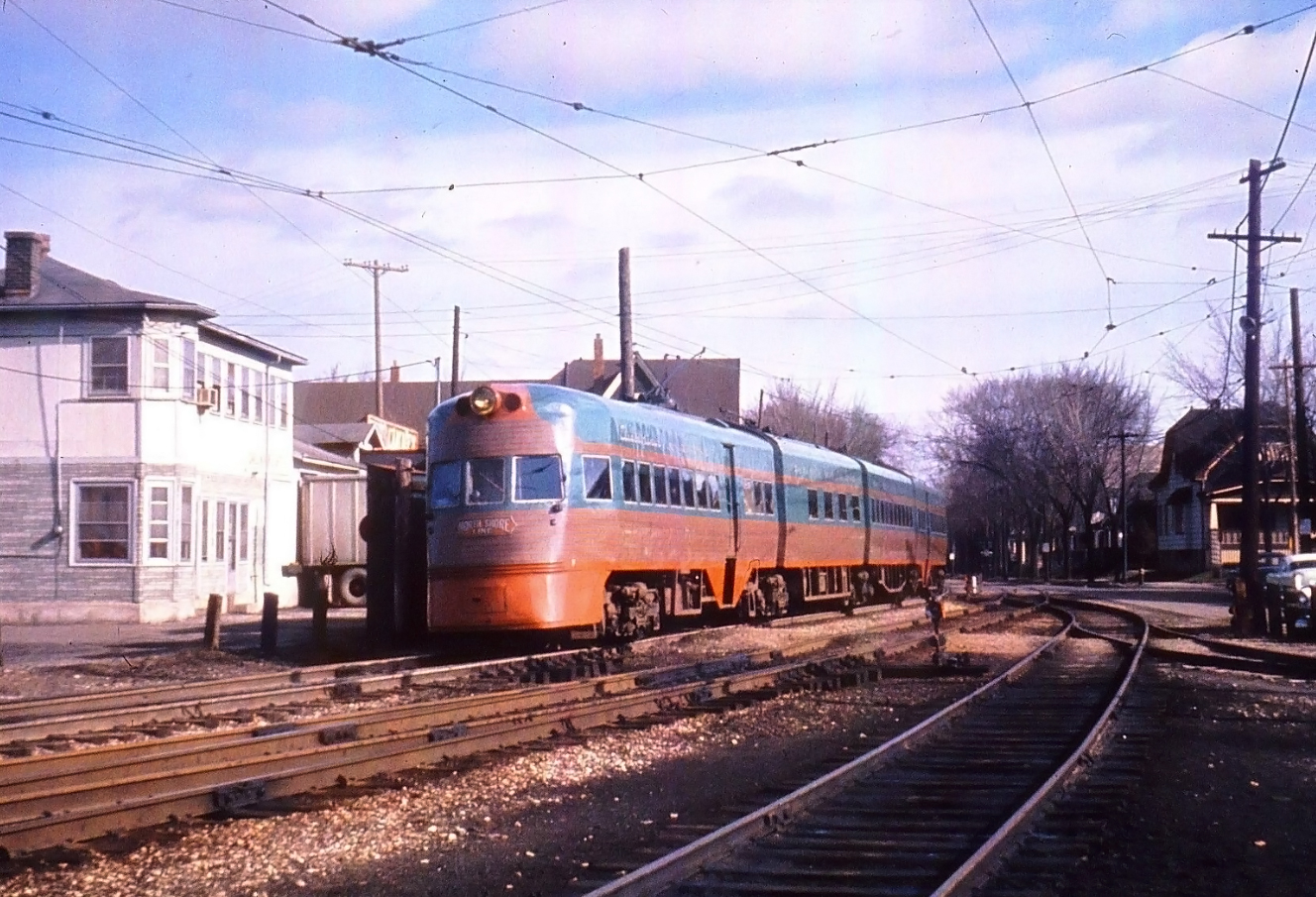

1927431762351253124879215689267.jpgA North Shore Line "Electroliner" streamlined trainset is seen here stopped at Harrison Street in Milwaukee, Wisconsin circa 1950s.

This section opened for service on August 6th of that year. In 1903 the company built its only true branch line when it completed a route to Libertyville from Lake Bluff, and by 1905 this had reached Mundelein.

From this point the focus became pushing the interurban northward to finally reach its other namesake city, Milwaukee. In September, 1906 service was established to Racine and a year later the C&ME had reached Milwaukee.

Once upon a time... A North Shore Line (Chicago, North Shore & Milwaukee) "Electroliner" set has train #805 on South 6th Street in Milwaukee, between West Washington Avenue and Scott Avenue, on October 21, 1962. Roger Puta photo.

Unfortunately, the company found itself in financial trouble by 1908 due to its quick growth but lack of enough supporting revenue to keep it solvent.

Additionally, the financial panic of 1907 certainly did the company no favors and further hurt its bottom line. It was then that the interurban came under the control of Sam Insull, one of the industry's early tycoons who owned dozens of lines all across the Midwest.

Insull reorganized the operation as the Chicago, North Shore & Milwaukee Railroad in 1916 and sought to vastly expand the company with the first interest being towards finally serving downtown Chicago.

To do so the North Shore Line used trackage rights over the Milwaukee Road and Chicago Elevated along the Loop with service officially beginning August 6, 1919.

cnsm-cnw-milwaukee-rb.jpgChicago, North Shore & Milwaukee line car #606 is crossing over the Milwaukee Road main line at 6th Street in Milwaukee, Wisconsin in June, 1962. Rick Burn photo.

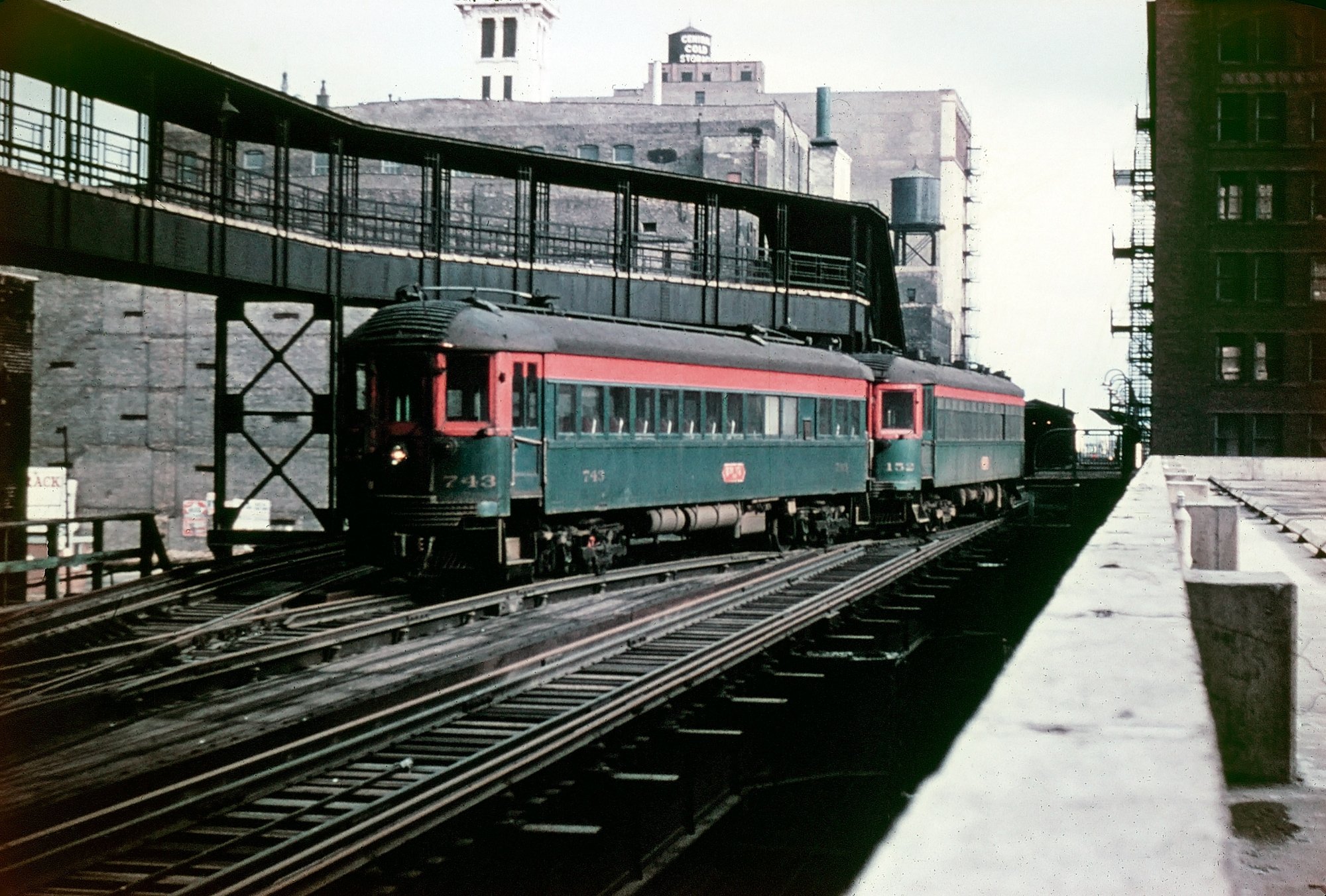

North Shore Line cars #743 and #152 work the Loop in downtown Chicago during the 1950s. American-Rails.com collection.

Aside from the points already mentioned above the North Shore Line connected suburban towns such as Zion, Wilmette, Winnetka, Glencoe, Kenilworth, and Highwood.

In Wisconsin the line served such communities as Kenosha along with the aforementioned Racine. After achieving entrance into the downtown regions of the Windy City the CNS&M would grow no further in terms of system expansion. Instead, it spent the 1920s upgrading its property.

Its electrified lines used a combination of 600 volt direct current (DC) third rail (around Chicago) and 650 volt DC overhead catenary. It double-tracked all of its lines in Illinois and at its height the North Shore only a had a short stretch of its main line in Wisconsin that was single-track.

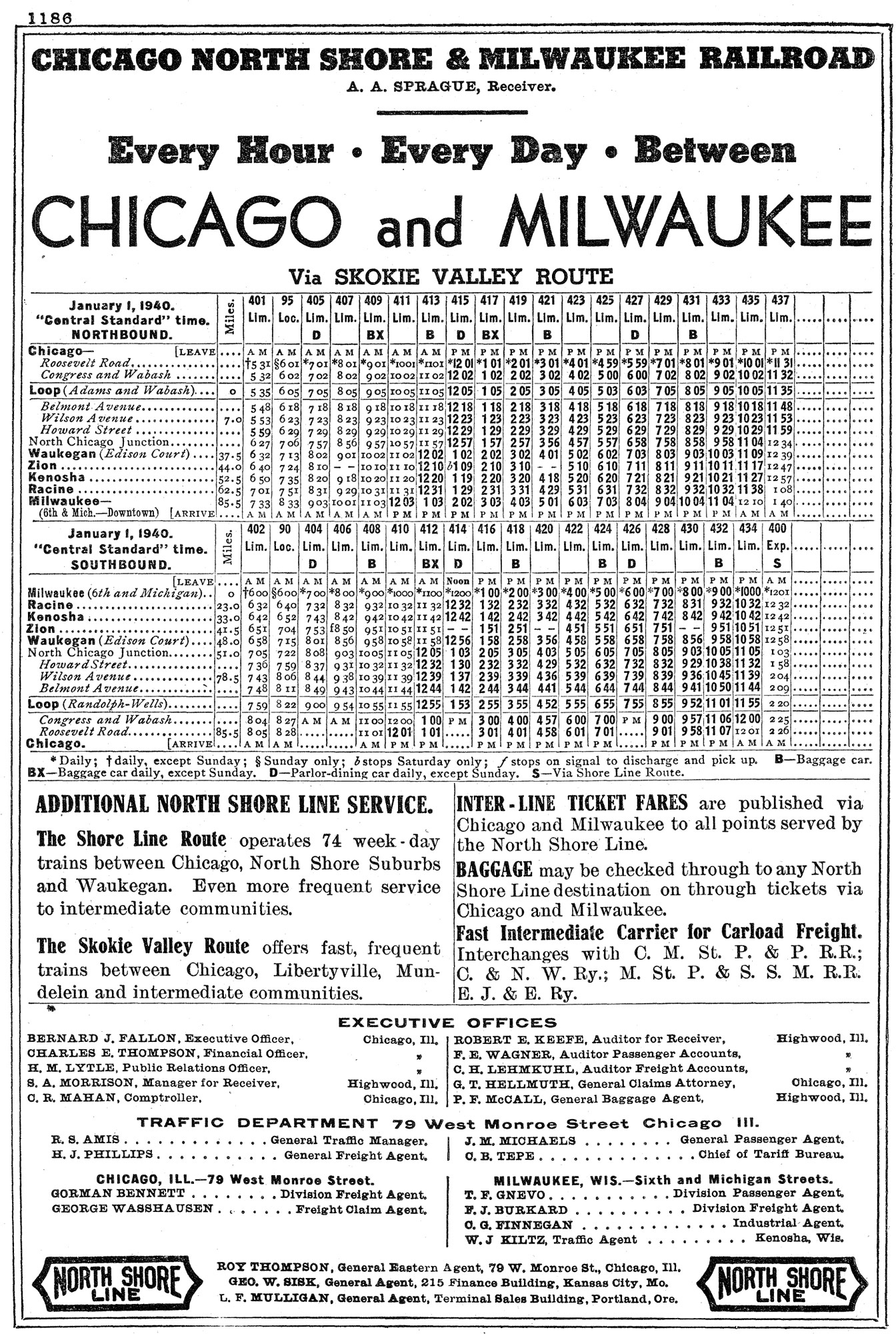

Timetables (1940)

Its biggest undertaking was the construction of a new bypass about five miles west of its shore line which allowed the interurban to escape the numerous suburban communities and increase running times.

The area was known as the Skokie Valley, and the route that was built was dubbed the Skokie Valley Line. Construction on the new route began in April, 1924 and commenced from the Howard Street station roughly paralleling the original main line.

It then ran through Niles Center, reconnecting briefly with the Mundelein Branch before returning back to the original route in North Chicago (known as the North Chicago Junction). After this line opened the original was known as the Shore Line and used only for local commuter traffic.

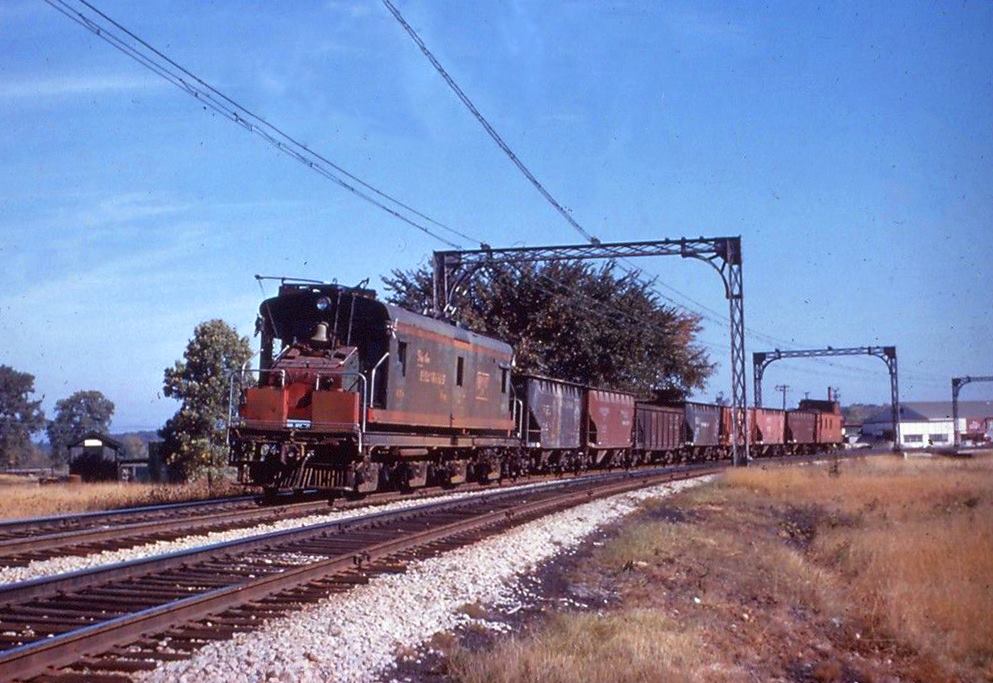

One of the "North Shore Line's" freight motors, a former Oregon Electric unit, handles freight work during a fall day during the 1950s. Today, little remains of the North Shore's once-expansive interurban network.

With the opening of the Skokie line the North Shore reached its absolute final size which consisted of 74 miles of main line, a 23-mile route between Waukegan and the Loop, and finally the 9-mile Mundelein Branch giving the interurban a system of exactly 106 miles.

Given the fact that the company operated such high speed service and was located in a highly populated region it weathered the 1920s downfall of the interurban relatively well, and initially did fine after the Great Depression hit.

However, as the depression deepened so did the North Shore Line's troubles. Even during its most profitable years it only earned slight net profits and freight traffic never made up more than 25% of its total revenue (which slowly worsened during its final years).

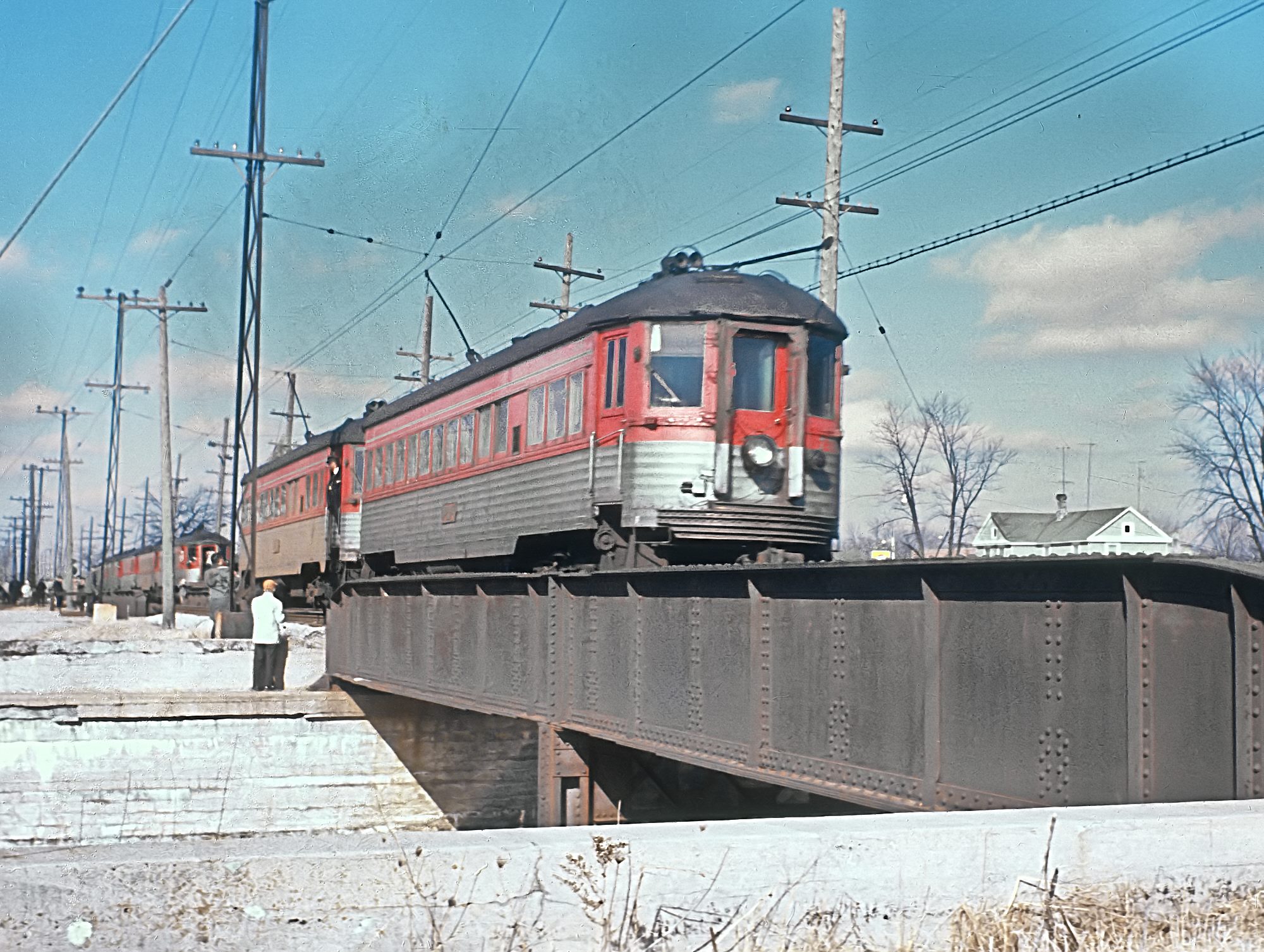

08238572398523627963047892907.jpgA pair of North Shore Line "Silver Liners" have Train #416 at Zion, Illinois in February, 1961. Rick Burn photo.

In 1930s the North Shore Line embarked on another vast improvement project of its property by updating equipment (by completely revamping cars and applying an attractive "Christmas" livery of green and red) and grade separating as much of its suburban lines as possible to increase train speeds and remain competitive with the standard railroads.

In some cases where the North Shore Line could not get out of street running or needed to renew its charter with a town it simply did away with rail operations and instead setup bus services, which became highly efficient and well coordinated with the trains.

In 1941 it purchased the most famous streamlined interurban equipment ever operated, two articulated trainsets that featured four cars known as Electroliners.

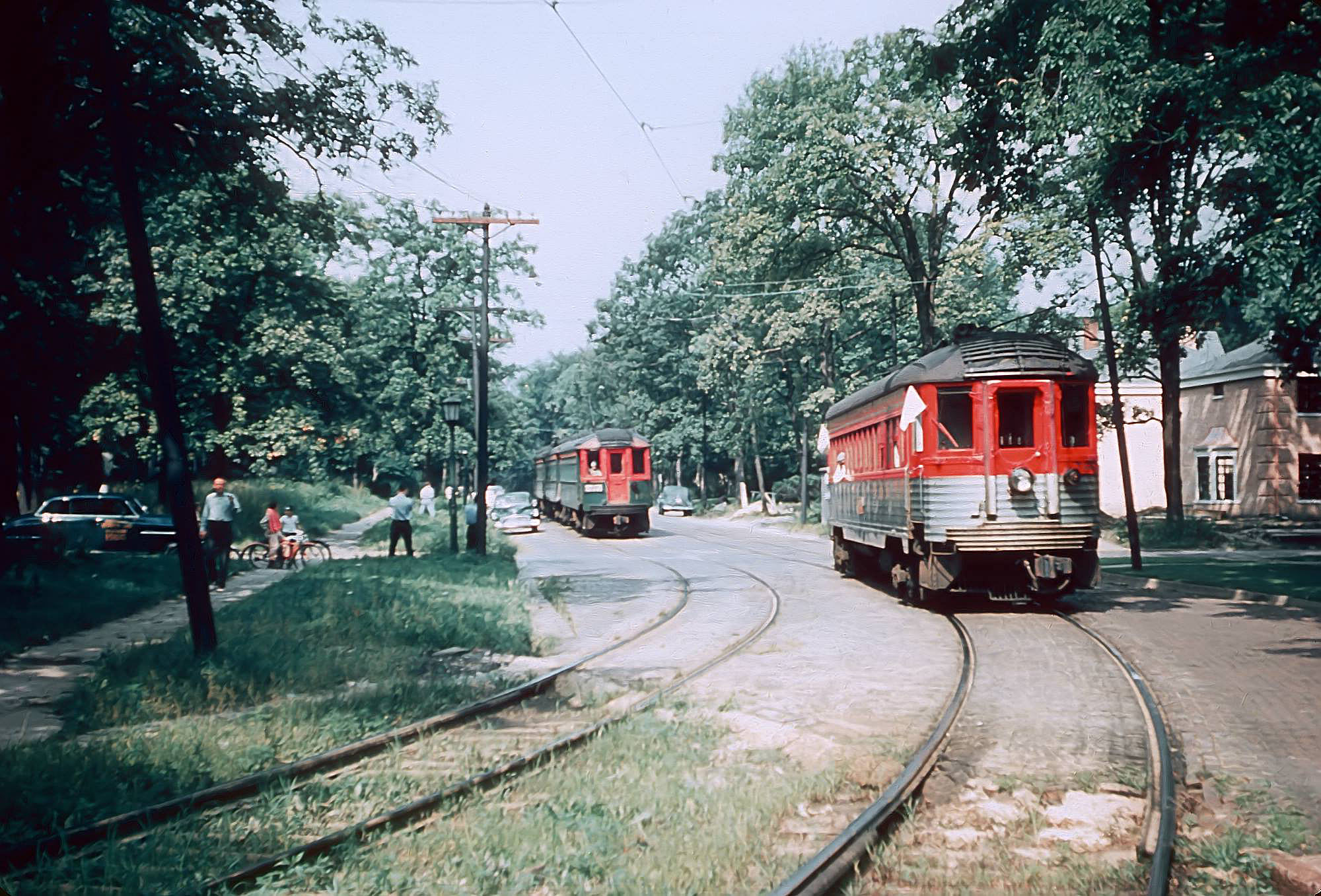

45564560_2014484528843474_2563892757550596096_n.jpgNorth Shore Line cars at Wilmette, Illinois, circas 1960. James Stitzel photo, Rick Burn collection.

They became the North Shore Line's premier equipment and featured both coach service as well as tavern/lounge amenities.

They offered one way, through fares to Milwaukee or Chicago and remained in use until 1963 when they were sold to the Philadelphia Suburban Transportation Company and renamed Libery Liners (painted in a red, white, and blue scheme).

After retirement in 1979 both sets were preserved; #801-#802 eventually was acquired by the Illinois Railway Museum and #803-#804 is owned by the Rockhill Trolley Museum in Rockhill Furnace, Pennsylvania.

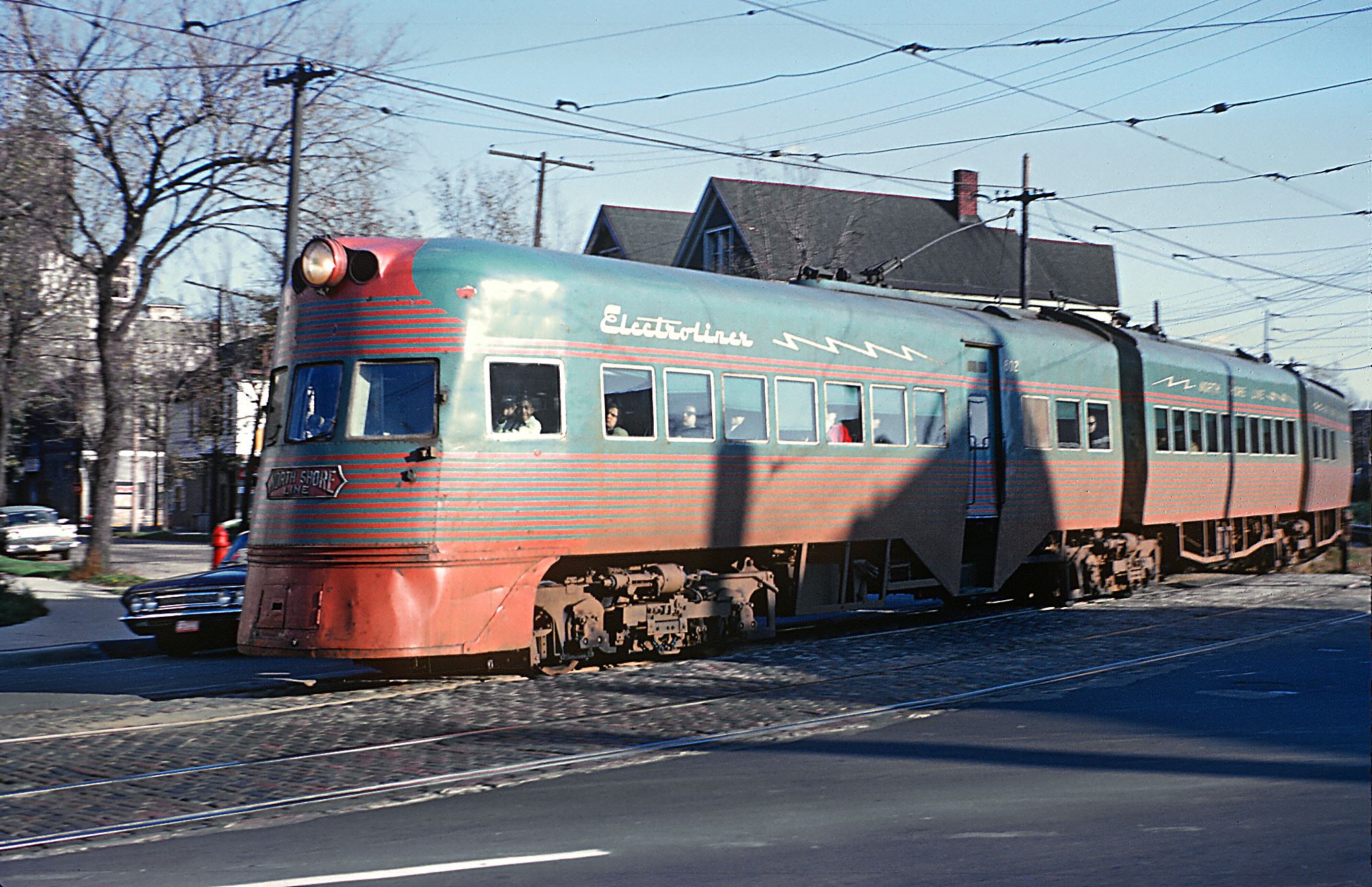

One of the North Shore Line's "Electroliner" trainsets appears to be boarding at the Edison Court Station in Waukegan, Illinois, circa 1960.

Unfortunately, the lack of freight traffic would come to doom the Chicago, North Shore, and Milwaukee Railroad. In the early 1940s the Insull company collapsed and the North Shore Line was reorganized in 1946, with basically the same name as before.

By the late 1940s losses of passenger service and higher wage requirements were driving the system on the brink of bankruptcy once more.

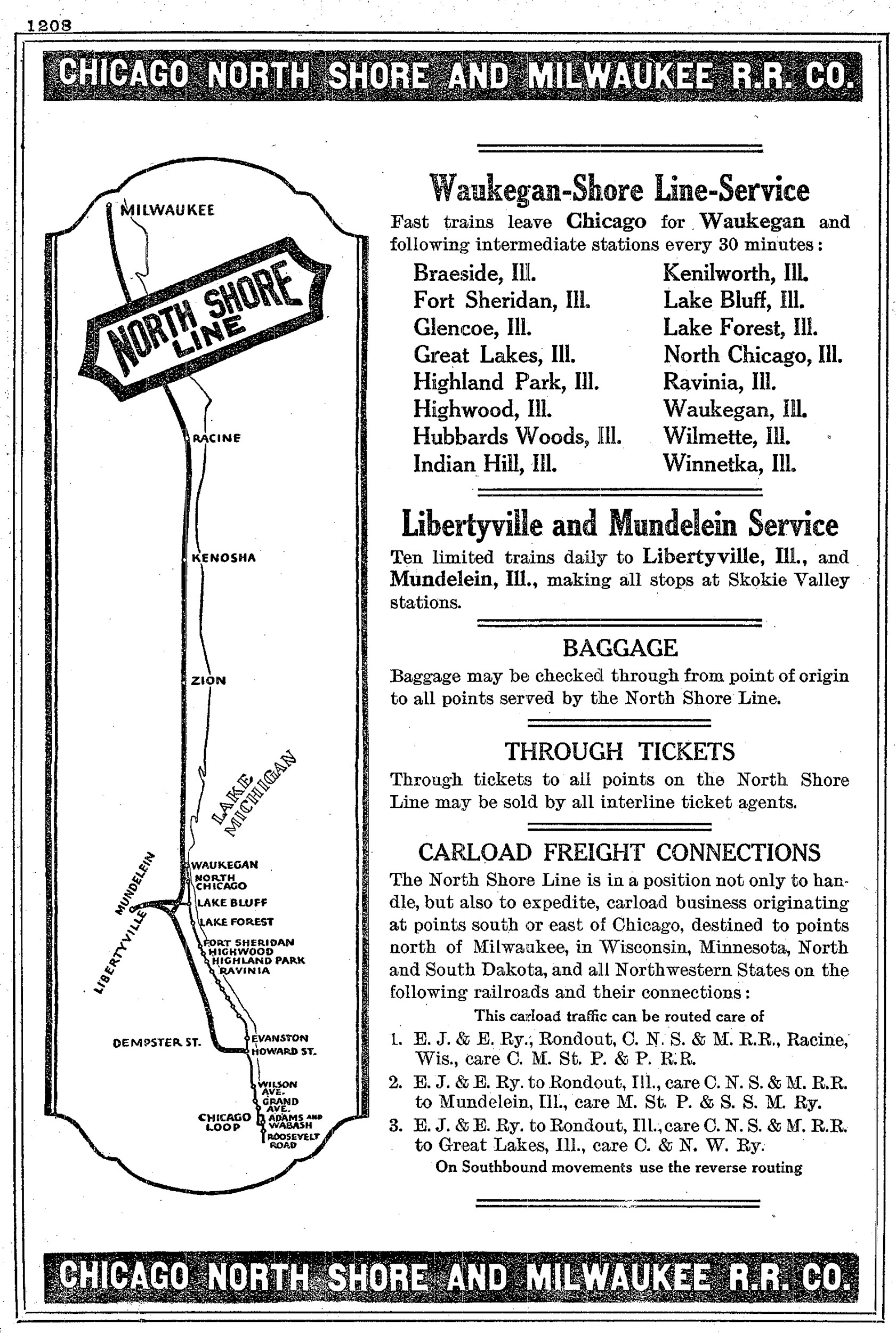

System Map (1930)

In 1955 it was finally granted permission to abandon service over the original Shore Line route, which held only low-profit short distance commuter traffic.

The completion of the Northwest Expressway that connected the Chicago Loop with the Edens Expressway in 1960 proved to be final blow for the company.

It had tried to abandon all service as early as May, 1958 but was initially denied so by the Interstate Commerce Commission.

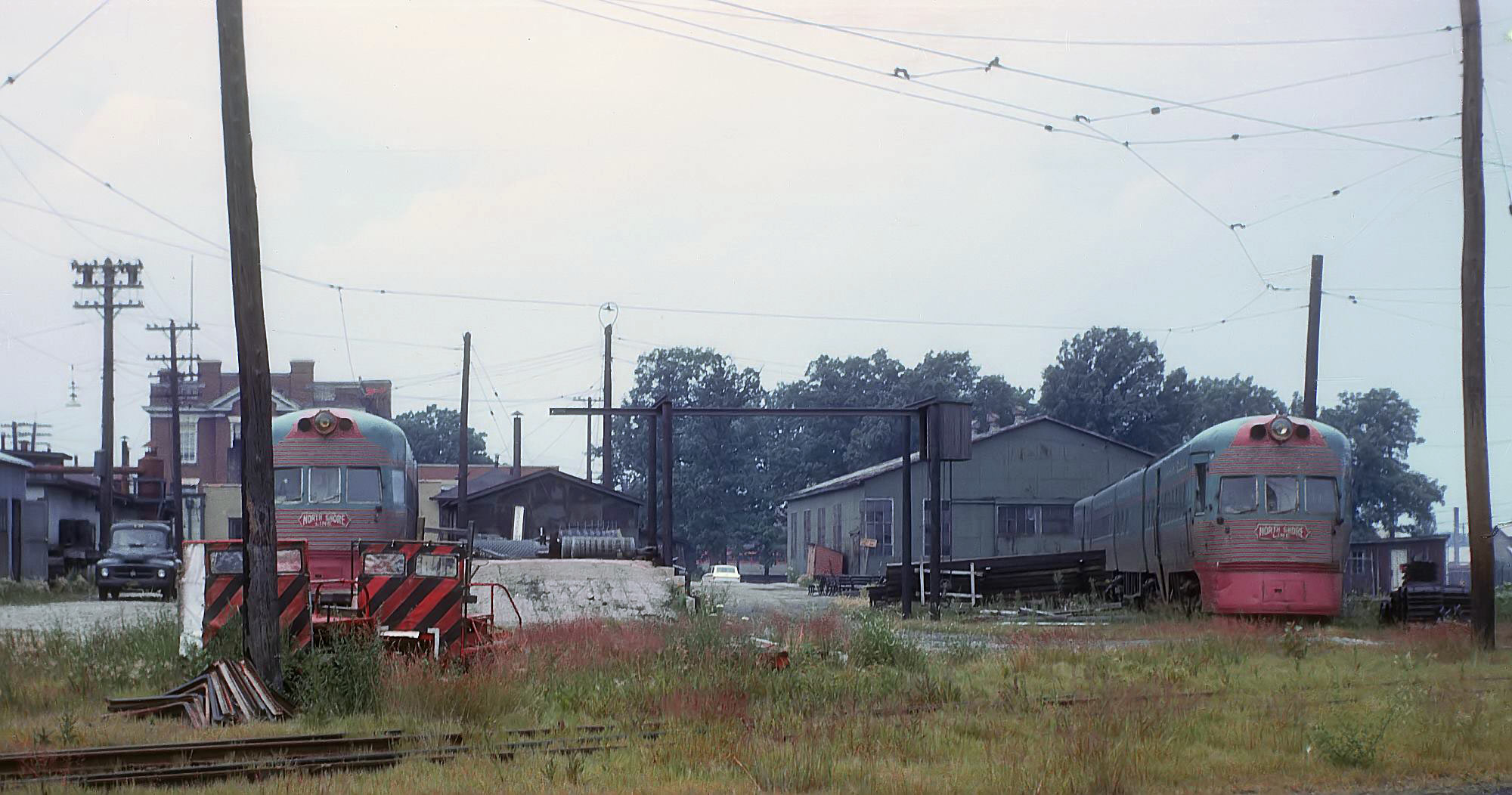

19028418251928358723896266762.jpgBoth of the North Shore's "Electroliner" sets are seen here in storage at Highwood, Illinois in August, 1963. They would both eventually be preserved. Rick Burn photo.

Abandonment

In November, 1959 its approval was finally granted but the Illinois Commerce Commission vigorously appealed.

As such, trains continued to run until early 1963 when finally on January 21 service came to an official end.

After this most of the property was sold off or abandoned although a short stretch between Dempster Street and Lake-Cook Road was sold the C&NW for continued freight use.

Interestingly, successor Union Pacific continued using the line until 2001 when it was finally ripped up.

Today, Wisconsin owns the entire right-of-way in its state and has had tentative plans for years to redevelop the property for commuter use but still has yet to do so.

Photos

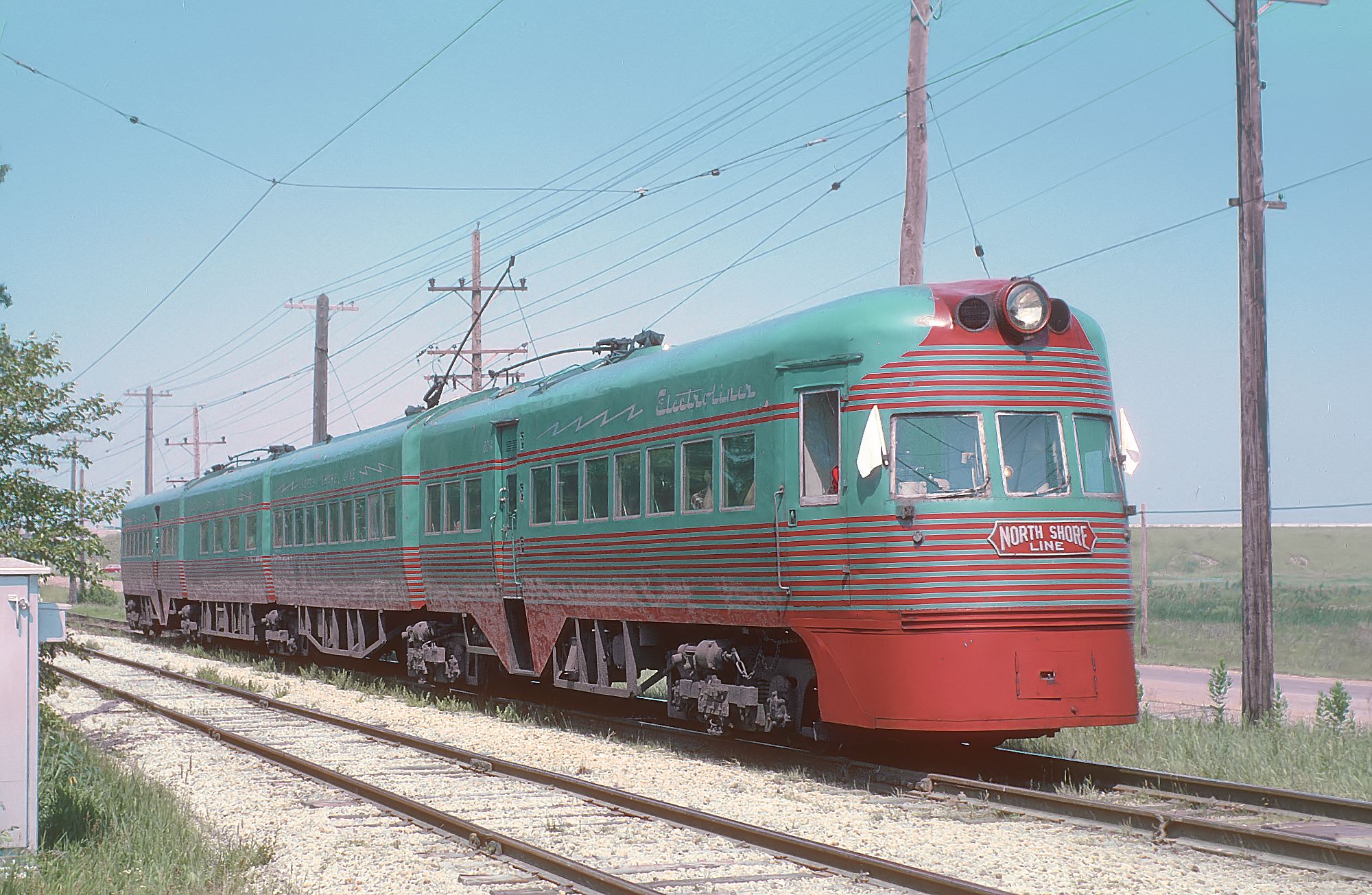

45520476_2013949258897001_2404363176662532096_n.jpgAn Electroliner set with a fan trip at Arcady Station along the Mundelein Branch in June, 1962. Rick Burn photo.

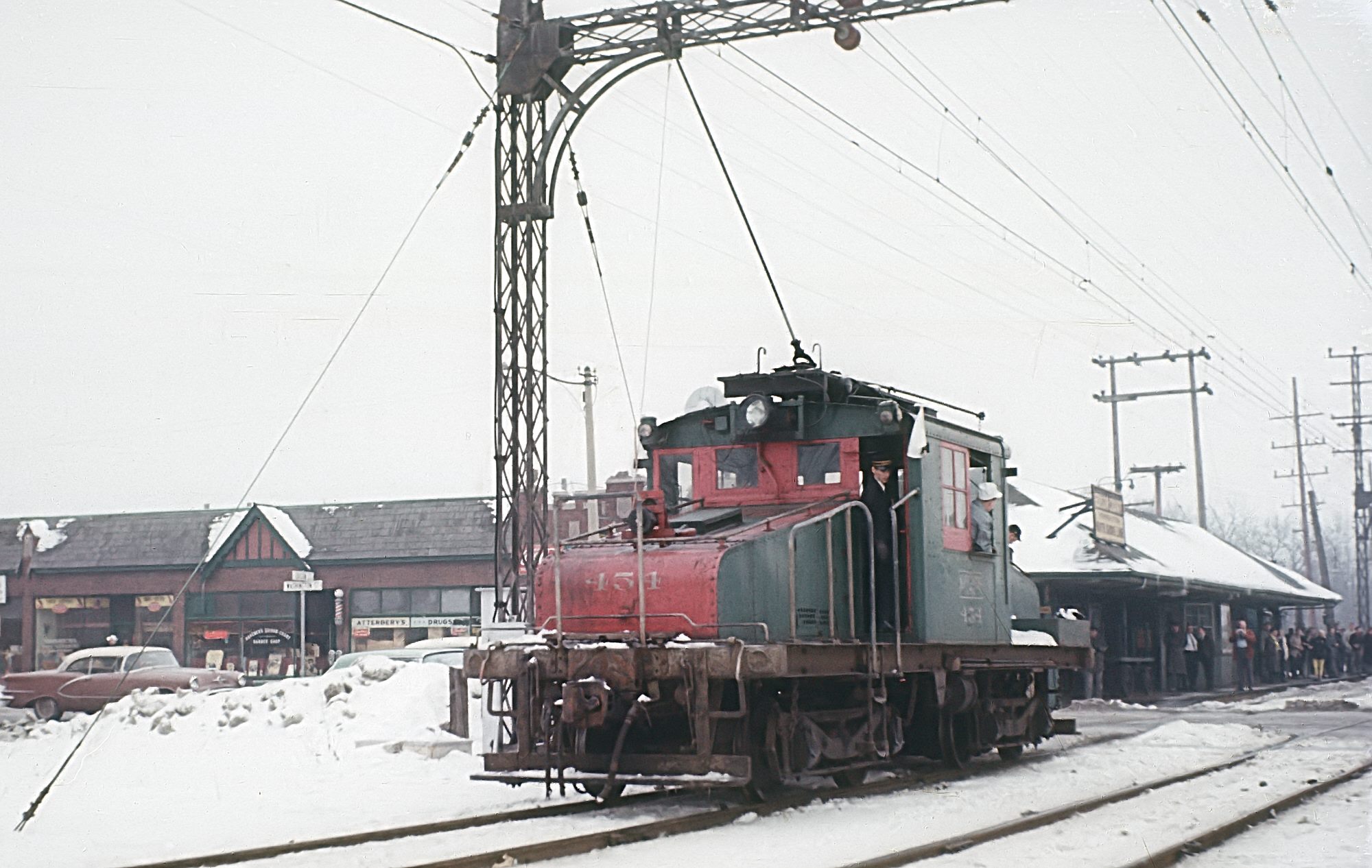

40524078_1982537505371510_8581452624295886848_n.jpgNorth Shore Line steeple-cab #454 is just off the Washington Street grade crossing at the station in Waukegan, Illinois in February, 1962. Rick Burn photo.

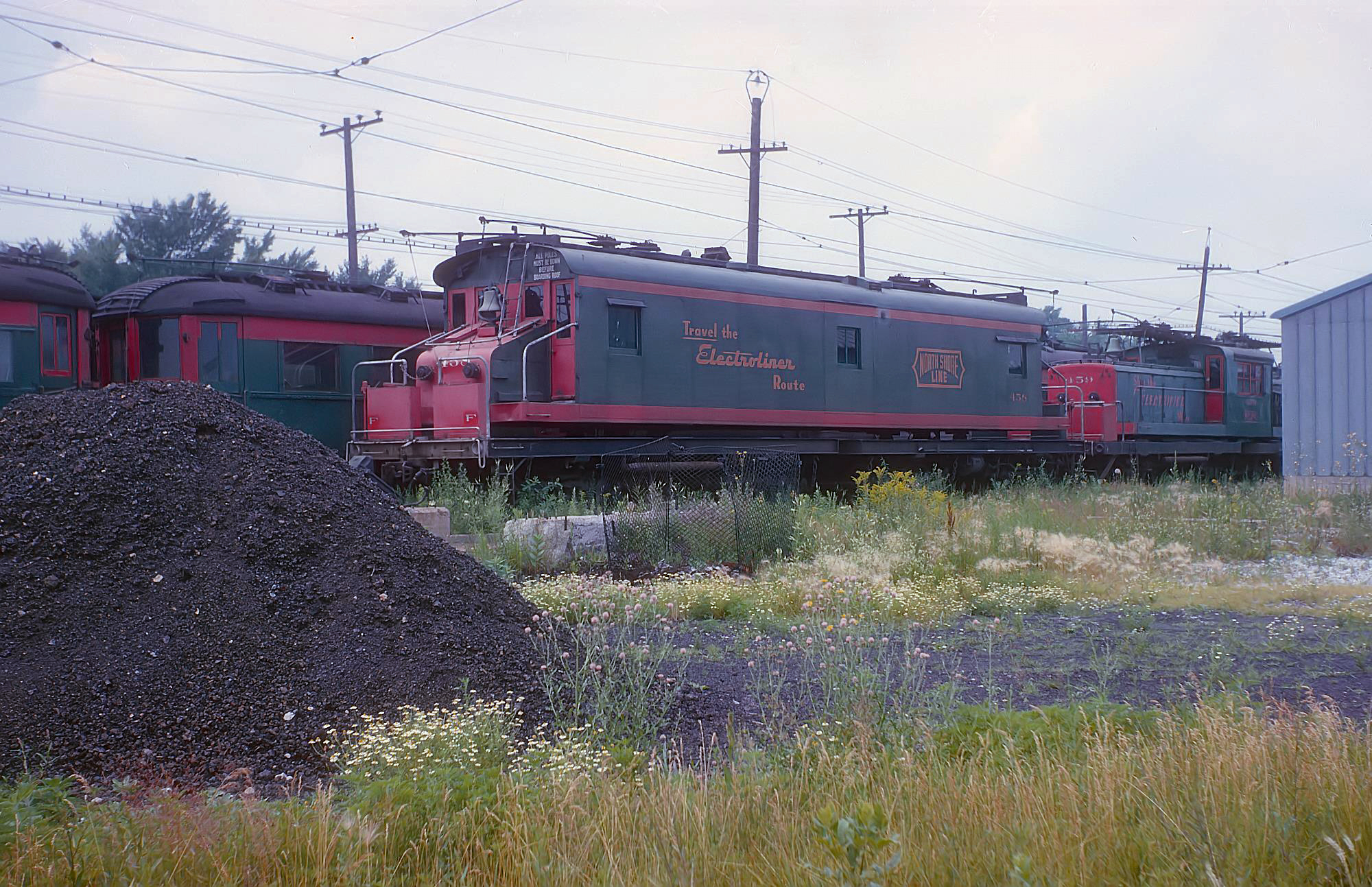

823527357267890788.jpgNorth Shore Line freight motor 458 - a former Oregon Electric unit - at Highwood, IL in September 1963. Rick Burn photo.

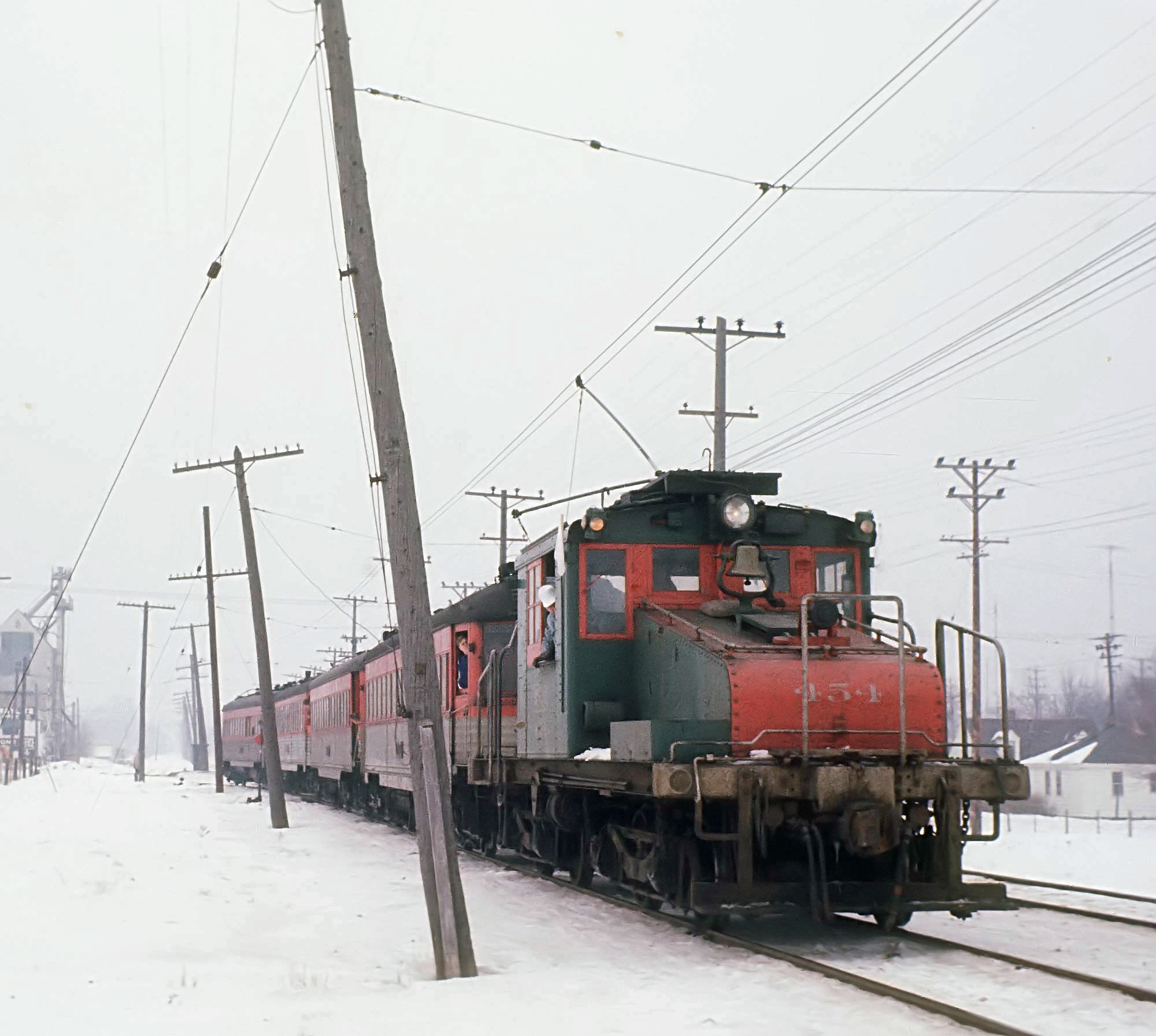

36693003_1929401524018442_36473759925796864_n.jpgNorth Shore Line steeple-cab #454 has a fan trip at Racine, Wisconsin February, 1962. This little freight motor was a product of GE, completed in December, 1923. It was scrapped in February, 1964. Rick Burn photo.

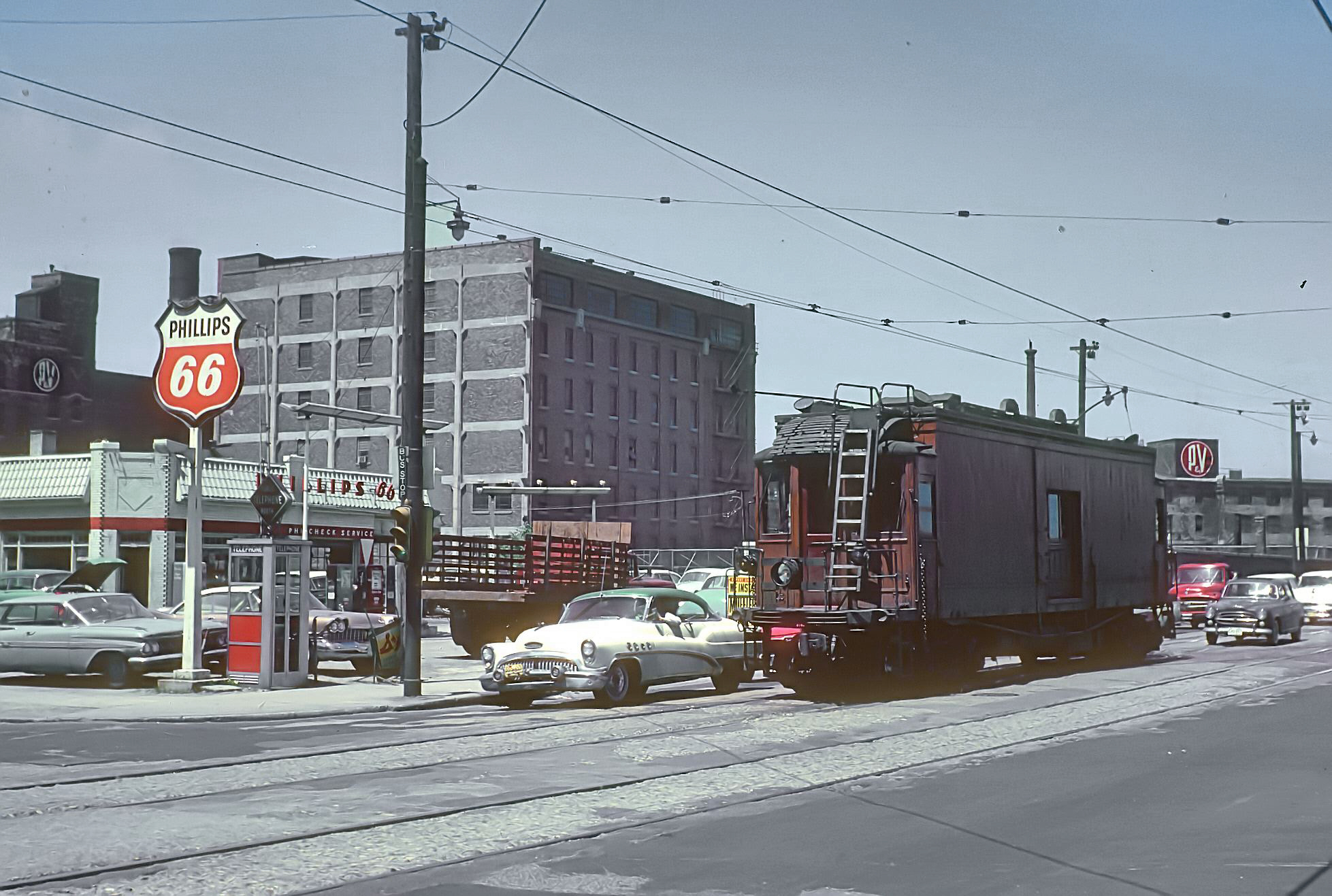

36718448_1928413867450541_7732358476302647296_n.jpgChicago, North Shore & Milwaukee line car #606 on 6th a Virginia Streets in Milwaukee, Wisconsin in June, 1962. Rick Burn photo.

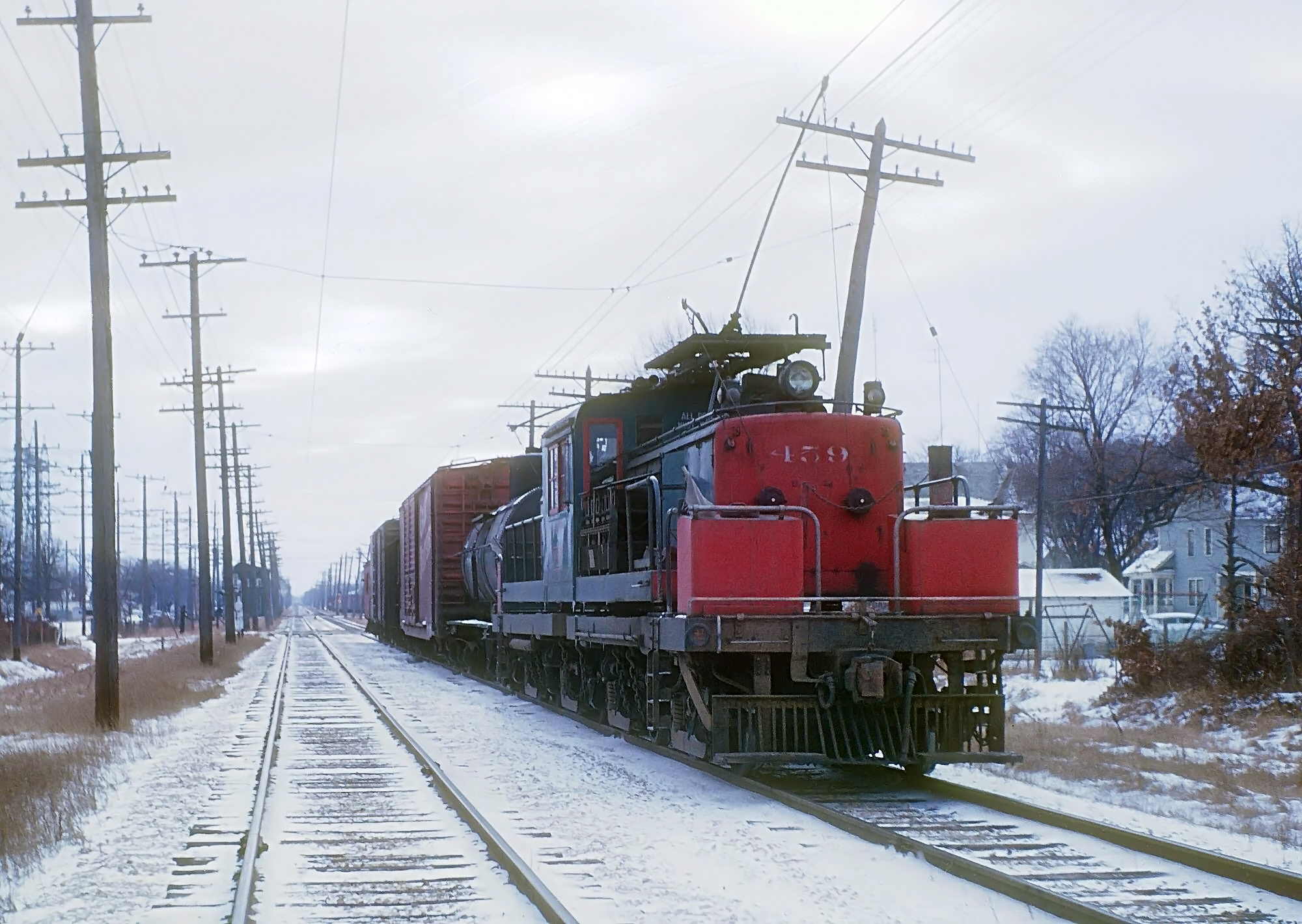

35975260_1917479968543931_1588818250873962496_n.jpgNorth Shore Line motor #459 with freight C-2 at Racine, Wisconsin in January, 1963. This big B-B+B-B freight motor was built by the Spokane, Portland & Seattle shops for subisidary Oregon Electric in August, 1941. It was sold ot the North Shore in December, 1947. Rick Burn photo.
