Compound Steam, Another Name For The Mallet
Last revised: November 2, 2024
By: Adam Burns
Compound steam was a design meant to replace the simple expansion version, which had found widespread use since practically the start of the railroad industry.
The idea was to take spent steam from a high pressure cylinder and recycle it through a low pressure cylinder that would then offer a more efficient use of both steam and water.
Unfortunately, most compounds fell out of favor in the United States as they proved too complicated to justify any potential advantages they may have offered. Only two Class I's found them quite useful into the late steam era, the Norfolk & Western and Chesapeake & Ohio.
Most lines opted to continue using the easier-to-maintain simple expansion, particularly with the advent of the super-heater during the early 20th century that essentially offered all of the advantages of the compound without the maintenance. Today, several Mallets are preserved around the country but very few remain in operation.
What appears to be Norfolk & Western 2-8-8-2 #2152 (a Class Y6 compound) runs light at Villamont, Virginia in a scene dating to either the 1940s or early 1950s. Photographer unknown.Mallet Locomotives
The history of the compound steam locomotive is said to date back to James Samuel from Glasgow, Scotland who was a railroad engineer that patented such a design around 1850.
The use and experimentation of compound steam in Europe grew throughout the 19th century. However, in the United States it was not widely accepted. The first, true use of compounding came with Anatole Mallet's (pronounced "Mal-lay") work. Mallet was from Switzerland and designed an articulated version in France during the 1870s.
Thanks to the articulation, which was designed so that the front set of drivers (and accompanying front truck, if utilized) swiveled independently on the frame (thus allowing the locomotive to negotiate curves more easily), American railroads picked up on the idea.
The first to utilize a true Mallet design was the Baltimore & Ohio, which worked with the American Locomotive Company (Alco) to come up with an 0-6-6-0 wheel arrangement in 1904, #2400, that became known as "Old Maude."
The railroad hoped to use the big steamer in slow drag service over its main line through the Allegheny Mountains to tackle Sand Patch, Cranberry, and 17-Mile grades. The B&O listed it as Class DD-1 and she proved a relatively useful helper for more than thirty years until being scrapped in 1938.
Interestingly, only two other Class I's operated true, compound Mallets in regular freight service for many years; the aforementioned Norfolk & Western (which rostered a fleet of Class Y 2-8-8-2s) and Chesapeake & Ohio (which featured a fleet of Class H-6 2-6-6-2s).
There were others, of course, to operate Mallets such as the Rio Grande, Burlington, Chicago Great Western, Union Pacific, Santa Fe, Clinchfield, Central of Georgia, Great Northern, Southern Pacific, Maine Central, Milwaukee Road, Northern Pacific, Western Maryland, Western Pacific, Wheeling & Lake Erie, Erie, Pennsylvania, Southern, Reading, Frisco, Seaboard Air Line, and Nashville, Chattanooga & St. Louis.
One could also find small saddletank 2-6-6-2's in service throughout the western U.S. where timber companies found them quite practical to move harvested logs from the woods to the mill.
Chesapeake & Ohio 2-6-6-2 #1359 (Class H-4, manufactured by American Locomotive's Richmond Works in 1913) steams out of one of the tunnels at Alleghany, Virginia with an eastbound local on October 19, 1951. The C&O owned a vast collection of these "Mallets."The issue with compound steam locomotives for American lines turned out to be their difficulty to properly maintain. When first developed the belief was that compounding offered better fuel economy by not only saving water but also more efficiently using the steam within the system.
Additionally, it was meant to increased power. The design worked by having two high pressure cylinders (HP) first expand the steam entering the system; next, the spent steam (which was at a lower pressure and not as hot) would flow into one or more low pressure cylinders (LP) where it would be essentially recycled by extending the cycle.
For a compound system to work correctly it must be properly balanced by precisely gauging the cylinder volume ratio of the high and low pressure cylinders.
For many railroad maintenance departments, which experimented with true compounds, this task became not only tedious but it was also often difficult simply to work on the cylinders due to their placement within the frame.
Conversely, with a simple-expansion locomotive the cylinders work in unison and expand the steam just once in any given cylinder. This type of setup does not attempt to, obviously, reuse the steam although it is much simpler and easier to maintain.
Despite the design's issues both the N&W and C&O saw a practical use for true compound Mallets. For the N&W its first compounds included its Class Y-2 2-8-8-2 Mallet Consolidations built in 1918 and numbered 1700-1730.
These came from a variety of builders, including the railroad's own legendary Roanoke shops (which could produce steam locomotives on par, if not better, than anything outshopped by Baldwin, Alco, or Lima).
Used in heavy drag service the railroad was pleased with the locomotives and went on to roster classes of Y3s through Y6s, the latter of which from 1930 through 1942 were all built by Roanoke (and totaled more than 200 examples).
The introduction of the steam locomotive superheater, first introduced in Europe during the late 19th century began appearing in the United States during the early 20th century.
This device, which in basic terms reheats the steam generated by the boiler essentially performed the same function as a compound locomotive yet was much easier to maintain.
As a result, it became widely used on American railroads and ended further development of compounds on most lines.
For instance, virtually all of the large wheel arrangements that were constructed during the 1930s and 1940s, such as the 4-6-6-4 Challenger, 4-8-8-4 Big Boy, and 2-8-8-4 Yellowstone were simple expansion locomotives and not true compound Mallets.
Outside of the N&W's fleet of Ys and the C&O's 2-6-6-2s, one of the last true compound designs manufactured was Baldwin's experimental 4-10-2 #60000 (for the builder's 60,000th locomotive constructed) of 1926.
This steamer featured an odd three-cylinder design, uncommon on most railroads outside of the Union Pacific and Southern Pacific.
It did test on several different railroads including the B&O, Erie, Pennsylvania, Burlington, Santa Fe, Great Northern, and the SP although it ultimately proved too complicated and too long for any railroad to consider serious interest in the locomotive. Today, #60000 is preserved at the Franklin Institute Science Museum in Philadelphia.
Recent Articles
-
Draft EA Reviews Norfolk Southern Track in London, Ohio
Nov 07, 26 11:35 AM
The Surface Transportation Board environmental office issued a draft assessment on November 6, 2026, for about 0.96 miles of Norfolk Southern track in London, Ohio. Comments are due November 20. -
Metrolink Lines Will Not Run on Three Routes November 7
Nov 07, 26 10:53 AM
Metrolink will not run the Ventura County, Orange County, or Inland Empire-Orange County lines on November 7 and 8, 2026. The advisory says no substitute transportation will be provided. -
Hartford Line Adds a Weekday Round Trip on November 16
Nov 07, 26 10:48 AM
Connecticut said the Hartford Line adds a weekday New Haven-Hartford round trip on November 16, starts a morning train in Springfield, and extends weekend stops to Windsor and Windsor Locks. -
Board Issues a Policy Statement on Rail Preemption
Nov 07, 26 10:44 AM
The Surface Transportation Board placed a policy statement on public inspection for the November 9 Federal Register. It reviews existing preemption precedent and says it makes no binding determination… -
NJ Transit Restores Lines After the Newark Drawbridge Stop
Nov 07, 26 10:37 AM
NJ Transit said Morris and Essex service between Hackettstown and Dover, and Montclair-Boonton service between Hackettstown and Montclair State University, resumed after the Newark Drawbridge stop. -
EMD "SD35" Locomotives: Data Sheet, Specs, Roster
Nov 06, 26 10:35 PM
EMD SD35, 2,500 horsepower, 16-cylinder 567D3A, built June 1964 through January 1966. 360 locomotives. Specifications and the production roster by owner, serial, and order. -
EMD "SDP35" Locomotives: Data Sheet, Specs, Roster
Nov 06, 26 10:32 PM
EMD SDP35, the steam-generator SD35. 35 locomotives, July 1964 through September 1965. Seaboard Air Line 1100-1119, Atlantic Coast Line 550, Louisville and Nashville 1700-1703, Union Pacific 1400-1409… -
RJ Corman Will Be Replaced on Part of the Luzerne Lines
Nov 06, 26 01:34 PM
A November 6, 2026 notice says Wilkes-Barre Terminal Railway would acquire about 59.65 miles in Luzerne County and replace R.J. Corman as operator on part of the line. The earliest date is November 22… -
NS Names a Student Hub at the University of Georgia
Nov 06, 26 12:03 PM
Norfolk Southern said a 100,000 dollar gift named a student-organization hub in Driftmier Engineering Center. The University of Georgia marked the naming on October 26. The space is for 23 clubs. -
Union Pacific Filed Its Vena Recording Certification
Nov 06, 26 11:56 AM
Union Pacific filed a November 5, 2026 verified statement that the confidential label is off the March 17 Vena recording and that parties of record received a copy at 3:30 p.m. Eastern. -
OmniTRAX Adds Tenants at Its Blue Island Hub
Nov 06, 26 10:26 AM
OmniTRAX has signed new construction-company leases at its 90-acre Blue Island, Illinois, hub and is planning a second phase. -
Veterans and Active-Duty Members Exceed 16 Percent of Norfolk Southern
Nov 06, 26 10:14 AM
Norfolk Southern said on November 5, 2026, that more than 3,000 veterans and active-duty service members are more than 16 percent of its workforce. This year grants are $100,000 and $50,000. -
BNSF: Merger Would Put Half of U.S. Rail Shipments Under One Railroad
Nov 06, 26 10:00 AM
BNSF chief marketing officer Tom G. Williams told customers on November 3, 2026, that a Union Pacific-Norfolk Southern merger would put about half of U.S. rail shipments under one railroad. Nothing is… -
Amtrak Opens a Winter Fare Sale
Nov 06, 26 09:28 AM
Amtrak opened a Winter Wanderlust sale on November 5, 2026. Book by November 12 for travel from December 1, 2026, through March 14, 2027. Blackout dates apply. Coach and Acela Business only. -
CN and CPKC Report October Grain Records
Nov 06, 26 08:50 AM
CPKC reported October 2026 grain records in Canada and the United States. CN reported 3.54 million metric tonnes across Canada. The releases do not print a combined total. -
New Brunswick Transload Gets CN Rail Service
Nov 06, 26 08:49 AM
CN said on November 4, 2026, that it has started serving AD Gagnon Transload Services near Grand Falls, New Brunswick. The site is three kilometres from the Trans-Canada Highway and lists room for 106… -
Together, Freight and Passenger Rail Can Grow, Union Pacific Says
Nov 06, 26 08:47 AM
Union Pacific said on November 5, 2026, that passenger obligations would remain if it combines with Norfolk Southern. The capacity claim is a Union Pacific analysis, not a Surface Transportation Board… -
FM "C-Liner" Locomotives: Specs, Roster, Photos
Nov 05, 26 11:19 PM
Fairbanks-Morse Consolidation Line cab units, the C-Liners. 165 locomotives, Beloit and Kingston, March 1950 through February 1955. Models, specs, and production rosters. -
Atlanta, Birmingham & Coast Railroad: Map, History, Roster
Nov 05, 26 12:03 PM
Atlanta, Birmingham & Coast, from Brunswick and Waycross to Atlanta and Birmingham. Atlantic Coast Line control at the close of 1926. Merged in January 1946 as the Western Division. Steam roster of th… -
El Paso & Southwestern Railroad: Map, History, Logo
Nov 05, 26 12:00 PM
The El Paso & Southwestern, the Phelps Dodge copper railroad from Tucson to the Rock Island at Tucumcari. Southern Pacific control on October 31, 1924. -
Brightline Says Orlando Service Has Resumed
Nov 05, 26 11:55 AM
Brightline said on November 5, 2026, that trains to and from Orlando have resumed after weather suspensions in Brevard County. Later that morning the departures page still showed the Orlando segment s… -
Metra Customers Must Sign Up Again
Nov 05, 26 11:43 AM
Metra says customers who want service alerts must sign up again at metratracker.com. The November 2 story says the new system has launched and the old email list is shut down. A notice on the same pag… -
Norfolk Southern Packs Six Projects Into One Window
Nov 05, 26 11:38 AM
Norfolk Southern used one 26-hour window on the W Line for six projects in Indiana and Kentucky, including three bridge replacements. The October 27 account does not give the calendar day of the work. -
CSX: More Time to Comment on an Inspection Waiver
Nov 05, 26 11:29 AM
The Federal Railroad Administration extended comments on a CSX petition for relief from some qualified mechanical inspector rules until December 2, 2026. The November 2 notice does not grant the waive… -
Brightline Expects Orlando Service on Thursday
Nov 05, 26 09:21 AM
Brightline said on November 4, 2026, that it expects trains to and from Orlando to resume on Thursday, November 5. South Florida stations kept running. The departures page still showed the Orlando seg… -
Union Pacific: More Time to Comment on an Inspection Waiver
Nov 05, 26 09:15 AM
The Federal Railroad Administration extended comments on a Union Pacific petition for relief from some qualified mechanical inspector rules until December 2, 2026. The November 2 notice does not grant… -
Wisconsin Opens Comments on the 2027 Freight Plan
Nov 05, 26 09:03 AM
WisDOT opened the draft 2027 State Freight Plan for comment through December 1, 2026. The plan covers freight rail with highways, harbors, aviation, and intermodal links. Completion is expected in sum… -
U.S. Rail Traffic Rose 3.5 Percent in the Week Ending October 31
Nov 05, 26 08:52 AM
U.S. railroads moved 514,080 carloads and intermodal units in the week ending October 31, 2026, up 3.5 percent from a year earlier, the Association of American Railroads said on November 4. -
Muni and Bay Area Transit Measures Pass
Nov 05, 26 08:49 AM
San Francisco Municipal Transportation Agency said on November 4, 2026 that Proposition H and a regional transit measure passed. Proposition H is about 160 million dollars a year for Muni. The regiona… -
Ground Rules Set for Responsive Applications
Nov 05, 26 08:47 AM
Decision No. 46, served November 4, 2026, denies a request to add Walsenburg to the Union Pacific interchange list and sets what CPKC and CN must include in responsive applications. Four CPKC proposal… -
Video of the Vena Address Must Be Released
Nov 05, 26 08:42 AM
The Surface Transportation Board on November 4, 2026 denied the Union Pacific appeal and ordered the March 17 shipper-conference recording released to the parties by 5:00 p.m. Eastern on November 5. C… -
Chicago & North Western Iron Ore C628s
Nov 04, 26 11:47 PM
Chicago and North Western C628s 6701-6730, the ex-Norfolk and Western high-hoods, in Upper Peninsula iron-ore service from the mid-1970s until December 21, 1986, and what happened to each unit. -
Warrenton Railroad: Serving Warrenton, NC (1884-1985)
Nov 04, 26 10:33 PM
The three-mile Warrenton Railroad, from Warren Plains to the North Carolina county seat. Chartered January 28, 1871. First train November 8, 1884. Closed in 1985. -
Rio Grande Steam Locomotives (Since 1900)
Nov 04, 26 11:40 AM
Denver & Rio Grande Western steam locomotives built since 1900. Standard gauge quantity 435 and narrow gauge 48. Challengers, 2-8-8-2s, Mountains, Northerns, and the K-27, K-28, K-36, and K-37. -
Rio Grande Diesel Locomotives (All-Time)
Nov 04, 26 11:39 AM
Denver & Rio Grande Western diesel locomotives, each frame once. 554 units, from the 1941 NW2 through the 1990 GP60s. FT, F3, F7, and F9 sets are not counted again under their 1950 numbers. -
Rio Grande Railroad: Map, Logo, History, Rosters
Nov 04, 26 11:34 AM
Denver & Rio Grande Western history, from William Jackson Palmer and the October 27, 1870 charter through the Royal Gorge, the Moffat route, the California Zephyr, and Union Pacific common control… -
Lindblom Gift Expands the Fort Wayne Restoration Shop
Nov 04, 26 11:14 AM
Art Lindblom gave the Fort Wayne Railroad Historical Society more than $1.4 million, its largest single gift, to expand the New Haven shop. The addition is planned for late 2026 and early 2027. A sepa… -
Design Contract Awarded for the Forest Park Branch
Nov 04, 26 11:09 AM
The Chicago Transit Board approved a design contract for about 13 miles of Blue Line track from the Illinois Medical District to the I-290 Bridge. The release summary calls it a $17 million contract… -
Kanawha River Railroad: The Norfolk Southern Lease Is Renewed
Nov 04, 26 10:51 AM
Kanawha River Railroad filed to keep leasing 309.45 miles from Norfolk Southern in West Virginia and Ohio. The second amendment is dated August 17, 2026. The Board has not set the date the exemption t… -
Short Line Center Awarded a $5.625 Million Grant
Nov 04, 26 10:35 AM
The American Short Line and Regional Railroad Association received a $5.625 million CRISI grant on October 20, 2026, for the Short Line Training Center. A 25 percent match brings the project to $7.5 m… -
Palestine and Rusk Track Rebuild Finishes Its First Phase
Nov 04, 26 09:13 AM
The Texas & Eastern Railroad has finished the first phase of a roughly $30 million track project between Palestine and Rusk. Phase I used a $13.4 million CRISI grant. Phase II, at $8.54 million, adds… -
Manhattan, Brooklyn, Queens, and the Bronx Get Subway Power Design
Nov 04, 26 09:12 AM
STV said on November 2, 2026, that MTA Construction and Development selected the firm to manage design of 10 subway substations and 12 circuit breaker houses in four New York boroughs. No contract pri… -
Chicago's Regional Transit Budget Goes Out for Comment
Nov 04, 26 09:07 AM
The Northern Illinois Transit Authority opened its first regional budget for comment through December 4, 2026. The proposal is $5.04 billion for 2027 operations and $9.73 billion in capital work throu… -
VIA Rail Finishes the Toronto Maintenance Centre
Nov 04, 26 09:05 AM
VIA Rail completed a four-year modernization of its Toronto Maintenance Centre on November 2, 2026. The Government of Canada invested $310 million. The shop supports 32 Corridor trainsets and will sus… -
Brightline Suspends Orlando Service for High Water
Nov 04, 26 09:02 AM
Brightline suspended trains between Orlando and West Palm Beach on November 2, 2026, because of high water in Brevard County. A later post the same day kept the suspension until 2:00 p.m. on November… -
Hiawatha West Draws Federal Funding Toward Madison
Nov 04, 26 08:58 AM
Amtrak welcomed a CRISI selection for Hiawatha West, extending Chicago-Milwaukee service toward Madison, Watertown, and Pewaukee. Wisconsin said on October 16 that the award is over $218 million. -
Seattle's Train Maintenance Facility Opens for Airo Trains
Nov 04, 26 08:56 AM
Amtrak cut the ribbon October 23, 2026, on a $250 million Seattle shop for Airo trains on the Cascades route. The building came in on time and $50 million under budget and opens in phases through the… -
Aberdeen Carolina and Western Wins a $19.9 Million Grant
Nov 04, 26 08:46 AM
The Aberdeen Carolina and Western Railway won a $19.9 million CRISI grant for about 30 miles of welded rail in Montgomery and Stanly counties. The railroad and NCDOT are putting up a 52 percent match… -
Alco "C628" Locomotives: Roster, Data Sheet, Specs
Nov 03, 26 07:57 PM
Alco Century C628: 2,750 hp C-C road switcher, 186 built from December 1963 to December 1968. Production roster, specs, and where the high-hood Norfolk and Western units went. -
Santa Fe Railroad (AT&SF): Diesel Roster (All-Time)
Nov 03, 26 12:54 PM
Santa Fe diesel locomotives, each new frame once, with construction numbers and order numbers. The counted total is 3,964, from the 1935 boxcabs through the SD75Ms.

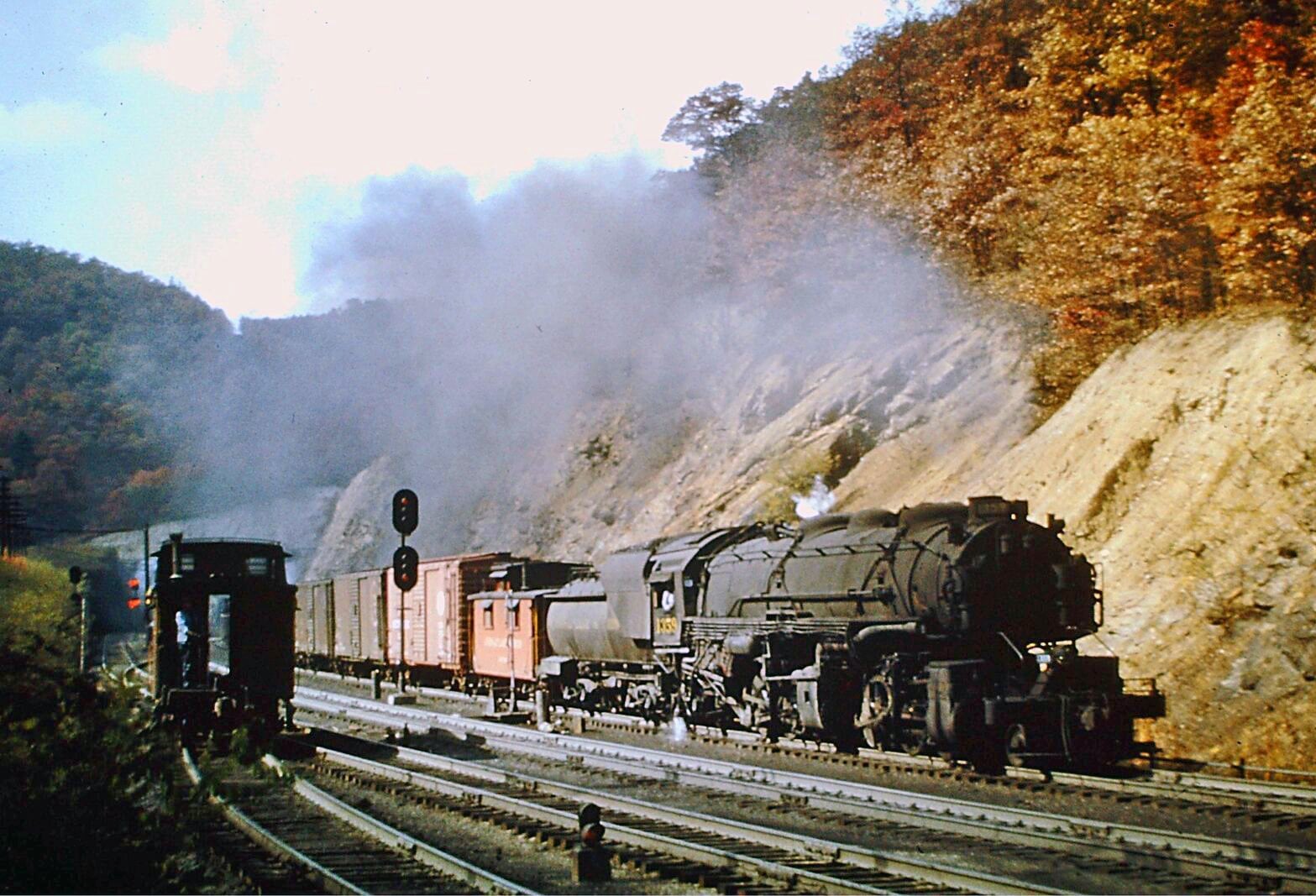

%20runs%20light%20at%20Villamont%2C%20Virginia%20in%20a%20scene%20dating%20to%20either%20the%201940s%20or%20early%201950s.){kind=link}

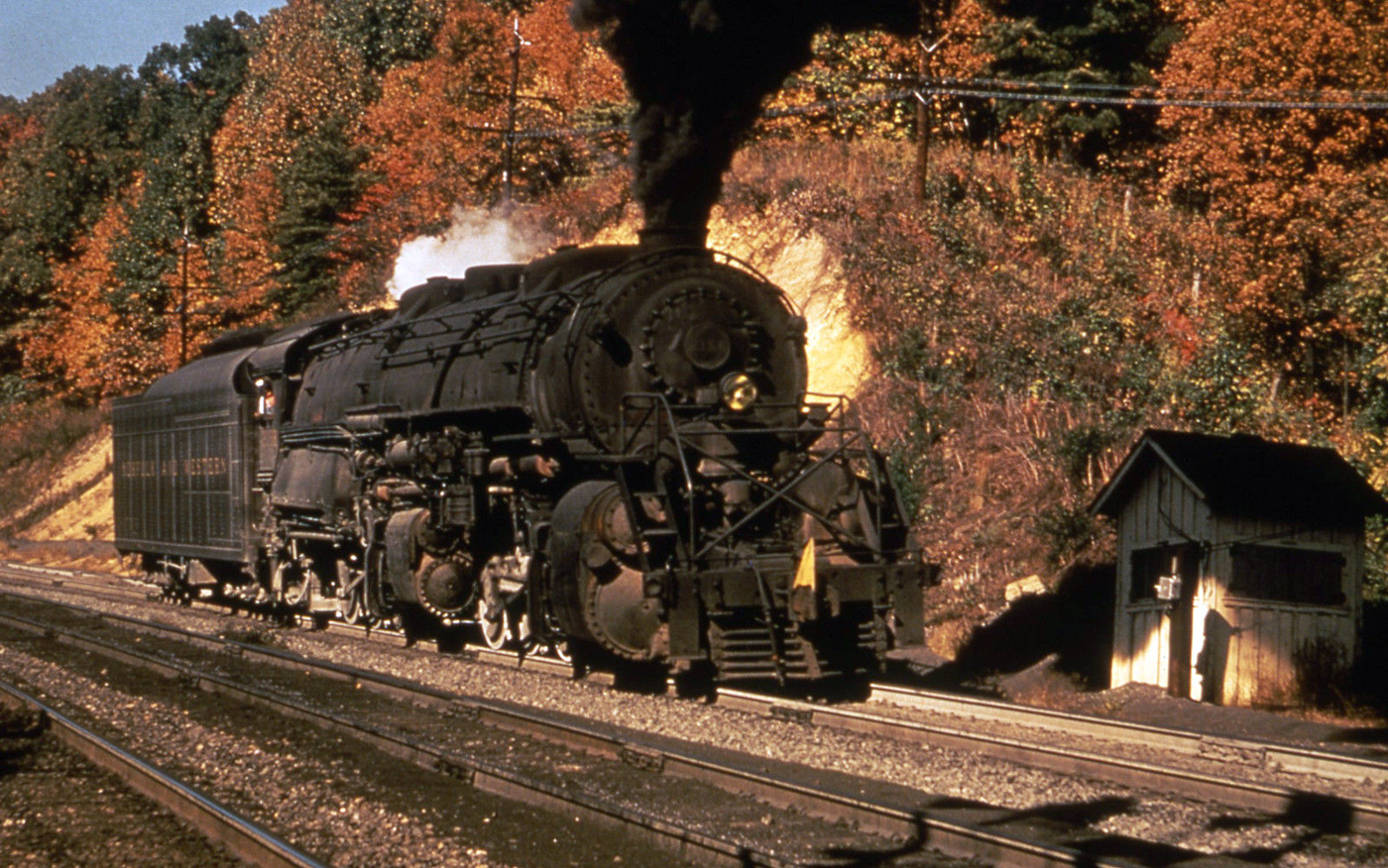

%20steams%20out%20of%20one%20of%20the%20tunnels%20at%20Alleghany%2C%20Virginia%20with%20an%20eastbound%20local%20on%20October%2019%2C%201951.%20The%20C%26O%20owned%20a%20vast%20collection%20of%20these%20%22Mallets.%22){kind=link}
