The Crossbuck: A Grade-Crossing Warning Sign

Published: July 1, 2024

By: Adam Burns

The crossbuck is an iconic symbol synonymous with level crossings, serving as a crucial warning sign to motorists and pedestrians about the presence of railway tracks.

Its distinctive "X" shape and the words "RAILROAD CROSSING" emblazoned across it have become universally recognized. This history delves into the origins, evolution, and impact of the railroad crossbuck, shedding light on how it became a vital component of railway safety.

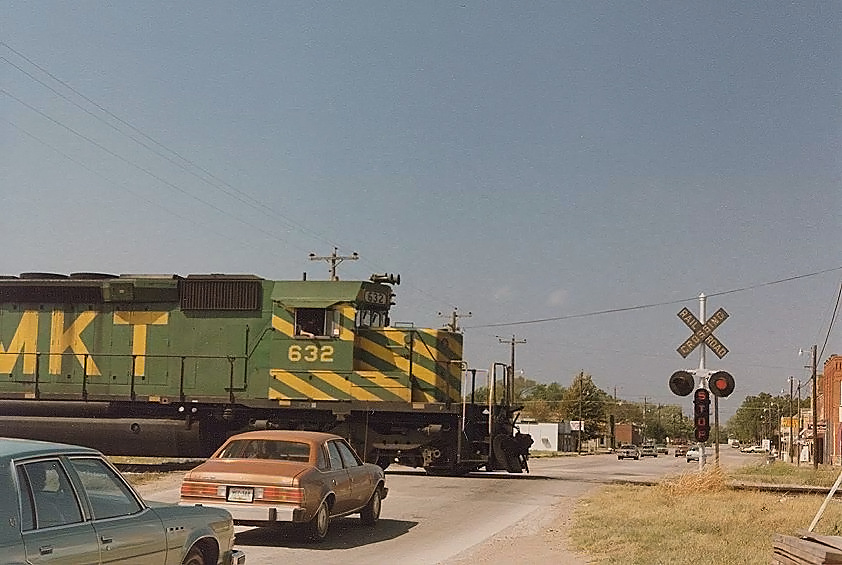

129481274124175289236896987.jpgKaty SD40-2s #632 and #634 are northbound through the small town of Chouteau, Oklahoma on September 18, 1983 as the train is about to roll through a local grade crossing protected by a crossbuck with flashing lights. Doug Kroll photo.

Early Warning Devices

In the early days of railroads during the 19th century, when railway networks were expanding rapidly, there was an urgent need for effective warning systems at level crossings. Initially, various methods were employed to alert travelers of approaching trains.

These included manual signalmen who would wave flags, the use of bells, and simple signage. However, these methods were inconsistent and often unreliable, leading to numerous accidents.

As railroads proliferated, the necessity for a standardized and more effective warning mechanism became increasingly apparent. Early warning signs varied in design and implementation, with some railroads using basic wooden posts and others employing more elaborate signage. The lack of a uniform system posed significant risks to the burgeoning railway infrastructure.

Birth of the Crossbuck

The turn of the 20th century marked the conceptualization of a more standardized warning sign — the railroad crossbuck. The naming is derived from its unique shape, resembling a "saltire," the heraldic symbol commonly referred to as a "crossbuck" or "cross-buck."

The adoption of the crossbuck design was driven by several key factors:

1. **Visibility**: The "X" shape of the crossbuck ensured that it was easily recognizable from a distance and clearly distinguished from other signage.

2. **Simplicity**: The design's simplicity made it easy to produce and install across various railway crossings.

3. **Consistency**: A standardized design across all railway crossings helped instill uniformity, reducing confusion among travelers.

Early Implementations

By the early 1900s, the crossbuck began to see widespread implementation. Initially constructed from wood, these signs featured the words "RAILROAD CROSSING" painted or stenciled vertically along the two arms of the "X." In some instances, additional names or logos of the railway companies were included.

The crossbuck quickly proved its effectiveness, offering a reliable visual cue that warned of railway crossings, day or night, and in most weather conditions. As its adoption grew, so did its integration into legal frameworks regulating railway operations.

Standardization

The development of the crossbuck paralleled the progress in transportation safety regulations. In the United States, the Manual on Uniform Traffic Control Devices (MUTCD) formalized the crossbuck design and its specifications.

The MUTCD, first published in 1935, aimed to standardize traffic control devices across highways and railroads, promoting safety and consistency.

According to the MUTCD, the crossbuck was to be positioned prominently at each level crossing, mounted at a height that ensured it was visible to approaching motorists and pedestrians.

The reflective paint or sheeting was mandated to enhance night-time visibility. These regulations also encompassed the dimensions and installation guidelines, contributing to the crossbuck's uniformity across different regions.

Evolution of Materials and Design Enhancements

Over the decades, the materials used in constructing crossbucks evolved in response to advancements in technology and increased emphasis on durability and visibility. Initially made from wood, crossbucks began to be manufactured from steel and aluminum, offering greater longevity and resilience to weather conditions.

In addition to material improvements, design enhancements were introduced. Reflective sheeting replaced traditional paint, significantly boosting visibility in low light conditions and making the signs more conspicuous. Some crossbucks were also equipped with flashing lights or paired with automated gates to provide additional warnings at busy or hazardous crossings.

Global Adoption and Variations

While the design originated in the United States, the concept of the railroad crossbuck was rapidly adopted worldwide, with variations tailored to meet specific regulatory requirements of different nations. In many countries, the crossbuck retained its fundamental "X" shape, though the accompanying text and supplementary features varied.

For instance, in Canada, crossbucks are similar in appearance to their American counterparts but must include bilingual text ("TRAFFIC FERROVIAIRE" in French and "RAILWAY CROSSING" in English). Over in Europe, the crossbuck is often integrated with additional signs indicating the number of tracks or electronic warning devices signaling incoming trains.

Modern Innovations and Technological Integration

The advent of digital technology has further evolved the railroad crossbuck's role in enhancing railway crossing safety. Modern crossbucks are often integrated with electronic warning systems, including flashing LED lights and audible alarms activated by approaching trains. These systems provide a multi-sensory alert, significantly reducing the risk of collisions at level crossings.

Moreover, the incorporation of communication technology allows crossbucks to be linked to central monitoring systems. These systems can provide real-time data on train movements, weather conditions, and potential obstructions, enabling more proactive safety measures and timely maintenance interventions.


Conclusion

The crossbuck is an enduring symbol of safety and standardization in public transportation. From its early days of varied warning signs to the establishment of a universal system recognized across the globe, the crossbuck has played a crucial role in minimizing railway crossing accidents and enhancing public awareness.

Its simplistic yet effective design has stood the test of time, evolving in line with technological advancements and regulatory changes. The railroad crossbuck exemplifies the importance of consistent and reliable safety measures in public infrastructure, having left an indelible mark on the history of transportation safety.

Today, as rail networks continue to expand and modernize, the crossbuck remains a critical component of the safety ecosystem, reminding us of the ongoing need to prioritize safety and standardization in our ever-evolving transportation systems.
