HR616 "Draper Taper" Locomotives: Specs, Models, Background

Last revised: November 7, 2024

By: Adam Burns

During Bombardier Inc.'s short stint in manufacturing locomotives for freight service it unveiled the HR616, a model that was based from its former subsidiary's designs, the Montreal Locomotive Works.

The new locomotive sported a unique carbody known as the "Draper Taper" that was intended to improve a crews' visibility when looking aft.

From a visual perspective it was closely related to the cowl design so often used in Canada.

However, it also gave the road-switcher the appearance of having fish gills with the way in which the hood angled in directly behind the cab.  Overall, the HR616 ran into several mechanical issues while in service and they were retired after only a decade of use.

Later during the 1980s three different Electro-Motive models carried the Draper Taper.

The last locomotive to feature the design was a General Electric "Dash 8" model.  The EMD and GE variants were much more successful and went to enjoy long careers.  However, all variants have long since been retired from both CP and CN.

Photos

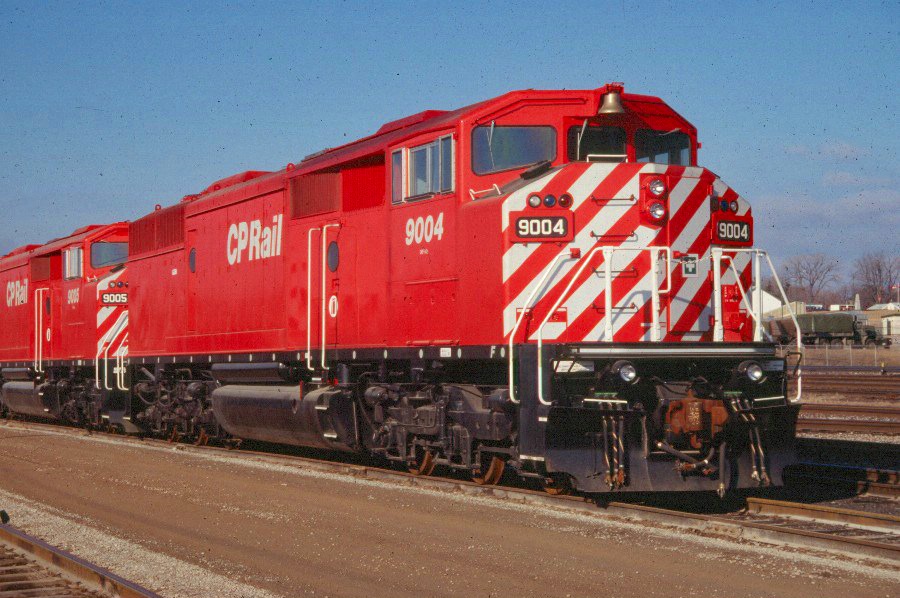

Recently completed Canadian Pacific SD40-2F's, sporting the cowl or "Draper Taper" carbody, at General Motors Diesel's London, Ontario plant on March 12, 1989. From a visual standpoint, the "Draper Taper" carbody makes each model appear very similar at first glance; it takes a sharp eye to pickup the various nuances. Brian Rackley photo.

Bombardier Transportation

Since the early 20th century one of Canada's preeminent builders of locomotives was the Montreal Locomotive Works (MLW), a division of the American Locomotive Company (Alco) based in Schenectady, New York.

Starting in 1940 and throughout the diesel era MLW manufactured several different models that were predominantly or partially based from Alco's American designs such as the S series switchers, RS series road-switchers, FA cab series, and the late era Century line of the 1960s.

Alco stopped producing domestically after the late 1960s.  However, MLW continued to operate independently, producing the Centuries under its own line as the M420, M424, M630, M636, and M640 throughout the 1970s.  In 1975 Bombardier took over MLW as a means of expanding into the locomotive market.

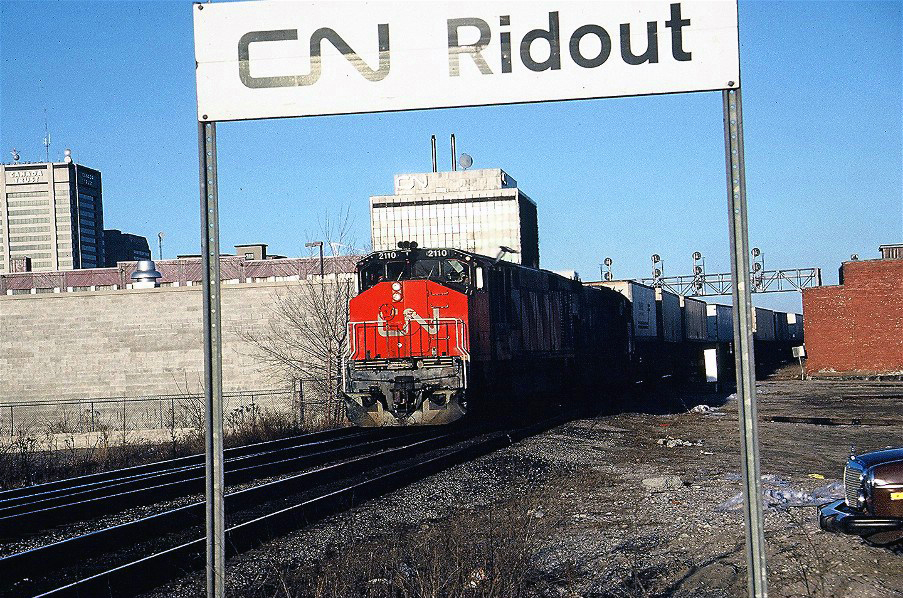

Canadian National H616 #2110 is seen here leading trailers through London, Ontario on March 12, 1989. The unit was built by Bombardier in April, 1983. Brian Rackley photo.

Development

Bombardier was a Quebec corporation founded in 1941 that had long been involved in the transportation industry manufacturing snow mobiles and bush vehicles for many years.

During this time the company acquired MLW as it was expanding into other industries including aerospace and the resurging commuter/passenger rail market.

Until the end of 1982 Bombardier continued to produce MLW's own line of road-switchers, which ended when the last M424s rolled out of its plant bound for Mexican customers.

Since 1980 the company had been designing its own road-switcher in conjunction with Canadian National's Chief of Motive Power, William L. Draper who worked on the locomotive's carbody.

What became known as the "Draper Taper," the cowl-like design looked like any other that saw widespread use in Canada.

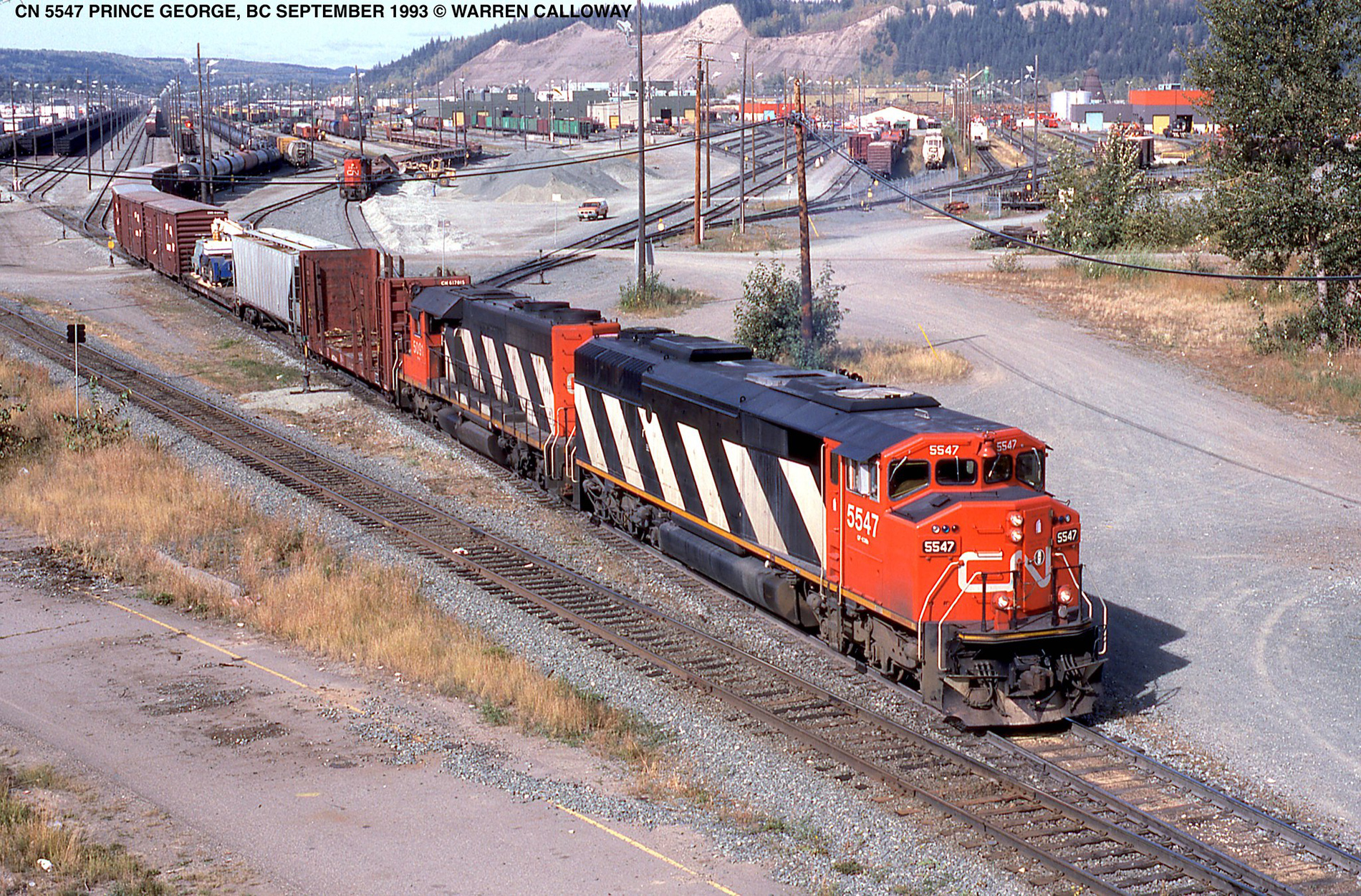

Canadian National SD60F #5547 leads its eastbound freight out of the yard in Prince George, British Columbia in September, 1993. Warren Calloway photo.

"High Reliability"

However, extending more than 10 feet directly behind the cab the carbody angled inward to provide crews with better visibility when looking behind them while also still allowing for covered access to the engine compartment.

Classed as the HR616 ("6" axles and "16" cylinders) the model was based from Alco and MLW products, utilizing Alco's model 251G prime mover that could produce 3,000 horsepower.

Just as Alco had done Bombardier used primarily General Electric components on the locomotive such as traction motors, alternator, and main/auxiliary generators.

The company described its design as "HR" which stood for High Reliability.  This name was somewhat ironic considering that the locomotive experienced so many troubles while in service.

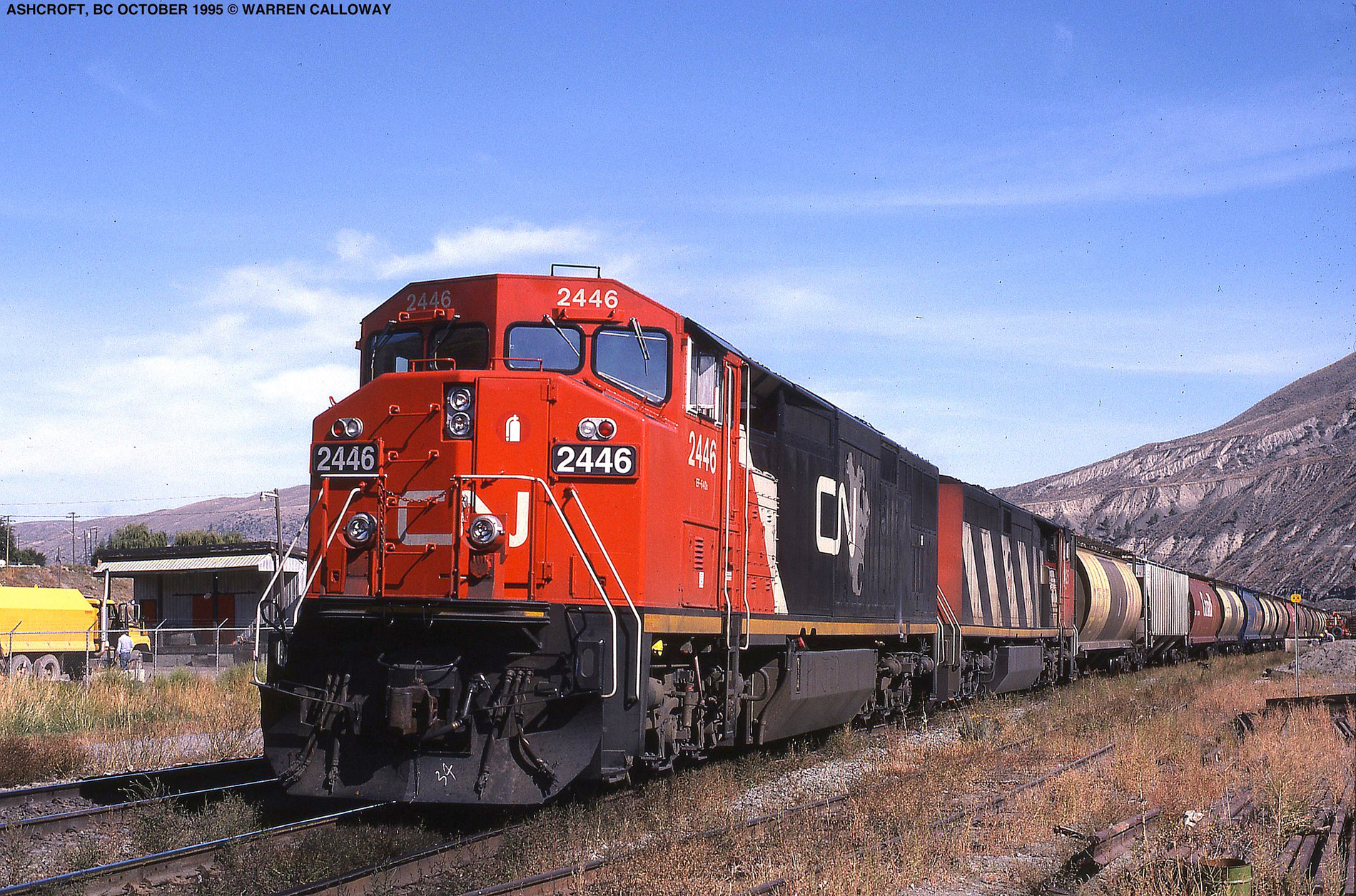

Canadian National C40-8M's #2446 and #2425 lead a grain train westbound at Ashcroft, British Columbia in October, 1995. Warren Calloway photo.

Along with the Draper Taper carbody and C-C trucks the HR616 sported an angled fuel tank similar to GE styling and the classic Canadian Comfort Cab with a four-piece, front windshield and angular nose.

Canadian National would turn out to be the only buyer.  Between February and August of 1982 CN took delivery of 20 units, numbered 2100-2119.  The Class I used them in service for more than a decade until their retirement during the mid-1990s.

However, it was not particularly pleased with them as the units were fraught with mechanical and electrical problems.  Interestingly, CN had placed an additional order for 15 more numbered 2120-2134 but cancelled this after its issues with the first twenty.

Data Sheet and Specifications

HR616

Entered Production2/1982 (Canadian National #2100)
Years Produced (HR616)2/1982 - 8/1982
Years Produced (HR412)9/1981 - 5/1982
Engine251E
Engine BuilderMLW/Alco
Horsepower3000
RPM1100
Cylinders16
Length69' 6"
Height (Top Of Rail To Top Of Cab)15' 5"
Width10' 3"
Weight390,000 Lbs
Fuel Capacity2000 Gallons
Air CompressorGardner-Denver
Air Compressor ModelWBO
Air Brake ManufacturerWestinghouse
Air Brake Schedule24L
TrucksC-C
Truck TypeHi-Ad (High Adhesion)
Truck Wheelbase12' 6"
Wheel Size40"
Traction Motors752 (6), GE
Primary GeneratorGTA11P, GE
MU (Multiple-Unit)Yes
Dynamic BrakesYes
Gear Ratio62:15
Tractive Effort (Starting)98,000 Lbs at 25%
Tractive Effort (Continuous)79,500 Lbs at 12 mph
Top Speed65 mph

Models

HR412 (Bombardier)

Owner Road Number(s) Quantity Builder Number(s) Date Built
Demonstrator (Bombardier)70001M6119-015/1982
Canadian National2580-258910M6115-01 thru M6115-01 to M6115-109/1981 - 11/1981

HR616 (Bombardier)

Owner Road Number(s) Quantity Builder Number(s) Date Built
Canadian National2100-211920M6118-01 to M6118-202/1982 - 8/1982
Canadian National2120-213415M6128-01 to M6128-20Order Cancelled*

* Subsequent to this cancellation, the Montreal Locomotive Works exited the freight locomotive market.

SD50F (EMD)

Original Owner Road Number(s) Date Built Horsepower
Canadian National5400-54591985-19873,600

SD60F (EMD)

Original Owner Road Number(s) Date Built Horsepower
Canadian National5500-55631985-19893,800

SD40-2F (EMD)

Original Owner Road Number(s) Date Built Horsepower
Canadian Pacific9000-902419883,000

C40-8M (GE)

Original Owner Road Number(s) Date Built Horsepower
British Columbia Railway4601-46261990-19934,000
Canadian National2400-24541990-19924,000
Quebec, North Shore & Labrador401-40319944,000

At the same time Bombardier also cataloged the four-axle HR412 that was purchased by CN but did not feature the Draper Taper design.

Later on during the 1980s three different EMD models also carried the carbody including the SD50F (1985-1987, all for CN), SD60F (1985-1988, all for CN), and SD40-2F (1988, all built for Canadian Pacific).

The only other locomotive to use the Draper was GE's C40-8M built between 1990 and 1994.  It was also the only version that was purchased by more than one railroad with CN, CP, and Quebec North Shore & Labrador acquiring at least three examples.  Aside from the carbodies GE's C40-8M and EMD's models were the same internally as their standard counterparts.

Sources

  • Foster, Gerald. A Field Guide To Trains. New York: Houghton Mifflin, 1996.
  • Kirkland, John F. Diesel Builders, The:  Volume Two, American Locomotive Company And Montreal Locomotive Works. Glendale: Interurban Press, 1989.
  • Marre, Louis A. Contemporary Diesel Spotter's Guide, The: A Comprehensive Reference Manual To Locomotives Since 1972, Including Rebuilding, Upgrading, And Leasing Programs (2nd Edition).  Milwaukee: Kalmbach Publishing Company, 1995.
  • McDonnell, Greg. Locomotives: The Modern Diesel & Electric Reference, 2nd Edition. Buffalo: Boston Mills Press/Firefly Books, 2015.
