EMC "EA," "E1," And "E2" Locomotives

Last revised: April 21, 2023

By: Adam Burns

Electro-Motive's original EA was built for the Baltimore & Ohio in the mid-1930s. The "E" series was introduced by the Electro-Motive Corporation and carried on, quite successfully, under General Motors as a singular diesel locomotive which was not semi-permanently coupled to a trainset (such as the Zephyrs or UP's M-10000).

The B&O ultimately came to own about a dozen of the new, streamlined diesels, which had yet to be a proven replacement for steam.

Other railroads went on to purchase these very early Electro-Motive passenger designs included the Union Pacific and Santa Fe.

The units were a vastly different from the standard of the day, utilitarian steam locomotives and heavyweight cars that provided neither streamlining nor color.

History

Ultimately, diesels proved quite successful, particularly after the FT demonstrator set hit the rails in 1939.

The EAs remained in use on the B&O for many years before being retired and today, one remains preserved, #51 at the Baltimore & Ohio Railroad Museum in Baltimore.  It has since been cosmetically restored to its as-delivered appearance.

Photos

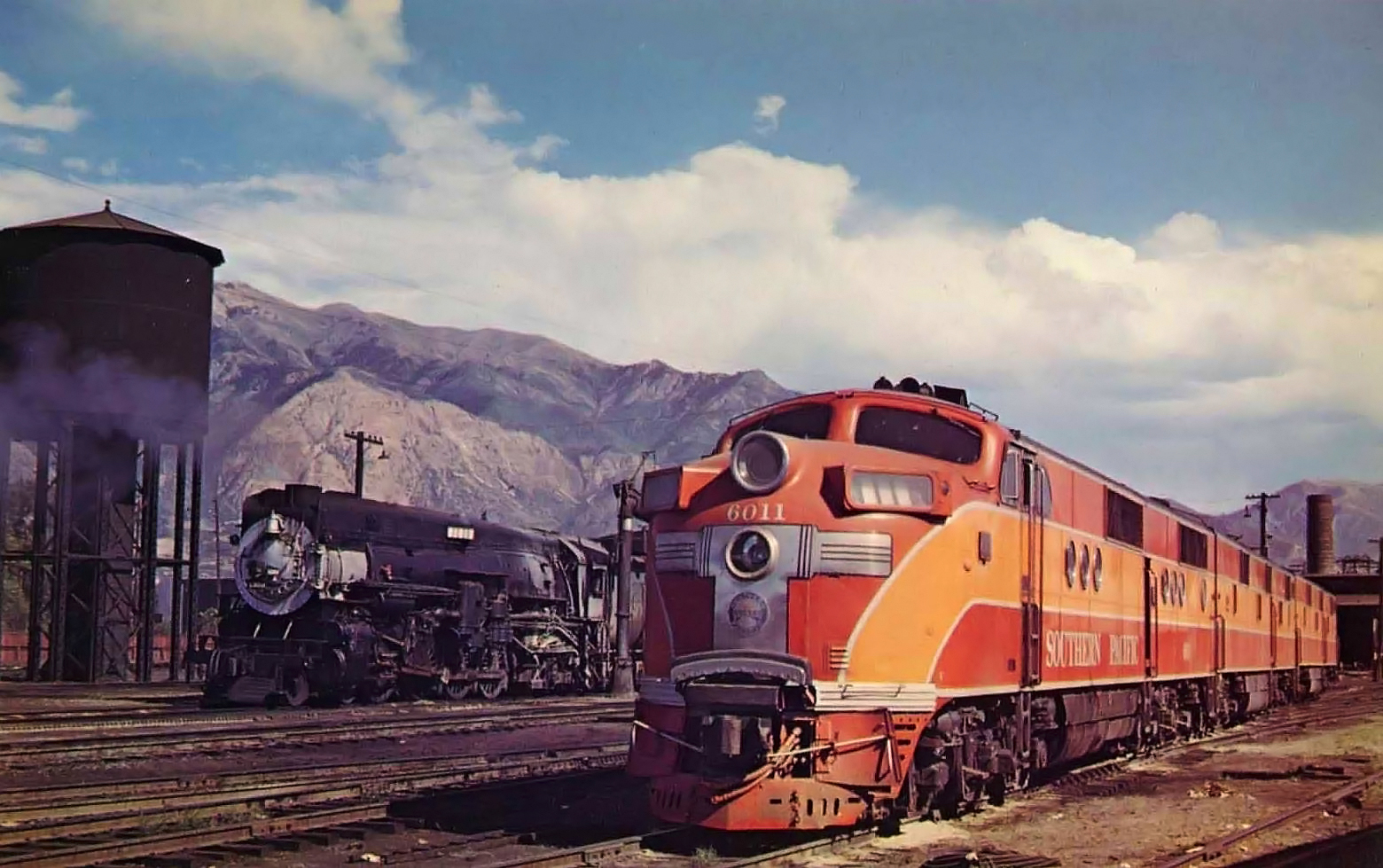

6011094801093uecv8485990385.jpgSouthern Pacific E2A #6011-A is seen here between assignments at Ogden, Utah in August of 1949. In the background is 4-8-2 #4356 (MT-4). The diesel began its career as SF-1 powering the "City of San Francisco." It was rebuilt a few years after this photo was taken at the railroad's Los Angeles Shops (with help from Electro-Motive) into an E7A and given #6017. Guy Dunscomb photo.

At the time the EA was constructed Electro-Motive was still a mostly independent company, although it had been purchased by GM in 1930 (it became an official division of the automaker in early 1941).

The EA (E, which stood for Eighteen hundred horsepower) carried two 900-horsepower, 12-cylinder 201-A Winton engines and the first buyers of these models were the B&O and Santa Fe (while mechanically the same the AT&SF's units were classified as E1s).

It did not take long after the EA's debut for the industry to realize the success of the locomotives.  With the onset of World War II diesel locomotive construction was restricted during wartime but the EA, E1, and E2 had been in service long enough for railroads to witness their capabilities.

Essentially, the EA utilized the mechanics of the builder's passenger boxcab diesel it had built a few years earlier in 1935.

A1A-A1A Trucks

The basic difference was that the EA came packaged in a stunning, streamlined carbody with a shoveled nose, a trademark of later models.

While the EA itself came equipped with 1,800 horsepower, EMC also manufactured a cabless "B" unit known as an EB, which doubled its total output to 3,600 horsepower.

Overall the EA featured an A1A-A1A wheel arrangement (whereby the center axle of the three was unpowered) using four General Motors' model D7 traction motors; coupled with a weight of 150 tons and overall length of 69-feet the EA could produce a continuous tractive effort of 31,000 pounds and top speed of nearly 120 mph.

In the end the B&O came to own six EAs and six EBs, which were originally used to power its most prestigious passenger trains such as the Capitol LimitedNational Limited, and Royal Blue.

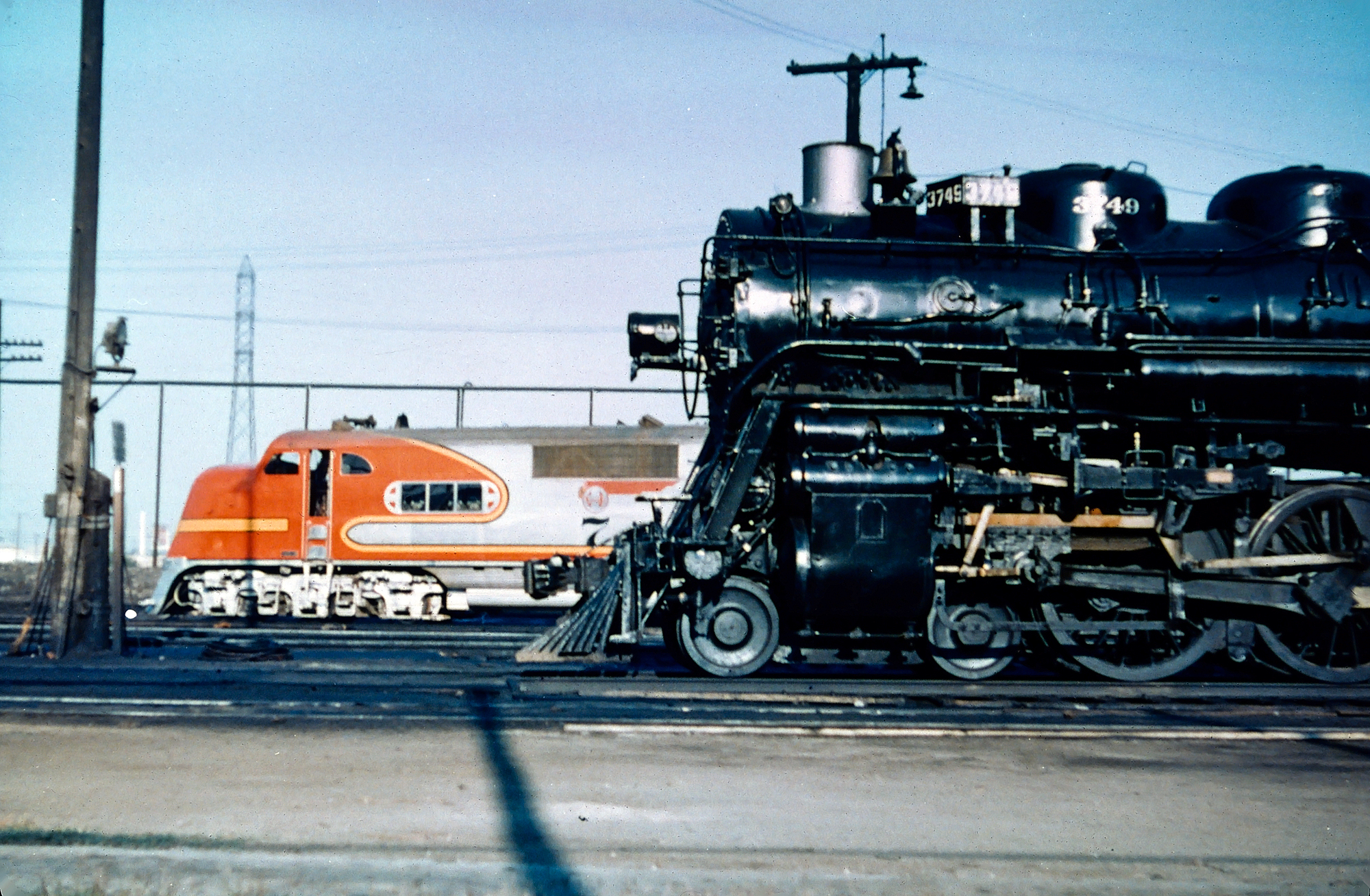

Another view of Redondo Junction in 1939; seen here is Santa Fe 4-8-2 #3749 and, once more, E1A #9. Russ Cole photo. American-Rails.com collection.

During the same period (1937 and 1938) Electro-Motive also developed similar models for the Santa Fe and Union Pacific.

The Santa Fe's locomotives, used on its new streamlined trains between Chicago and Los Angeles (the Super Chief, for instance) were dubbed E1s and inwardly and outwardly were essentially identical to the B&O's EA model. The AT&SF came to own 8 E1As and 3 E1Bs.

The Union Pacific's model was known as the E2 and varied slightly from the EA and E1 in that its carbody styling featured a more pronounced and beveled front nose with no tapering or "slanted" appearance.

The UP's E2 also differed in that they were somewhat built as matching A-B-B sets (although they were not semi-permanently coupled), in which the railroad came to own two such designs.

Combined the A-B-B set could produce 5,400 horsepower, with each unit again able to produce 1,800 horsepower using two Winton 201-A prime movers (900 horsepower each).

Data Sheets

EA, E1

Entered Production5/1937 (Baltimore & Ohio EA #51)
Years Produced5/1937 - 6/1938
U.S. Design Patent (Carbody)D106,918*
Engine201-A (2)
Engine BuilderWinton
Horsepower1800
RPM800
Cylinders12
Length (EA)69' 1"
Length (E1)70'
Height (Top Of Rail To Top Of Cab)15'
Width10' 3"
Weight300,000 Lbs (A Units): 290,000 Lbs (B Units)
Fuel Capacity1,200 Gallons
Air CompressorGardner-Denver
Air Compressor ModelWBO
Air Brake ManufacturerWestinghouse
Air Brake ScheduleHSC
TrucksA1A
Truck TypeBlomberg
Truck Wheelbase14' 1"
Wheel Size36"
Steam Generator ManufacturerVapor-Clarkson
Steam Generator Capacity1200 Lbs/Hr
Traction MotorsWestinghouse
Primary GeneratorWestinghouse/GE
Auxiliary GeneratorWestinghouse/GE
MU (Multiple-Unit)Yes
Dynamic BrakesNo
Gear Ratio52:15
Tractive Effort (Starting)56,500 Lbs at 25%
Tractive Effort (Continuous)31,000 Lbs at 11 mph
Top Speed116 mph

* Filed on June 24, 1937.

E2

Entered Production5/1937 (Baltimore & Ohio EA #51)
Years Produced5/1937 - 6/1938
U.S. Design Patent (Carbody)D106,918*
Engine201-A (2)
Engine BuilderWinton
Horsepower1800
RPM800
Cylinders12
Length (E2A)69' 6"
Length (E2B)70' 0"
Height (Top Of Rail To Top Of Cab)13' 11"
Height (Top Of Rail To Roof Horn)15' 0"
Width10' 3" (Outside Grab Irons)
Weight300,000 Lbs (A Units): 290,000 Lbs (B Units)
Fuel Capacity1,200 Gallons
Air CompressorGardner-Denver
Air Compressor ModelWBO
Air Brake ManufacturerWestinghouse
Air Brake ScheduleHSC
TrucksA1A
Truck TypeBlomberg
Truck Wheelbase14' 1"
Wheel Size36"
Steam Generator ManufacturerVapor-Clarkson
Steam Generator Capacity1200 Lbs/Hr
Traction MotorsWestinghouse
Primary GeneratorWestinghouse/GE
Auxiliary GeneratorWestinghouse/GE
MU (Multiple-Unit)Yes
Dynamic BrakesNo
Gear Ratio52:15
Tractive Effort (Starting)56,500 Lbs at 25%
Tractive Effort (Continuous)31,000 Lbs at 11 mph
Top Speed116 mph

Production Rosters

EA

Total Built = 6

Owner Road Number Serial Number Order Number Completion Date Quantity
Baltimore & Ohio51666E1455/19371
Baltimore & Ohio52668E1456/19371
Baltimore & Ohio53-54765-766E1881/19382
Baltimore & Ohio55767E1906/19381
Baltimore & Ohio56800E1906/19381

EB

Total Built = 6

Owner Road Number Serial Number Order Number Completion Date Quantity
Baltimore & Ohio51667E1465/19371
Baltimore & Ohio52669E1466/19371
Baltimore & Ohio53-54768-769E1891/19382
Baltimore & Ohio55770E1916/19381
Baltimore & Ohio56801E1916/19381

E1A

Total Built = 8

Owner Road Number Serial Number Order Number Completion Date Quantity
Atchison, Topeka & Santa Fe2A662E1816/19371
Atchison, Topeka & Santa Fe3, 5-8, 4, 9791-797E1811/1938 - 4/19387

E1B

Total Built = 3

Owner Road Number Serial Number Order Number Completion Date Quantity
Atchison, Topeka & Santa Fe2B663E1836/19371
Atchison, Topeka & Santa Fe3A - 4A798-799E1831/1938, 3/19382

E2A

Total Built = 2

Owner Road Number Serial Number Order Number Completion Date Quantity
Union Pacific/Chicago & North WesternLA1741E15710/19371
Union Pacific/Southern Pacific/Chicago & North WesternSF1744E16212/19371

E2B

Total Built = 4

Owner Road Number Serial Number Order Number Completion Date Quantity
Union Pacific/Chicago & North WesternLA2-LA3742-743E15810/19372
Union Pacific/Southern Pacific/Chicago & North WesternSF2-SF3745-746E16312/19372

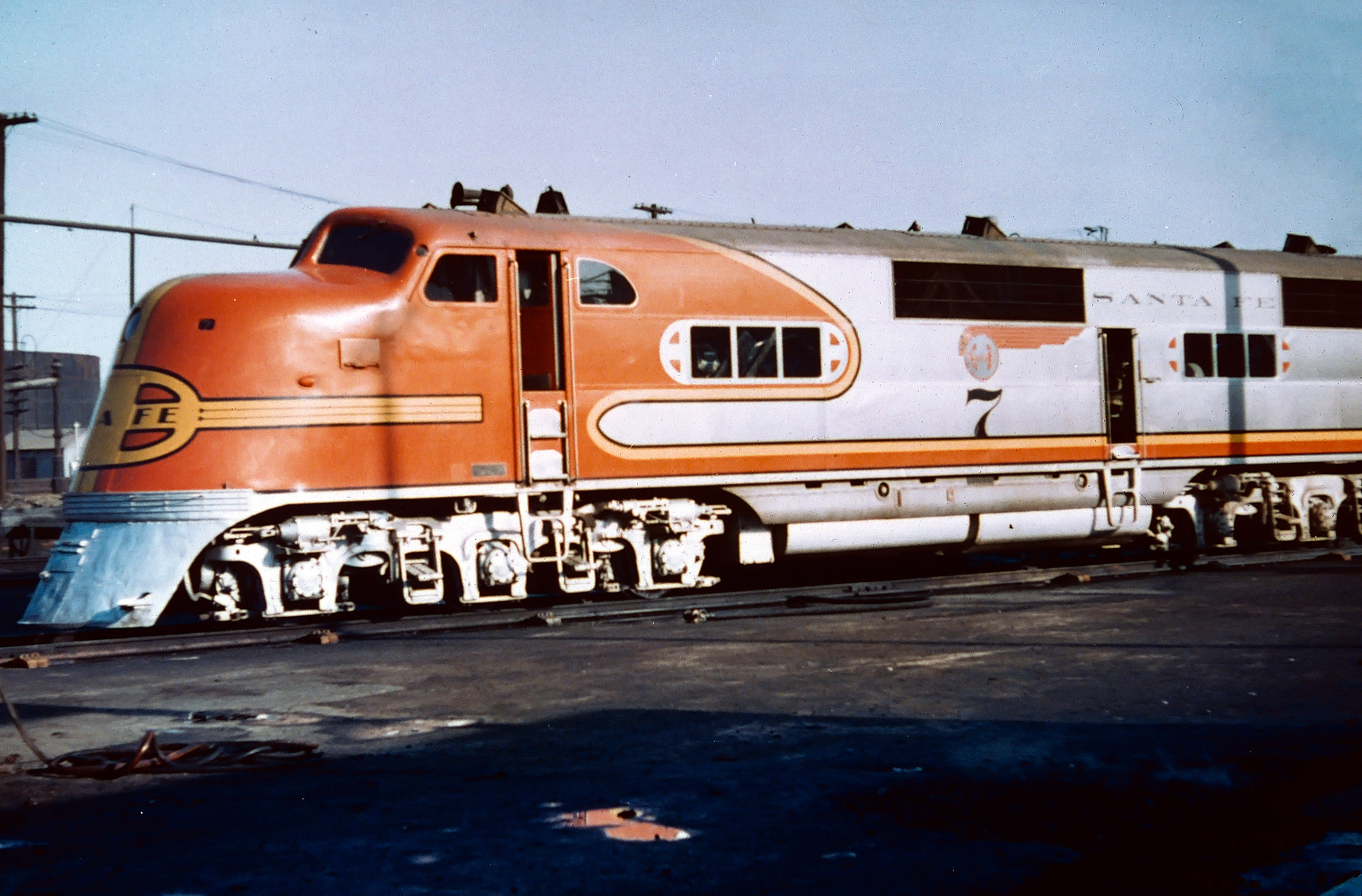

5t5515t16g19909970408551g57288.jpgSanta Fe E1A #7 at the Redondo Junction engine facility in Los Angeles in 1939. Russ Cole photo. American-Rails.com collection.

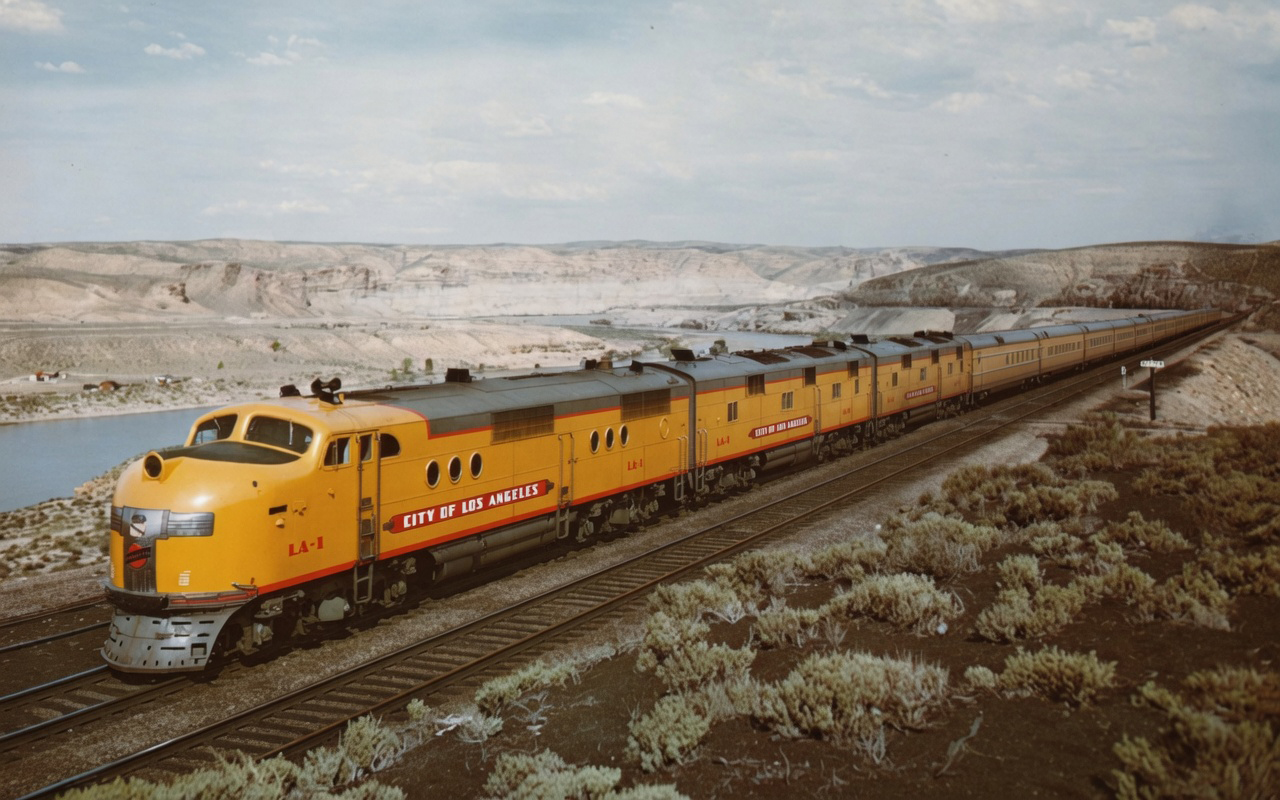

The UP's two sets were dubbed SF (1, 2, and 3) and LA (1, 2, and 3) for the passenger trains they powered (the City of San Francisco and City of Los Angeles).

The EMC EA, E1, and E2 were the only such models in the series to use the Winton Engine Company's model 201-A as future designs, starting with the E3, employed General Motors'  much more reliable and rugged model 567 prime mover.

Perhaps most importantly these early passenger models saw a significant change in how future locomotives were built with less of an emphasis on custom building (as was the case with steam) and more of a focus on a mass-produced, assembly-line scale which greatly reducing their cost.
