GE "ES40DC" Locomotives

The ES40DC continued Norfolk Southern's practice of operating 4,000 horsepower road-switchers in main line service.  It was the only the Class I to request  locomotives at such a rating.

The ES40DC was virtually identical to its ES44AC cousins except for its step down in horsepower and use of DC traction motors.

The decision to build this model can be traced back to the C40-9 and C40-9W "Dash 9" line of the 1990s, another model exclusively requested by NS.  Both were variants of GE's very successful C44-9W.

At the time, the railroad felt 4,000 horsepower was well within its needs to handle the then-average freight train weight of 3,000 tons.

During the 1990s, NS was an extremely detail-oriented company that constantly eyed cost savings whenever and wherever possible.

It all began with the "Dash 8" line and continued through the "Dash 9" series.  Interestingly, since the railroad remained adamant that 4,000 horsepower was sufficient, it never acquired the very successful AC4400CW.

A breakthrough in locomotive development, this AC traction model sold nearly 3,000 examples (more than the C44-9W).  Norfolk Southern's ES40DC's were later uprated to 4,400 horsepower, thanks to built-in software, and remain active on the railroad's roster.

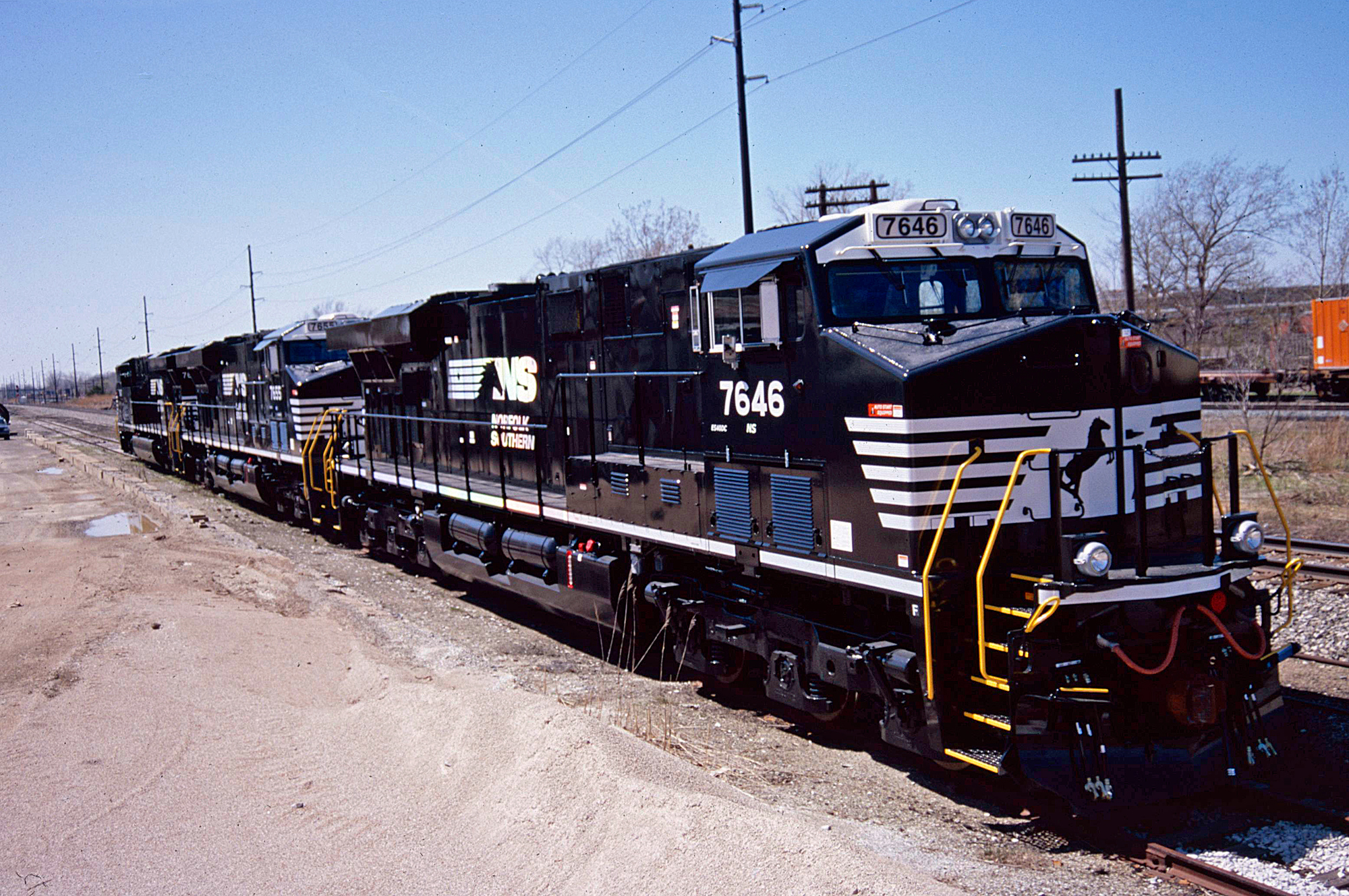

Three new Norfolk Southern ES40DC's, with #7646 pictured, await pickup at General Electric's plant in Erie, Pennsylvania on April 18, 2007. American-Rails.com collection.


ES40DC History And Background

Norfolk Southern's interest in General Electric products grew substantially following testing of the B32-8 in 1984, the builder's first in its "Dash 8" line.  NS would go on to acquire 45 examples of this model.

Both predecessors (Norfolk & Western and Southern Railway) had operated a handful of earlier GE products, like the C30-7, B23-7, and U30C.

Through the 1980s, NS ramped up its partnership as the manufacturer fielded products superior to those offered by Electro-Motive.

Interestingly, both the Southern and N&W had been loyal EMD customers for years although that changed in the NS era as GM's subsidiary struggled with problems related to its SD50 line (predominantly in the area of microprocessors).

During the mid-1980s, Norfolk Southern acquired a small fleet of C39-8's and C39-8E's, totally 161 units.  It followed this up with another 75 examples of the slightly  more powerful C40-8 between 1990-1991.

During the 1990s, NS was disinterested in the newfangled wide cabs and continued purchasing locomotives with standard cabs through GE's "Dash 9" series.

It was during this time NS deviated from the industry by requesting GE's very successful C44-9W as a 4,000 horsepower variant.

Norfolk Southern ES40DC #7719 was photographed here in service at Cresson, Pennsylvania by Paul Wester on June 3, 2011. American-Rails.com collection.

At first, the Class I purchased these with standard cabs (C40-9) as well, acquiring 125 examples, until the cost to do so no longer made it a viable option (wide cabs became the standard package on C44-9W's in 1995).

Norfolk Southern's reasoning behind 4,000 horsepower locomotives was sound, according to Brian Solomon's book, "GE Locomotives."

The railroad felt this rating was sufficient at handling the required tonnage of the era.  As such, utilizing a more powerful design, even only slightly, was a waste of resources and thus led to higher operating costs.

GE's research and development team, always forward thinking, even designed C40-9W's to operate at 4,400 horsepower by simply flicking a computer switch.

Thanks to what was dubbed the Engine Governing Unit, or EGU, the feature could toggle the horsepower setting between 4,000 and 4,400.

Into the Evolution Series, which debuted as demonstrators in 2003 to meet EPA Tier II standards (that went into effect on January 1, 2005), Norfolk Southern continued requesting 4,000 horsepower models.

Known as the ES40DC, this locomotive was very similar to its C40-9/W counterpart, aside from the updated GEVO-12 prime mover and improvements to the cab layout.  It also lacked an AC circuitry box on left-side walkway commonly found on AC4400CW's and ES44AC's.


ES40DC Data Sheet

Entered Production3/2004 (Norfolk Southern #7500)
Years Produced3/2004 - 2/2008
GE ClassES40DC
EngineGEVO-12 (12 cylinder)
Engine BuilderGeneral Electric
Horsepower4000-4400
RPM1050
Length73' 2"
Height (Top Of Rail To Top Of Cab)15' 5"
Width9' 11"
Weight410,000 Lbs
Fuel Capacity5,000 Gallons
Air Compressor3CDC (Westinghouse)
Air Brake Schedule26L (Westinghouse)
TrucksC-C
Truck TypeHi-Ad Bolsterless
Truck Wheelbase13' 2"
Wheel Size42"
Traction Motors752 (6), GE
Traction AlternatorGMG206, GE
Auxiliary AlternatorGE753, GE
MU (Multiple-Unit)Yes
Dynamic BrakesYes
Gear Ratio83:20
Tractive Effort/Starting183,000 Lbs
Tractive Effort/Continuous166,000 Lbs at 13.7 mph
Top Speed70 mph


ES40DC Production Roster (Total Built = 220)

Owner Road Number Serial Number Order Number Completion Date Quantity
Norfolk Southern9912-991654245-5424919963/20045
Norfolk Southern7505-751454756-5476519964/2004-5/200410
Norfolk Southern7515-756456442-56491199610/2005-1/200650
Norfolk Southern7565-760956974-5701819965/2006-7/200645
Norfolk Southern7610-766957836-57895199610/2006-6/200760
Norfolk Southern7670-771958394-5844319299/2007-2/200850

Sources:

  • McDonnell, Greg. Locomotives: The Modern Diesel & Electric Reference, 2nd Edition. Buffalo: Boston Mills Press/Firefly Books, 2015.

  • Solomon, Brian.  GE and EMD Locomotives:  The Illustrated History.  Minneapolis:  Voyageur Press, 2014.

  • Solomon, Brian. GE Locomotives: 110 Years Of General Electric Motive Power. St. Paul: MBI Publishing, 2003.

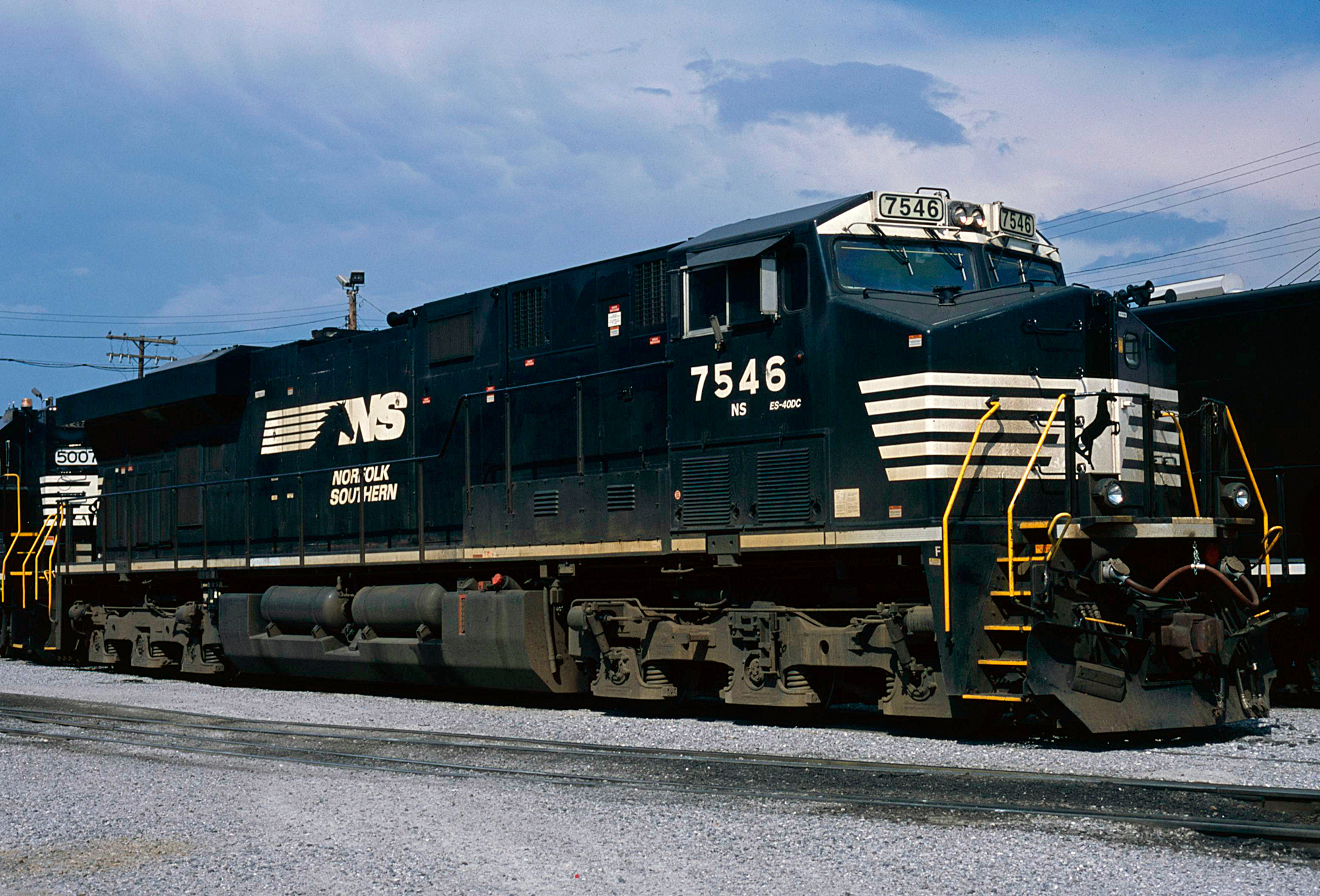

Norfolk Southern ES40DC #7546 between assignments in Chattanooga, Tennessee; June 2, 2010. American-Rails.com collection.

This box, which first appeared on the earlier AC4400CW, converted DC power from the main alternator to three-phase AC power used by the traction motors.

As Greg McDonnell notes in his book, "Locomotives: The Modern Diesel & Electric Reference: Second Edition," the ES40DC was offered only with GE's standard HiAd bolsterless truck.

As freight tonnage increased significantly since the 2000s, with trains now weighing in at 3,817 tons on average in 2020 according to the Association of American Railroads, NS uprated all of its ES40DC's to 4,400 horsepower beginning in 2014 and acquired all new locomotives with this power setting.

Today, the fleet of 220 units remains in active service.  Interestingly, NS remained a holdout of AC traction locomotives until 2008 when it finally acquired its first ES44AC's.
