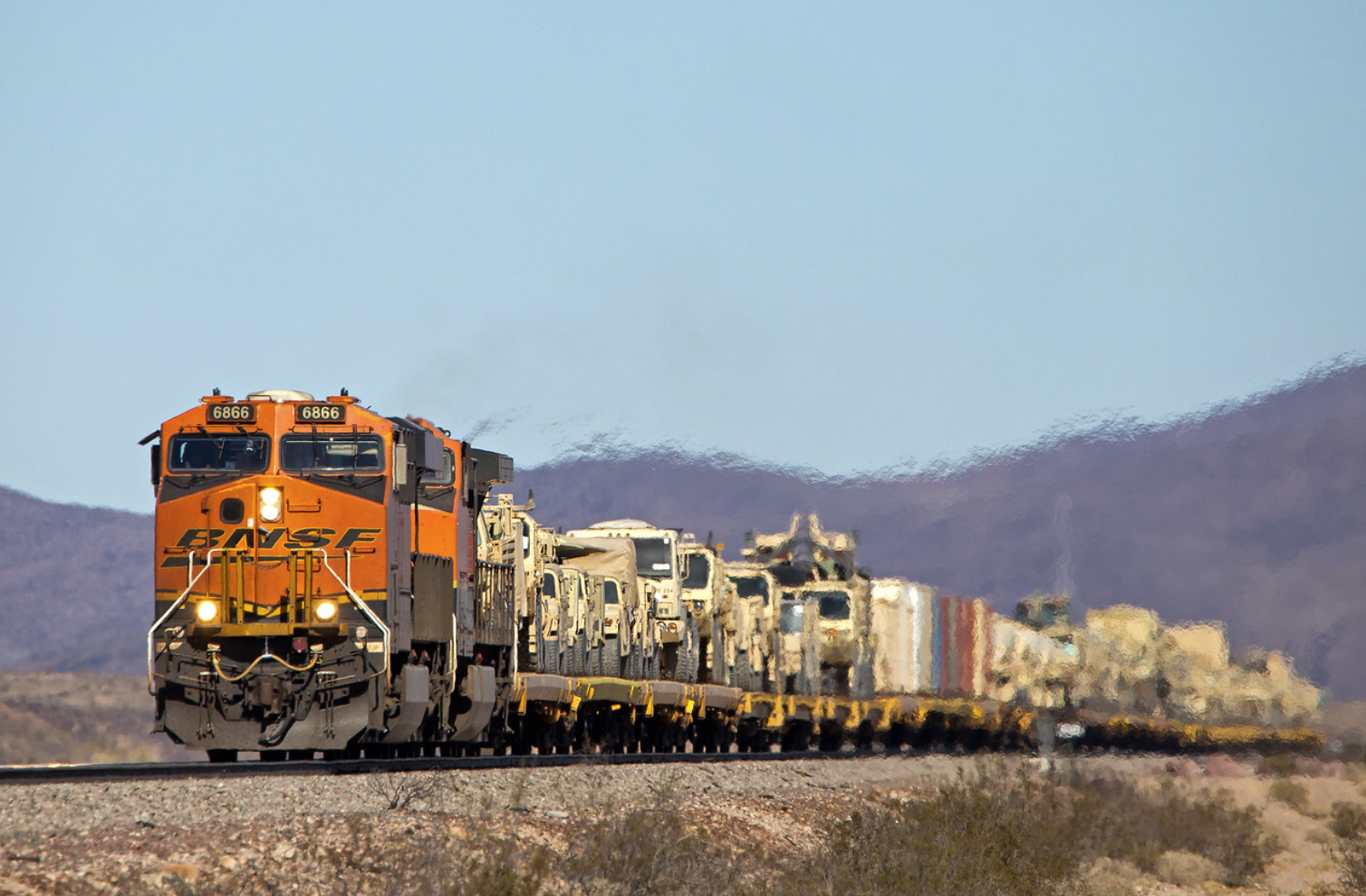

GE "ES44C4" Locomotives

After Baldwin and American Locomotive stopped production of A1A-A1A road-switchers in the 1950s, no one suspected they would ever return.

Few railroads had shown interest at the time and the advantages of six-motored locomotives largely outweighed any advantage of the A1A-A1A design.

However, thanks to microprocessors and computers which now monitor and control almost all aspects of diesel locomotive operation, the concept made a comeback.

In 2009 General Electric unveiled the ES44C4 as part of its Evolution Series locomotives which were equipped with the company's latest prime mover to meet the Environmental Protection Agency's (EPA) Tier II emissions standards.

Many viewed the concept's return as an interesting novelty while GE had a very concise reason for developing an A1A-A1A design, ending production of DC traction locomotives.

In the end, only two railroads showed interest, BNSF Railway and regional Florida East Coast.  The western Class I, however, wound up with an impressive fleet of 1,119 units while the FEC picked up another 24.

BNSF ES44C4 #8249 swings around a curve at Yorba Linda, California with double-stacks heading eastbound on July 12, 2020. Paul Wester photo. American-Rails.com collection.


ES44C4 History And Background

The first diesel-electric intended for rugged main line service to feature the A1A-A1A wheel arrangement was Electro-Motive EA of 1937, a locomotive built exclusively for the Baltimore & Ohio.

The model kicked off EMD streamlined passenger line, all of which were equipped with A1A-A1A wheel arrangements.  The first road-switcher intended for the daily grind of freight service to feature such is credited to both American Locomotive and Baldwin.

As historian John Kirkland notes, the former completed its first RSC-2 on October 2, 1946 (Milwaukee Road #975) and the latter did the same just six days later when the first domestically built DRS-6-4-1500 rolled out of Eddystone (Columbus & Greenville #601).

In this era, long before computers were an integral part of locomotive operation, the A1A-A1A design was largely marketed for branch service.

In the 1940s and 1950s, Class I's operated thousands of miles of secondary lines serving a multitude of local customers.

Many featured rail of less than 100 pounds (per yard) and/or wood-pile bridges.  Neither could handle heavy loads and an A1A-A1A road-switcher was designed to decrease the axle loading on these lines.

BNSF ES44C4 #6902 leads double-stacks over Cajon Pass at Milepost #54 on March 3, 2012. Paul Wester photo. American-Rails.com collection.

Some railroads found interest in the arrangement but overall it was a poor seller.  Fast forward nearly 70 years and the A1A-A1A design had returned thanks to General Electric.

It was a radical departure, however, from the original concept.  What GE dubbed the ES44C4 was in no way intended for light branch line service.

This was a heavy haul power plant designed for the daily grind of main line freight service.  It was more than 60% heavier and could produce a continuous tractive effort more than twice that of either an RSC-2 or DRS-6-4-1500.

As Greg McDonnell notes in his book, "Locomotives, The Modern Diesel & Electric Reference: 2nd Edition," GE's purpose behind the ES44C4 was predominantly an effort to eliminate production of the less-efficient DC traction road-switchers.

The locomotive was equipped with AC traction motors but only on the lead and trail axles.  The center axle was unpowered, and thus an A1A-A1A wheel arrangement.

Thanks to modern electronics and microprocessors, GE came up with a nifty way to offer a locomotive with the same pulling characteristics of a DC traction variant while saving on maintenance costs and increase service periods.

What the company dubbed its Dynamic Weight Management System, Mr. McDonnell's book notes that "the computer redistributes the load from the unpowered center axles onto the powered 1, 3, 4, and 6 axles as demand warrants."

It is achieved through air cylinders mounted on the trucks and is only in operation at low speeds.  BNSF acquired its massive fleet over a six year period between 2009-2015.


ES44C4 Data Sheet

Entered Production1/2009 (BNSF #6600)
Years Produced1/2009 - 6/2015
GE ClassES44C4
EngineGEVO-12 (12 cylinder)
Engine BuilderGeneral Electric
Horsepower4400
RPM1050
Length73' 2"
Height (Top Of Rail To Top Of Cab)15' 5"
Width10' 3"
Weight416,000 Lbs
Fuel Capacity5,000 Gallons
Air Compressor3CDC (Westinghouse)
Air Brake Schedule26L (Westinghouse)
TrucksA1A-A1A
Truck TypeHi-Ad Bolsterless
Truck Wheelbase13' 2"
Wheel Size42"
Traction MotorsGEB13 (4), GE
Traction AlternatorGMG205, GE
Auxiliary AlternatorGYA30A, GE
MU (Multiple-Unit)Yes
Dynamic BrakesYes
Gear Ratio83:20
Tractive Effort/Starting144,000 Lbs
Tractive Effort/Continuous105,000 Lbs at 13.7 mph
Top Speed75 mph


ES44C4 Production Roster (Total Built = 1,137)

Owner Road Number Serial Number Order Number Completion Date Quantity
BNSF Railway6600-662459719-5974319331/2009-3/200925
BNSF Railway6625-665260183-6021019691/2010-3/201028
BNSF Railway6653-678960323-6045919803/2011-9/2011137
BNSF Railway6870-688960527-60546180012/201220
BNSF Railway6790-684960547-6060618009/2011-11/201160
BNSF Railway6850-686960814-6083319801/2012-2/201220
BNSF Railway6900-705460834-6098818002/2012-6/2012155
BNSF Railway7055-709961201-6124518007/201245
BNSF Railway6508-659961421-6151218111/2013-4/201392
BNSF Railway7100-710961523, 61514-2218111/2013-3/201310
BNSF Railway7110-718161524-6159518113/2013-9/201372
BNSF Railway7182-719962056-6207318191/201418
BNSF Railway8006-827462080-6234818191/2014-11/2014269
BNSF Railway8275-829162546-62562181911/201417
Florida East Coast800-82362699-62722183210/2014-2/201424
BNSF Railway7921-30, 793663003-63012, 63018184212/201411
BNSF Railway7938-799963020-62081184212/2014-6/201562
BNSF Railway8318-839963082-6316318321/2015-6/201572

Sources:

  • McDonnell, Greg. Locomotives: The Modern Diesel & Electric Reference, 2nd Edition. Buffalo: Boston Mills Press/Firefly Books, 2015.

  • Solomon, Brian.  GE and EMD Locomotives:  The Illustrated History.  Minneapolis:  Voyageur Press, 2014.

  • Kirkland, John F. Diesel Builders, The:  Volume Two, American Locomotive Company And Montreal Locomotive Works. Glendale: Interurban Press, 1989.

  • Kirkland, John F. Diesel Builders, The:  Volume Three, Baldwin Locomotive Works. Pasadena: Interurban Press, 1994.

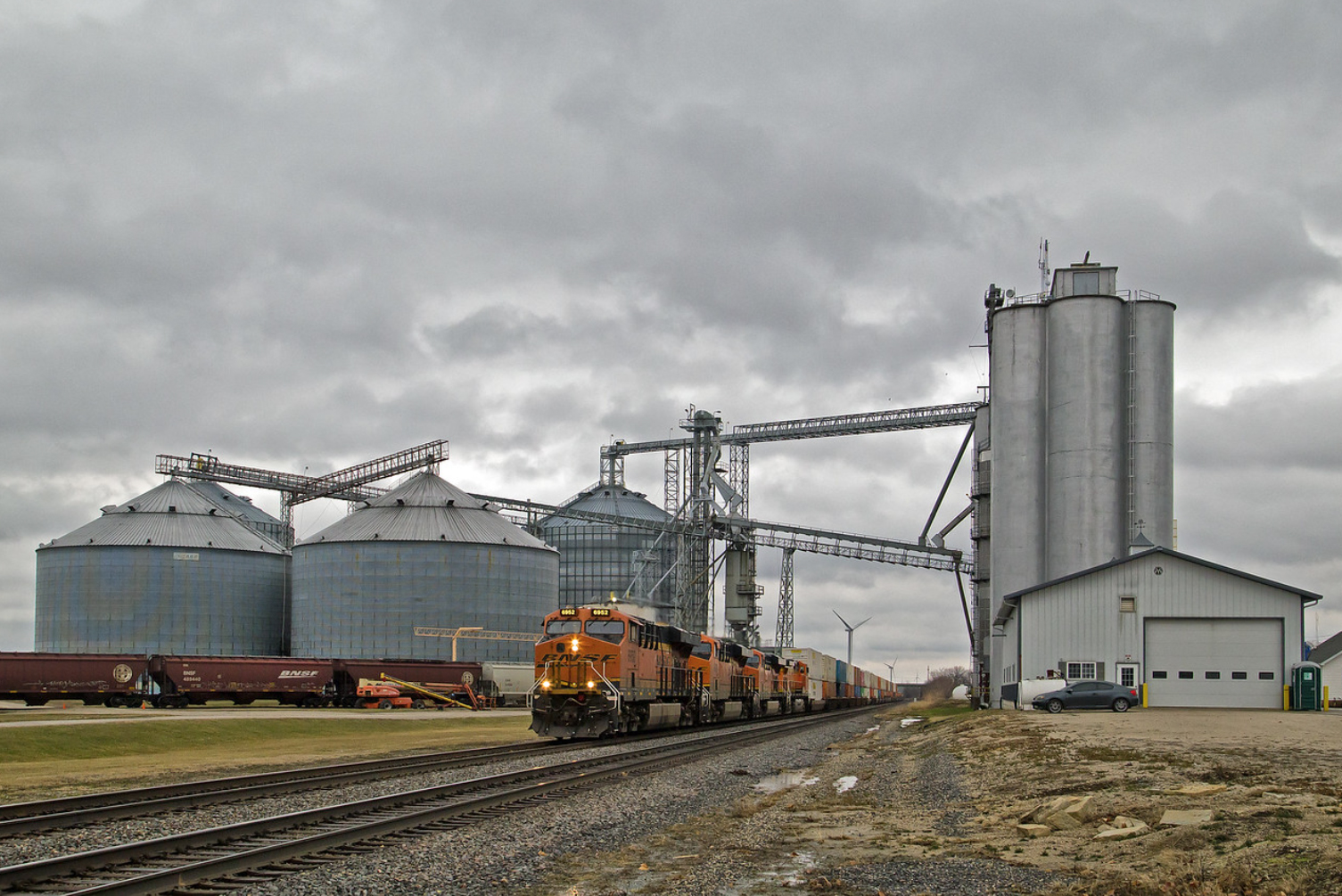

BNSF ES44C4 #6953 leads double-stacks past Ardent Mills' big silos at Verdemont, California on April 7, 2012. Paul Wester photo. American-Rails.com collection.

Interestingly, an unlikely customer appeared for the model, Florida East Coast.  The FEC, a successful regional serving the Atlantic coast of its home state had long been an Electro-Motive stalwart, even acquiring new SD70M-2's in 2006.

However, interested in the cost and operational savings of the ES44C4, the FEC picked up 24 examples in the fall of 2014.

Interestingly, no other railroad found took the plunge and acquired the model although by the 2010's few were buying DC traction locomotives.

Following completion of the final ES44DC's in 2010 for Canadian National, GE concluded production on the DC traction locomotives.  Today, the ES44C4's owned by BNSF and the FEC remain in regular service.
