Flat Cars (Trains)

Flatcars are the very type ever employed by the railroad industry. Indeed, it sounds rather outlandish but is basically the truth. The car also predates common-carrier railroads themselves by first being used in the mid-1820s to haul large stones in New England.  This was followed shortly thereafter by the Granite Railway of Massachusetts (our nation's very first railroad), which placed the first flatcar into service during 1826.  This system, just 2 miles in length, was designed by Gridley Bryant according to the book, "The American Railroad Freight Car," by John White, Jr, and based from British operations at the time.   Throughout the mid-19th century the design remained virtually unchanged thanks to its redundant, flat deck layout allowing it to handle numerous commodities.

However, today there are now several variants from well cars (intermodal/containers) and center-beam flats to spine cars (intermodal/trailers) and depressed-center flats. For example, a new type of use for the car occurred during the piggyback revolution really began to take off following World War II, which was a service transporting large numbers of truck trailers in unit or mixed trains.

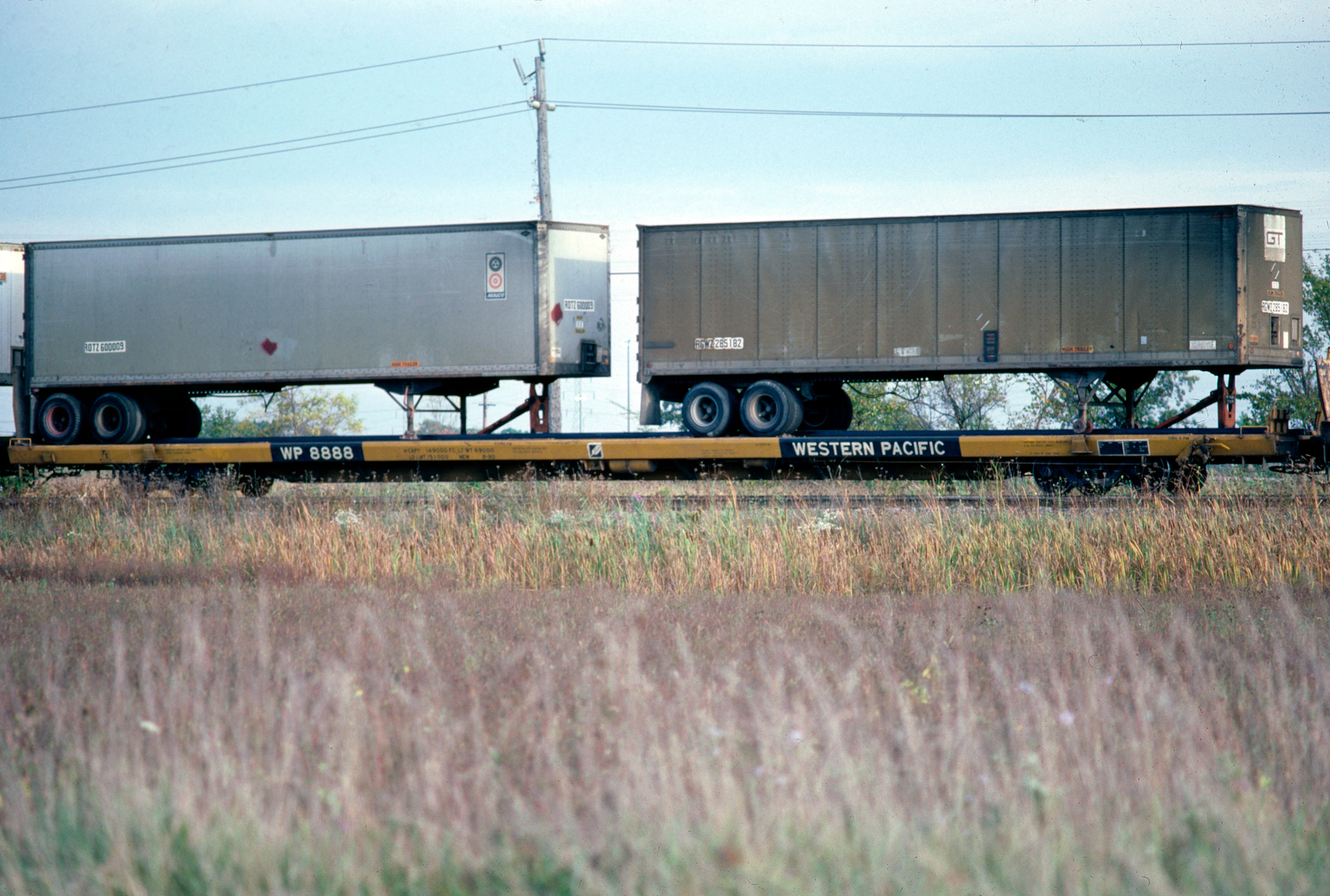

Family Lines' "piggyback" service (trailer-on-flatcar or TOFC) in Raleigh, North Carolina during September of 1974. Warren Calloway photo.

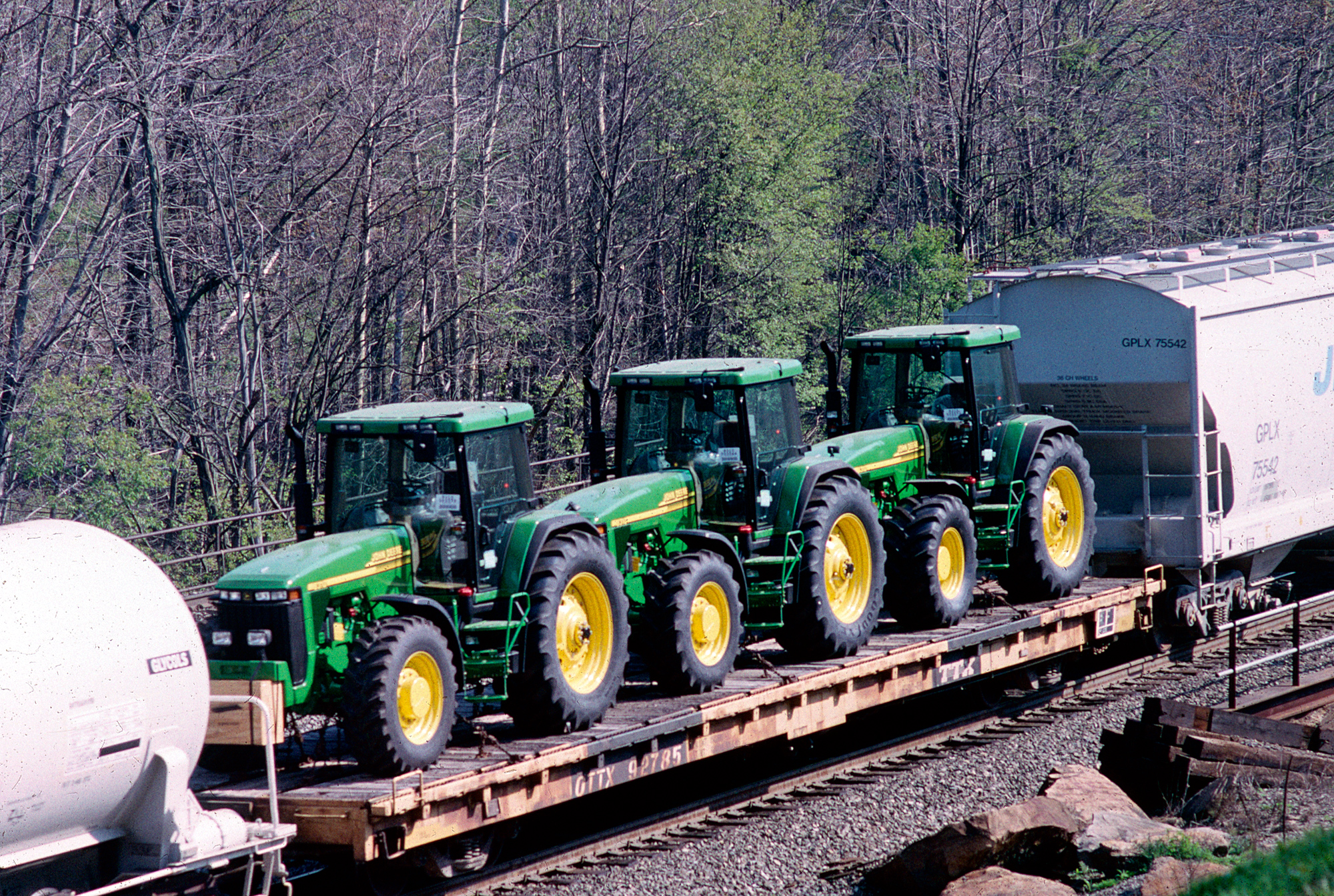

The definition of the flatcar is rather self-explanatory, a basic design consisting of a flat, horizontal surface (deck) that usually equipped with standard two two-axle trucks to transport any type of cargo capable of withstanding any type of weather condition during its trip. The basic flatcar can haul anything from farm equipment and containers to industrial parts and even rails. Its flexibility and redundancy has nearly always made the car desirable by railroads. As a result its general shape and design changed little for more than a century. The first known use of a flatcar occurred on America's first operational railroad, the Granite Railway of Quincy, Massachusetts. This horse and mule-powered operation began service in 1826 to handle large chunks of granite from a quarry to the Neponset River using a wooden-railed right-of-way (later replaced with iron).

A typical 40-foot flatcar is loaded with a 2,150-horsepower Electro-Motive model 645 prime mover bound for a towboat belonging to the Nashville Bridge Company in 1972.

According to Mike Schafer's book, "Freight Train Cars," some rocks weighed as heavy as 60-65 tons and the railroad employed timber-planked cars on four wheels (two axles resembling wagon wheels) to handle them.   After common-carrier systems began service a few years later, beginning with the Baltimore & Ohio, more sophistication took root. The company developed a so-called "baggage container car" which featured end and floor railings to tie down wood crates loaded with baggage. As railroads began hauling more and differing types of freight specialized cars were needed to do so, particularly to keep some products out of the weather. This soon led to the develop of the gondola and boxcar both of which can trace their origins back to the flatcar. The most significant change to the flatcar has been its increased length, the addition of standard two-axle trucks (which occurred around the middle of the 19th century), and the various types now available to haul specific loads.

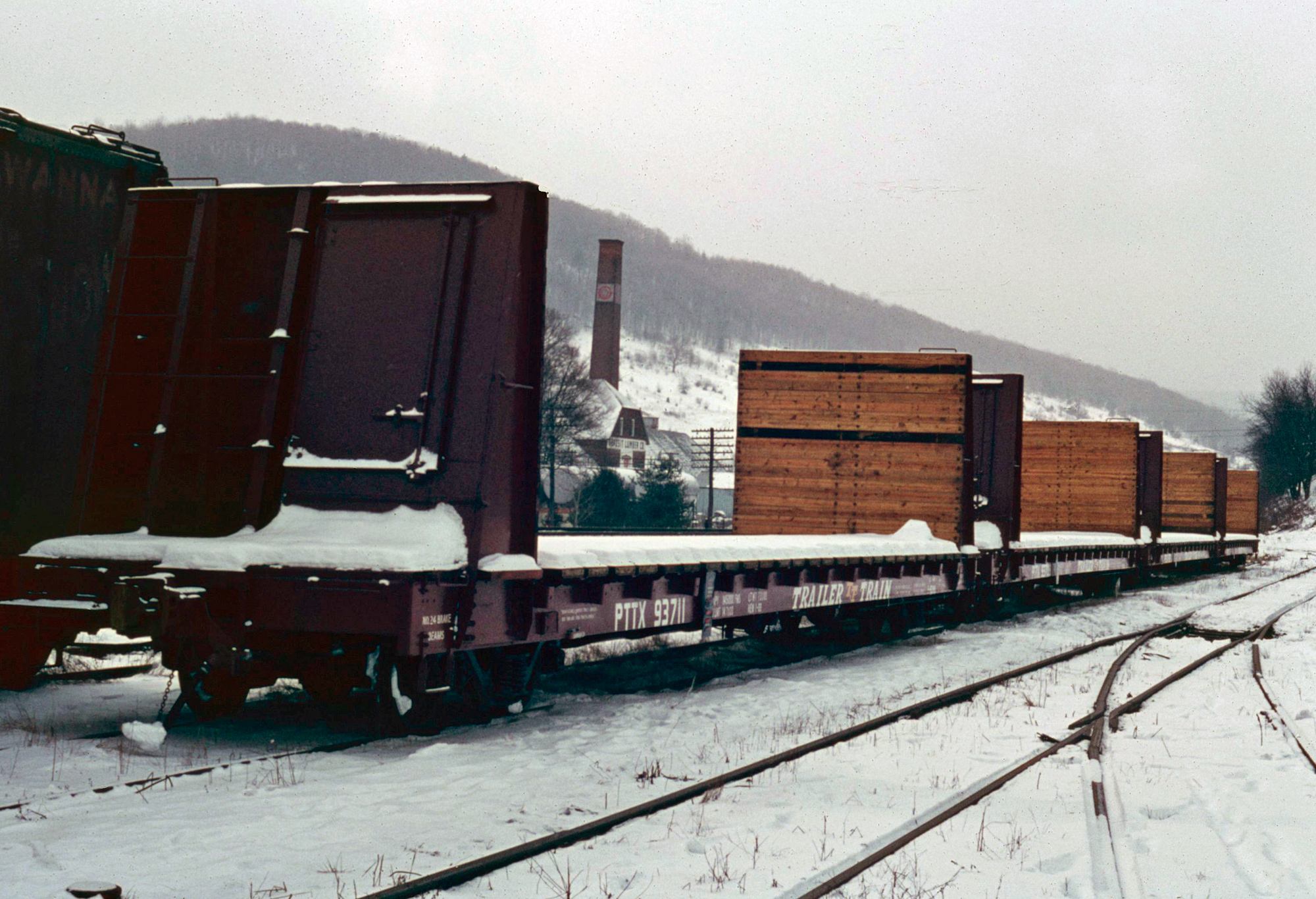

Bulkhead flatcars are ideal for transporting, well, bulky loads such as pulpwood that need high ends to contain them. Seen here is a Norfolk Southern car in Raleigh, North Carolina on October 1, 1974. Warren Calloway photo.

During the 1850s flatcars were being constructed partially of iron with lengths of 25 feet by 8 feet wide. They also featured side pockets whereby iron or wooden stakes could be placed to keep large, high-centered loads from shifting or falling off (such as logs or lumber). During the 20th century the car continued to grow reaching 40 to 50 feet in length and 10 feet wide. This became the standard until the post-World War II period when specialization and other factors led to the car's size growing to 85 feet or more allowing it to handle truck trailers. The trailer-on-flatcar, or TOFC, concept appeared at least as early as 1926 when the most unlikely of railroads began experimenting with the concept; the Chicago, North Shore & Milwaukee , a large interurban system which served its namesake cities. The North Shore Line was followed by the innovative Chicago Great Western in 1936, the first standard railroad to adopt TOFC in 1936.

Nearly all standard 40-foot flats had pockets available in which bracing could be added to create low siding (essentially a short gondola) to haul certain materials, such as these trucks on Norfolk Southern car #767 in Raleigh, North Carolina on January 21, 1968. Warren Calloway photo.

Similarly, COFC, or container-on-flatcar service dates back to at least 1928 when the Pennsylvania Railroad tested the idea using specialized 40-foot flatcars which carried five containers. It was discontinued in 1950. As the 1950s gave way to the 1960s TOFC, also known as "piggyback" (since the truck trailers "piggybacked" their trip on flatcars), began to gain momentum with many Class Is using the service in one form or another. Some truly embraced the idea and the PRR was again at the forefront with its TrucTrain service. Railroads began blocking entire TOFC trains and they were usually given top priority over their particular route, known as “hotshots.” Names like TrailerJetApolloRazorbackThunderhawk, and Flexi-Van began popping up on many lines. Today, instead of using traditional flatcars to haul truck trailers, a new type of car known as a spine-car was developed. Essentially a center beam on trucks the car is specially equipped to haul trailers as well as quickly load and unload them.

This 50-foot spine/skeleton flatcar offers another example of pulpwood transport with logs placed flush with the car's length. Warren Calloway photo.

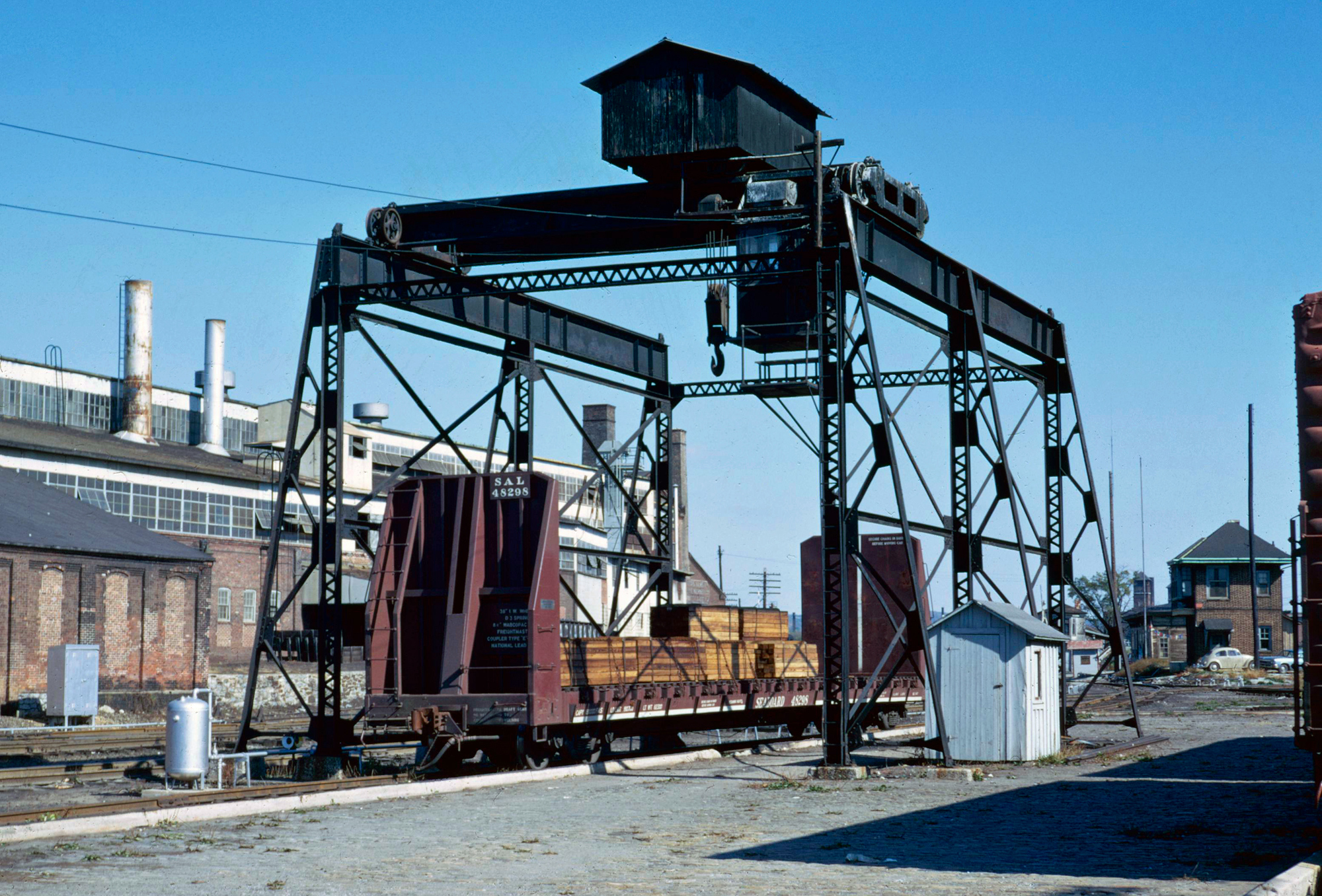

Aside from the standard flatcar there is the center-beam flat. This car is just that containing a center beam with tall bulkheads on each end. Equipped with standard two-axle trucks the car is typically used to haul paper, lumber, drywall, or some other type of bulky construction material such as insulation. Similar to the center-beam is the bulkhead flatcar, which lacks the center beam but includes end bulkheads to haul heavy loads and not allowing them to shift horizontally. Often, lumber, logs, or pulpwood will be handled on these cars. A new type of car are today’s well cars (also referred to as stack or intermodal cars) developed over the past twenty years to haul international containers in loads of one or two (typically two if railroad tunnel and bridge clearances will allow) from port to market and vice-versa.



A 40-foot flatcar is transporting a new Fiat Allis dozer traveling within a Soo Line freight north of Schiller Park, Illinois on June 24, 1979. Warren Calloway photo.

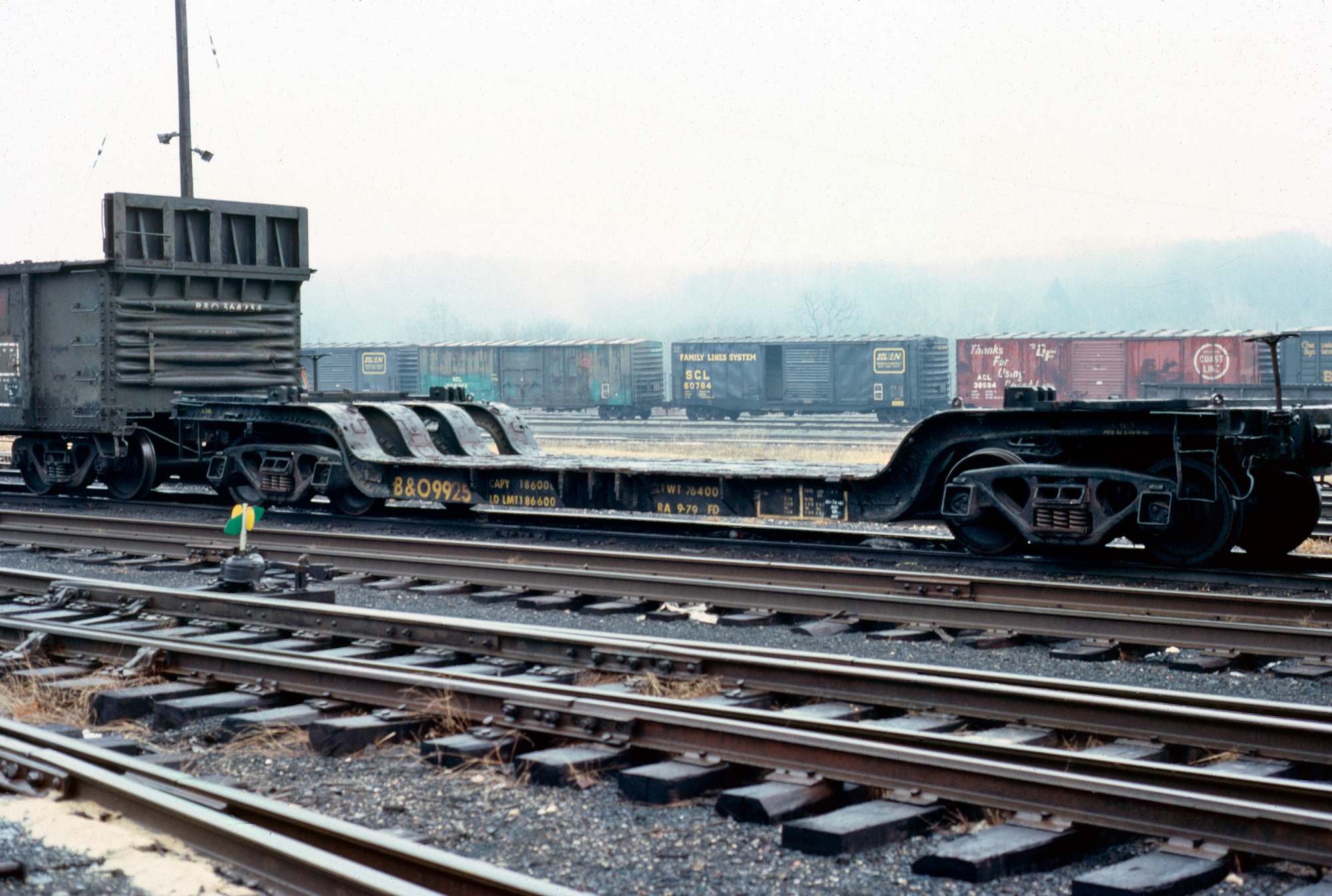

While the car has been embraced for its efficiency it is actually nothing more than a glorified flat car. The stack car was also another step in the evolution of COFC service. One final type of flatcar is the depressed-center flat, which is still used today, capable of handling extremely heavy or tall loads. The car’s very low center of gravity coupled with its extra two axles, giving it six in total, offers the ability to haul these types of loads. Usually you can find it carrying some type of heavy or bulky industrial equipment such as a large electric transformer. Today flatcars are seeing a renewed surge in use thanks largely to the growth of intermodal. Keep on the lookout as almost any mixed freight train you spot will carry some type of flatcar in transit, from the utilitarian flat deck to bulkhead designs.
