Cab-Forward Steam Locomotives: SP History, Classes, Roster & Specs

Last revised: September 8, 2026

Southern Pacific put the cab at the front of an articulated steam locomotive and kept it there for forty-six years. The reason was not style. It was the Sacramento Division over the Sierra Nevada: Roseville to Sparks, about 150 miles of 2.4–2.6 percent grade, nearly thirty miles of snowsheds and tunnels, and oil that could be piped to a firebox fifty feet from the tender. Crews on a conventional Mallet sat in the smoke. A cab-forward put them ahead of it.

SP rostered 256 of them, from the first purpose-built MC-2 2-8-8-2s of 1910 through AC-12 4-8-8-2 No. 4294, Baldwin, March 1944—the last new steam locomotive the railroad bought. Compounds were simpled in the late 1920s and reclassed AC. The 4-8-8-2s of AC-4 through AC-12 were built simple. Class AC-9, a Lima 2-8-8-4 Yellowstone for New Mexico and Texas, wore the AC prefix and was not a cab-forward. One engine survives: 4294, indoors at the California State Railroad Museum in Sacramento. How steam articulation works is on the steam hub; the glossary entry is cab-forward. This page is the type encyclopedia: why they were built, each class, roster, and specifications.

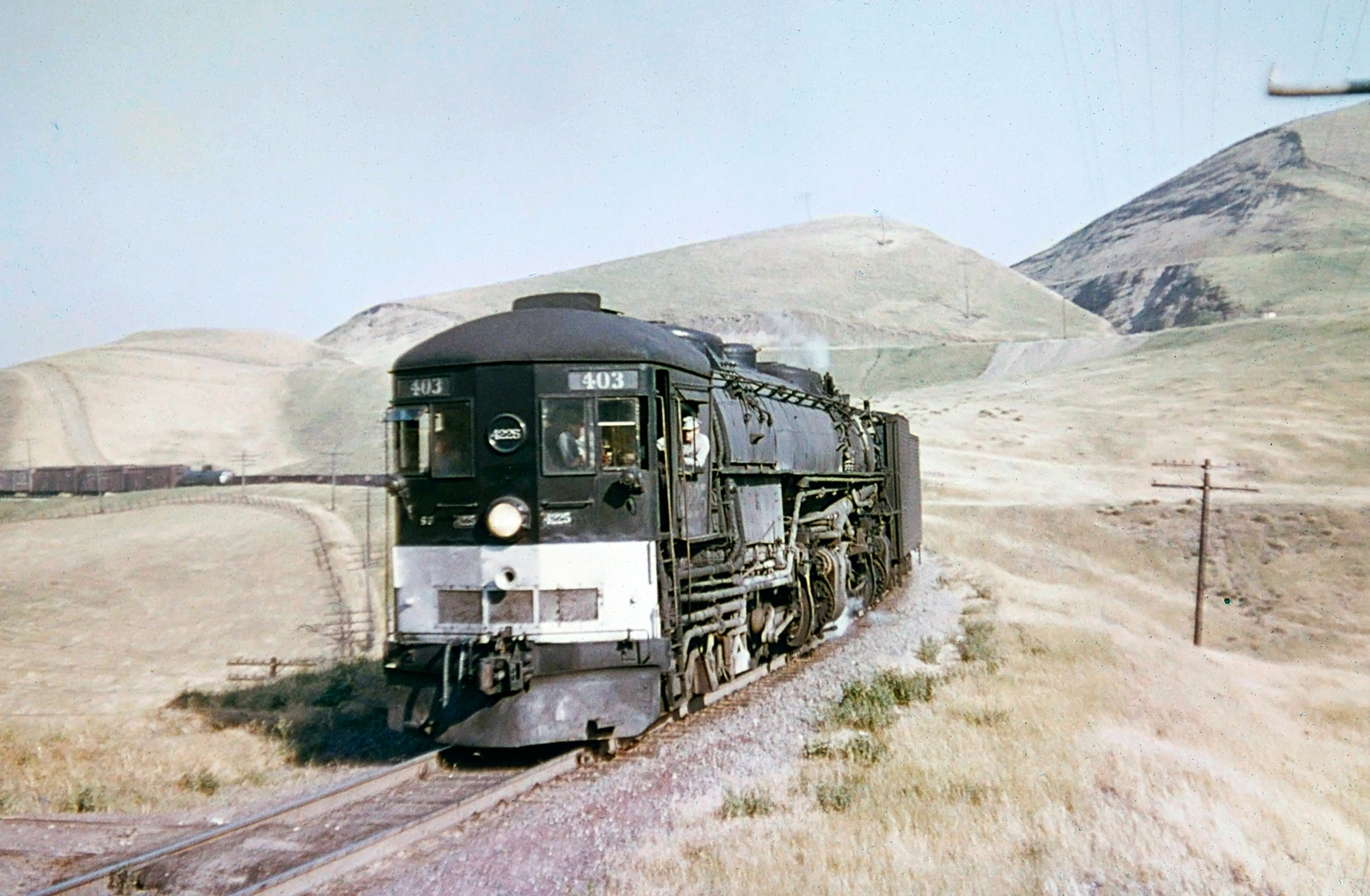

Southern Pacific 4-8-8-2 cab-forward 4225 AC-10 leads freight 403 over Altamont Pass California 1950s

Southern Pacific 4-8-8-2 No. 4225 (AC-10) leads freight 403 over Altamont Pass, California, 1950s. John Shaw photo. American-Rails.com collection.

On this page: At a glance · Donner and oil · MC-1 · MC-2, MC-4, MC-6 · MM-2 and AM-2 · AC-1, AC-2, AC-3 · AC-4, AC-5, AC-6 · AC-7 and AC-8 · AC-9 · AC-10, AC-11, AC-12 · Roster · Where they ran · 4294

At a glance

Item	Detail
What	Oil-burning articulated steam locomotive with the cab at the front (smokebox at the tender end)
Railroad	Southern Pacific. The only North American road to roster them in numbers
Why	Smoke and heat in Sierra snowsheds and tunnels on the Roseville–Sparks line. Oil could be piped forward; coal could not be shoveled that far
First conventional Mallets on the Hill	Class MC-1 2-8-8-2s Nos. 4000–4001, Baldwin, 1908–09. Conventional cab
First cab-forwards	Class MC-2 2-8-8-2s Nos. 4002–4016, Baldwin, February–March 1910
Fleet	256 cab-forwards, all classes, counting the two MC-1s after they were rebuilt as AC-1s
Last new steam for SP	AC-12 No. 4294, Baldwin, March 1944 (construction no. 70101). In service March 19, 1944; retired March 5, 1956
Not a cab-forward	Class AC-9, Lima 2-8-8-4 Yellowstones 3800–3811 (1939), conventional cab, Southwest
Survivor	4294 only. Displayed at the SP station, Sacramento, October 19, 1958; California State Railroad Museum from May 1981. ASME landmark May 7, 1981

Donner, snowsheds, and oil

The Overland Route over Donner Pass was already a snow railroad when SP ordered bigger power. Sheds kept the line open. They also trapped exhaust. A conventional articulated, cab at the back, put the engineer and fireman in that cloud for miles at a time. Asphyxiation was not a metaphor. Visibility in the sheds was as bad as the air.

Oil made the reversed engine possible. A coal-burner needs a man at the firebox door, next to the tender. An oil-burner needs a pipe. SP already burned oil in California. The bunker in a cab-forward tender was built airtight, braced, and held at a few pounds of air pressure from the main reservoir so oil would still flow uphill to the burner in the front firebox.

Crews worried about grade crossings: the cab would take the hit if a gasoline truck did not stop. George H. Harlan, in Those Amazing Cab Forwards, noted that in forty-six years of running them it did not happen. The view from the front was the compensation. What the crews called a Mallet long after the engines were simple articulateds is shop talk. Compound Mallets (high-pressure rear engine, low-pressure front, using exhaust steam) were the first classes. From AC-4 on, all four cylinders took boiler steam.

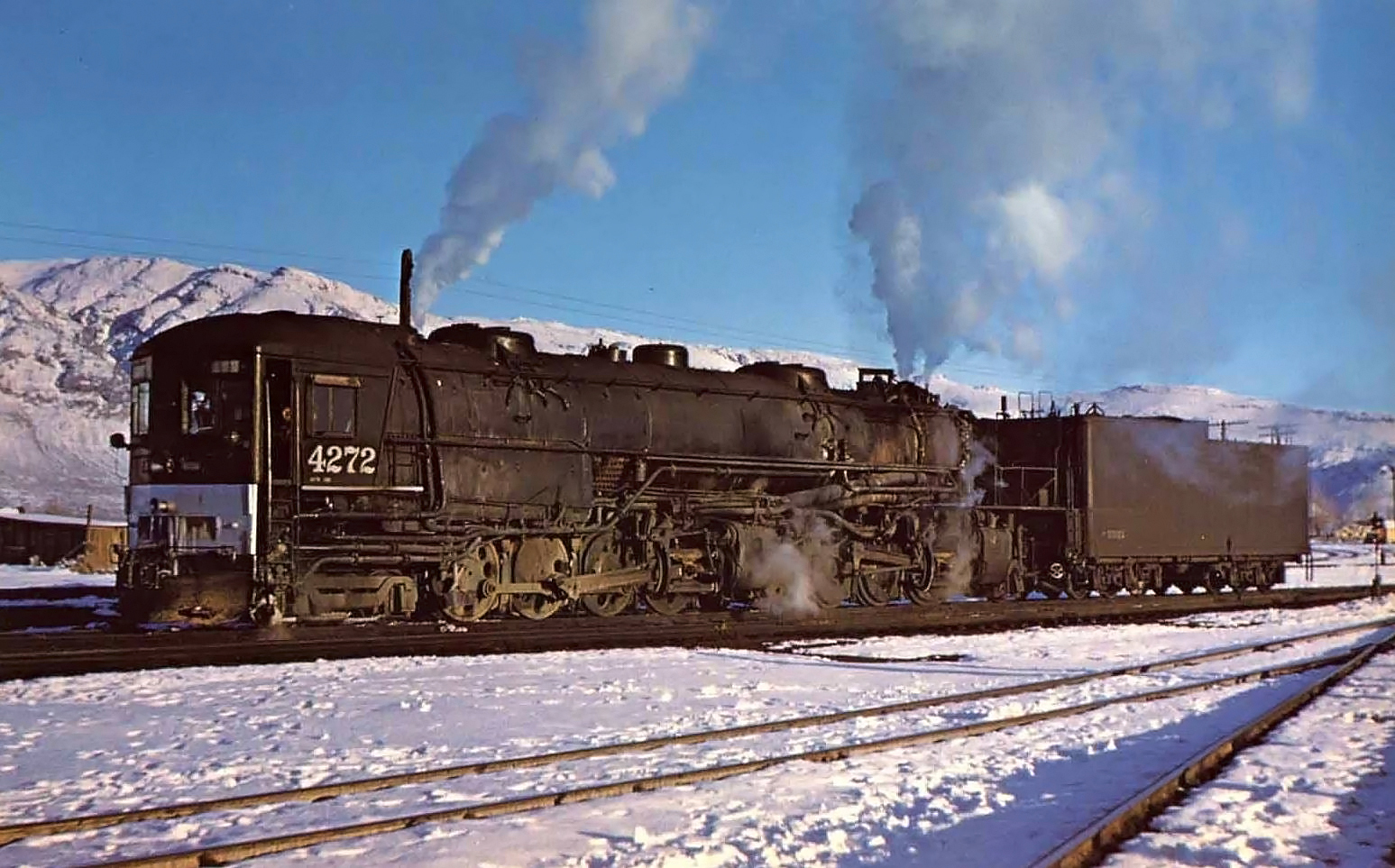

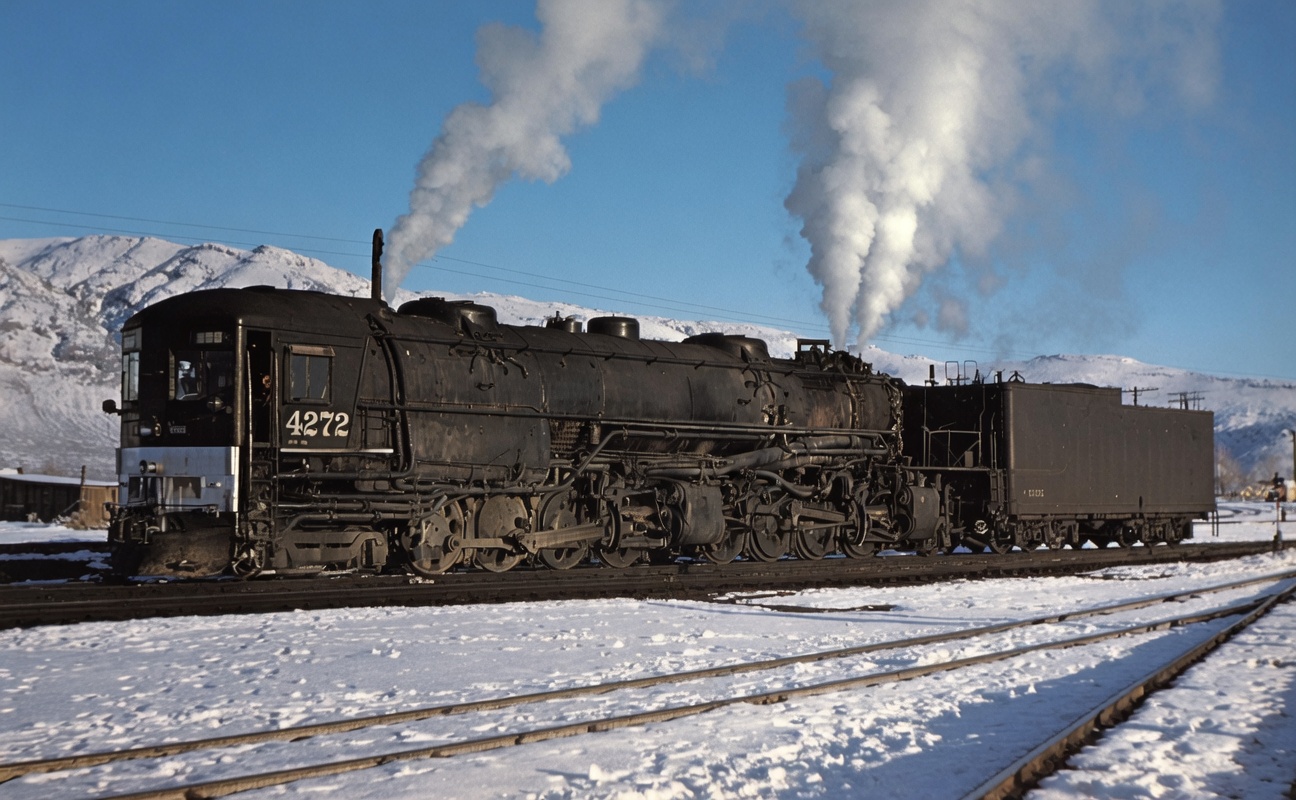

Southern Pacific 4-8-8-2 cab-forward 4272 AC-11 at Wendel California January 1956

Southern Pacific 4-8-8-2 No. 4272 (AC-11) at Wendel, California, January 1956. John Hungerford photo.

MC-1: conventional cab, 4000–4001

Baldwin delivered two 2-8-8-2 compound Mallets in 1908–09 as Class MC-1 (Mallet Consolidation), road numbers 4000 and 4001. They were the most powerful engines SP had put on the Sacramento Division, and they were conventional: cab at the rear, next to the tender. On a trial over the Hill two problems showed at once. Exhaust volume nearly gassed the crew. Stack velocity blew roof boards off the sheds.

A stack splitter—a deflector over the stack that threw the exhaust to the sides—fixed the boards. It did not fix the air in the cab. An engineer had the engine turned, coupled the pilot to the train, and backed over the mountain. The smoke was behind him. So was the tender, now being shoved, and he was sitting on the wrong side for the signals. Other crews copied him anyway.

MC-1 specifications as built: 57-inch drivers; high-pressure cylinders 26 inches, low-pressure 40 inches, 30-inch stroke; 200 psi; tractive effort about 85,040 lbf (higher with the starting valve); engine weight on the order of 426,000 pounds. They were later simpled and rebuilt as cab-forwards in Class AC-1 with the MC-2s.

MC-2, MC-4, MC-6: the first cab-forwards

SP and Baldwin did not wait for a prototype. Fifteen Class MC-2 2-8-8-2s, 4002–4016, came in February and March 1910 with the cab at the front and the controls swapped so the engineer still sat on the right-hand side of the track. Oil, pressurized tender, stack splitter. They went to work without a trial engine.

Once they proved, Baldwin built twelve MC-4s (4017–4028) in 1911 and twenty MC-6s (4029–4048) in 1912–13. Classes MC-3 and MC-5 were skipped. MC-6s were superheated as built; the earlier compounds picked up superheaters in shopping. All three cab-forward compound classes shared the MC-1’s 57-inch drivers, 26/40 × 30 cylinders, 200 psi, and about 85,040 lbf tractive effort. Engine weight ran about 434,000 pounds on the MC-2/MC-4 and a little more on the MC-6. Tenders held about 10,000 gallons of water and 3,200 gallons of oil.

Class	Numbers	Qty	Built	Notes
MC-1	4000–4001	2	1908–09	Conventional cab. Rebuilt to AC-1
MC-2	4002–4016	15	1910	First cab-forwards. Rebuilt to AC-1
MC-4	4017–4028	12	1911	Rebuilt to AC-2
MC-6	4029–4048	20	1912–13	Superheated new. Rebuilt to AC-3

MM-2 and AM-2: the 4-6-6-2s

Baldwin also built twelve cab-forward passenger Mallets in 1911 as Class MM-2 (Mallet Mogul), 4200–4211, Whyte 4-6-6-2. Sixty-three-inch drivers, compound cylinders 25 and 38 × 28, 200 psi, about 65,900 lbf tractive effort, roughly 3,000 advertised horsepower. They were the fast articulateds of the early fleet.

SP simpled them as Class AM-2 (four 22 × 28 cylinders, 210 psi, about 76,800 lbf) and, before the wartime AC-10s needed the 4200 numbers, renumbered them 3900–3911. They remain cab-forwards in the 256 count. They are not 4-8-8-2s.

AC-1, AC-2, AC-3: simpled 2-8-8-2s

By the late 1920s American practice was leaving the compound Mallet behind. Simple expansion on both engines made more speed and less maintenance. SP rebuilt the MC fleet at Sacramento as Class AC (Articulated Consolidation): four 22 × 30 cylinders, 210 psi, about 90,940 lbf tractive effort, about 4,350 advertised horsepower. Engine weight rose to about 481,000 pounds, 441,000 on drivers.

AC-1 — 4000–4016 (17). From MC-1 and MC-2. The two original conventional engines were rebuilt as cab-forwards with this class, about 1931
AC-2 — 4017–4028 (12). From MC-4
AC-3 — 4029–4048 (20). From MC-6, late 1920s

Railroaders still called them Mallets. They were not, not after the rebuild. The front engine now took live steam.

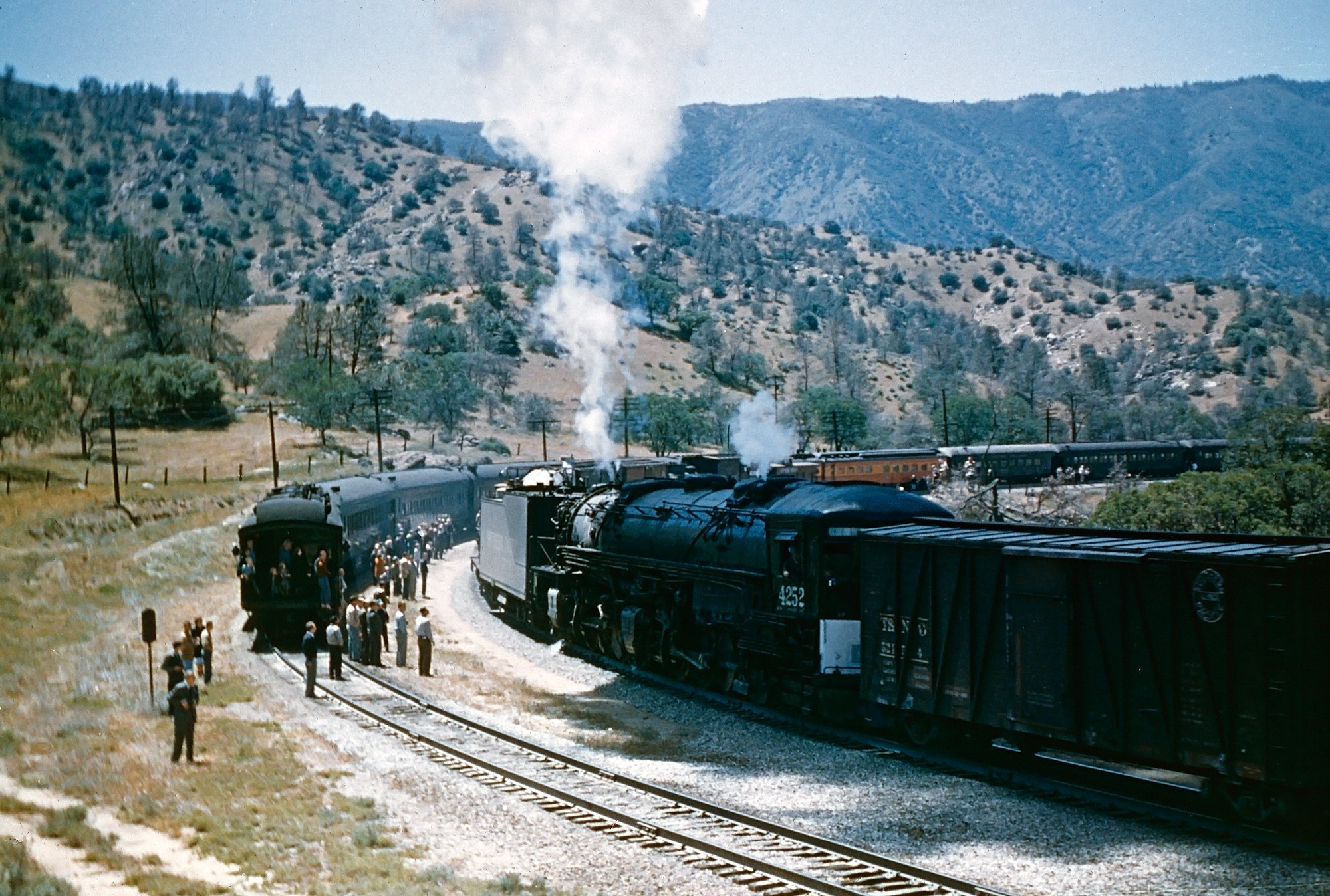

Southern Pacific 4-8-8-2 cab-forward 4252 AC-11 helper service Tehachapi California 1950s

Southern Pacific 4-8-8-2 No. 4252 (AC-11) in helper service on Tehachapi as a railfan special rolls by, 1950s. American-Rails.com collection.

AC-4, AC-5, AC-6: the first 4-8-8-2s

The 4-8-8-2 is not a Yellowstone. A Yellowstone is a 2-8-8-4. SP wanted a four-wheel engine truck for a longer, heavier simple articulated that could run the Hill at speed, and a two-wheel trailer under the firebox at the front. Baldwin delivered the first ten in 1928 as Class AC-4, 4100–4109.

Cab stencils on an AC-4 read like a shop diagram: class AC-4; AC63 (articulated consolidation, 63-inch drivers); 24 and 24 (cylinder diameters, both engines); 32 (stroke); 475 SF (about 475,000 pounds on drivers; superheater and feedwater heater). Boiler pressure 235 psi. Tractive effort about 116,900 lbf. Advertised horsepower about 5,640.

Sixteen AC-5s, 4110–4125, followed in 1928–29 on the same diagram, a little heavier. Twenty-five AC-6s, 4126–4150, came in 1930 with pressure raised to 250 psi and tractive effort to about 124,300 lbf, advertised at 6,000 horsepower. That 250-pound, 124,300-pound combination is the later cab-forward in one line.

	AC-4	AC-5	AC-6
Numbers	4100–4109	4110–4125	4126–4150
Quantity	10	16	25
Built	1928	1928–29	1930
Whyte	4-8-8-2
Drivers	63 in (often listed 63½)
Cylinders (4)	24 × 32 in
Pressure	235 psi	235 psi	250 psi
Tractive effort	116,900 lbf	116,900 lbf	124,300 lbf
Adv. horsepower	5,640	5,640	6,000
Builder	Baldwin

AC-7 and AC-8

Twenty-six AC-7s, 4151–4176, came from Baldwin in 1937. Twenty-eight AC-8s, 4177–4204, followed in 1939. Mechanically they are the AC-6 formula—63-inch drivers, 24 × 32, 250 psi, 124,300 lbf, 6,000 hp—on a heavier engine with a larger tender (about 22,000 gallons of water and 6,400 of oil). The AC-7 introduced the sloped cab face that later classes kept, and one-piece cast engine beds with the cylinders. Engine weight about 640,000 pounds; about 515,000 on drivers; engine and tender about 935,000.

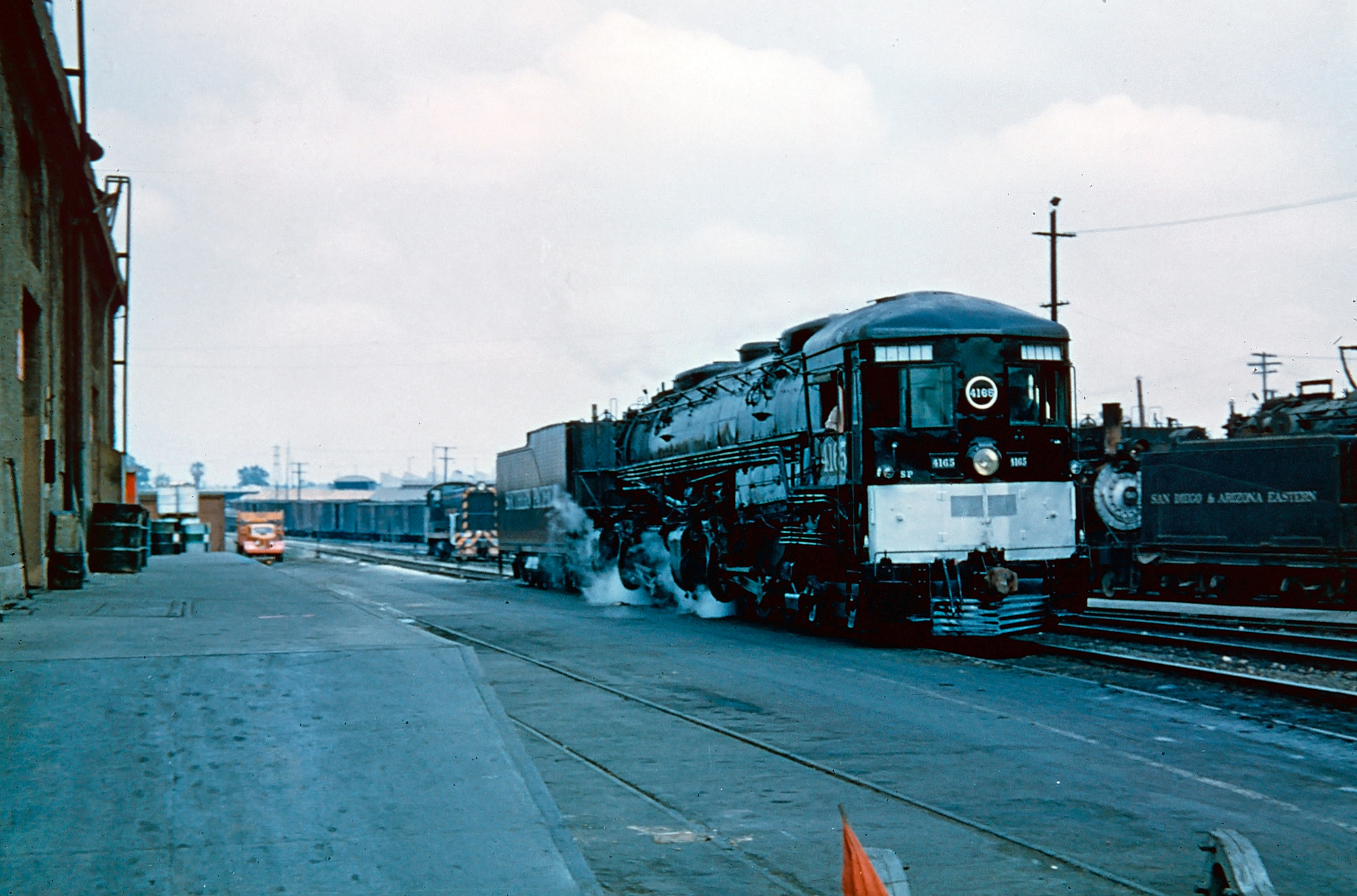

Southern Pacific 4-8-8-2 cab-forward 4165 AC-7 at Alhambra California circa 1949

Southern Pacific 4-8-8-2 No. 4165 (AC-7) at Alhambra, California, circa 1949. American-Rails.com collection.

AC-9: the Yellowstones that were not cab-forwards

Class AC-9, Lima, 1939, twelve 2-8-8-4s numbered 3800–3811, used the same 24 × 32 cylinders, 250 psi, and 124,300 lbf as the later cab-forwards. They were conventional-cab, originally coal-burning Super Power Yellowstones for SP’s Southwest—Tucumcari, El Paso, the lines where snowsheds were not the problem. They were later converted to oil. They belong in an SP articulated roster. They do not belong in the 256 cab-forward count.

AC-10, AC-11, AC-12: wartime 4-8-8-2s

Baldwin built ninety more cab-forwards in the war: forty AC-10s (4205–4244) in 1942, thirty AC-11s (4245–4274) in 1942–43, twenty AC-12s (4275–4294) in 1943–44. Same cylinders, pressure, and tractive effort as AC-6 through AC-8. Heavier: about 658,000 pounds on the engine, 532,000 on drivers, nearly 978,000 with tender. Water 22,000 gallons; oil about 6,100. Cross-compound air pumps moved to the platform at the smokebox end—the monkey deck behind the boiler as the engine ran, a rust-stained place that was a bad seat for a hobo when the stacks threw water and exhaust in a shed.

No. 4294 closed the steam order book. Baldwin construction number 70101, March 1944. SP never bought another new steam locomotive.

	AC-7 / AC-8	AC-10 / AC-11 / AC-12
Whyte	4-8-8-2
Drivers	63 in
Cylinders (4)	24 × 32 in
Pressure	250 psi
Tractive effort	124,300 lbf
Adv. horsepower	6,000
Engine weight	~639,700 lb	~657,900 lb
Weight on drivers	~514,800 lb	~531,700 lb
Engine + tender	~934,700 lb	~977,900 lb
Tender water / oil	22,000 gal / 6,400 gal	22,000 gal / 6,100 gal
Builder	Baldwin

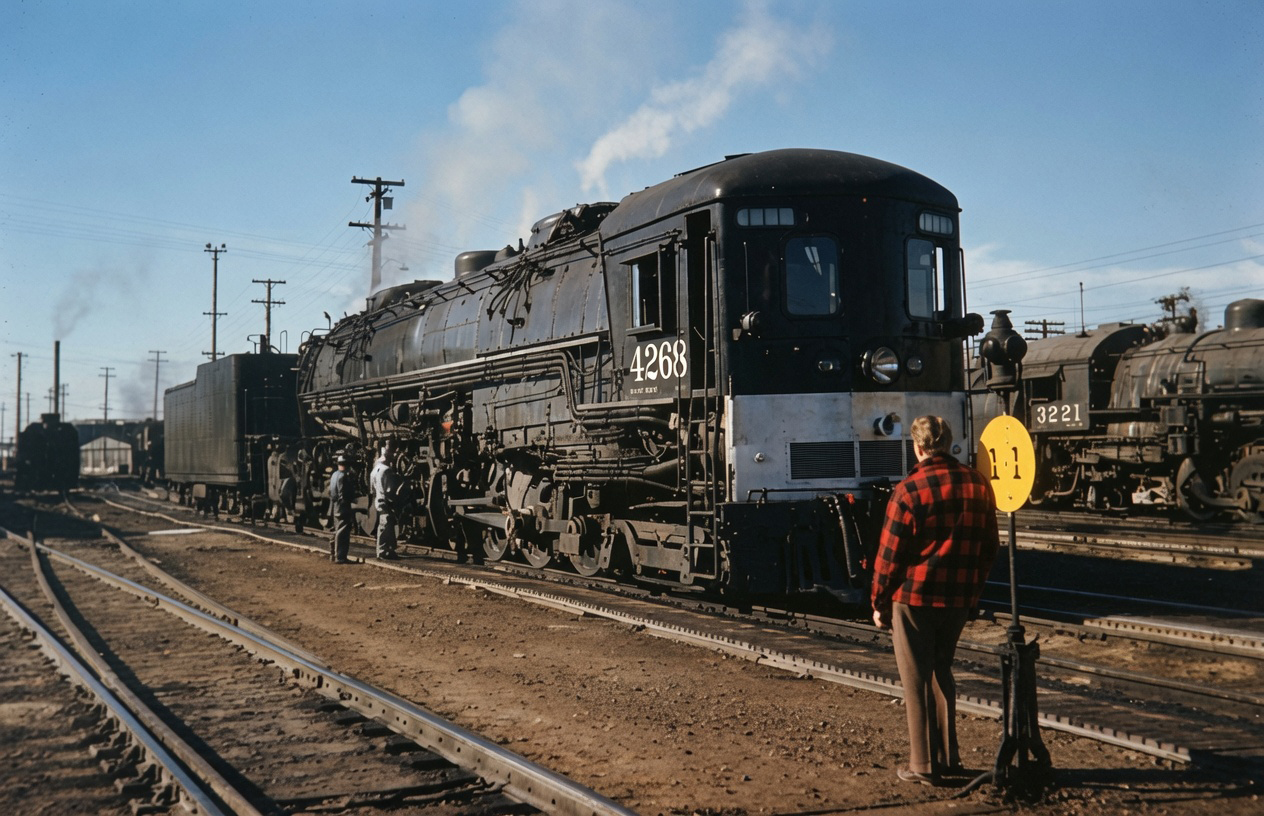

Southern Pacific 4-8-8-2 cab-forward 4268 AC-11 at Roseville California circa 1955 with 2-8-2 3221

Southern Pacific 4-8-8-2 No. 4268 (AC-11) at Roseville, California, circa 1955. Mikado No. 3221 (MK-4) in the background. Photographer unknown.

Complete class roster

Baldwin built every cab-forward except the AM-2 rebuilds (SP shops). Lima built the AC-9 Yellowstones. Horsepower is the advertised figure used in SP and builder tables, not a drawbar test.

Class	Numbers	Whyte	Qty	Drivers	Cylinders	Psi	TE (lbf)	HP	Built	Notes
MC-1	4000–4001	2-8-8-2	2	57	26/40 × 30	200	85,040	4,000	1908–09	Conventional cab. To AC-1
MC-2	4002–4016	2-8-8-2	15	57	26/40 × 30	200	85,040	4,000	1910	First cab-forwards. To AC-1
MC-4	4017–4028	2-8-8-2	12	57	26/40 × 30	200	85,040	4,000	1911	To AC-2
MC-6	4029–4048	2-8-8-2	20	57	26/40 × 30	200	85,040	4,000	1912–13	To AC-3
MM-2	4200–4211	4-6-6-2	12	63	25/38 × 28	200	65,900	3,000	1911	Passenger Mallet. To AM-2
AM-2	3900–3911	4-6-6-2	12	63	22 × 28 (4)	210	76,800	3,450	rebuilt ~1920s	Ex MM-2; 4200s freed for AC-10
AC-1	4000–4016	2-8-8-2	17	57	22 × 30 (4)	210	90,940	4,350	rebuilt ~1931	Ex MC-1/MC-2
AC-2	4017–4028	2-8-8-2	12	57	22 × 30 (4)	210	90,940	4,350	rebuilt	Ex MC-4
AC-3	4029–4048	2-8-8-2	20	57	22 × 30 (4)	210	90,940	4,350	rebuilt late 1920s	Ex MC-6
AC-4	4100–4109	4-8-8-2	10	63	24 × 32 (4)	235	116,900	5,640	1928	First new simple 4-8-8-2s
AC-5	4110–4125	4-8-8-2	16	63	24 × 32 (4)	235	116,900	5,640	1928–29
AC-6	4126–4150	4-8-8-2	25	63	24 × 32 (4)	250	124,300	6,000	1930
AC-7	4151–4176	4-8-8-2	26	63	24 × 32 (4)	250	124,300	6,000	1937	Sloped cab; cast beds
AC-8	4177–4204	4-8-8-2	28	63	24 × 32 (4)	250	124,300	6,000	1939
AC-9	3800–3811	2-8-8-4	12	63	24 × 32 (4)	250	124,300	6,000	1939 Lima	Not cab-forward
AC-10	4205–4244	4-8-8-2	40	63	24 × 32 (4)	250	124,300	6,000	1942
AC-11	4245–4274	4-8-8-2	30	63	24 × 32 (4)	250	124,300	6,000	1942–43
AC-12	4275–4294	4-8-8-2	20	63	24 × 32 (4)	250	124,300	6,000	1943–44	4294 last new SP steam

Cab-forward total: 256 (MC-1 after rebuild through AC-12, including twelve MM-2/AM-2). AC-9 excluded. Information compiled September 8, 2026.

Southern Pacific 4-8-8-2 4247 on the Modoc Line in 1956

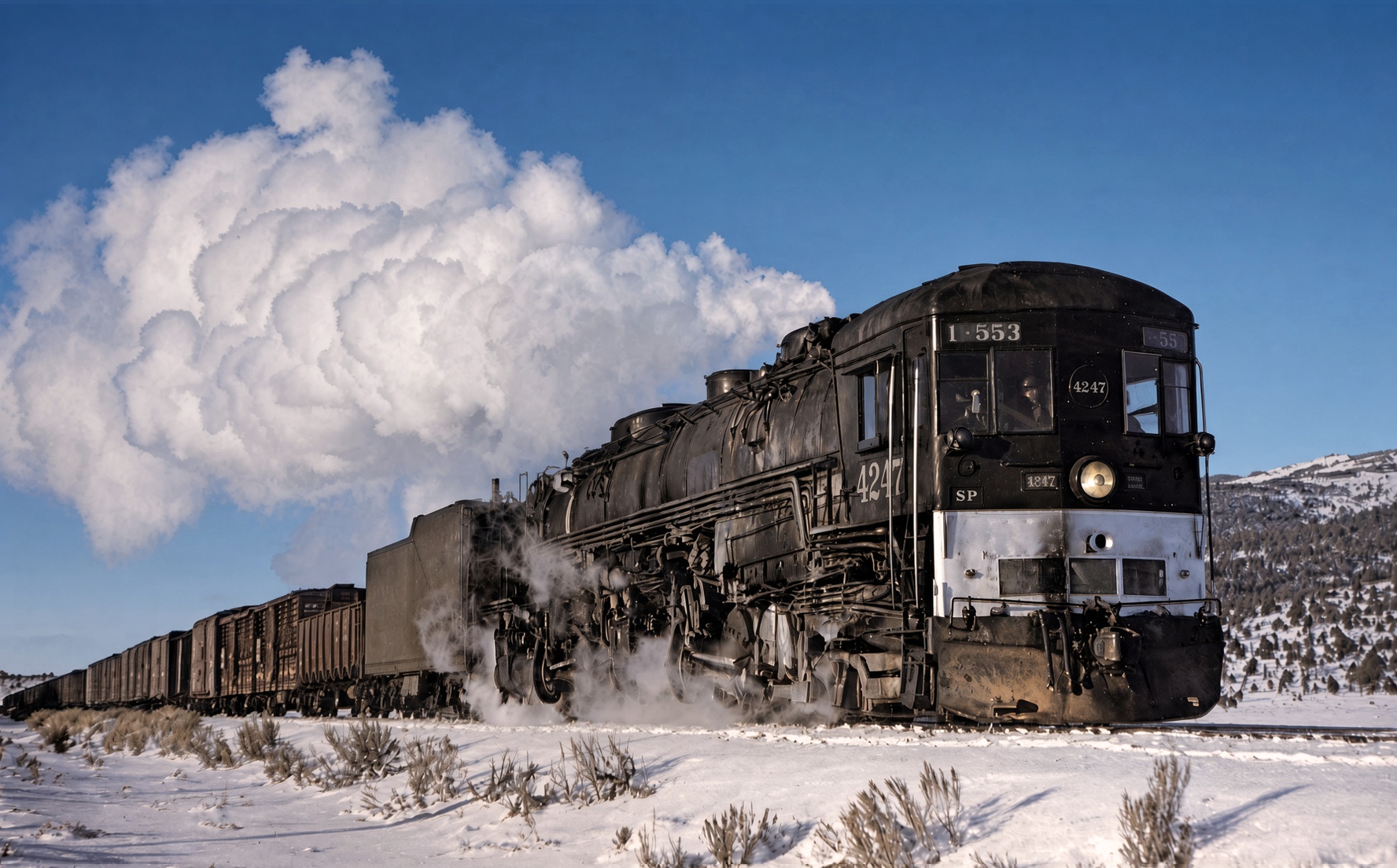

Southern Pacific 4-8-8-2 "Cab Forward" #4247 (AC-11) is southbound on the Modoc Line between Sage Hen and Madeline, California near the Modoc National Forest with freight #553 on February 2, 1956. John Hungerford photo.

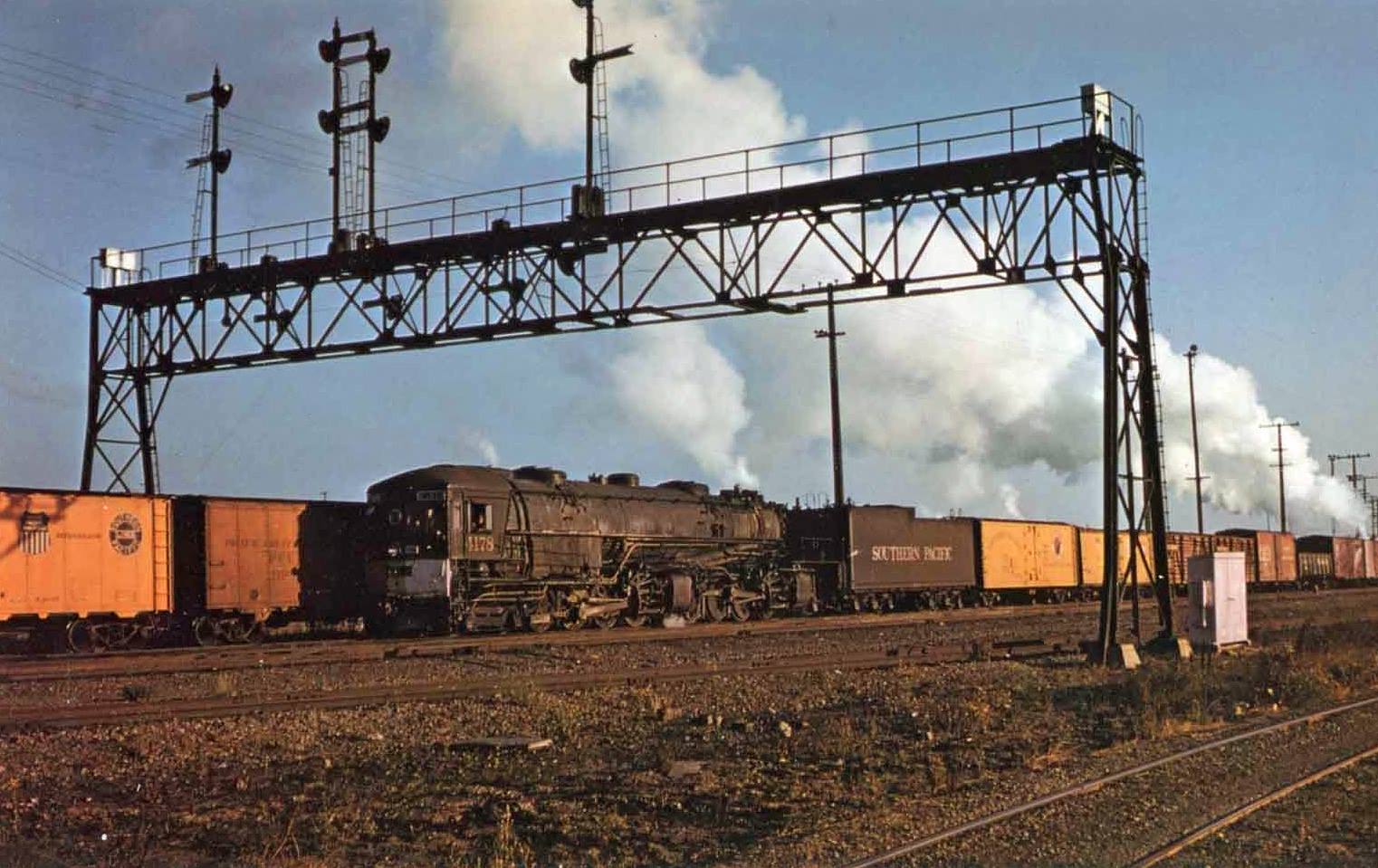

Southern Pacific 4-8-8-2 cab-forward extra 4178 AC-8 past Oakland 16th Street Station September 23 1955

Southern Pacific extra 4178 (AC-8) past Oakland’s 16th Street Station, September 23, 1955. Harold Stewart photo.

Where they ran

The Hill was the reason they existed: Roseville, California, over Donner to Sparks, Nevada, helpers and road engines both. They also worked the Cascade and Siskiyou routes toward Oregon, Tehachapi as helpers, the Coast Line, and the Bay Area. The photographs on this page are that map: Altamont, Wendel, Tehachapi, Alhambra, Roseville, Oakland, San Luis Obispo. A cab-forward on passenger over Donner was not unknown; 4294 itself handled Nos. 27 and 28, the Overland, on occasion.

Diesels took the Sierra in the 1950s. Cab-forwards were retired through 1956–57. No. 4274 is remembered as the last over Donner. AC-10 No. 4211’s November 30, 1956, Oakland–Davis trip is the movement often cited as the last. Remaining stored engines were written off in 1958. The last to the torch was AC-10 No. 4243, in 1960.

4294

AC-12 No. 4294 is the entire surviving fleet. Baldwin, March 1944, construction number 70101. In service March 19, 1944. Retired March 5, 1956. The Pacific Coast Chapter of the Railway & Locomotive Historical Society campaigned to keep one. SP held 4294 while the rest were cut up, donated it to the City of Sacramento, and spotted it outdoors at the SP station on October 19, 1958, next to C.P. Huntington. Interstate 5 forced a move into the shops. After a cosmetic restoration it went into the California State Railroad Museum in May 1981. ASME named it a National Historic Mechanical Engineering Landmark on May 7, 1981. It has not steamed since retirement. It is the last cab-forward there is.

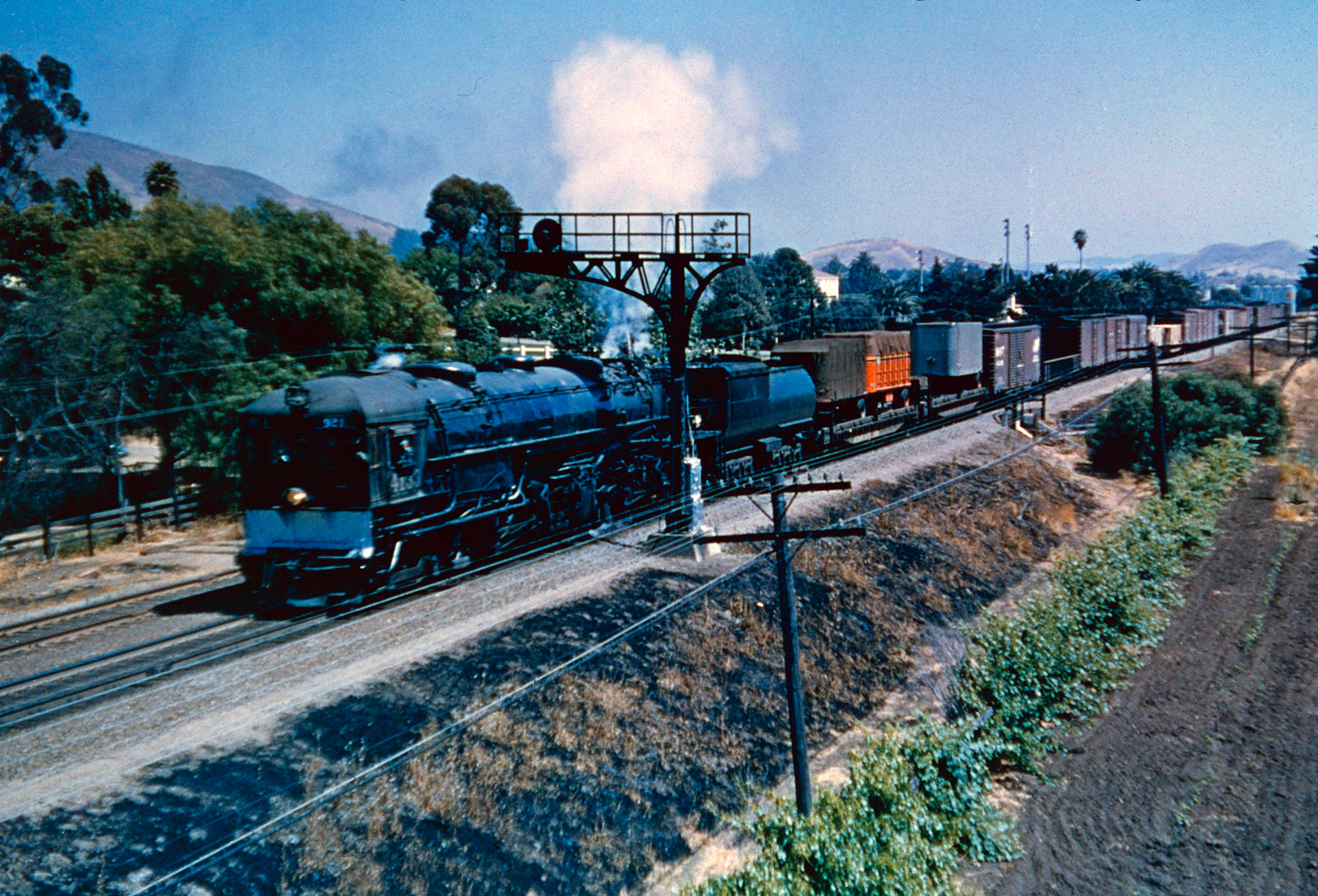

Southern Pacific 4-8-8-2 cab-forward 4133 AC-6 San Luis Obispo California July 1955

Southern Pacific 4-8-8-2 No. 4133 (AC-6) at San Luis Obispo, California, with a general freight, July 1955. John Shaw photo. American-Rails.com collection.

Sources

Harlan, George H. Those Amazing Cab Forwards. The standard popular account of the type, the MC-1 trials, stack splitters, and the 256-engine fleet
Church, Robert J. Cab-Forward. Southern Pacific articulated history
Diebert, Timothy S., and Joseph A. Strapac. Southern Pacific Steam Locomotive Compendium. Class numbers, rebuilds, and dispositions
Barris, Wes. Steamlocomotive.com, Southern Pacific cab-forward class tables (MC-1 through AC-12) and AC-9 Yellowstone note
Llanso, Steve. Steamlocomotive.com Locobase, SP 2-8-8-2 MC/AC and 4-8-8-2 AC series
Solomon, Brian. Baldwin Locomotives; The Majesty of Big Steam; Southern Pacific Railroad
Yenne, Bill. The History of the Southern Pacific
Southern Pacific 4294: Baldwin c/n 70101, March 1944; in service March 19, 1944; retired March 5, 1956; displayed Sacramento station October 19, 1958; CSRM May 1981; ASME landmark May 7, 1981
