Union Pacific's "Gas Turbine" Locomotives, GTELs

The gas turbine locomotive was a follow-up to the rather unsuccessful steam turbine design. In many ways, however, the designs were completely different from a mechanical standpoint.

Also known as GTELs (which was short for gas turbine-electric locomotives), Union Pacific was the only Class I railroad to use the design in regular service.

From an operational standpoint the locomotives actually proved rather successful and its fleet of 55 (built within three different classes) lugged freights for more than 20 years.

As with steam, the petroleum version was highly inefficient in terms of fuel usage.  It deviated in one noteworthy way; the GTEL's were much more mechanically sound.

In addition, the fuel they utilized was relatively cheap at the time, making gas turbines inexpensive to operate and actually quite efficient due to their phenomenal horsepower and tractive effort.

As oil prices rose the UP's gas turbine locomotives became less and less efficient to the point that all were off of the roster by 1970.  Today, a few examples of this unique locomotive are preserved around the country.

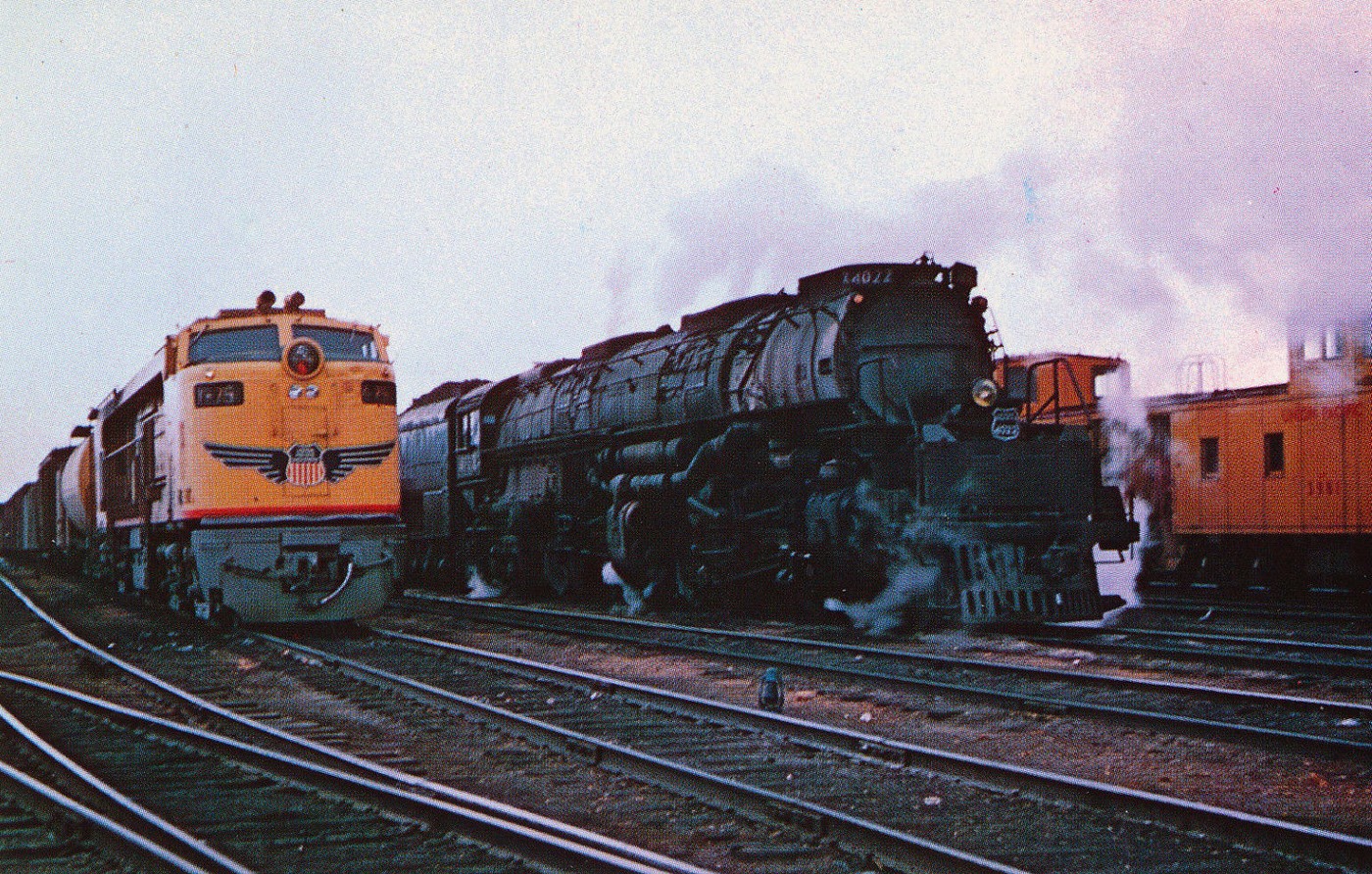

Union Pacific gas turbine #75 (second generation examples, nicknamed "Verandas") and 4-8-8-4 "Big Boy" #4022 await their next assignments at Cheyenne, Wyoming during November of 1956. Doug Wornom photo. Author's collection.


History And Background Of The Gas Turbine

The gas turbine locomotive functions quite similarly to a standard diesel-electric except instead of a traditional diesel engine a turbine is used instead (specifically a turboshaft engine which powered the on-board generator).

The mechanics of diesel locomotives are rather straightforward, although it is commonly mistaken that the diesel engine itself propels the locomotive, which is not the case.

While the diesel engine is the prime mover the energy it creates drives an electrical generator, which in turn drives the traction motors found within the locomotive’s trucks that actually turns the wheels (or the mounts which sit over the axles) and propels unit forward.

The diesel engine itself has no connection to the actual motion of the wheels and in essence the locomotive is an electric locomotive which carries its own power source on board.

As from the Union Pacific, no other main line railroad elected to use a GTEL on the basis of fuel economics. However, in 1950 Westinghouse developed a gas turbine locomotive for testing known as the "Blue Goose."

This experimental, #4000, produced 4,000 horsepower and carried a B-B-B-B wheel arrangement. It tested on Chicago & North Western, Katy, and Pennsylvania railroads but ultimately none chose to use the design (the PRR had just recently scrapped an unsuccessful steam turbine design in the late 1940s).

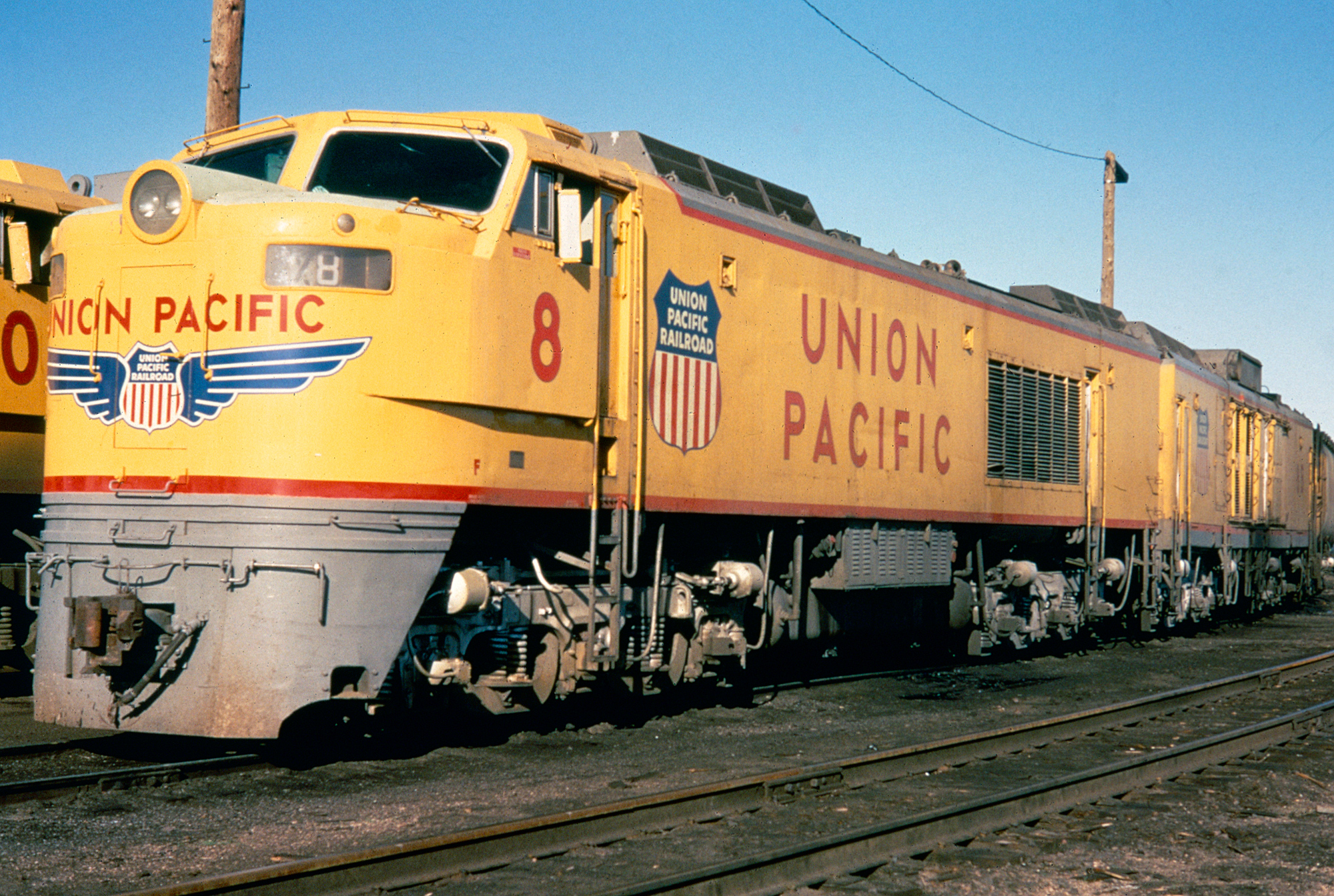

One of Union Pacific's third-generation gas turbine sets, #9 and #9-B (along with their accompanying fuel tender), at Council Bluffs, Iowa during November of 1959. These final variants, nicknamed "Big Blows," could produce 8,500 horsepower each, rated as the most powerful prime movers ever put into a locomotive. Mac Owen photo. Author's collection.

As for the Union Pacific, because of its region of operations and hunger for powerful locomotives the gas turbine design fit quite nicely on its system.

The first test model was #50, built as a partnership between General Electric and the American Locomotive Company (Alco) in 1948.  While never owned by the railroad it was tested throughout 1949 on the UP system.

The GTEL carried a B+B-B+B wheel arrangement and could produce a hefty 4,500 horsepower. It carried a carbody design resembling an Alco FA diesel locomotive, obviously due to that company being one of the GTEL's manufacturers.

A company photo of Union Pacific gas turbine locomotive #61, the second-generation variant, circa 1954.

In general turbine locomotives are more efficient than standard reciprocating steam or diesel-electric designs due to fewer moving parts thus, in theory, they are supposed to be easier to maintain.

However, their significant drawback is that they require high speeds to achieve maximum efficiency, which simply wasn't practical on most railroads.

In the case of the steam turbine it also was prone to a myriad of mechanical issues and the design was scrapped across every railroad which tested it after just a few years of operation.

The gas turbine locomotive did not suffer from serious mechanical issues but its heavy fuel consumption caused most railroads to shy away from it.

In the case of the Union Pacific it determined that its relatively straight and flat main lines would allow for the model to retain high speeds while also being able to operate it relatively cheaply.

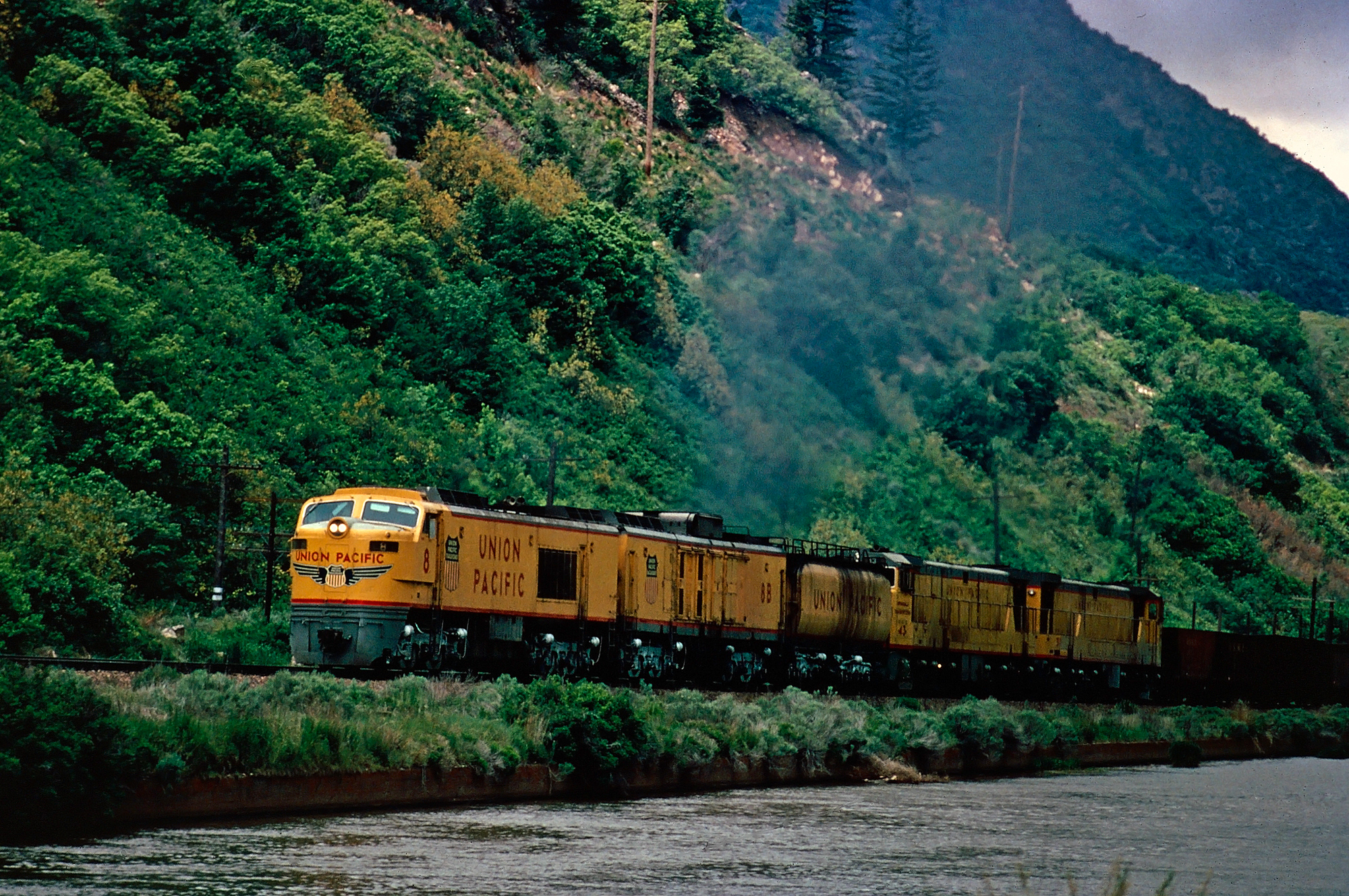

This was because the fuel used, "Bunker C" oil (a heavy, viscus substance), was inexpensive at the time.  The first order of UP's GE/Alco-built gas turbine locomotives were numbered 51-60, arrived in 1952, and carried specifications identical to the test model #50.

The UP intended to use them west of Salt Lake City in conjunction with the Southern Pacific but the locomotives were so loud, due to their turbines, that most California cities outlawed them.

In his book, "GE Locomotives," author Brian Solomon notes the original gas turbines burned fuel at a temperature of 1,400 degrees Fahrenheit within the combustion chamber; it was mixed with compressed air and the gas which in turn powered the turbine.

The exhaust shot out of roof vents at 150 MPH (when the locomotive was under full load) at temperatures reaching 850 degrees Fahrenheit.

It was all quite a spectacle and very loud.  While cheap, the "Bunker C" itself required that it be heated to 200 degrees Fahrenheit, and filtered, before it could be consumed.

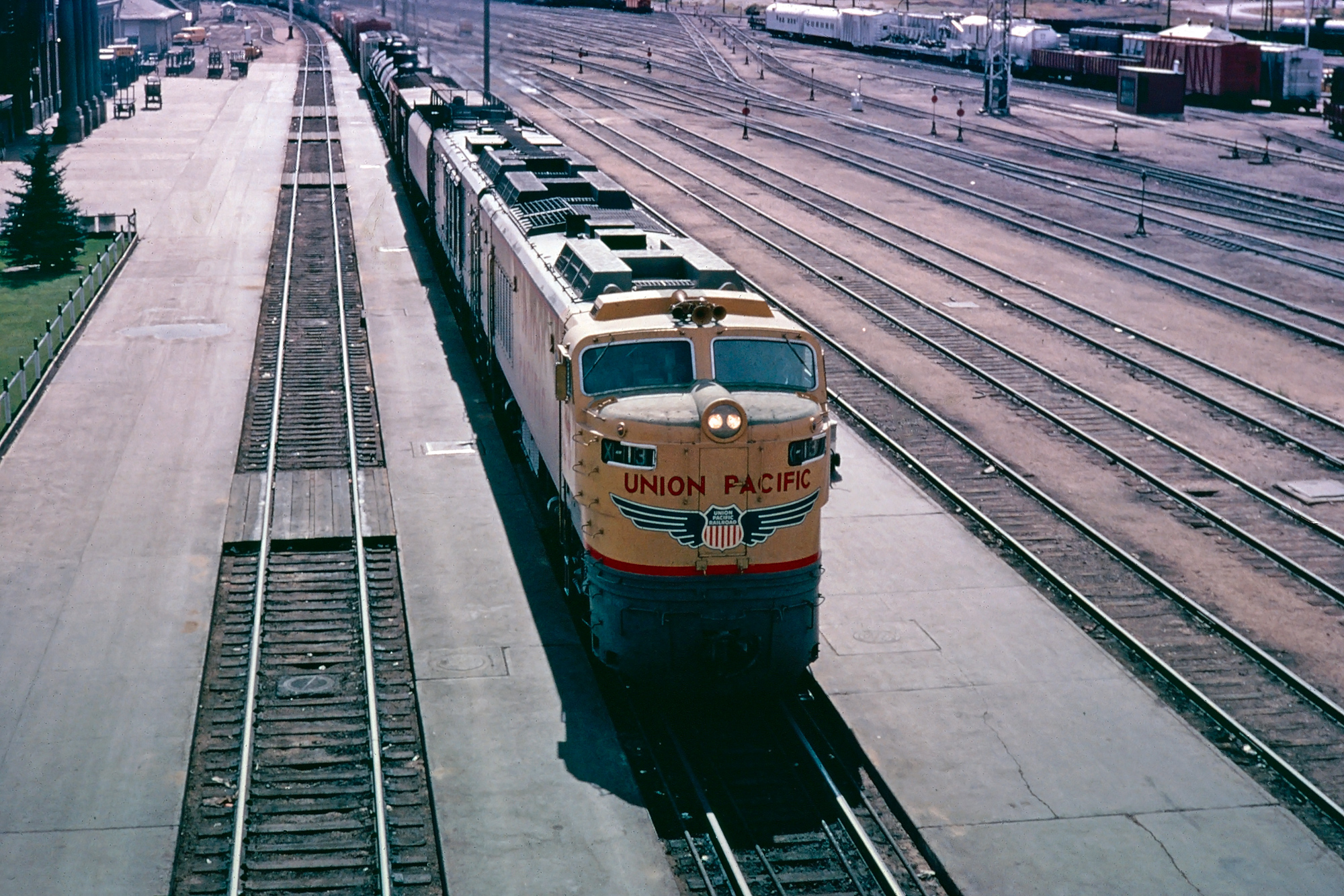

Because of this, the GTELs were generally used between Council Bluffs, Iowa and Ogden, Utah. Union Pacific's second order of gas turbine locomotives arrived in 1954.

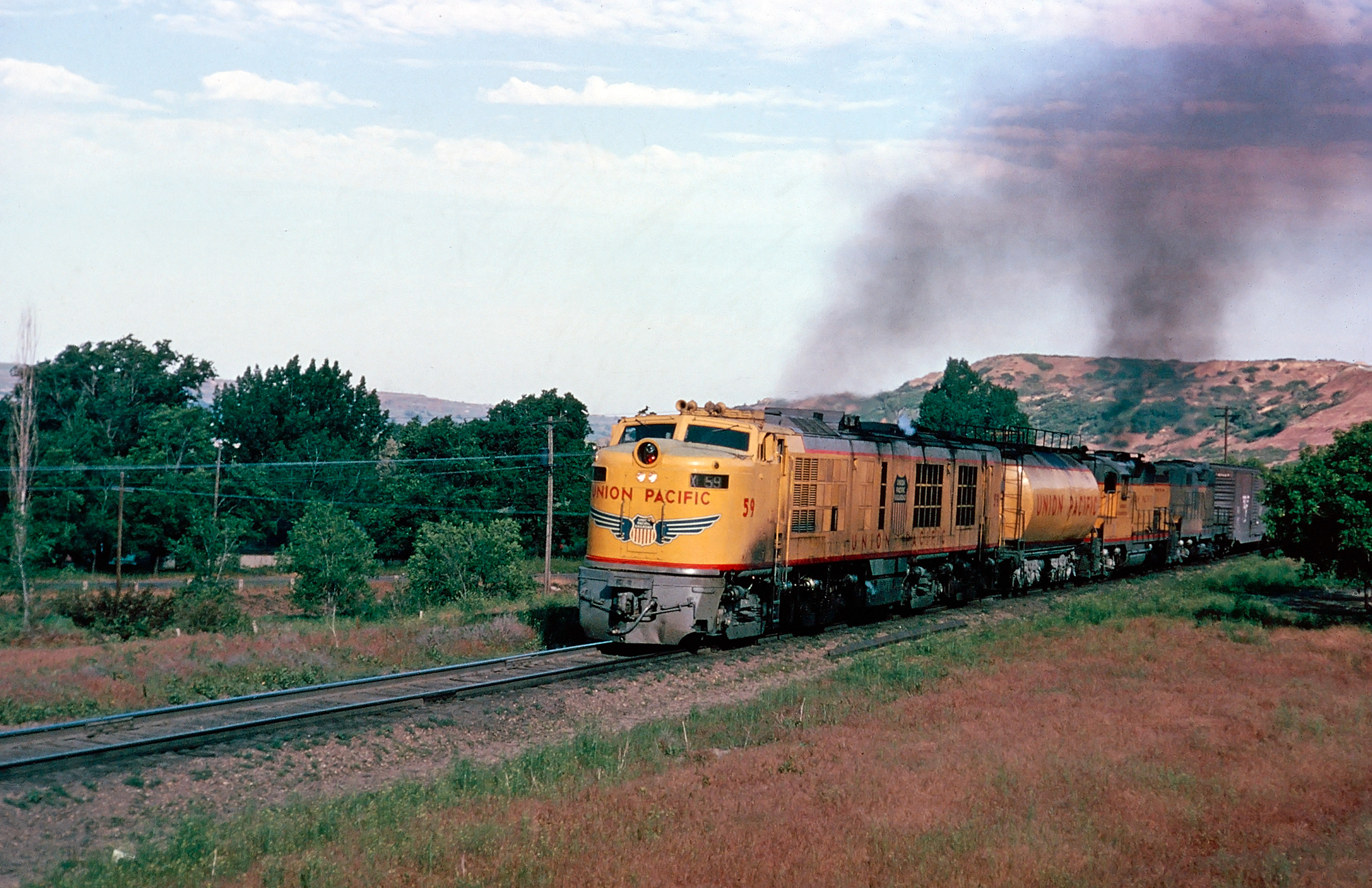

Numbered 61-74 these models were virtually identical to the original save for that they carried much larger 24,000 fuel tenders (the original ten carried just 7,200-gallon tenders although this was later upgraded to 24,000 as well).

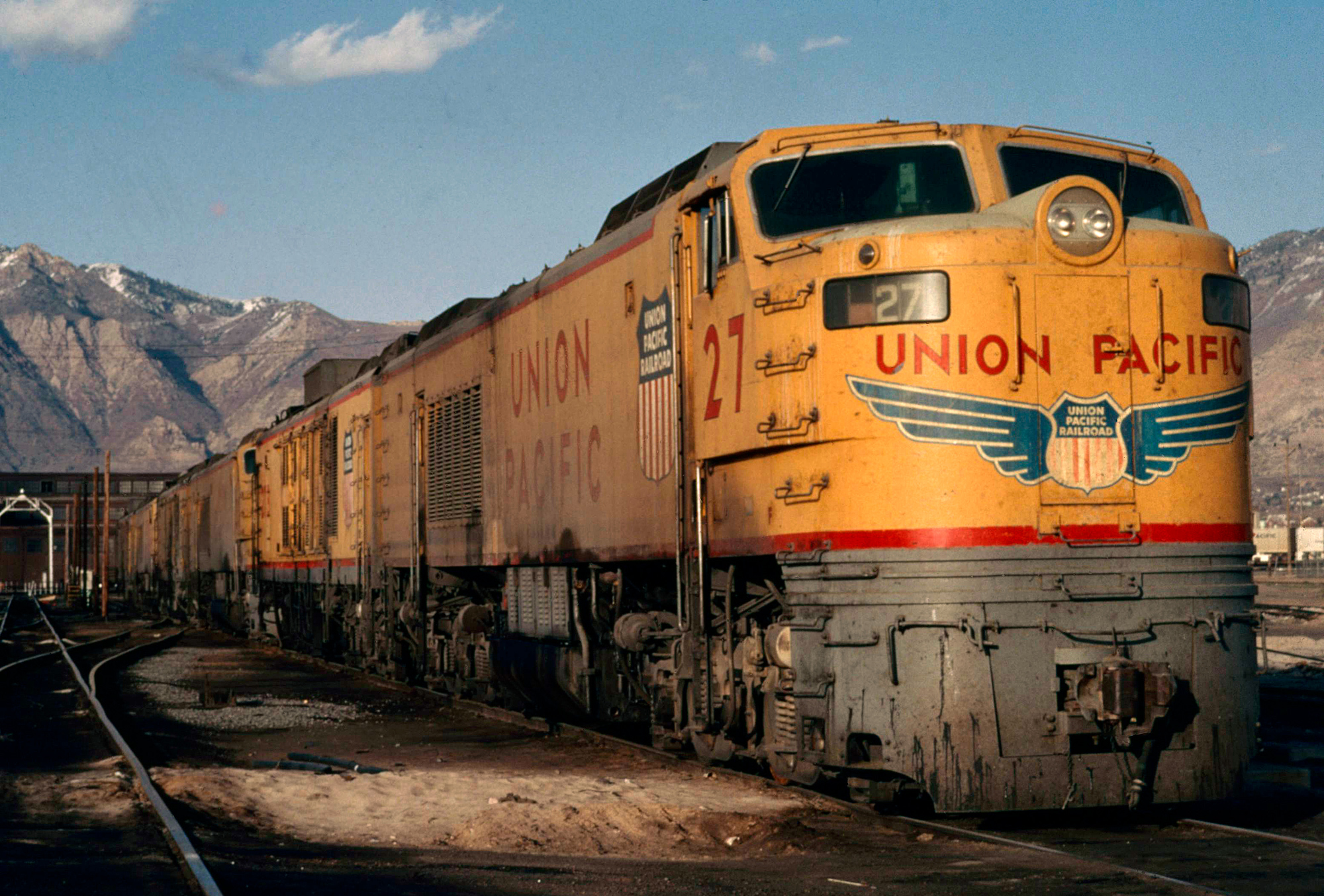

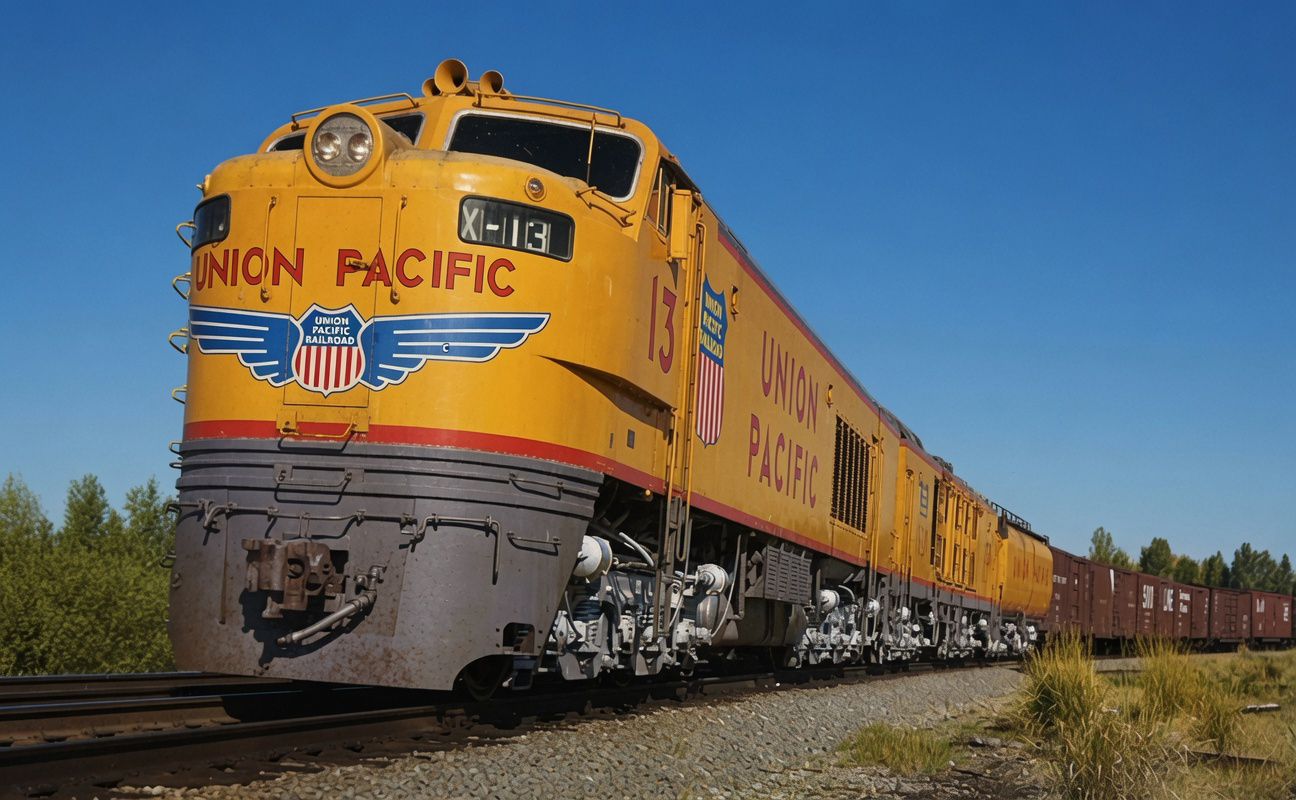

In this scene, a third-generation Union Pacific gas turbine set, capable of producing 8,500 horsepower, is seen here in Ogden, Utah on May 9, 1969. Dean Lewis photo.

The most significant develop occurring with the "second generation" GTELs was that Union Pacific began successfully MU'ing them (meaning the trailing units could be controlled from the lead locomotive), although only nineteen were actually coupled this way.

UP's final order of gas turbine locomotives were numbered 1-30 and were quite different from the original 25. They carried a C-C+C-C wheel arrangement and featured two, semi-permanently coupled units enabling a single unit to produce an incredible 8,500 horsepower.

These final thirty GTELs were nicknamed "Big Blows" for the incredible noise they produced, even louder than the first 25 models (which was partly due to the fact that each unit included two turbines).


Gas Turbine Locomotive Data Sheet (1st Generation)

#50-60*

BuildersAlco/GE
Entered Production1/1952 (Demonstrator built in 11/1948)
PropulsionGas Turbine
Horsepower4,800**
RPM6,700
Auxiliary PowerCooper-Bessemer Diesel Engine***
Carbody StylingGeneral Electric's Engineering Department
Length (Between Coupler Faces)83' 7.5"
Height15' 4"
Width10' 7"
Weight500,000 Lbs
TrucksB-B+B-B
Truck TypeSwing Bolster, Drop-Side Equalizer (AAR Type-B)
Wheelbase9' 4" (Per Truck)
Wheel Size40"
Traction MotorsGE 752 (8)
Traction GeneratorGE576
Gear Ratio65:18
Tractive Effort Rating77,800 Lbs at 18.2 MPH.
Top Speed69 MPH

Gas Turbine Locomotive Data Sheet (2nd Generation)

#61-75, Veranda's****

BuildersAlco/GE
Entered Production1954
PropulsionGas Turbine
Horsepower4,800**
RPM6,700
Auxiliary PowerCooper-Bessemer Diesel Engine***
Carbody StylingGeneral Electric's Engineering Department
Length (Between Coupler Faces)83' 6"
Height15' 4"
Width10' 7"
Weight551,000 Lbs
TrucksB-B+B-B
Truck TypeSwing Bolster, Drop-Side Equalizer (AAR Type-B)
Wheelbase9' 4" (Per Truck)
Wheel Size40"
Traction MotorsGE 752 (8)
Traction GeneratorGE576
Gear Ratio65:18
Tractive Effort Rating105,000 Lbs (speed not indicated)
Top Speed69 MPH

Gas Turbine Locomotive Data Sheet (3rd Generation)

#1-30, Big Blows

BuildersAlco/GE
Entered Production1958-1961
PropulsionGas Turbine
Horsepower8,500*****
RPM4,860
Auxiliary PowerCooper-Bessemer Diesel Engine***
Carbody StylingGeneral Electric's Engineering Department
Length (Between Coupler Faces)132' 6" (A-B set)
Height15' 4"
Width10' 7"
Weight551,000 Lbs
TrucksC-C+C-C
Truck TypeFloating Bolster
Wheelbase14' 6" (Per Truck)
Wheel Size40"
Traction MotorsGE 752 (12)
Traction GeneratorGE576
Gear Ratio74:18
Tractive Effort Rating240,000 Lbs starting; 145,000 Lbs at 18 MPH.
Top Speed65 MPH

*     #50 was General Electric's prototype, numbered 101 during test trials, completed in November, 1948.  According to Brian Solomon's book, "GE Locomotives," it was identical to the other 1st generation variants except it featured a double-ended cab design.

It was tested for two years while GE worked out technical issues with the locomotive.  During that time it racked up some 106,000 miles in service.

**    The locomotives produced a total of 4,800 horsepower when at full load (6,700 RPM), 1,500 feet above sea level, and an ambient temperature of 80 degrees Fahrenheit.  However, 300 horsepower was required for secondary purposes to power other systems, leaving 4,500 horsepower for traction.

***   Auxiliary power for starting the turbine and operating locomotive at low speeds.

****  There were only minor differences between the 1st, and 2nd generation gas turbine designs.  The primary external change was the addition of walkways, offering crews access to interior compartments and the locomotive's rear.

***** The 3rd generation "Big Blows" could actually produce 10,700 horsepower via the A-B setup this design employed.  However, its electrical capacity could only handle 8,500 horsepower when under load.

In addition, UP provided these locomotives with a 23,000-gallon fuel tender (built from old steam locomotive tenders) to lengthen their service range.

Sources:

  • Boyd, Jim. American Freight Train, The. Osceola: MBI Publishing, 2001.

  • Solomon, Brian. GE Locomotives: 110 Years Of General Electric Motive Power. St. Paul: MBI Publishing, 2003.

  • Welsh, Joe and Holland, Kevin. Union Pacific Railroad.  Minneapolis:  Voyageur Press, 2009.

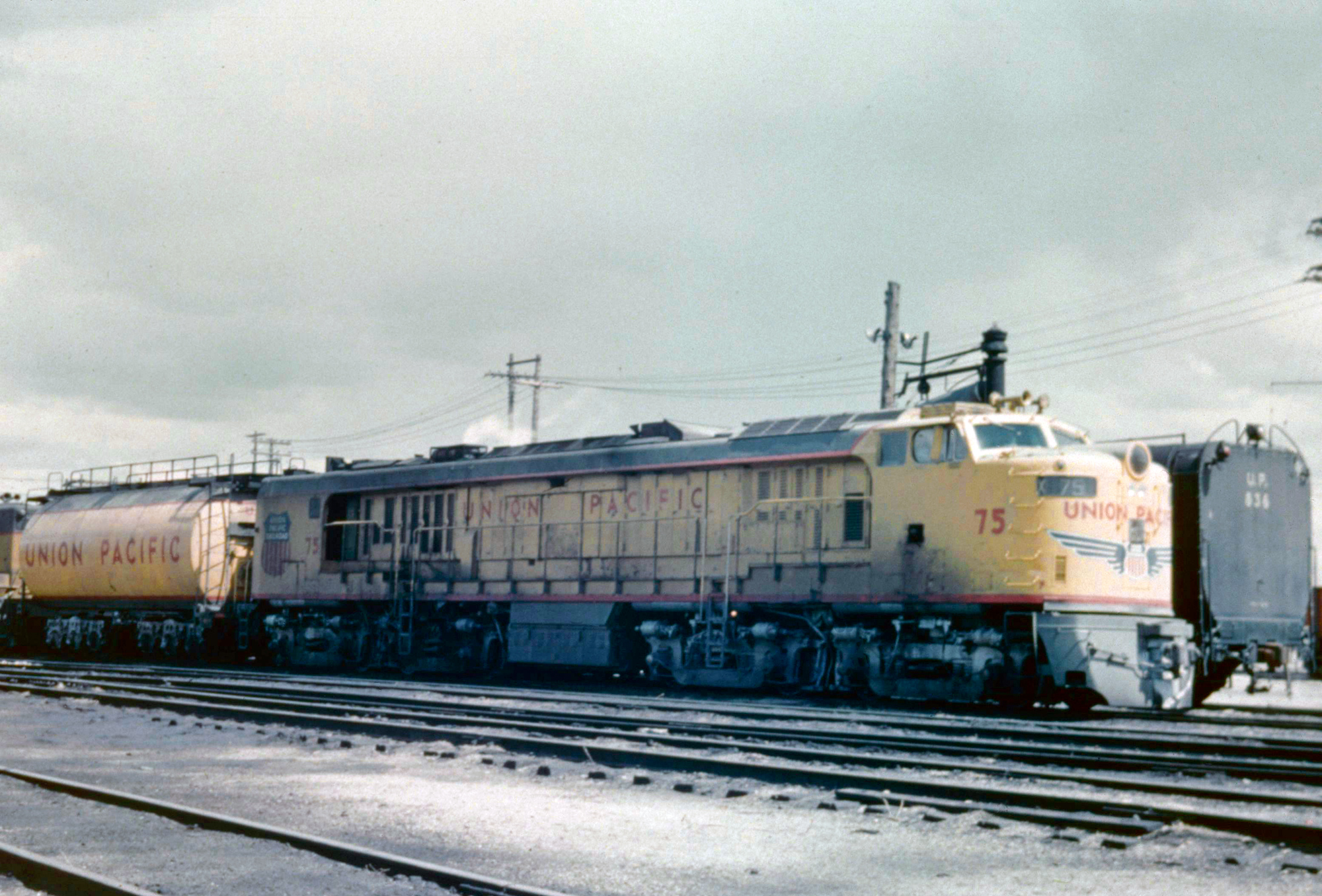

Union Pacific gas turbine #75, part of the 2nd generation referred to as "Verandas," is seen here in Cheyenne, Wyoming on May 18, 1963. Author's collection.

They were manufactured for two reasons: firstly, Union Pacific was quite pleased with its gas turbine fleet already in service; and secondly, the railroad was looking to replace its fleet of 4-8-8-4 "Big Boys" locomotives which, while powerful, UP did not want to overhaul with steam's impending demise.

As the 1960s waned fueling the gas turbine locomotive became an increasingly expensive proposition for Union Pacific as demand for "Bunker C" increased and oil prices rose.

With cheap fuel no longer available Union Pacific slowly began to retire their legendary fleet of GTELs and all were silenced by 1970.

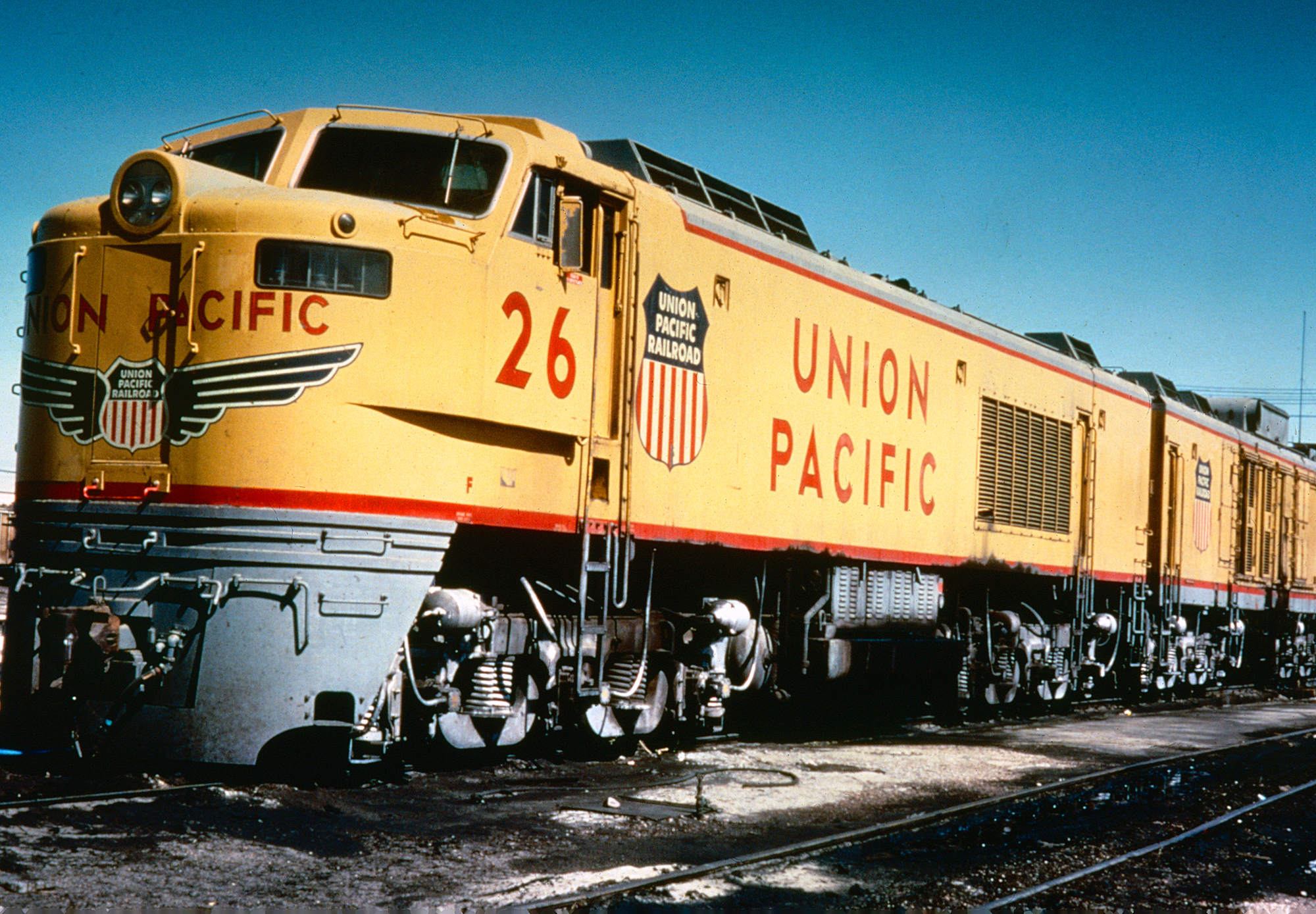

Interestingly, their trucks were reused on GE's experimental U50 and U50C designs operated by Union Pacific.  Today, two of the gas turbines remain preserved, #18 at the Illinois Railway Museum and #26/26B at Ogden Union Station in Ogden, Utah.
