The Hot Box, Overheated Axle Bearings

Published: July 5, 2024

In the expansive and intricate world of railroading, few issues have historically been as frustrating and hazardous as the notorious “hot box.”

This term, steeped in railroad vernacular, describes a condition where the bearings on a train’s axle overheat due to excessive friction.

The consequences of a hot box can be severe, ranging from equipment damage to catastrophic derailment. However, advancements in rail technology, particularly the introduction of roller bearings, have largely mitigated this once common problem.

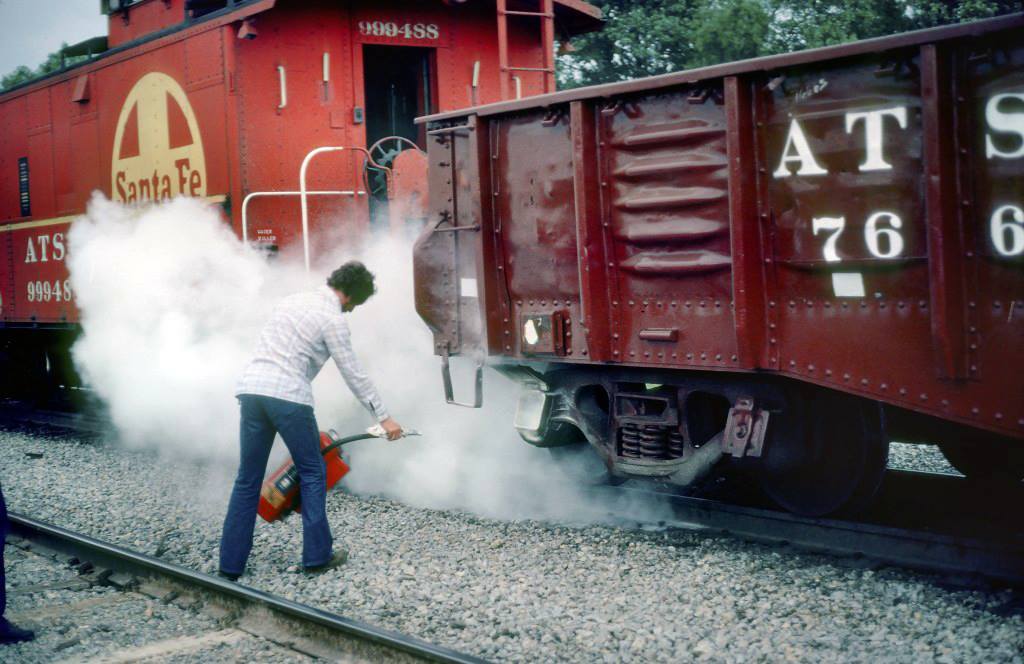

Hot box! A Santa Fe crewman extinguishes an overheated journal on a gondola along the Ft. Worth - Houston/Galveston line at Cameron, Texas during May, 1977. Gary Morris photo.

Understanding the Hot Box

The term "hot box" originates from the early days of railroading when wooden or heavily-laden metal carriages rolled across tracks. In those times, friction bearings were the norm. These bearings functioned by utilizing a journal box—often referred to as a "box"—which housed lubricant-soaked cotton waste surrounding the axle. As the train moved, this lubrication was intended to reduce friction between the wheel bearings and the axle.

However, these friction bearings were susceptible to a number of issues. If the lubrication ran dry or contaminants infiltrated the journal box, the friction could escalate to the point where the bearings overheated. The heat produced by this friction could ignite the cotton waste or lead to the melting of the bearing surfaces. The result was an overheated bearing assembly, or a “hot box.”

Indicators and Risks

Signs of a hot box included smoke emanating from the journal box, a noticeable smell of burning oil and metal, and the increase in temperature which could be sometimes seen visibly glowing. If not detected early, a hot box could cause bearing failure, leading to axle failure, derailment, and serious damage to the train and cargo.

Dealing with Hot Boxes

Railroads employed several methods to monitor for and deal with hot boxes:

1. **Visual Inspection**: In the early days, train crews would routinely inspect each axle during scheduled stops. They looked for signs of smoke, smelled for burning odors, and sometimes tapped the journal boxes to detect excessive heat.

2. **Hot Box Detectors**: By the mid-20th century, railroads began installing trackside hot box detectors. These devices, positioned alongside the rail tracks, used infrared sensors to measure the temperature of passing train axles. If a detector identified an overheated bearing, it would send an alert to the train crew, prompting an immediate stop for inspection and maintenance.

3. **Regular Maintenance**: Frequent servicing of the journal boxes was crucial. This included topping up lubrication and periodically replacing the cotton waste to ensure the bearings would remain sufficiently lubricated.

Advent of Roller Bearings

The invention and adoption of roller bearings represented a significant leap forward in railroading technology and virtually eradicated the problem of hot boxes. Roller bearings, unlike friction or plain bearings, are designed with rolling elements—small cylinders or spheres—that facilitate motion with minimal resistance.

Introduced in the mid-20th century, roller bearings offered numerous advantages:

1. **Reduced Friction**: Because roller bearings employ rolling contact rather than sliding contact, they generate significantly less friction. This reduction in friction directly translates into lower heat generation during train operation.

2. **Enhanced Lubrication**: Roller bearings are sealed units that come pre-lubricated. The sealed design prevents contamination from dust, dirt, and water, thereby ensuring consistent lubrication over extended periods and reducing the need for frequent maintenance.

3. **Increased Durability and Reliability**: The materials used in roller bearings—high-grade steel, precision engineering—make them robust and long-lasting. This durability and decrease in maintenance requirements were significant improvements over the traditional plain bearings which needed regular inspection and servicing.

4. **Load Distribution**: Roller bearings distribute the load more evenly across the bearing surface. This efficiency helps in managing heavier loads without significant wear, making them ideal for modern freight and passenger trains.

Technological Integration

Modern railroads not only rely on roller bearings for their primary rolling stock but also integrate sophisticated tracking and diagnostics systems. These systems continuously monitor bearing temperature, wheel alignment, and overall mechanical health of the train. Data from these systems can predict potential issues before they evolve into serious problems, thereby increasing safety and efficiency.

1. **Remote Sensors**: Contemporary roller bearings often come equipped with remote monitoring sensors. These sensors transmit real-time data back to control centers, allowing for constant surveillance. Any deviation from normal operating parameters can trigger an alert, prompting preventive maintenance measures before a significant problem occurs.

2. **Predictive Maintenance**: With advances in big data and analytics, railroads leverage historical data to perform predictive maintenance. Algorithms analyze patterns and predict potential failures, ensuring maintenance schedules are optimized, and downtime minimized.

Impact of Roller Bearings

The widespread adoption of roller bearings has dramatically improved the safety, efficiency, and reliability of rail transportation. Incidents of hot boxes have become exceedingly rare, and the associated risks—derailments, cargo loss, and environmental hazards—are correspondingly diminished.

Aside from safety, the reduction in friction and improved efficiency means trains can operate at higher speeds and with greater energy efficiency. This has profound implications for both passenger and freight services, enhancing service reliability and reducing operational costs.

Conclusion

The concept of the hot box provides a fascinating glimpse into the challenges that early railroad engineers and crews faced daily. It underscores the importance of innovation and the potential for technological solutions to solve seemingly intractable problems.

The transition from friction bearings to roller bearings represents one of the many technological advances that have shaped the modern rail transportation industry.

The employment of roller bearings has virtually eliminated the issue of hot boxes, providing a robust, reliable, and low-maintenance solution to an age-old problem.

As railroads continue to integrate advanced technologies, the legacy of the hot box remains a testament to the importance of continuous improvement and adaptation in the pursuit of safer, more efficient transportation.
