Last revised: October 10, 2026
By: Adam Burns
The Interstate Railroad was a Virginia coal road. The Virginia Coal & Iron Company incorporated it on February 18, 1896, to move Wise County coal to the Louisville & Nashville at Appalachia. The tracks stayed in that corner of Virginia. From the first line out of Stonega the railroad reached the Norfolk & Western at Norton in 1909 and the Clinchfield at Miller Yard in 1923, and it kept its own yard and shops at Andover, just north of Appalachia.
It was still an independent company, reporting mark INT, when it dieselized on ten Alco RS3s, numbers 30–39, painted orange, cream, and gray. Southern Railway bought the stock in 1961. The Interstate company lasted until October 31, 1985.

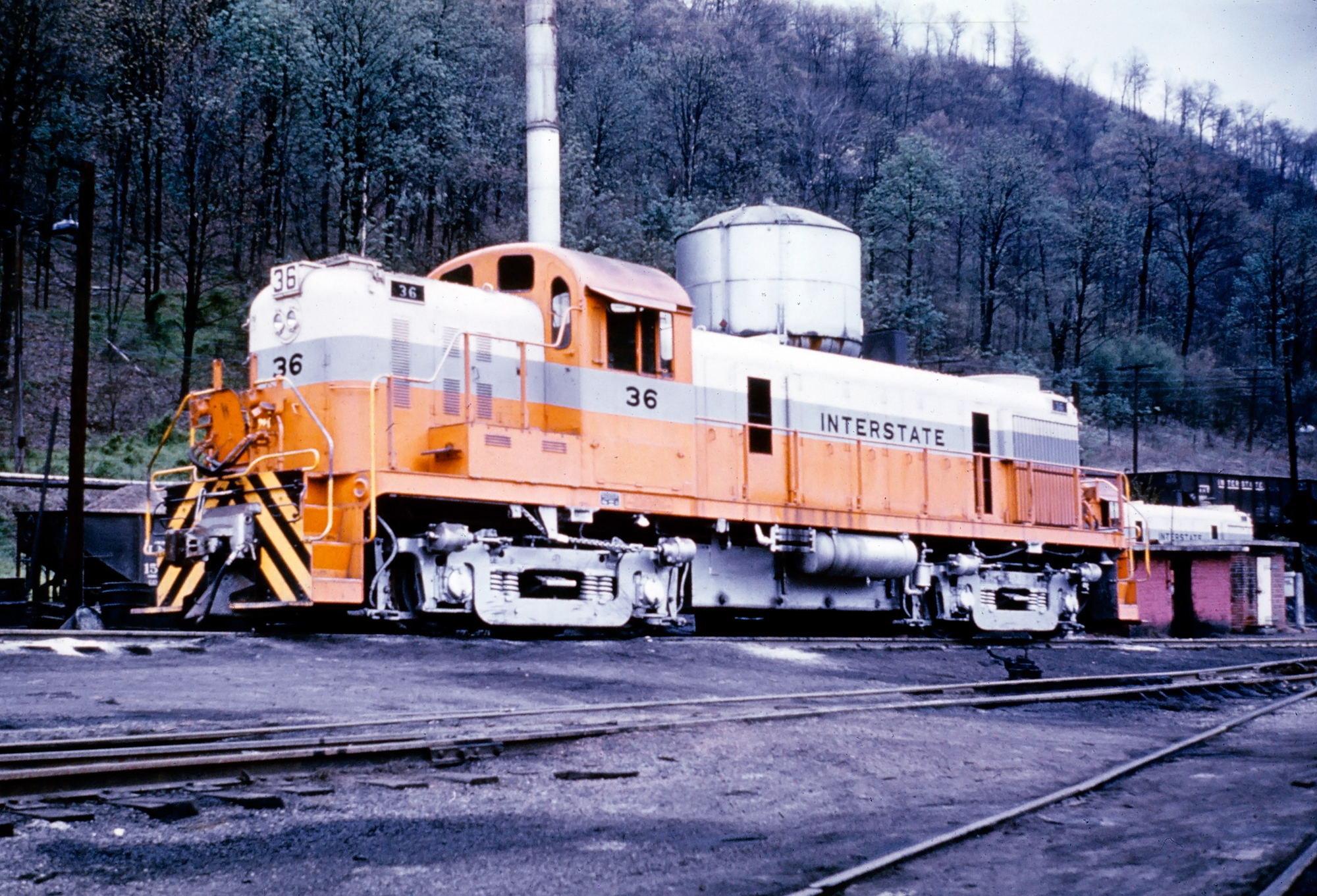

Interstate Railroad RS3 No. 36 at the yard in Andover, Virginia, on May 6, 1961. H. Buckley, Jr. photograph. American-Rails.com collection. Orange, cream, and gray. One of ten Alco RS3s, 30–39. Alco serial 80565, order 20905, November 1953.
On this page: Wise County coal · At a glance · The 1939 map · Steam · Steam roster · The passenger train · Ten RS3s · Diesel roster · Southern control · ES44AC 8105
Virginia Coal & Iron wanted a railroad of its own between the mines and a Class I connection. The company it chartered on February 18, 1896, built from Stonega down to Appalachia and the Louisville & Nashville. A few years later the same junction also gave it the Virginia & Southwestern, which the Southern Railway later absorbed, so Appalachia coal could move south as well as west. Headquarters, the yard, and the shops sat at Andover.
The railroad then built east. In 1909 it reached Norton and a connection with the Norfolk & Western, and with the Louisville & Nashville there as well. In 1923 it finished the Guest River Extension and a connection with the Carolina, Clinchfield & Ohio at Miller Yard. Four branches did the mine work: Roda, Roaring Fork, Dorchester, and Glamorgan. Andover, with lines running out toward Stonega, Roda, and Derby, became the place the mine runs came home.
The Interstate made its living on coal, and on the cars that carried it. The company kept its own hoppers moving on other railroads, where they earned per diem, and it tried to get foreign hoppers off its own line before the charges ran the other way. The books stayed in the black on that arithmetic for year after year. By the late 1950s the 50-ton hoppers were old. Rather than buy a new fleet, Virginia Coal & Iron sold the railroad.
| Item | Detail |
|---|---|
| Headquarters | Andover, Virginia |
| Chartered | February 18, 1896, by the Virginia Coal & Iron Company |
| State | Virginia |
| Reporting mark | INT |
| Gauge | 4 feet, 8½ inches |
| Route | 79.46 route miles in 1929. Southern’s 1959 announcement called it an 87-mile line. A 1960 company report says about 88 miles, counting branches, trackage rights, and switching tracks |
| Principal lines | Norton–Miller Yard; Norton–Glamorgan; Norton–Appalachia; Dorchester Junction–Sutherland; Kent Junction–Pardee; Appalachia–Exeter; Appalachia–Andover–Stonega; Andover–Derby; Andover–Roda |
| Interchanges | Appalachia, with the L&N and the Southern. Dorchester Junction, with the L&N. Norton, with the L&N and the N&W. Miller Yard, with the Clinchfield |
| Steam | Baldwin Consolidations, one Atlantic, two Pennsylvania L1s Mikados, two Alco-Brooks 2-8-8-2s of November 1923, and secondhand Norfolk & Western and Southern engines. George H. Drury’s steam guide has no Interstate chapter |
| Diesels lettered INT | Ten Alco RS3s, 30–39, built 1952, 1953, and 1956 |
| Southern control | Stock exchange agreed May 1959. Commission approval February 24, 1961. Acquisition dated June 6, 1961 |
| Successor | Southern Railway, then Norfolk Southern. The Interstate company ended October 31, 1985 |

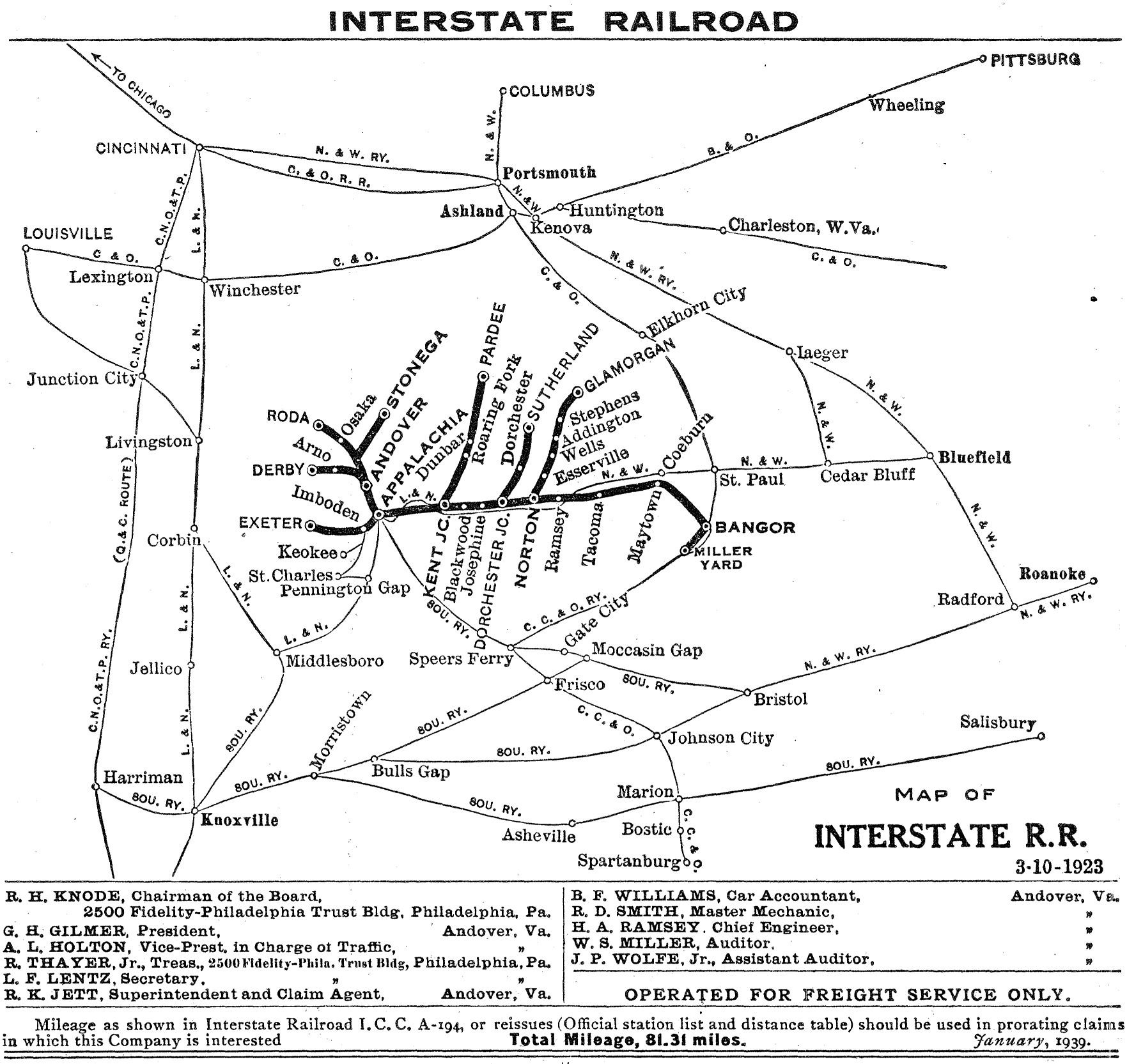

An official 1939 system map of the Interstate Railroad. Author’s collection. Andover is the operating center. Appalachia, Norton, and Miller Yard are the Class I junctions. The mine branches leave the main lines for Roda, Derby, Stonega, Dorchester, and Glamorgan.
Until 1973 the Louisville & Nashville’s own coal from this country came to the Interstate at Dorchester Junction and went on to the Clinchfield at Miller Yard. That year the L&N received trackage rights over the Norfolk & Western toward St. Paul, and the old handoff changed.
The first years were run with a single locomotive. Its road number is not in the builder lists used here. The engines that can be named start with Baldwin Consolidations. No. 1, works number 29136, came in September 1906. No. 3, works number 32469, came in December 1907. No. 2 was built in March 1911, works number 36275, for the East Roaring Fork as that road’s No. 2, and was sold to the Interstate in 1920. No. 4 was older than any of them. Baldwin built it in April 1903, works number 22001, for Stonega Coke & Coal as No. 4. The tender on the 1903 specification was already lettered for the Interstate, and the engine joined the Interstate list in 1907. Nos. 1 through 4 share one published card: cylinders 21 by 26 inches, 50-inch drivers, 180 pounds of boiler pressure, an engine weight of 145,500 pounds, 128,900 pounds on the drivers, and 35,086 pounds of tractive effort. The boiler was saturated. Later, the Interstate fitted Southern valve gear.
A heavier Consolidation followed, four engines that Steve Llanso treats as Class 5. Baldwin works numbers 42693–42695 are December 1915. Works number 53097 is April 1920, and H. Reid’s 1953 list is the one that puts the 1920 engine on No. 5, with 6, 7, and 8 as the earlier three. They were superheated, with 14-inch piston valves and Southern valve gear, and they rode on 61-inch drivers, tall for a mine railroad. Cylinders were 25 by 32 inches at 180 pounds, good for 50,164 pounds of tractive effort. The engine weighed 226,500 pounds, with 192,200 on the drivers. Nos. 1–4 were retired in 1953. Nos. 7 and 8 were still at Andover that September, when Homer Newlon, Jr. photographed them.

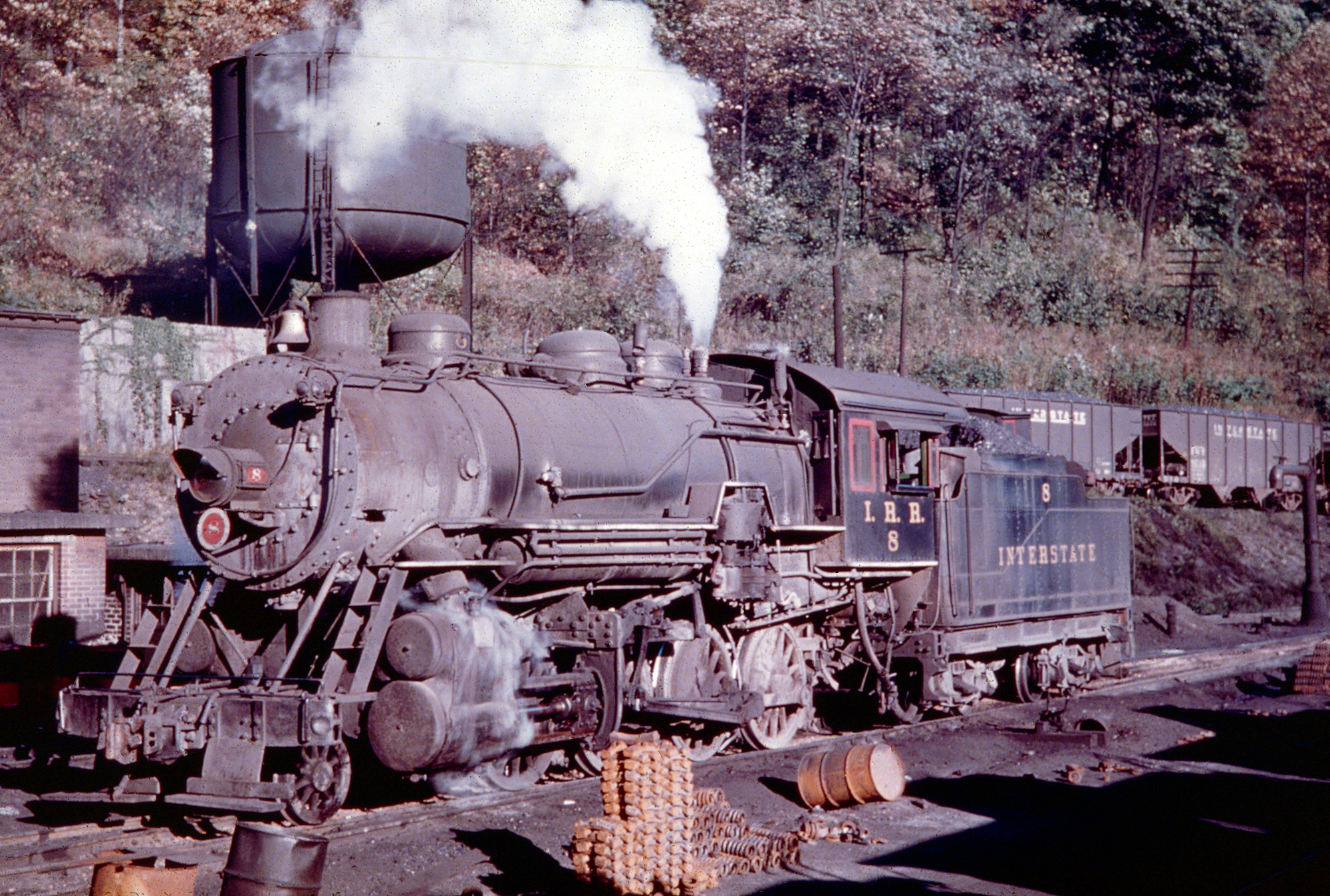

Interstate Railroad 2-8-0 No. 8 at work in Andover, Virginia, on September 5, 1953. Homer Newlon, Jr. photograph. American-Rails.com collection. One of the four Class 5 Consolidations, Baldwin, December 1915, works numbers 42693–42695.

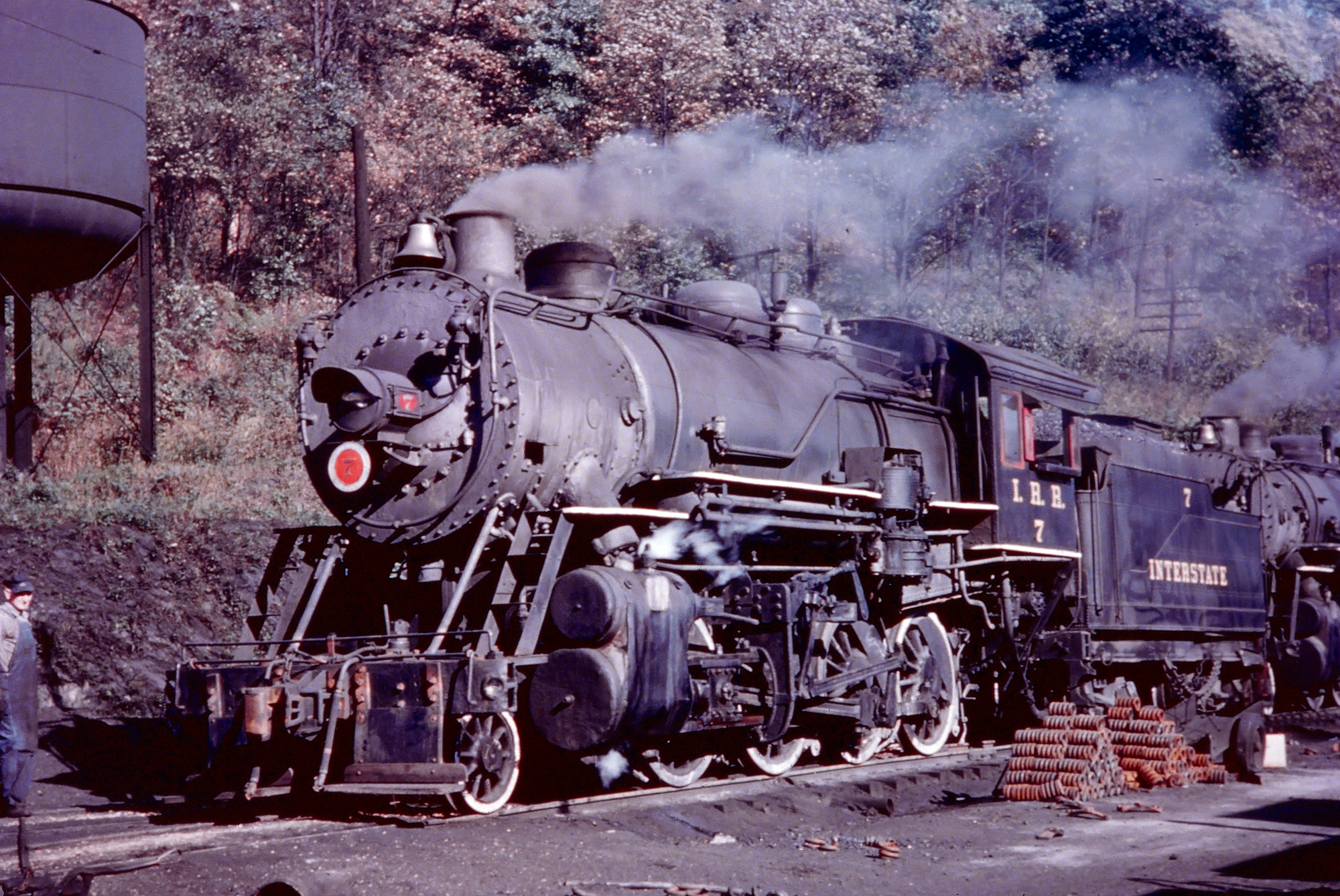

Interstate Railroad 2-8-0 No. 7 at the engine terminal in Andover, Virginia, on September 4, 1953. Homer Newlon, Jr. photograph. American-Rails.com collection. Class 5, the same December 1915 Baldwin group as No. 8. The first of the new RS3s were weeks away.
The passenger engine was a single Atlantic, the first No. 9. Baldwin built it in December 1916, works number 44660, for 80-pound rail. Drivers were 66 inches, cylinders 20 by 26 inches, pressure 200 pounds, engine weight 181,000 pounds, and weight on drivers 100,000 pounds. Tractive effort was 26,788 pounds. The boiler was saturated, with 21 square feet of arch tubes in a firebox of 208 square feet, on a grate of 49.5. Southern valve gear. Llanso has the engine retired in 1939, which is after the railroad had already given up its own passenger trains.
Heavier coal trains brought secondhand power, and then two articulateds the Interstate bought new. In 1948 the railroad acquired two Pennsylvania Railroad class L1s Mikados. Reid’s 1953 list numbers them 14 and 15. No. 14 is the Juniata engine of 1914, former Pennsylvania 266. No. 15 is the Baldwin engine of 1916, former Pennsylvania 1626, which the Pennsylvania roster records as sold to the Interstate in 1948. Reid’s same list gives the second No. 9 as a Pennsylvania class H10s Consolidation, Alco, 1913, former Pennsylvania 9434. The Atlantic was gone by then, and the number was free. Four more Consolidations, 25–28, are on that list as Alco engines of 1926, former Southern. Their Southern numbers are not in the list.
The two engines people remember are Nos. 20 and 21. Alco’s Brooks Works built them in November 1923, works numbers 64996 and 64997. They follow the United States Railroad Administration heavy 2-8-8-2, lengthened so they could negotiate a 22-degree curve: each set of drivers, and the engine wheelbase, is 3 inches longer than the government engine. High-pressure cylinders were 25 by 32 inches and the low-pressure cylinders 39 by 32 inches, at 240 pounds. Compound tractive effort was 101,465 pounds. Drivers were 57 inches. The engine weighed 541,000 pounds, with 486,500 on the drivers and an axle load of 62,000. The tender carried 12,000 gallons and 16 tons. Engine and tender together weighed 750,200 pounds. Walschaert valve gear. The diagram gives the evaporative and superheater surfaces only as one combined figure, 8,332 square feet. Reid’s 1953 list also carries three former Norfolk & Western 2-6-6-2s, numbers 22–24, acquired in 1937. One Norfolk & Western engine sold to the Interstate was 1322, tried with outside-admission piston valves on the low-pressure cylinders and left in that state. Which of 22, 23, or 24 it became is not established. The Class Z page has 1322’s Norfolk & Western story.
| Consolidations 1–4 | Class 5, Nos. 5–8 | Atlantic, first No. 9 | 2-8-8-2s 20 and 21 | |
|---|---|---|---|---|
| Builder | Baldwin | Baldwin | Baldwin | Alco-Brooks |
| Built | 1903–1911 | December 1915 and April 1920 | December 1916 | November 1923 |
| Cylinders | 21×26 in | 25×32 in | 20×26 in | 25×32 and 39×32 in |
| Drivers | 50 in | 61 in | 66 in | 57 in |
| Boiler pressure | 180 psi | 180 psi | 200 psi | 240 psi |
| Engine weight | 145,500 lb | 226,500 lb | 181,000 lb | 541,000 lb |
| Weight on drivers | 128,900 lb | 192,200 lb | 100,000 lb | 486,500 lb |
| Tractive effort | 35,086 lb | 50,164 lb | 26,788 lb | 101,465 lb, compound |
| Grate | 33.2 sq ft | 54 sq ft | 49.5 sq ft | 96.5 sq ft |
| Evaporative | 2,005 sq ft | 2,951 sq ft | 2,672 sq ft | Given only with the superheater |
| Superheater | None. Saturated | 646 sq ft | None. Saturated | Included in the combined figure |
| Combined heating surface | 2,005 sq ft | 3,597 sq ft | 2,672 sq ft | 8,332 sq ft |
| Tender | 6,500 gal, 9 tons | 7,000 gal, 12 tons | 6,000 gal, 12 tons | 12,000 gal, 16 tons |
No. 2, the East Roaring Fork engine of 1911, carries the same published dimensions as Nos. 1 and 3. No. 4, the Stonega engine of 1903, is on the same Baldwin card. Class 5 heating surfaces are Llanso’s reading of the May 1916 Railway Mechanical Engineer table and Baldwin’s specification, DeGolyer volume 59. The 2-8-8-2 figures are the Interstate diagram.
George H. Drury’s Guide to North American Steam Locomotives has no Interstate chapter. The list below is every engine whose road number is documented, from the Baldwin specification cards, from Llanso’s Locobase entries, and from H. Reid’s roster in “Whistle in the Valley,” Trains, August 1953. A Glover Machine Works Ten-Wheeler of 1908 is known from photographs. Its road number was not recorded, and it is left off the table. Ed Wolfe’s motive-power chapter, pages 93–115 of The Interstate Railroad, was not in hand. Where Reid is the only source for a number, the note says so.
| Number | Type | Builder | Serial | Built | Notes |
|---|---|---|---|---|---|
| 1 | 2-8-0 | Baldwin | 29136 | September 1906 | New. Later fitted with Southern valve gear. Retired 1953 |
| 2 | 2-8-0 | Baldwin | 36275 | March 1911 | Built for the East Roaring Fork as No. 2. Sold to the Interstate in 1920. Retired 1953 |
| 3 | 2-8-0 | Baldwin | 32469 | December 1907 | New. Same card as No. 1. Later fitted with Southern valve gear. Retired 1953 |
| 4 | 2-8-0 | Baldwin | 22001 | April 1903 | Built for Stonega Coke & Coal as No. 4. Joined the Interstate engines in 1907. Later given Southern outside radial valve gear. Retired 1953 |
| 5 | 2-8-0 | Baldwin | 53097 | April 1920 | Class 5. The 1920 engine. Superheated, Southern valve gear, 14-inch piston valves |
| 6–8 | 2-8-0 | Baldwin | 42693–42695 | December 1915 | Class 5. The three works numbers are not paired here to individual road numbers. Reid’s 1953 list dated the trio 1916. Nos. 7 and 8 were at Andover in September 1953 |
| 9 (first) | 4-4-2 | Baldwin | 44660 | December 1916 | The passenger Atlantic. Saturated. Southern valve gear. Retired 1939 |
| 9 (second) | 2-8-0 | Alco | — | 1913 | Pennsylvania class H10s, former Pennsylvania 9434. Reid’s 1953 list. The construction number is not established here |
| 14 | 2-8-2 | Juniata | — | 1914 | Pennsylvania class L1s, former Pennsylvania 266. Reid’s Interstate number. One of two L1s acquired in 1948. The Juniata serial is not established here |
| 15 | 2-8-2 | Baldwin | — | 1916 | Pennsylvania class L1s, former Pennsylvania 1626. Reid’s Interstate number. Sold to the Interstate in 1948 |
| 20 | 2-8-8-2 | Alco-Brooks | 64996 | November 1923 | USRA heavy 2-8-8-2 parentage, lengthened for a 22-degree curve. Walschaert valve gear |
| 21 | 2-8-8-2 | Alco-Brooks | 64997 | November 1923 | Same class and dimensions as No. 20 |
| 22–24 | 2-6-6-2 | — | — | — | Reid’s 1953 list: three former Norfolk & Western 2-6-6-2s, acquired in 1937. The three include former N&W 1322. Which Interstate number 1322 received is not established |
| 25–28 | 2-8-0 | Alco | — | 1926 | Reid’s 1953 list: former Southern. Former Southern numbers and construction numbers are not established |
H. Reid, writing in 1953, described two passenger trains a day in the busy years, usually behind the lone Atlantic, with a Consolidation coupled on when the train needed it. A typical consist was three wooden cars: a combine, a baggage car, and a coach. When there was interest enough, the railroad ran an excursion. By the late 1920s one train covered the service. In 1929 the Interstate Commerce Commission gave permission to end it. The Atlantic itself lasted until 1939. The last passenger train Reid records over the railroad was Norfolk & Western 41 and 42, detouring in 1942 because of a washout on the Radford Division.
The diesel fleet lettered for the Interstate was ten Alco RS3s and no other model. The RS3 was a 1,600-horsepower road switcher on Alco’s model specification E1662, with a 244 V-12 and a length of 56 feet 6 inches between coupler pulling faces. The full production story is the RS3 page.
The first unit was Alco demonstrator 1607, serial 80159, built in August 1952 and still wearing the builder’s blue when it arrived. The Interstate numbered it 37 and painted it orange, cream, and gray, the scheme crews called the Orangecicle. They went on calling 37 the Blue Goose. Seven more came new as 30–36, serials 80559–80565, Alco order 20905. The production list dates the batch to October 1953. Railroad Picture Archives dates the engines it lists in that order to November 1953, including No. 36, the locomotive in the photograph at the top of this page. Nos. 38 and 39, serials 81843 and 81844, order 20997, followed in January 1956.

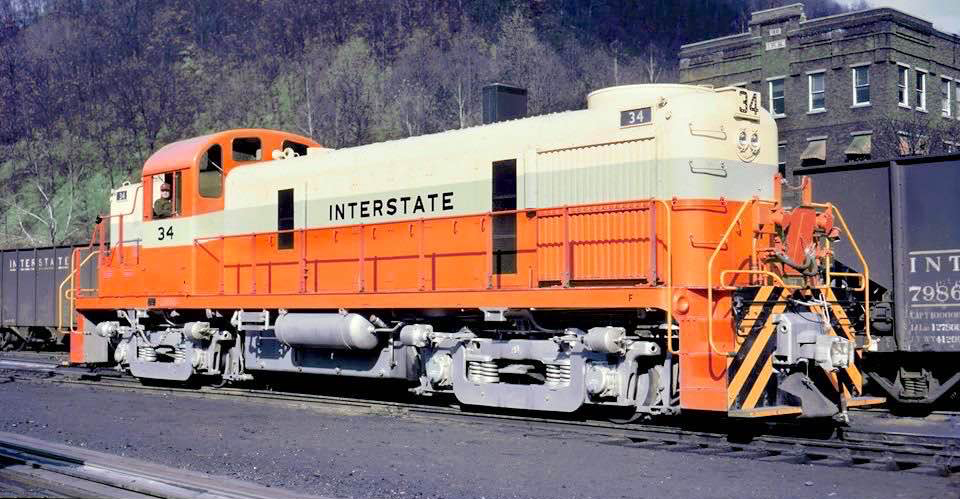

What appears to be an Interstate Railroad company photograph of recently delivered RS3 No. 34 at Andover, Virginia, in the fall of 1953. Warren Calloway collection. Serial 80563, in the 80559–80565 block, order 20905.
Hugh Wolfe dates full dieselization to 1954, the year the Stonega tipple shut down. Nos. 1–4 were already retired. The last two RS3s were still ahead, in January 1956. The compounds and the secondhand Consolidations were still on Reid’s list in the summer of 1953, and Newlon’s photographs show Nos. 7 and 8 at work that September, as the new road switchers were being delivered.
Retirement years are the Appalachian Railroad Modeling roster that follows Wolfe’s motive-power chapter. After Southern control the ten units left the coalfield for yard work. Atlanta is the city that roster names. No. 32 was still switching Andover in October 1965, the last of them to go. By May 1970, Nos. 38 and 39 were in Atlanta.
| Number | Model | Builder | Serial | Order | Built | Notes |
|---|---|---|---|---|---|---|
| 30 | RS3 | Alco | 80559 | 20905 | October–November 1953 | New. Retired 1974 |
| 31 | RS3 | Alco | 80560 | 20905 | October–November 1953 | New. Retired 1976 |
| 32 | RS3 | Alco | 80561 | 20905 | October–November 1953 | New. Still at Andover in October 1965. Retired 1974 |
| 33 | RS3 | Alco | 80562 | 20905 | October–November 1953 | New. Retired 1976 |
| 34 | RS3 | Alco | 80563 | 20905 | October–November 1953 | New. The engine in the fall 1953 photograph. Wrecked 1973. Retired 1974 |
| 35 | RS3 | Alco | 80564 | 20905 | October–November 1953 | New. Retired 1976 |
| 36 | RS3 | Alco | 80565 | 20905 | November 1953 | New. The engine in the May 6, 1961 photograph. Retired June 1974 |
| 37 | RS3 | Alco | 80159 | — | August 1952 | Built as Alco demonstrator 1607, in blue. Renumbered 37 and painted orange, cream, and gray. Crews still called it the Blue Goose. Retired 1970. The Alco order number was not established |
| 38 | RS3 | Alco | 81843 | 20997 | January 1956 | New. In Atlanta by May 1970. Retired 1974 |
| 39 | RS3 | Alco | 81844 | 20997 | January 1956 | New. In Atlanta by May 1970. Retired 1974 |
Both the Louisville & Nashville and the Southern bid for the railroad. Each bid was worth more than $15 million, and the winning margin was less than $25,000. The Southern won. On May 20, 1959, Ralph K. Knode, president of Virginia Coal & Iron, announced in Philadelphia that the company had accepted the offer. The next day, May 21, Southern president Harry A. DeButts confirmed the terms: 275,000 shares of Southern voting common for all 80,000 Interstate shares. He told his own stockholders that the purchase would extend Southern service “into one of the finest coal fields in the country,” and that the road would need that coal as power plants in the South burned more of it. The exchange still needed the Interstate Commerce Commission, and the stockholders of both companies.
Southern stockholders approved the exchange at Richmond on July 21, 1959. Virginia Coal & Iron’s stockholders approved it as well. The hearing examiner recommended approval on October 6, 1960. The Commission approved the examiner’s report on February 24, 1961. A labor case later dates the acquisition June 6, 1961. Around that sale the record notes 1,094 cars retired, for reasons of their own. The figure counts cars taken out of service around the acquisition.
For a few years the Andover operation looked as it had. On September 10, 1965, the Southern closed Appalachia Yard and moved the local hub into Andover. The ten RS3s, still in their own orange, cream, and gray, went south as yard engines. They could not multiple with the Southern’s diesels. Southern F units took the mine runs.
The Southern and the Norfolk & Western combined as Norfolk Southern on June 1, 1982. The Interstate company continued. On October 31, 1985, the former Interstate lines were transferred to the Clinch Valley Extension of the Pocahontas Division, together with the Southern’s St. Charles Branch, so that one division would work the mine runs of both.
In March 2012 Norfolk Southern announced that twenty new locomotives, General Electric ES44ACs and Electro-Motive SD70ACes, would be painted in predecessor schemes. The fleet was unveiled at the North Carolina Transportation Museum in Spencer. ES44AC 8105 wears the Interstate orange, cream, and gray. It is a Norfolk Southern heritage locomotive. The Interstate diesel roster on this page is the ten RS3s.
