Kentucky Railroads: State Map, History, Abandoned Lines

Last revised: October 11, 2023

By: Adam Burns

Kentucky, much like those in West Virginia will always be known for one thing, coal.

Ever since railroads first began building rail lines in the state in the mid-19th century they have been tapping the very lucrative black diamonds, which today still makes up a significant portion of most railroads' profits across the industry.

Today, the state's railroads still moves millions of tons of coal annually (it remains the state's top originating traffic source) and the only thing that has really changed is the number of companies doing so.

It was the prosperous Louisville & Nashville which provided much of the state's rail service while the Southern Railway, Illinois Central, and Chesapeake & Ohio also had a presence there.

There are currently four Class Is serving Kentucky (BNSF Railway, CSX Transportation, Norfolk Southern, and Canadian Pacific), although the two eastern carriers operate the majority of the state's rail network (BNSF and CP merely pass through Kentucky's western tip).

Additionally, a few regionals and a handful of short lines also serve the state. In any event, the information included below aims to give you a brief history and overview of Kentucky including current operations.

Photos

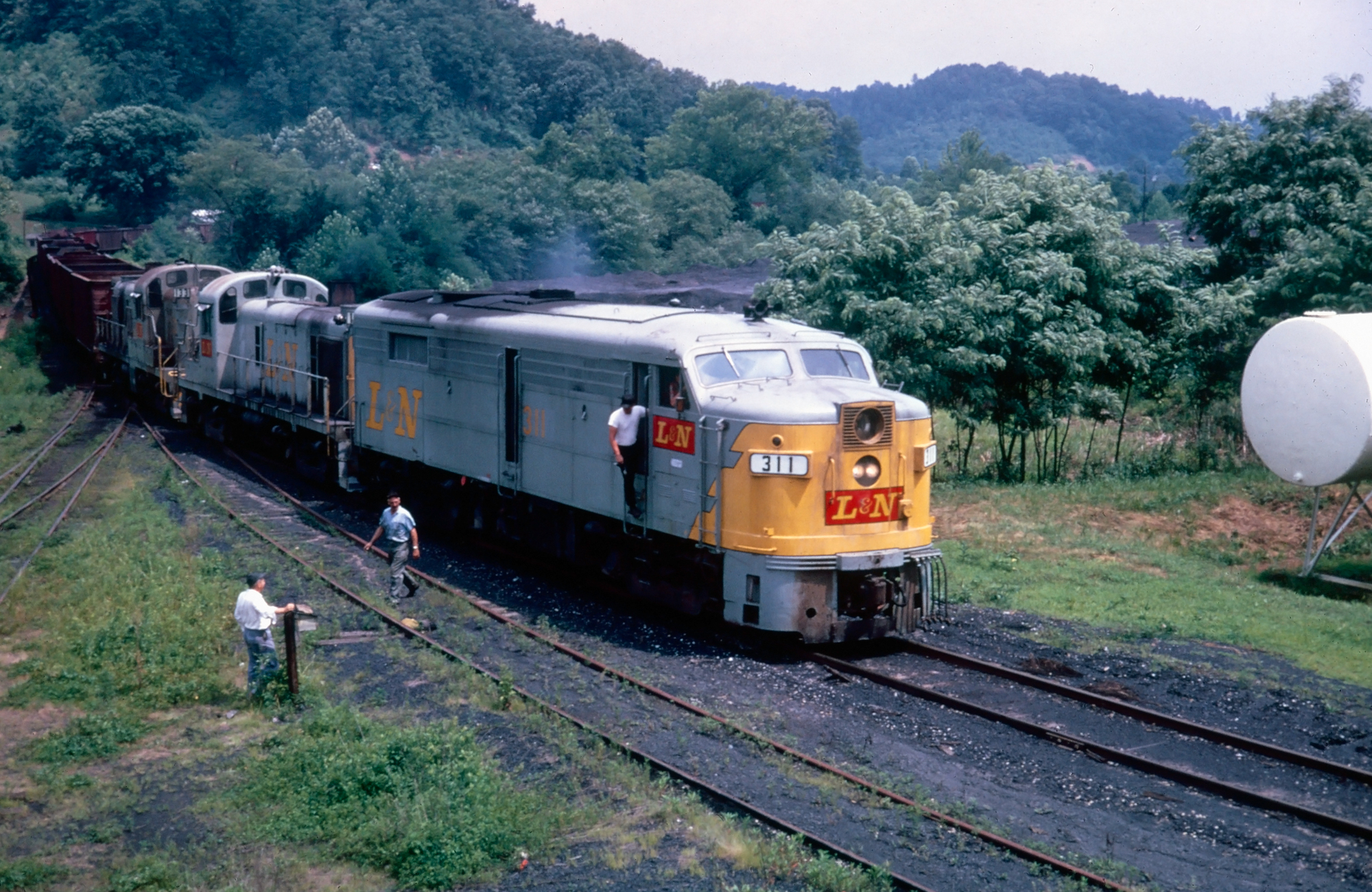

18724124623578238965394768947898.jpgLouisville & Nashville FA-2 #311 and a pair of RS3s appear to be working a loadout along the Cumberland & Manchester Branch near Manchester, Kentucky on July 22, 1969. Photographer unknown. American-Rails.com collection.

History

Kentucky railroads date back to 1830, just three years after our nation's first common-carrier, (Baltimore & Ohio) when the Lexington & Ohio Railroad was chartered to connect Frankfort with Lexington, a distance of about 31 miles.

State Maps

The railroad was able to complete the line by 1834 and by 1851 had connected Louisville along the banks of the Ohio River.

The company would eventually become part of the Louisville & Nashville system and today, its original line is still operating by RJ Corman, a diversified railroad business which owns several short lines in Kentucky, Ohio, West Virginia, Pennsylvania, and other southern states.

Statistics

First Railroad
Lexington & Ohio (1830)
Peak Mileage
3,929 (1920)
Current Mileage
2,583 (2020)
Current Railroads
13
Originated Rail Tons (2019)
27.2 million
Terminated Rail Tons (2019)
21.7 million
Originated Carloads (2019)
402,927
Terminated Carloads (2019)
296,382

Following the completion of the L&O, Kentucky would boast several classic eastern and southern carriers, most of which gained entry or built into the state to tap its rich coal reserves. Even some Midwestern systems reached the state given that the western region of Kentucky was geographically in both the Midwest and South.

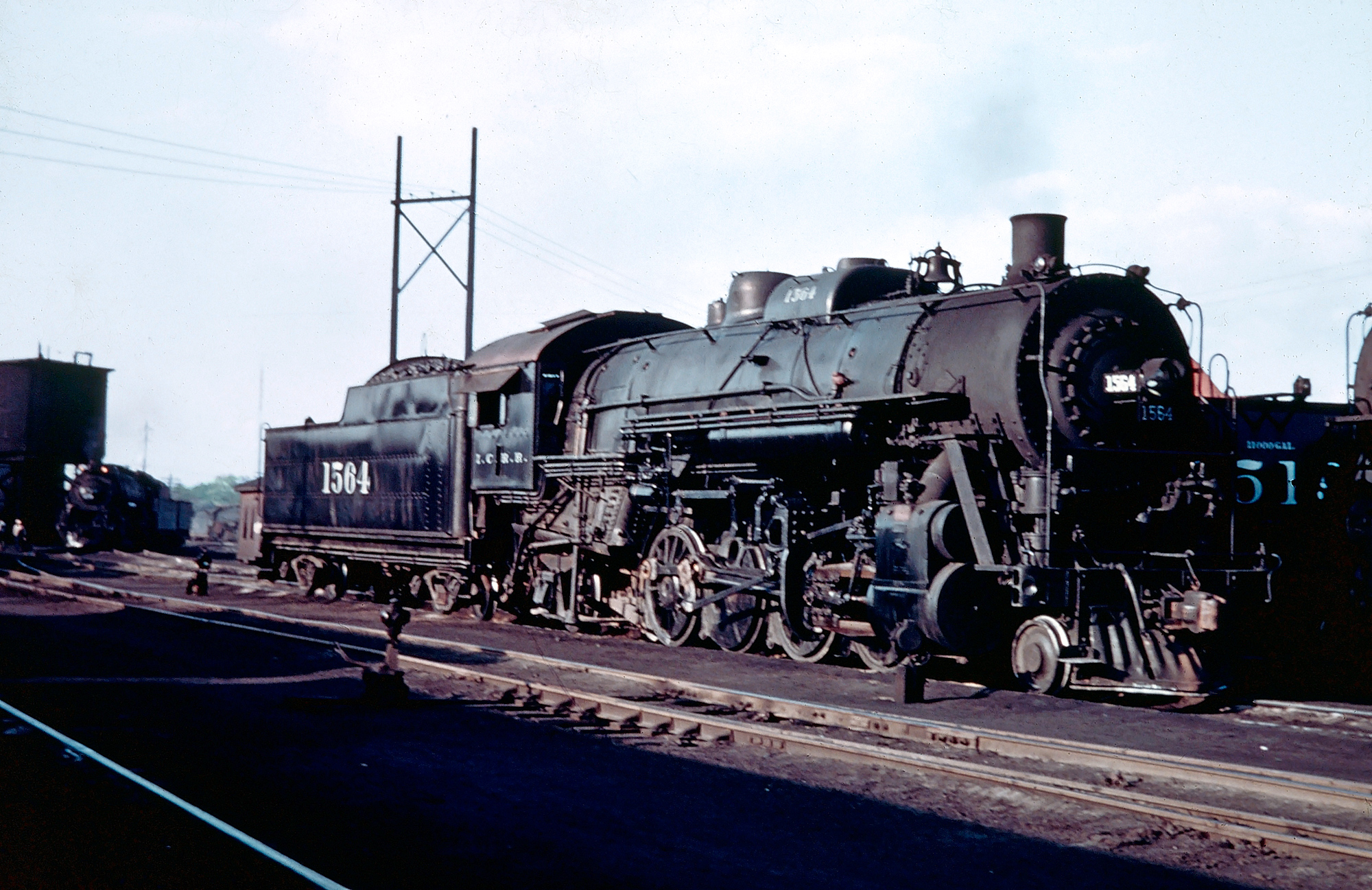

701028341824612761263671582069027.jpgIllinois Central 2-8-2 #1564 in Paducah, Kentucky, circa 1950. The IC was a big proponent of the Mikado design. The railroad owned 605 examples, trailing only New York Central's 1,342 and Baltimore & Ohio's 669 according to SteamLocomotive.com. Fred Byerly photo. American-Rails.com collection.

Today, Kentucky railroads are mostly the domain of Norfolk Southern and CSX mentioned before with CN and BNSF also having a small presence in the state.

While the two eastern Class Is operate Kentucky's east-west main lines they also control several miles of branch and secondary lines to tap coal reserves.

Current Railroads

  • CSX Transportation

  • Norfolk Southern

  • Canadian National

  • Paducah & Louisville

  • Indiana Rail Road

  • Kentucky West Tennessee Railway,

  • Louisville & Indiana Railroad

  • Tennken Railroad

  • West Tennessee Railroad

  • Western Kentucky Railway

  • RJ Corman, Bardstown Line

  • RJ Corman, Central Kentucky Lines

  • RJ Corman, Memphis Line

  • Transkentucky Transportation Railroad

  • West Tennessee Railroad

Today, Kentucky is home to a little over 2,600 miles of track although during the industry's heyday this number peaked to nearly 4,000 miles.

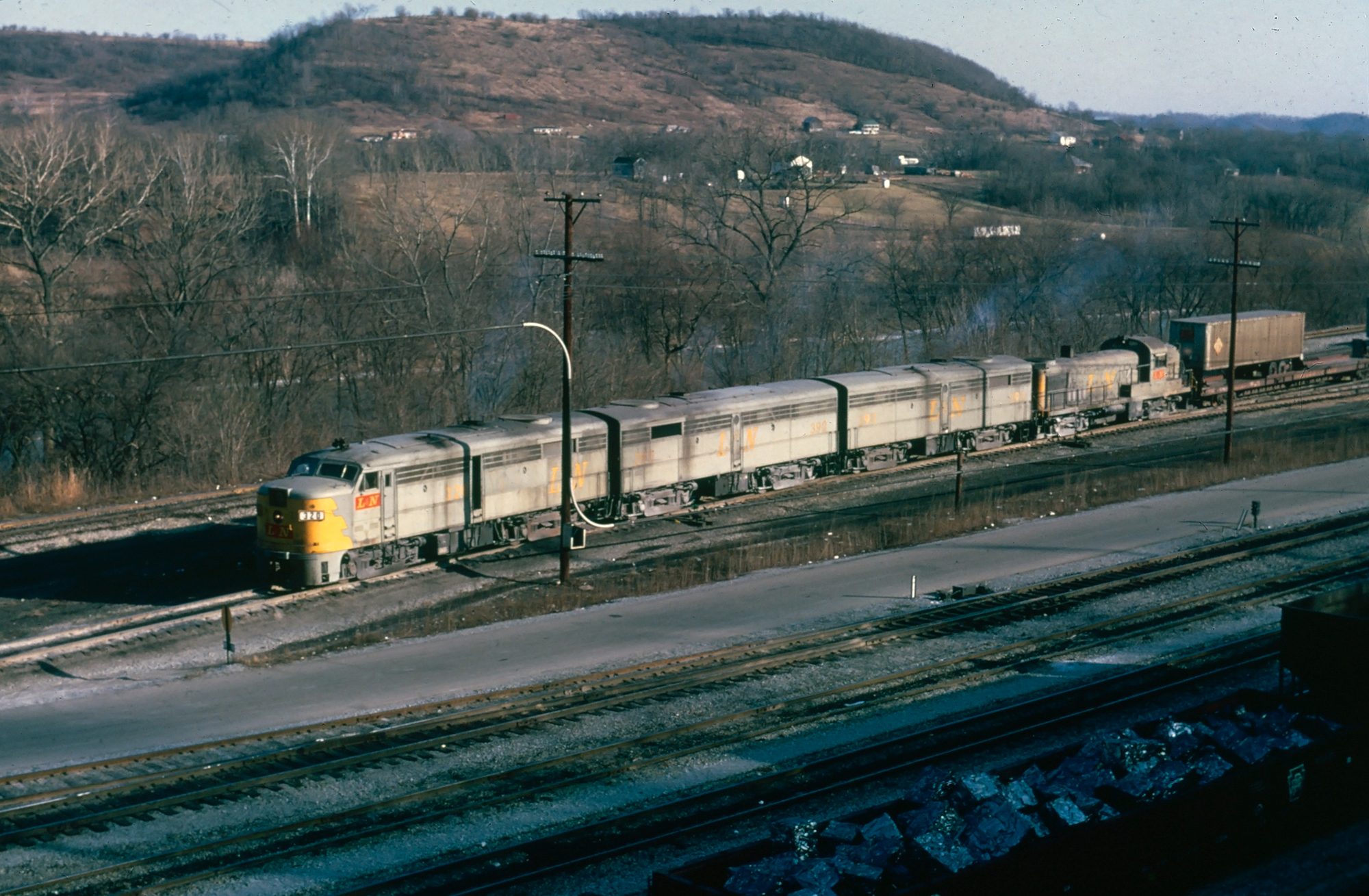

914981236526352387589223769847.jpgLouisville & Nashville FA-2 #320, a pair of FB-2s, and an RS3 lead a northbound freight through the yard at Decoursey, Kentucky on February 11, 1968. Photographer unknown. American-Rails.com collection.

The state has lost over 33% of its all-time infrastructure, a number not considerable terrible when compared to the national average of 50%+.

Many of these abandoned lines were coal branches and secondary corridors; virtually all of Kentucky's through routes remain active and in service.

In any event, for a more in-depth look at Kentucky in regards to its route miles through the mid-19th century to today please refer to the chart below.

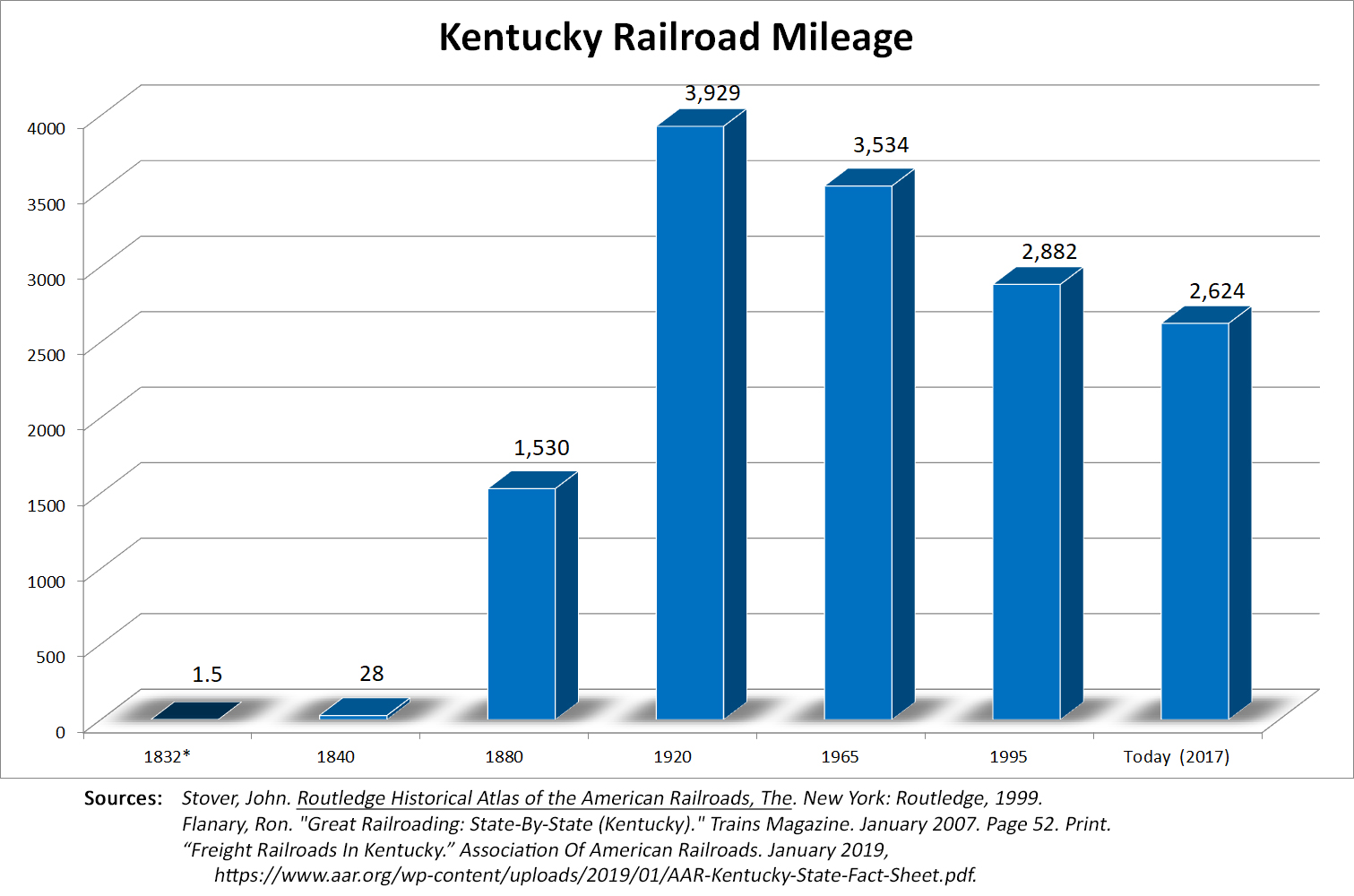

State Mileage Chart

First Railroad

* Kentucky's first railroad was the Lexington & Ohio, incorporated on January 27, 1830.  The book, "The Lexington & Ohio Railroad, A Pioneer Venture," written by T.D. Clark in 1933, notes the L&O's was projected to link "...Lexington to one more more points on the Ohio River, these to be selected by the president and board of directors."

In the end, the leaders decided on a route of 92.86 miles reaching Louisville via Frankfort.  Construction on the first 15 miles began with a ceremony of Federal guns being fired in honor of the endeavor on October 22, 1831.

Following a great deal of work the initial 1.5 miles was opened on August 15, 1832 when horse-drawn car, carrying 40 dignitaries, left the upper end of the lower market house in Lexington.  The line was built with iron stringers from Messrs. Alex Brown & Sons of Baltimore, Maryland, which imported them from England.

The 420 tons were shipped to New Orleans and then via river.  In this early period, the modern wooden cross tie had not yet been invented and so engineers utilized heavy limestone stringers.  By March, 1833 six miles were opened and within a year 29 miles were completed to Frankfort.

In 1835 the railroad's first steam locomotive, named "Daniel Boone," was placed into service and the company finally reached Louisville in 1851 thanks to state intervention.  The L&O would go on to join the Louisville & Nashville system.

Passenger trains like the IC's City of New Orleans, C&O's George Washington, and L&N's Pan-American no longer operate through Kentucky, at least by these former railroads.

Today, Kentucky's passenger rail system is operated by Amtrak and includes the tri-weekly Cardinal between Chicago and Washington, D.C., and the City of New Orleans between Chicago and New Orleans.


Abandoned Lines

Kentucky has not been affected by major abandonment of its rail network; the state has only lost about 1,600 miles of track.

A significant percentage of this was coal branches and agricultural stub-end spurs.  The state also contained its share of logging railroads, both privately operated and common-carriers.

The most significant route removed through Kentucky was Chesapeake & Ohio's Lexington Subdivision.  This line provided the C&O with through service from its main line at Ashland to Louisville, due west.

With CSX Corporation's formation in 1980 the new conglomerate began significant rationalization of its network that decade (particularly the Baltimore & Ohio) and removed most of this line.

Another interesting abandoned line was the Frankfort & Cincinnati.  It was famously known as "The Whiskey Route" for the many distilleries it served between Frankfort and Paris.

The railroad never reached anywhere near Cincinnati as intended but remained in operation until 1985 when remaining business played out.

You can still spot various segments of the right-of-way today (abandoned in segments over the years) if you know where to look.  It was a bucolic route that traveled through some beautiful parts of Kentucky.


You can learn more about the streamliners that operated through Kentucky by clicking here to visit the section of the website here covering many, including the ones mentioned above.


Kentucky & Tennessee 2-8-2 #11 at Stearns, Kentucky, circa 1960 (one of four Mikados the coal hauler owned). Fred Byerly photo. American-Rails.com collection.

Freight and passenger railroads aside, Kentucky is also home to a number of railroad museums and excursion trains, like the RJ Corman-owned My Old Kentucky Dinner Train based in Bardstown.

These include, Big South Fork Scenic Railway, Bluegrass Railroad Museum, Kentucky Central Railway, Kentucky Railway Museum, Paducah Railroad Museum, and the Railway Museum of Greater Cincinnati.

All in all Kentucky railroads have plenty to offer, whether you are a vacationer, railfan, or maybe even a Bluegrass local interested in some sightseeing or something to do!
