Milwaukee Road's Pipestone Pass


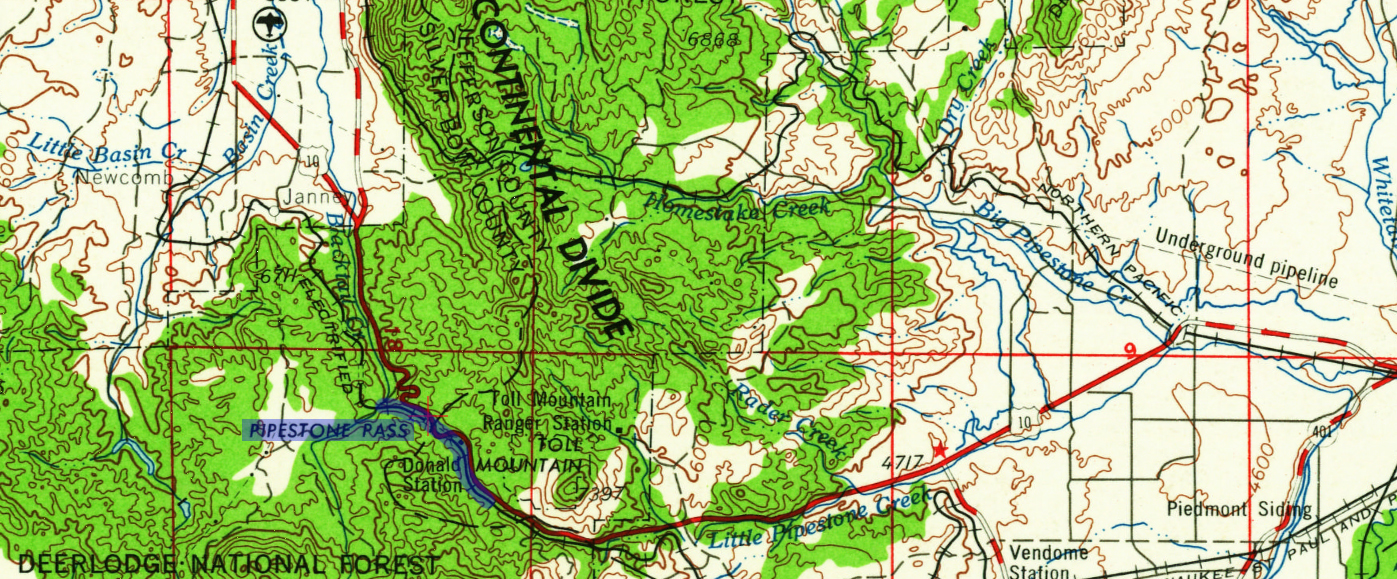

Another of the many impressive engineering feats accomplished during the construction of Milwaukee Road's Pacific Coast Extension was its crossing of the Continental Divide at Pipestone Pass.  This natural corridor was situated along the Rocky Mountains' eastern foothills within a range known as the Pioneer Mountains. The pass was not far from the Jefferson River Valley, enabling engineers to keep grades relatively reasonable.  Heading west, the grade split away from the river near rural Piedmont and headed in a straight tangent before turning abruptly north towards the mountains.  It is here where the railroad left the valley and engineers completed one of the West's most impressive Horseshoe Curves, Vendome Loop.

Today, like the loop Pipestone Pass Tunnel remains quiet as trains have not traversed the route in more than 30 years.  The needed elevation allowed grades to be kept relatively manageable as the alignment continued northwesterly and eventually reached Pipestone.  Sadly, today the right-of-way is little more than a scar on the landscape, flanked by Route 2, a two-lane highway.

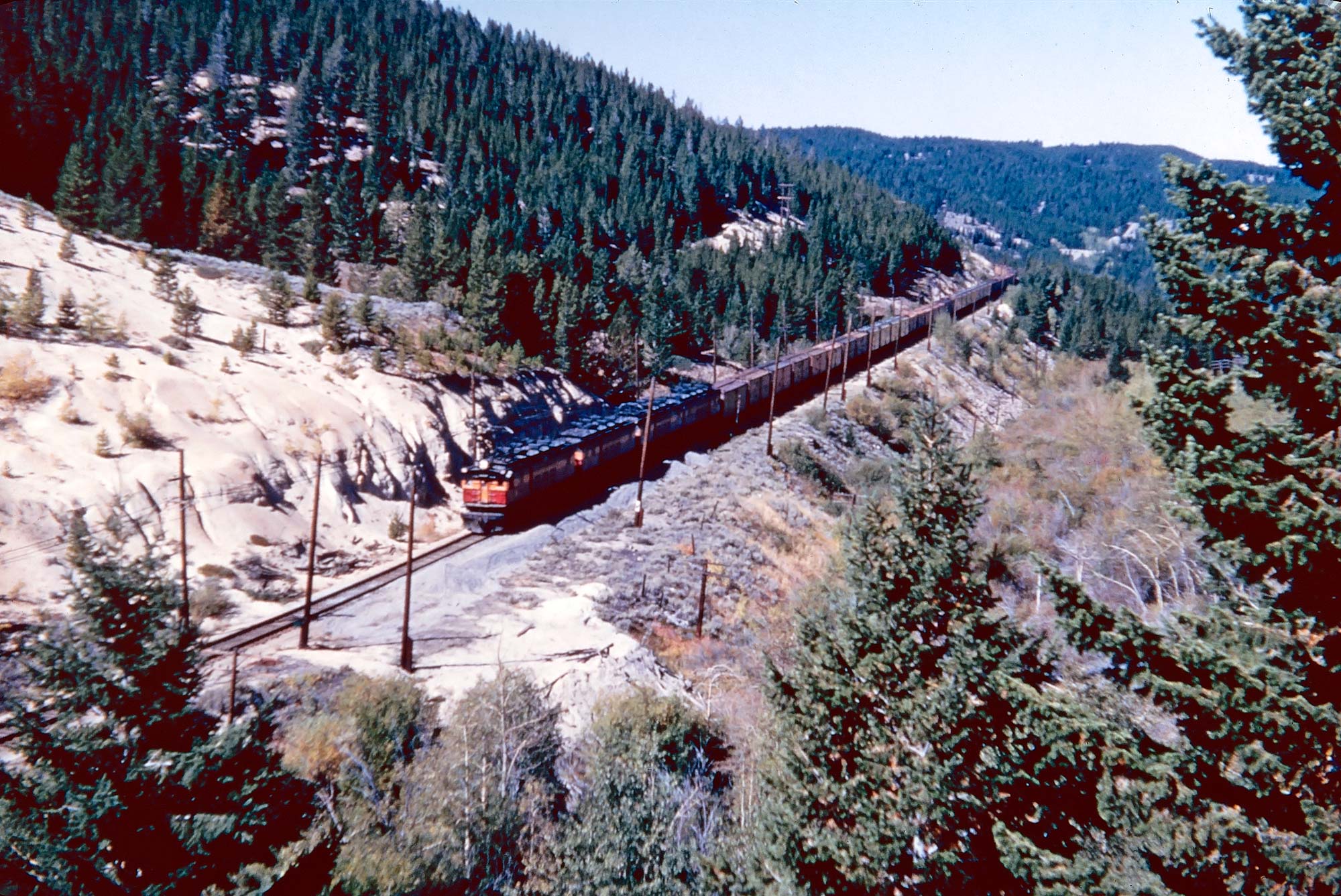

A pair of Milwaukee Road "Erie-Builts," products of Fairbanks-Morse, have train #16, the eastbound "Olympian Hiawatha" (Seattle - Chicago), under the wires of the Rocky Mountain Division on Pipestone Pass above Butte, Montana on June 24, 1949. Today, it's difficult to tell a railroad was ever here. Otto Perry photo.








Few rail lines, let alone railroads, have garnered such interest, intrigue, and awe as the Chicago, Milwaukee, St. Paul & Pacific Railroad's Pacific Coast Extension, even 30 years since it was abandoned. Unfortunately, the best engineered rail line through the rugged Cascades could not save it from the inept decision making of management at the time and it is now but weeds and trails, a vital transportation artery no longer available to shippers and the American economy.  In 1901 the first surveying work began and it was estimated the more than 1,400-mile western extension would cost the railroad around $45 million adding more than 25% to its total system mileage.

A look at a silent Pipestone Pass Tunnel taken from the speeder used by Alan Freed and Chuck Bothwell during August of 1980 shortly before the rails were removed. To view more photos please click here.

However, four years later this number was readjusted to $60 million. What made the extension so terribly expensive was partly due to the right-of-way costs. Unlike the GN and NP the CM&StP was not given free government land grants and had to both purchase all of its land from private landowners as well as take over a number of small, new, or floundering railroads across the region. Amazingly, in just three short years the entire extension had been completed and on May 19, 1909 a Golden Spike was driven at Garrison, Montana commemorating the opening of the new route.

Inside Pipestone Pass Tunnel, heading west, during August of 1980. The only bore over the pass it was more than 1,500 feet in length. Alan Freed photo.

The Pipestone Pass Tunnel was part of one of many segments engineers and planners split the Pacific Coast Extension into during surveying so as to construct the route as fast as possible (all over the states of Montana, Idaho, and Washington parts of the line were being built simultaneously). The pass and Continental Divide were less than ten miles south of Butte, Montana and along with the route's close proximity to the Northern Pacific Railway's main line helped immensely in moving men and material to the site quite quickly and easily.  Survey work on this section of line between Lombard and Butte began in 1904 with surveyors determining that the lowest grade route over the Pioneer Mountains was through Pipestone Pass at the Continental Divide.

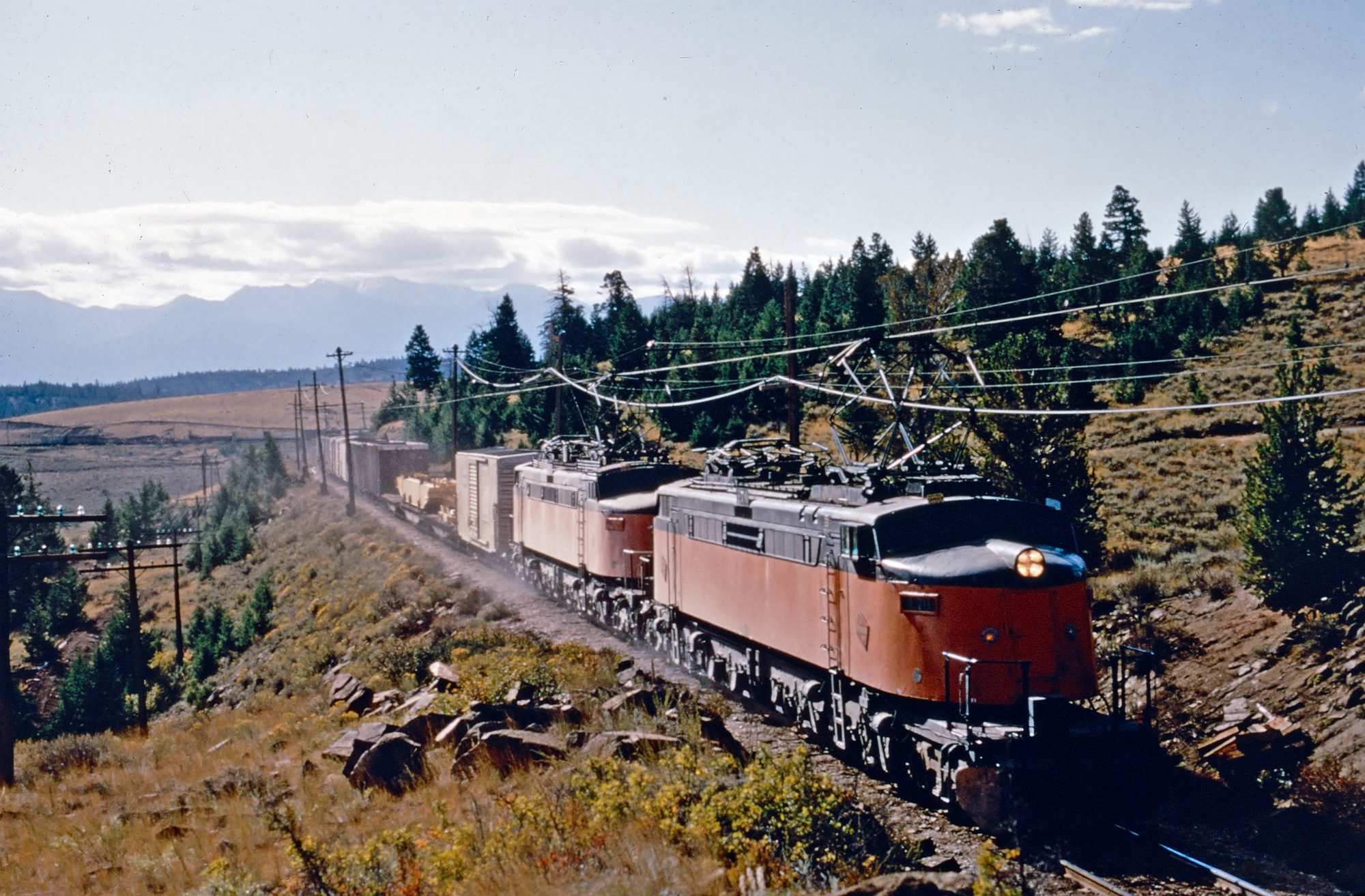

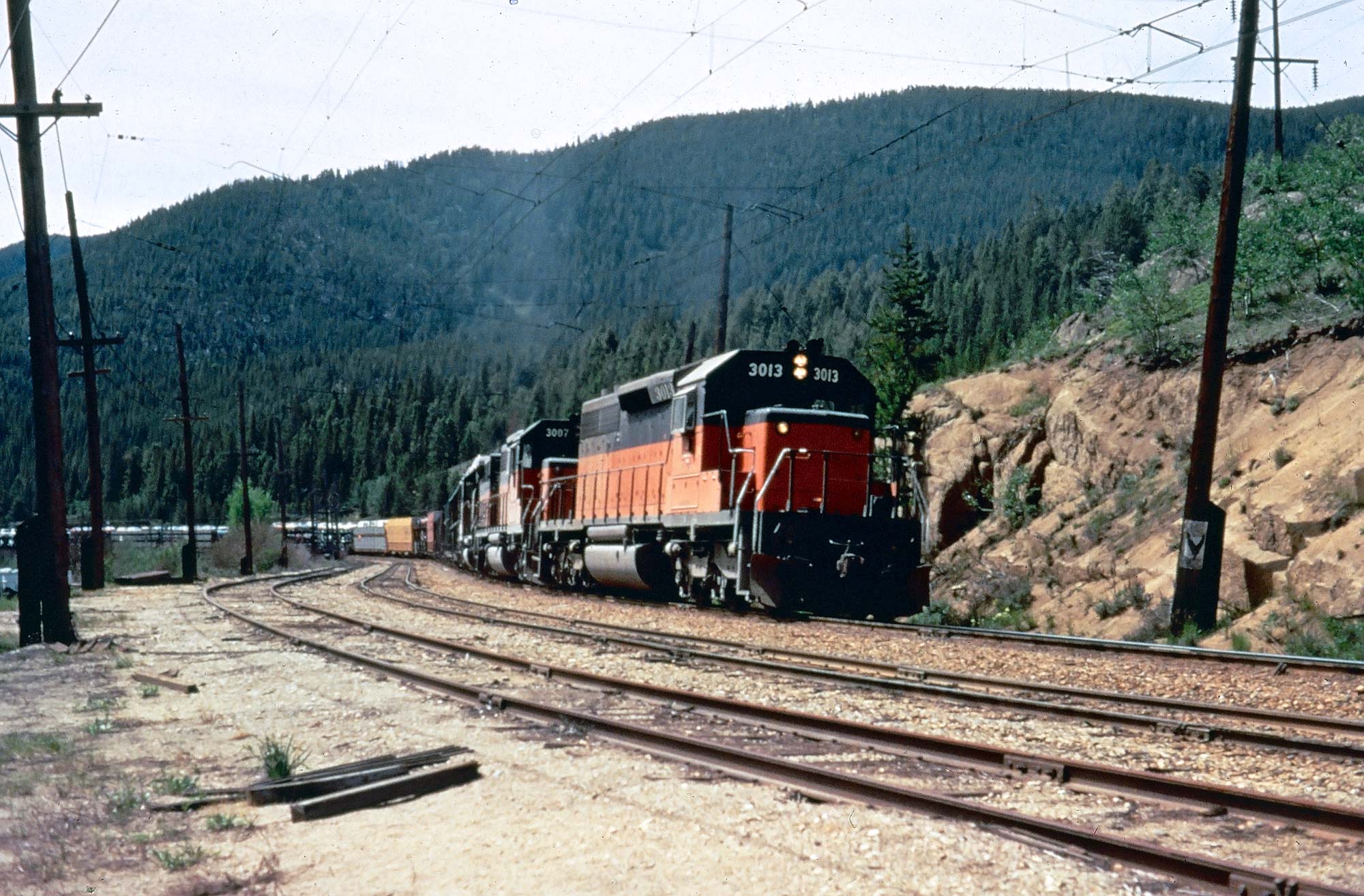

Milwaukee Road "Little Joe's" have what is likely either eastbound time freight #264 or #266 near Newcomb, Montana as they begin their climb over Pipestone Pass on September 8, 1973. Bruce Black photo.

Tunnel Specifications

Tunnel Number Milepost Height Width Length
#111505.518'-9"15'-2"2,290 Feet

Construction of the tunnel and right-of-way was carried out by the McIntosh Bros. and by 1908 a temporary line had been completed between Three Forks and Butte although the tunnel itself was yet to be completed making for a tortuous climb over Pipestone for about a year. However, the work was not easy. Loose and solid granite rock along the way made grading very difficult resulting in the route's opening being slightly delayed and costing more than anticipated. The tunnel, officially known as #11 on the Milwaukee Road and located at Milepost 1505.5, itself was completed and opened in 1909 (general boring and drilling had been completed during 1907 and 1908).



Blacktail Viaduct, just west of the Pipestone Pass Tunnel, is seen here in August of 1980. Alan Freed photo.

By the early 20th century most railroad tunneling projects were being constructed entirely of concrete to reduce maintenance costs and increase strength and Pipestone Pass Tunnel was no different (actually, all of the tunnels along the Pacific Extension were built this way). The tunnel sat an elevation of 6,347 feet and was about a half-mile in length at 2,290 feet. Overall, the route between Butte and Three Forks through the mountains ranged in grade from 1.66% to 2%, which was quite good considering roughly ten miles east of the tunnel the mountains drop away to Jefferson River Valley. To keep the grade manageable engineers and surveyors designed the impressive 3-mile Vendome Loop.
