West Point Route (Railroad): Map, History, Logo

Last revised: August 23, 2024

The West Point Route was a fondly remembered southern system which connected Atlanta with Montgomery, Alabama.

The name itself was actually a marketing term only used by the Atlanta & West Point (A&WP) and Western Railway of Alabama (WRoA).

The two companies met at West Point, Georgia and for many years were under the Georgia Railroad & Banking Company's control, which connected Atlanta with Augusta and Macon.

All three got their start handling agricultural-related traffic, transitioned to manufacturing and merchandise, and then spent later years as successful bridge lines.

From an early period they were jointly owned by the Louisville & Nashville and Atlantic Coast Line, remaining subsidiaries until the 1980's.

History

During a flurry of mergers beginning in the 1960's their identity slowly disappeared. First, the Seaboard Coast Line was created and then all railroads under SCL's control fell under the marketing name, "Family Lines System."

Finally, they vanished into the Seaboard System and CSX Transportation. Today, the West Point Route continues to play an important role under CSX.

Photos

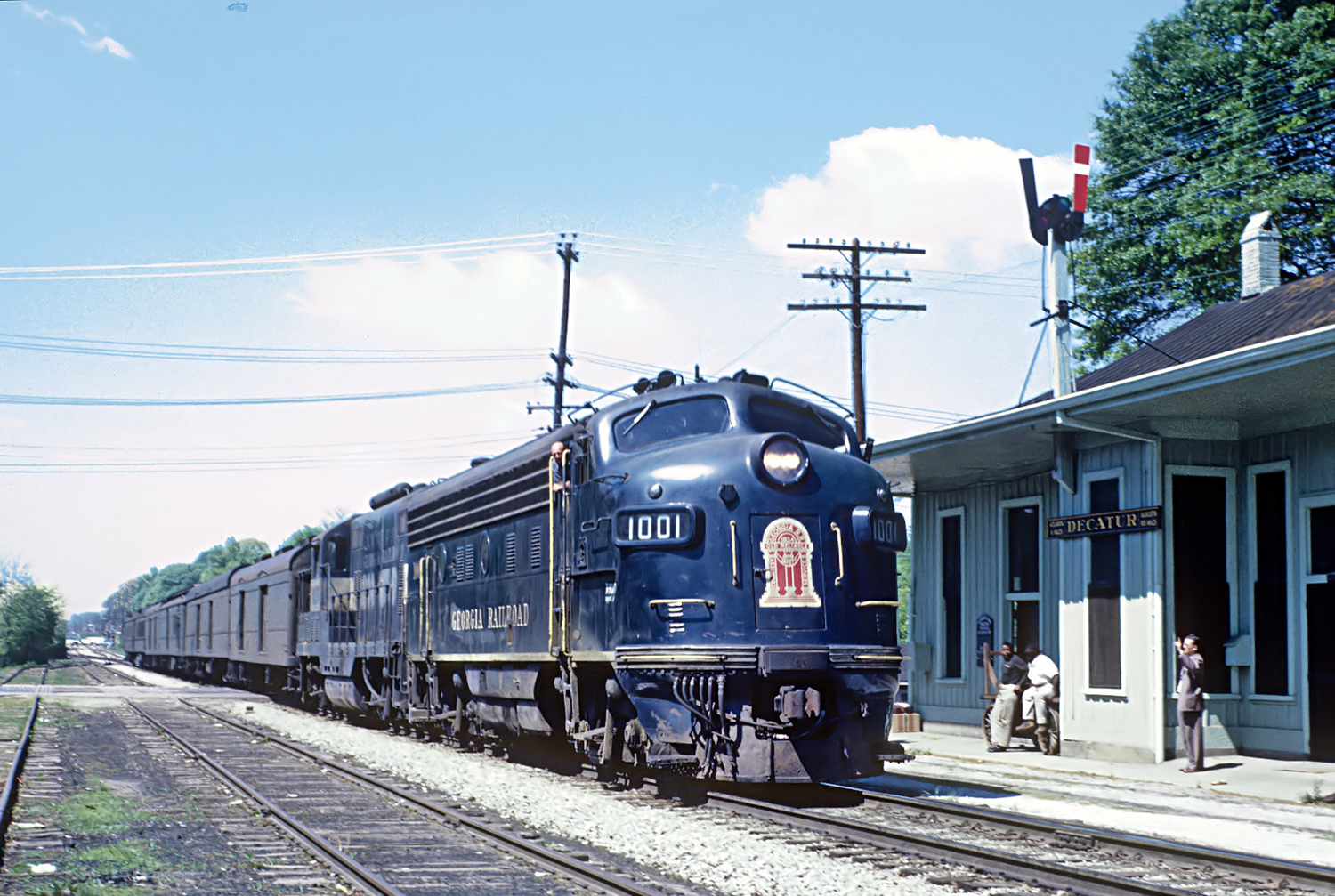

Georgia Railroad F3A #1001 wears a new paint scheme as it arrives in Decatur, Georgia with train #2 on April 13, 1963. Roger Puta photo.

Georgia Railroad

The history of the West Point Route is one of struggle, perseverance, and eventual success. The Georgia Railroad was technically not part of the West Point Route although as the long-time owner a brief history will be provided here.

Its ancestry begins on December 21, 1833 when the Georgia Railroad Company was chartered to build a new line from Augusta to Athens. Only a day earlier the Central Rail Road & Canal Company had been born through Savannah interests to construct their own line westward towards Augusta.

In time this future rival became the Central of Georgia Railway and blossomed into a profitable 1,500+ mile network connecting Savannah, Atlanta, Athens, Chattanooga, Montgomery, Birmingham, and other points.

At Augusta, construction of the Georgia Railroad began in 1835 and only a year later the corporate name was changed to the Georgia Rail Road & Banking Company. During December of 1841 the original route to Athens opened, built to the South's standard 5-foot broad gauge.

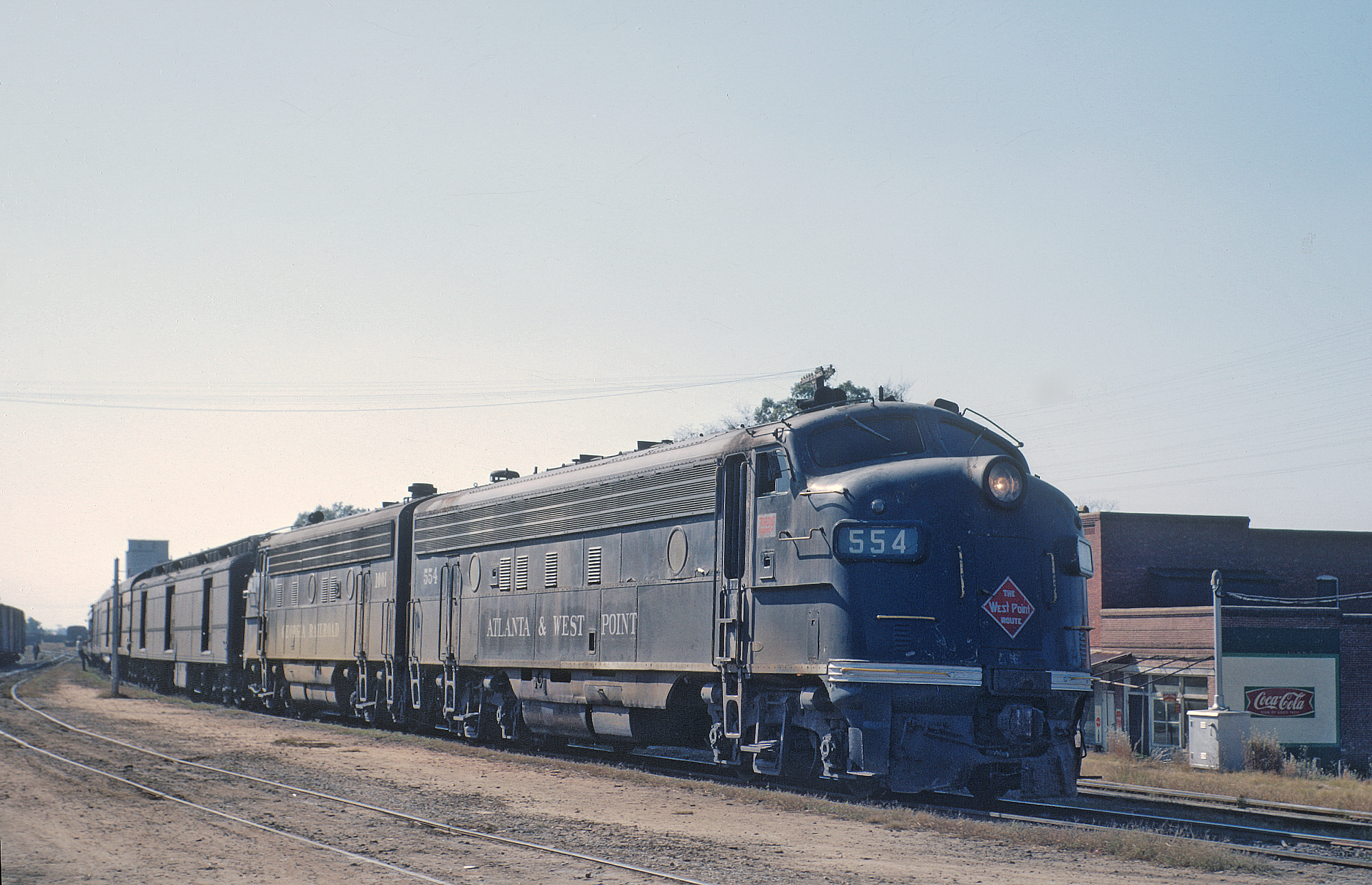

Atlanta & West Point FP7 #554 has Georgia Railroad's eastbound train 2 (Atlanta - Augusta) at Camak, Georgia in October, 1967. Roger Puta photo.

Expansion

It was not long before a westward extension towards Atlanta was eyed. This new city literally grew from nothing. It all began with the Western & Atlantic's chartering in late 1836 to connect Decatur with Chattanooga, Tennessee.

Surprisingly, the former town did not want a railroad and so the W&A's southern terminus was moved a few miles to the southwest at a location known simply as "Terminus."

It became Marthasville in 1843 (according to Dain Schult's book, "Nashville, Chattanooga & St. Louis: A History Of 'The Dixie Line'," the town was named after former Georgia governor Wilson Lumpkin's daughter, Martha) and then Atlanta in 1847.

In 1845 the Georgia Railroad opened its own line to the town, followed by the Macon & Western (Central of Georgia) on September 4, 1846. In short order the railroad was a financial success and one of the South's better systems entering the Civil War.

It suffered considerable damage by Union forces during the conflict's latter years, particularly during General Sherman's "March To The Sea." Afterwards the line was quickly rebuilt and before long was again expanding. In 1867 it leased the Macon & Augusta which was attempting to complete a connection with the Georgia at Warrenton.

The Georgia Railroad logo.

The 78-mile branch was finished in 1873 and established through service from Camak, along the Georgia's main line, to Macon. This was largely the extent of the Georgia's system. Further growth came through acquisition.

As Richard Prince's book, "Central of Georgia Railway And Connecting Lines" notes, in 1875 the Georgia Rail Road & Banking Company, in conjunction with the Central Rail Road & Banking Company Of Georgia, jointly leased the Western Rail Road of Alabama.

This system offered through service to Montgomery and Selma, Alabama via West Point where interchange was carried out with the Atlanta & West Point (the A&WP was already a Georgia Railroad subsidiary). It was then reorganized as the Western Railway of Alabama and remained a partnership venture for nearly twenty years.

In 1881 half the Georgia and its subsidiaries were leased to the Louisville & Nashville while the Central Rail Road & Banking Company Of Georgia picked up the other half.

During the Panic of 1893 the Central failed, which allowed the L&N to acquire its half-interest. In 1902 the Atlantic Coast Line took control of the L&N and from that point forward the Georgia remained a subsidiary of much larger railroads.

Western Railway of Alabama GP7 #523 works freight service at Opelika, Alabama as GP9 #531 leads train #37, the "Crescent," in February, 1968. Rick Burn photo.

Western Railway Of Alabama

The Western Railway of Alabama (WRoA) traces its heritage back to the Montgomery Rail Road Company chartered on January 15, 1834.

Robert Hanson's book, "The West Point Route," points out that it was envisioned to construct a new line from Montgomery to just across the Georgia state line at West Point along the Chattahoochee River.

During 1835 and into 1836 the line's survey work was completed while actual construction commenced on March 1, 1836. In June of 1840 the first 32-mile section opened from Montgomery to Franklin.

Almost immediately the railroad ran into trouble as it struggled to earn sufficient revenue to cover expenses. It was subsequently sold at foreclosure on July 9, 1842 and a new company chartered on February 13, 1843.

Known as the Montgomery & West Point Rail Road (M&WP), at first it too experienced difficulties as it attempted to corral funding for the line's completion.

Eventually, these efforts paid off with rails opening to Opelika in 1848 and finally West Point on April 28, 1851. The latter town became the interchange point with the Atlanta & LaGrange, predecessor to the Atlanta & West Point, when it reached there in 1854.

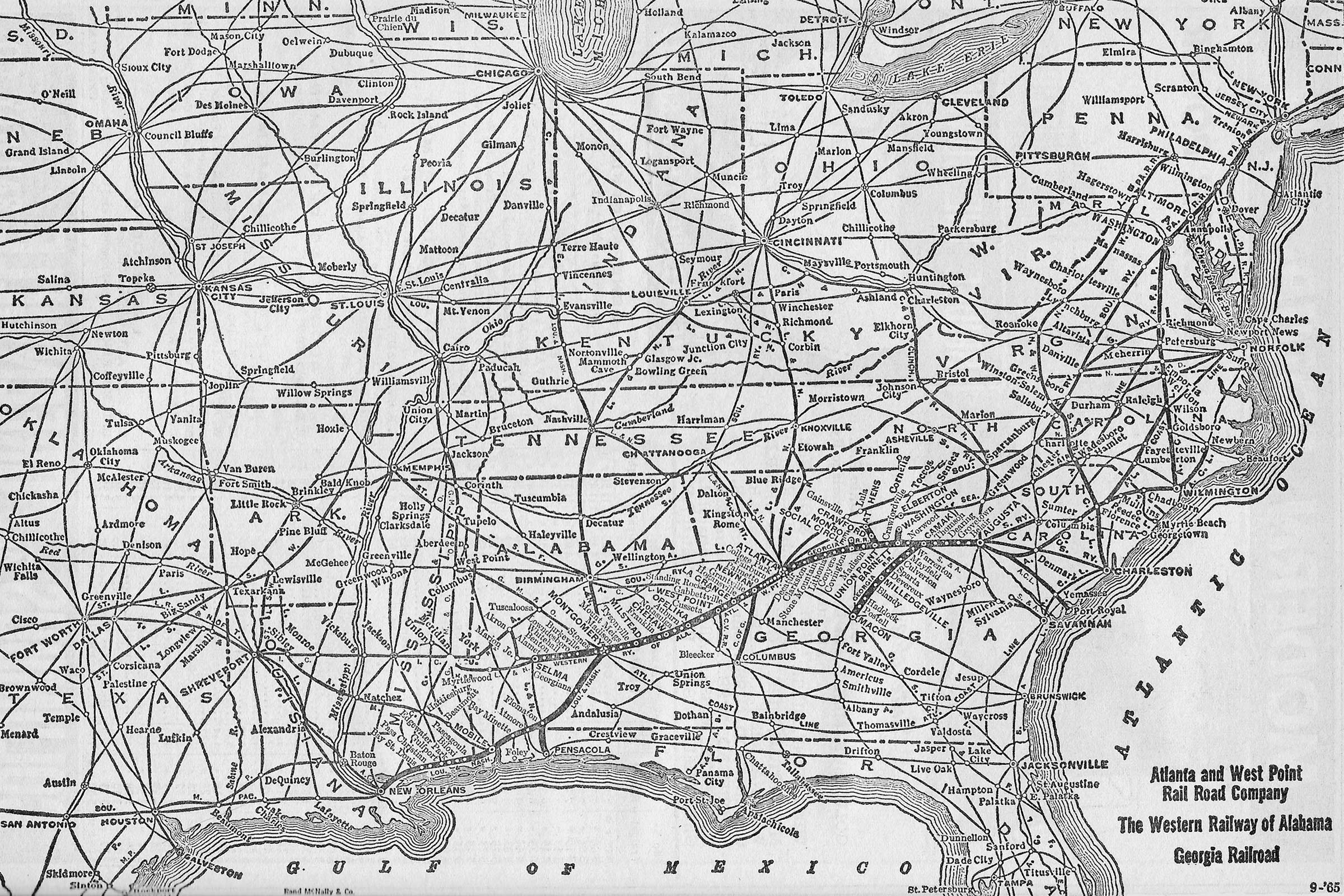

A 1969 system map of the "West Point Route," showing all three railroads; the Atlanta & West Point, Western Railway Of Alabama, and Georgia Railroad. Author's work.

Little additional growth occurred although it did add one notable branch, a 29-mile extension from Opelika to Columbus, Georgia which opened in 1855.

The railroad was spared the worst of the Civil War until July of 1864 when it was damaged by Union forces between Opelika and Chehaw as well as along its Columbus Branch.

More extensive destruction was carried out in April of 1865. After the war M&WP forces worked quickly on repairs and finally had the entire railroad back in service by August 29th that year.

They also re-gauged the property from 4 feet, 8 1/2 inches to 5 feet. On September 1, 1870 the M&WP merged with the Western Rail Road to form the Western Rail Road Company of Alabama.

Just a few months later, in December, rails were pushed westward from Montgomery to Selma. Financial trouble found the road following the Panic of 1873 and it failed on April 1, 1874. A year later, on June 1, 1875, it was taken over in a joint agreement between the Central Rail Road & Banking Company Of Georgia and Georgia Railroad & Banking Company.

In corporate maneuverings carried out by the new owners the Columbus Branch was acquired by the Central Rail Road and the Western Railway of Alabama was chartered on March 15, 1883 to operate the assets of the Western Rail Road Company Of Alabama.

The use of broad gauge throughout the South lost its luster by century's end as railroad after railroad switched to the standard width of 4 feet 8 1/2 inches. The WRoA at first changed to 4 feet, 9 inches in the spring of 1886 and then soon afterwards reduced this by a half-inch more.

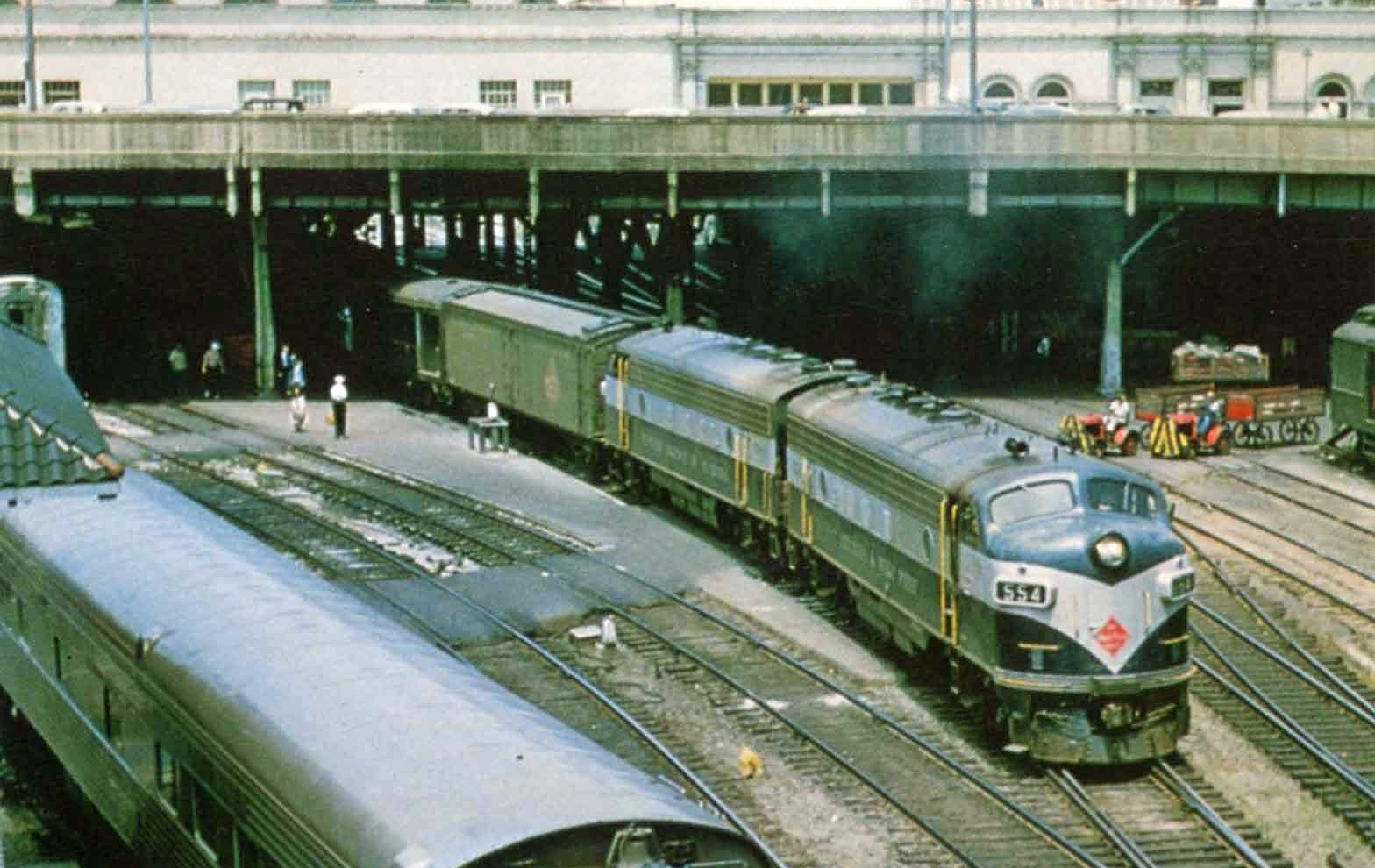

Atlanta & West Point (West Point Route) FP7 #554 departs Atlanta Terminal Station with Southern's "Crescent Limited" (New York-Washington-Atlanta-Montgomery-New Orleans) in 1957. Howard Robins photo.

Atlanta & West Point Railroad

The eastern component of the West Point Route was the Atlanta & West Point (A&WP). Its history begins on December 27, 1847 with the chartering of the Atlanta & LaGrange Rail Road.

The state stipulated it was to connect with the Macon & Western "somewhere near Atlanta" and run westward to the state line at LaGrange.

Built to 5-foot, broad gauge construction began during the fall of 1849 from the M&W connection at East Point and by March of 1851 had opened 18 miles to Palmetto.

By September, rails reached Newnan and just over a year later, in February of 1853, trains were rolling into LaGrange. The project had been largely funded by the Georgia Railroad & Banking Company and as a result it did not suffer from the financial shortfalls experienced by its western counterpart.

With an amendment to the charter it completed a final extension to West Point (80 miles in all) which provided a partial interchange with the Montgomery & West Point.

However, through service could not be established due to the gauge differences at that time. On December 22, 1857 a name change took place and the corporation became the Atlanta & West Point Rail Road.

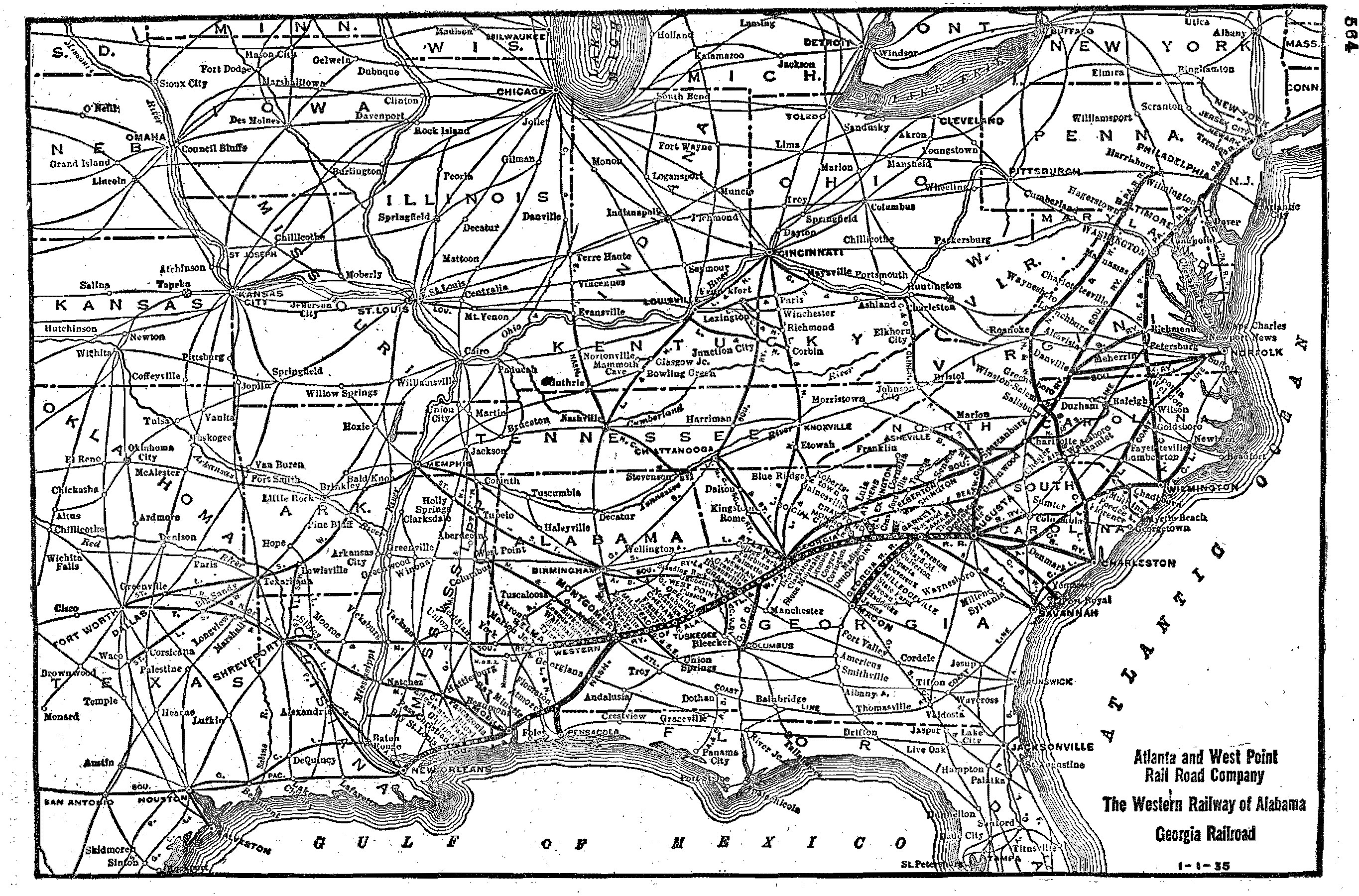

System Map (1965)

An official, 1965 system map of the West Point Route railroads. Author's collection.

Like the Montgomery & West Point the A&WP mostly avoided Union incursions until 1864 when General Sherman's advancing forces caused extensive damage to its network with losses totaling more than $1.6 million. Within short order, however, it too got back onto its feet and was reporting net earnings by 1866.

As mentioned above things remained unchanged from a corporate standpoint until the 1881 agreement whereby the Georgia and its subsidiaries were leased to the Louisville & Nashville and Central Rail Road & Banking Company Of Georgia.

With the Central's financial collapse following the Panic of 1893 the L&N acquired its half-interest. In 1902 the Atlantic Coast Line took control of the L&N. There remained a series of additional corporate changes to take place before the final, modern version of the West Point Route was born.

The first had occurred in March of 1883 when the WRoA and A&WP came under common management. For many years the two roads had used the marketing slogan "Atlanta and New Orleans Short Line" in an appeal to draw in potential new business. In 1896 they introduced the moniker within a diamond logo.

Another slight change took place in 1902 when it was changed to "The West Point Route." Just as the WRoA had done, the A&WP's gauge was changed from 5-foot broad gauge to 4 feet, 9 inches in the spring of 1886 and then soon afterwards reduced to 4 feet, 8 1/2 inches.

Logo

The West Point Route logo. Author's work.

The West Point Route

Into the 20th century the 225-mile West Point Route (A&WP and WRoA) fared relatively well. Throughout the years passenger business played an important role although not necessarily always a profitable one. On May 14, 1905 the beautiful Atlanta Terminal Station opened, replacing an earlier facility that was cramped and outdated.

Prior to construction the project was originally owned by the Southern Railway and Central of Georgia through new subsidiary Atlanta Terminal Company created in early 1903. Before long, the Atlanta & West Point had also acquired a one-third interest and the three maintained joint-ownership until the facility was razed in the early 1970's.

At A Glance

Headquarters	Atlanta, Geori
States Served (Before 1964 Acquisitions)	Georgia, Alabama
Dates Of Operation	1902 - January 1, 1983
Formation Date	1902
Route Miles (1952)	317 (Georgia Railroad) 225 (Atlanta & West Point and Western Railway of Alabama)
Track Gauge	4 Feet, 8 ½ Inches
Principal Lines (Georgia Railroad)	Atlanta - Augusta, Georgia Augusta - Macon, Georgia Augusta - Athens, Georgia
Principal Lines (Atlanta & West Point)	Atlanta - West Point, Georgia
Principal Lines (Western Railway of Alabama)	West Point - Selma, Alabama
Slogan	The West Point Route
Reporting Mark	GA, AWP, WRA
Successor	Seaboard System

The station was designed by P. Thornton Marye featuring two grand spires bracketing the headhouse. Over the years it also saw use by the Seaboard Air Line and Atlanta, Birmingham & Atlantic.

During the facility's peak years it witnessed more than eighty trains per day including such names as the Crescent, Man O'War, Ponce de Leon, and Nancy Hanks.

Into the 1920's the railroads acquired new locomotives and completed the installation of automatic block signals (1922), a project that helped improve freight business. Following the Great Depression and through the early 1930's the A&WP and WRoA struggled to remain solvent.

Prior to the market's collapse they netted a combined profit of more than a half-million dollars and then recorded losses of the same by 1932. Within a few years the roads had turned a corner and were showing a profit once more by 1936, having avoided bankruptcy.

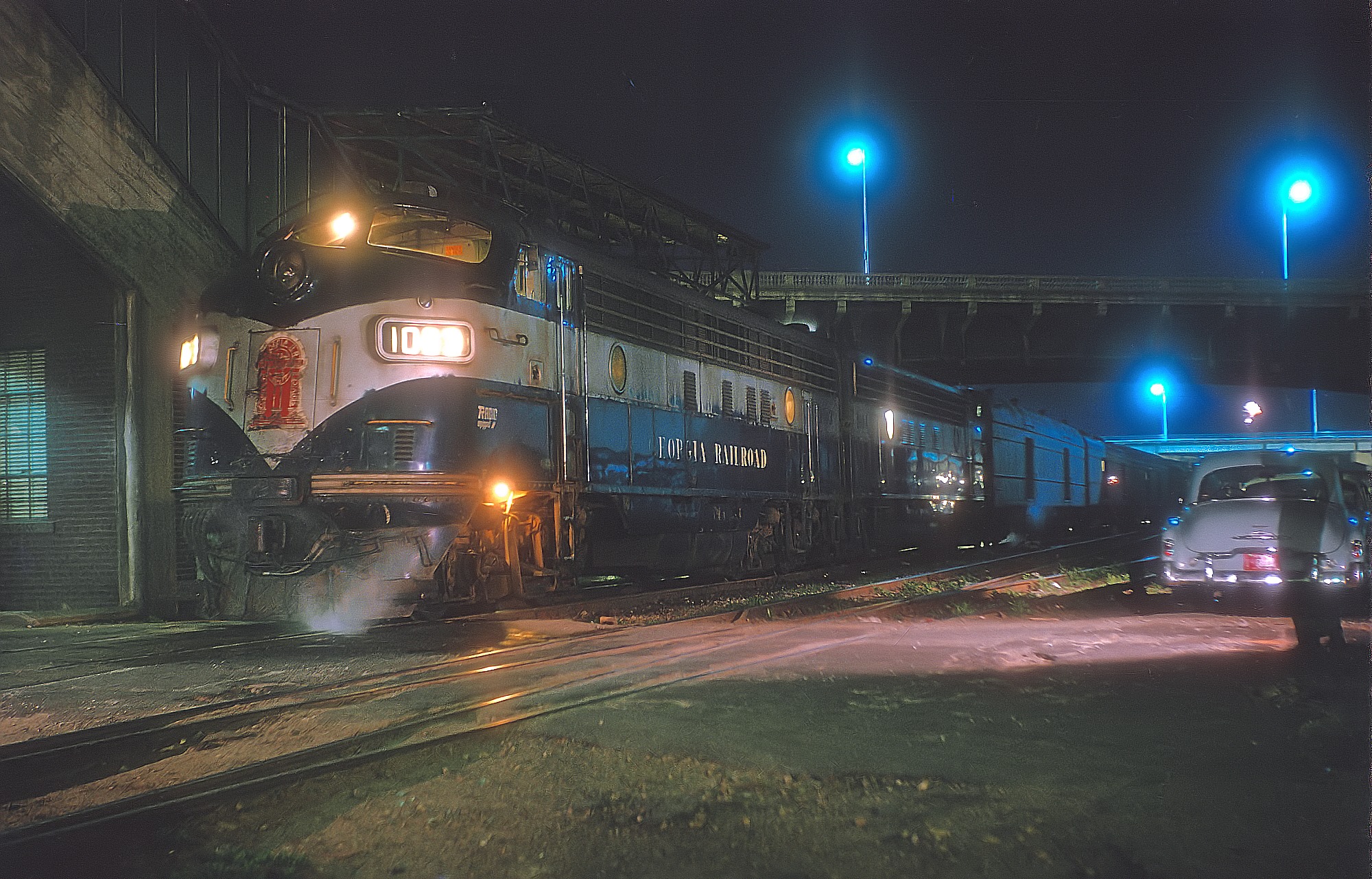

Georgia Railroad FP7 #1003 has Train #4 (Atlanta-Augusta) at Atlanta Terminal Station in April, 1963. Rick Burn photo.

By World War II business of all types was soaring which necessitated purchasing additional locomotives. In 1945 the roads reported a profit of more than $700,000.

As Joseph Sadler notes in his article, "West Point Route" from the June, 1943 issue of Trains Magazine freight business by this time was 90% through traffic with just 10% originating online. Diesels also arrived in the postwar years beginning in May of 1948 when F3A #501 was delivered to the WRoA.

New units continued to roll in until steam had been retired completely by July 1, 1954. Most power was from Electro-Motive but all three roads did purchase a few Baldwin switchers. The locomotives were clad in a striking livery of deep blue and silver with the "West Point Route" and Georgia Railroad logos adorning respective units.

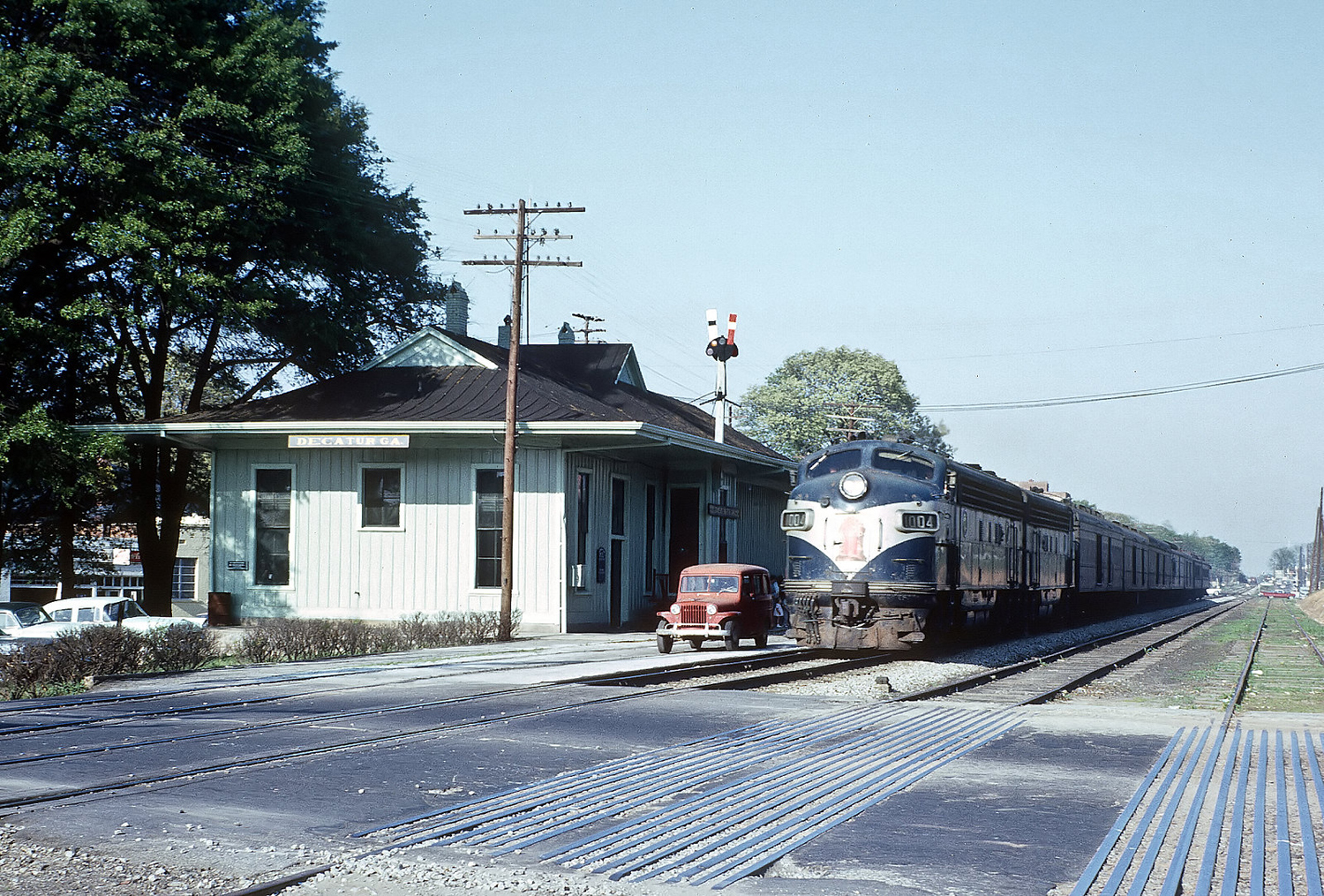

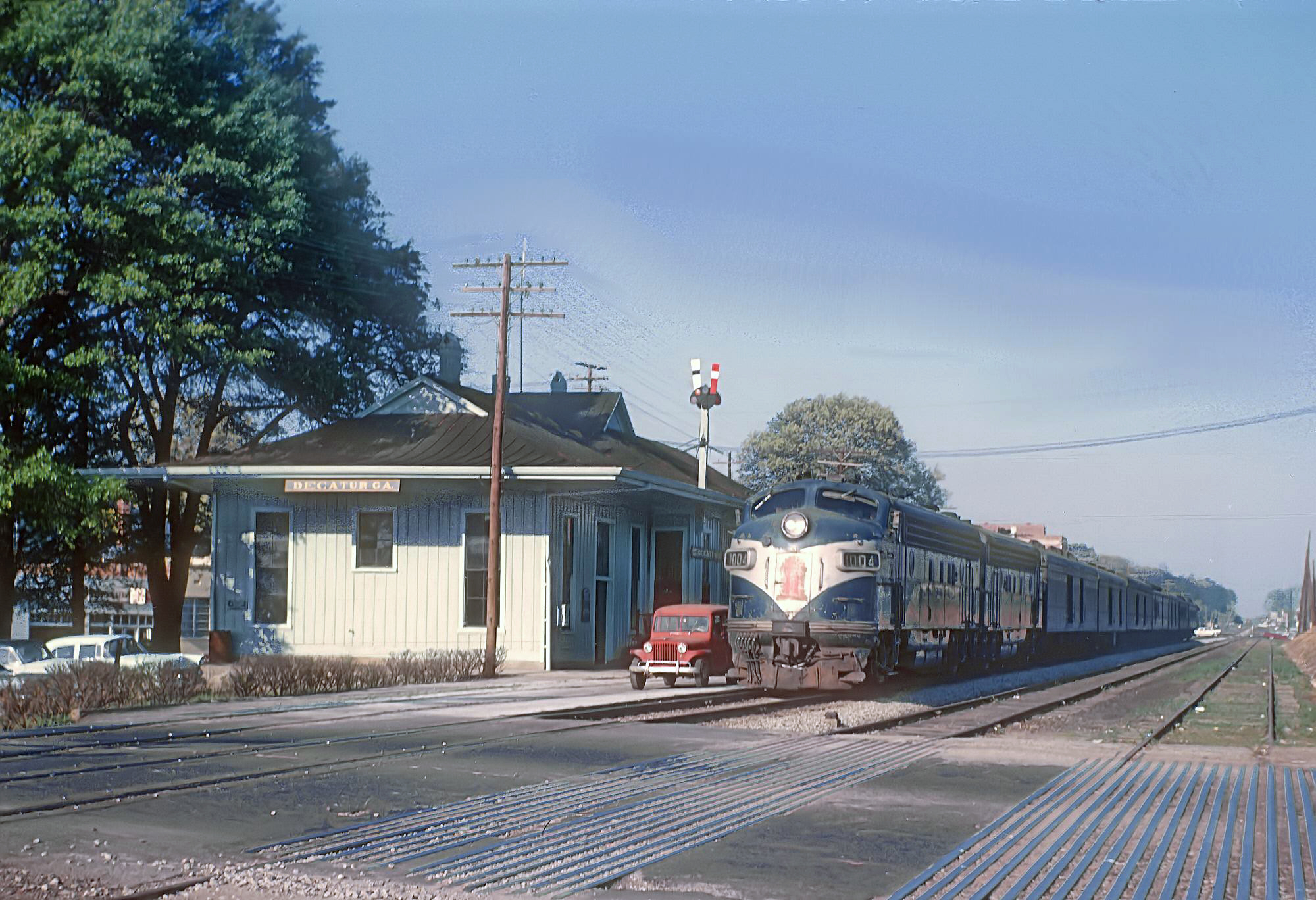

Georgia Railroad FP7 #1004 is ahead of train #1 (Augusta-Atlanta) at Decatur, Georgia in April, 1963. Rick Burn photo.

Diesel Rosters

Atlanta & West Point

Road Number(s)	Builder	Model	Amount	Date Built
551-554	EMD	FP7	4	1949-1951
1005	EMD	FP7	1	1949 (Ex-WRoA #502)
571-576	EMD	GP7	6	1950-1952
675	Baldwin	DS-4-4-1000	1	1949 (Ex-Georgia #921)
676-677	Baldwin	DS-4-4-1000	2	1949
678	Baldwin	S-12	1	1951
726-732	EMD	GP40	7	1967-1970
733	EMD	GP40-2	1	1974
4976	EMD	GP16	1	1950 (Ex-A&WP GP7 #576)
4978	EMD	GP16	1	1951 (Ex-ACL GP7 #246)
6007-6008	EMD	GP38-2	2	1979

Western Railway of Alabama

Road Number(s)	Builder	Model	Amount	Date Built
501	EMD	F3A	1	1948
502-503	EMD	FP7	2	1949
520	EMD	GP7	1	1950 (Ex-SAL #1734)
521-526	EMD	GP7	6	1950-1953
530-531	EMD	GP9	1	1954
621-624 (1-4)	Baldwin	VO-1000	4	1944
630	Baldwin	DS-4-4-1000	1	1948
701-707	EMD	GP40	7	1967-1970
708	EMD	GP40-2	1	1974
4977, 4979	EMD	GP16	2	1951-1952 (Ex-WRoA #524, Ex-ACL GP7 #141)
6045-6046	EMD	GP38-2	2	1979

Georgia Railroad

Road Number(s)	Builder	Model	Amount	Date Built
751-754	EMD	GP40	4	1967-1968
755-756	EMD	GP40-2	2	1972
901-905	EMD	NW2	5	1948-1949
906-907	EMD	SW9	2	1951
921	Baldwin	DS-4-4-1000	1	1949
1001	EMD	F3A	1	1948
1002-1004	EMD	FP7	3	1949-1950
1005	EMD	FP7	1	1949 (Ex-A&WP #551)
1019-1020	EMD	GP7	2	1950 (Ex-A&WP #571-572)
1021-1036	EMD	GP7	16	1950-1953
1040-1042	EMD	GP9	3	1954
4975	EMD	GP16	1	1954 (Ex-Georgia #1042)
6009-6010	EMD	GP38-2	2	1979
6051-6052	EMD	GP38-2	2	1980 (Ex-SCL #6051-6052)

Steam Rosters

Western Railway Of Alabama (As of 1943)

Class	Road Number	Wheel Arrangement	Builder	Date Built
E	100-104	0-6-0	Rogers	1907-1908
E	105	0-6-0	Alco	1910
G	115, 127	0-8-0	Alco	1918
A	128-130	4-6-0	Rogers	1904
A	131, 161	4-6-0	Alco	1911
A	175	4-6-0	Rogers	1903, Rebuilt in 1924.
P	180, 190	4-6-2	Lima	1926
M	181, 185, 186	4-8-2	Alco	1924
M	187, 375-377	4-8-2	Alco	1924
F	378	2-8-2	Lima	1923

Atlanta & West Point (As of 1943)

Class	Road Number	Wheel Arrangement	Builder	Date Built
E	200-202	0-6-0	Alco	1912
G	215, 225-226	0-8-0	Alco	1918
G	228-229	0-8-0	Alco	1918
A	230	4-6-0	Rogers	1903-1907
A	261	4-6-0	Rogers	1906, Rebuilt 1924.
A	273	4-6-0	Rogers	1899, Rebuilt 1924.
A	275	4-6-0	Rogers	1900, Rebuilt 1924.
P	290	4-6-2	Lima	1926
P	280-281	4-6-2	Alco	1913
P	350-351	4-6-2	Alco	1913
F	425-427	2-8-2	Lima	1923
F	400-401	2-8-2	Lima	1918

The above steam locomotive roster information is courtesy of Joseph Sadler's article, "West Point Route" from the June, 1943 issue of Trains Magazine.

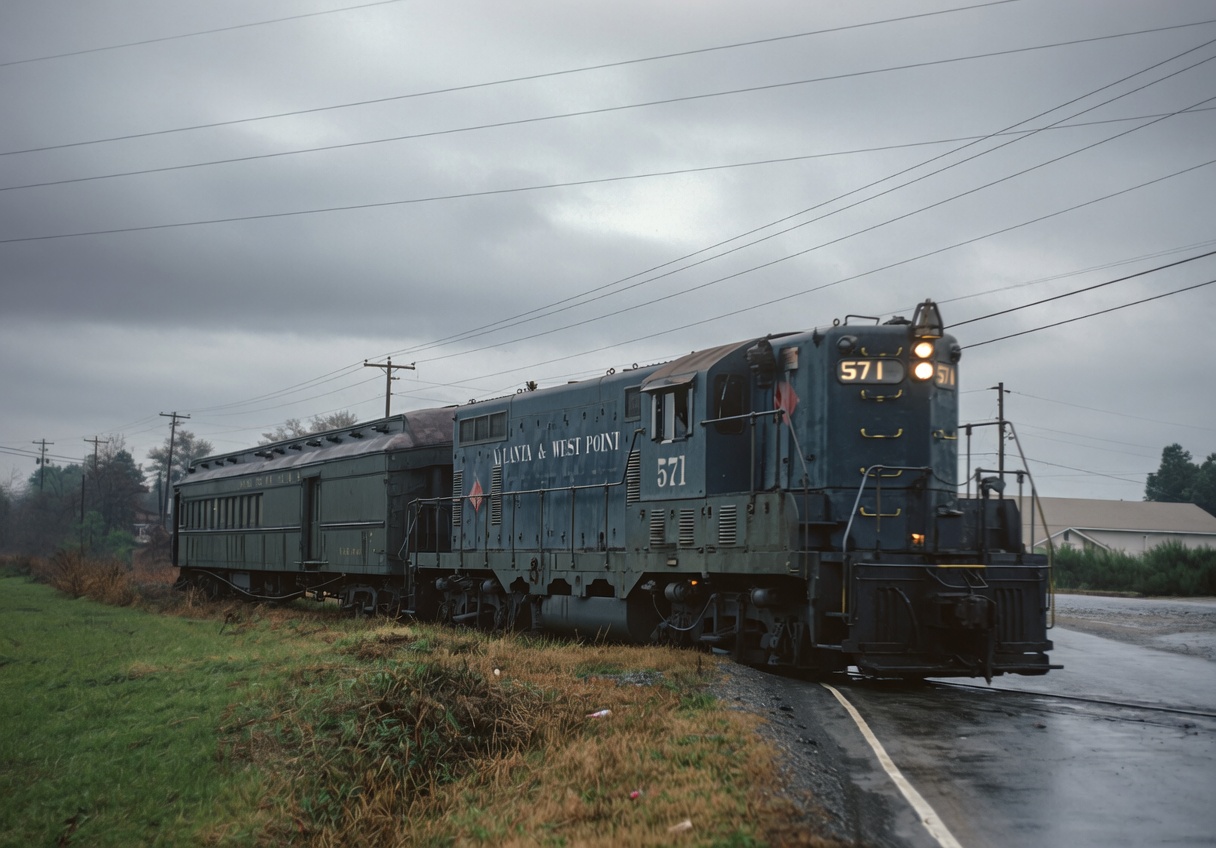

Atlanta & West Point GP7 #571 leads a Georgia Railroad mixed train toting a single combine near Athens, Georgia on November 24, 1967. Roger Puta photo.

The roads also received a series of sleek, stainless-steel lightweight cars for Southern's Crescent including an RPO-Baggage-Express, coaches, a diner, pair of sleepers, and a sleeper-observation.

Into the 1960's the West Point Route canceled as many passenger trains as it could due to the declining nature of this business.

It was further hurt by the U.S. Post Office discontinuing mail contracts, which made their final runs on October 18, 1966. By 1968 only the Crescent remained and its final remnants were dropped entirely after January 7, 1970.

Second-generation road power began arriving at this time and new GP models continued arriving throughout the 1970's carrying a simplified solid black livery with only the company logos and names on the carbody.

Family Lines and CSX Transportation

That decade also witnessed each railroad's identity disappearing into the Family Lines System. In 1974 the West Point lost its separate traffic and accounting departments which were folded into the owning railroads.

As the Seaboard Coast Line, Louisville & Nashville, and other Family Lines properties continued consolidating operations corporate identities largely disappeared except for their respective names.

In 1980 the Family Lines completed a merger with Chessie System, which formed CSX Corporation on November 1st, a holding company.

On December 29, 1982 the group was formally merged into Seaboard System and the West Point Route officially disappeared a few days later on January 1, 1983.
