Budd RDC's (Rail Diesel Cars)

Last revised: November 22, 2022

By: Adam Burns

The Rail Diesel Car, better known as simply RDCs, became a popular self-propelled contraption designed by the Budd Company in the late 1940s.

The car builder had been known in the railroad industry since 1934 when it collaborated on the development of the Burlington's first Zephyr streamlined trainset.

In addition, since 1937 Budd had been manufacturing regular passenger equipment using its patented corrugated stainless steel design.

Between the early 1900s and the 1930s both General Electric and the Electro-Motive Corporation had been building various gasoline-powered self-propelled rail cars often referred to as doodlebugs.

These became popular for their ability to reduce operating costs on lightly used branch and secondary lines; EMC alone produced more than 400 such cars.

Understanding these successes, Budd decided to continue on with the design by using a standard coach and powering it with a diesel engine.

Thus was born the Rail Diesel Car, clad in the company's attractive stainless steel. Since the RDC could be operated singly or in tandem it is also known as a diesel multiple unit or DMU (a general term describing self-propelled diesel-powered cars which can operate as a consist).

Photos

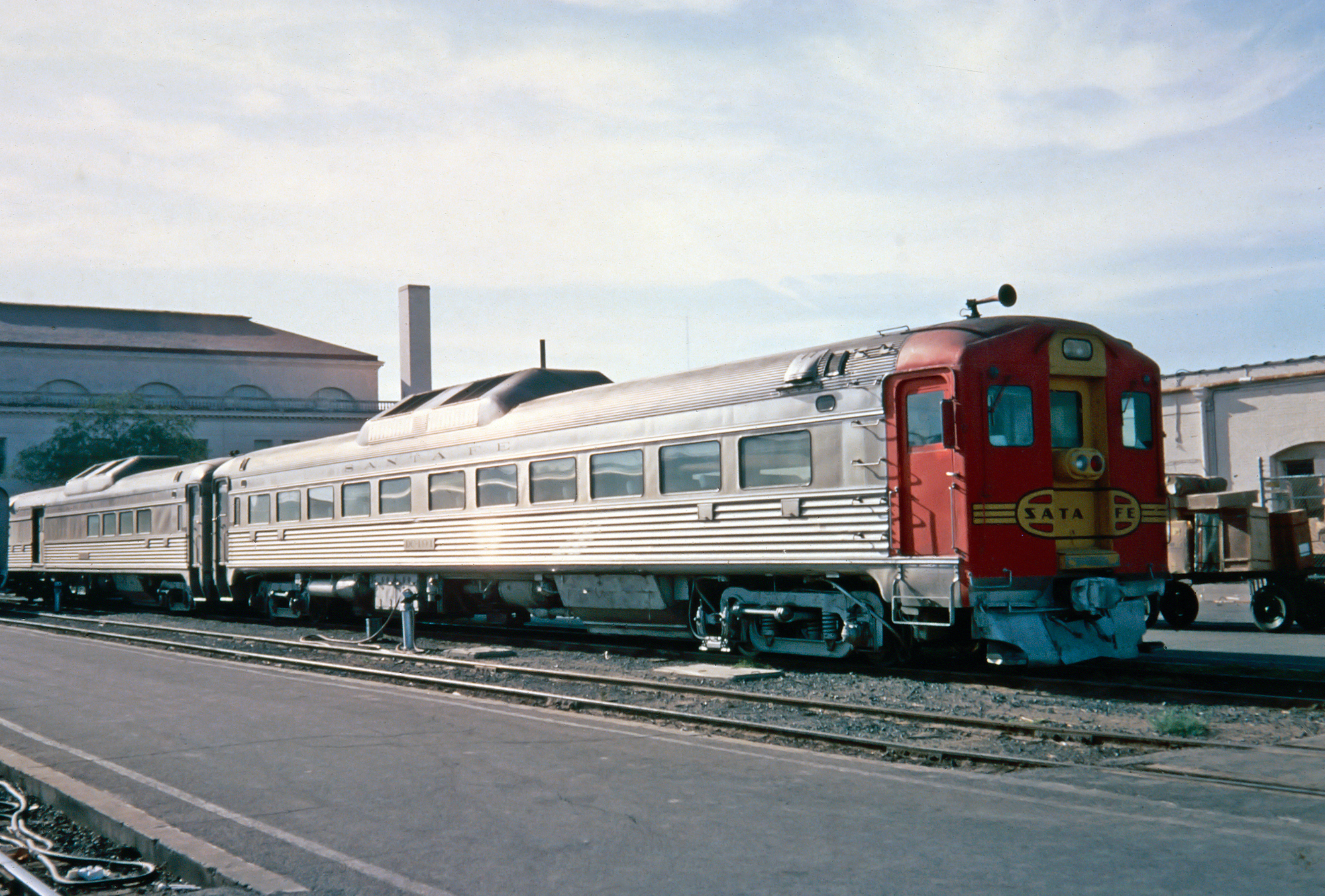

Santa Fe RDC-1's DC-191 and DC-192 layover in El Paso, Texas, circa 1966. The cars were the last new self-propelled rail cars the AT&SF purchased, completed in April, 1952 by Budd. The units were damaged following a derailment near Redondo Junction (Los Angeles) on January 22, 1956 due to excessive speed. DC-192 (the trailing car) was rebuilt with a baggage compartment, as seen in the photo. American-Rails.com collection.

History

Budd was once a highly respected builder of passenger cars and other equipment within the industry.  Its products were of the highest quality and some railroads ordered exclusively from the company, such as the vaunted Santa Fe and Chicago, Burlington & Quincy.

It corrected read the passenger rail car market and produced thousands of an upgraded "Doodlebug" design.  In 1949 the Budd Company unveiled the RDC, or RDC-1 as it's model number was officially known.

The car was 85 feet long and could hold 90 patrons. It was  powered by two Detroit Diesel V6, 110-series prime movers (often used in military/marine applications at the time), capable of producing between 250 and 280 horsepower each and mounted beneath the floor.

The purpose of duel engines was quite calculated. Engineers allowed them to operate independently from one another so in the event that one failed the other would be able to allow the car to finish its journey without being stranded.

Specifications

ManufacturerBudd Company
Years Produced1949 - 1962
InaugurationSeptember 19, 1949 (Chicago Union Station)
Model TypesRDC-1, RDC-2, RDC-3, RDC-4, RDC-9
Numbers Produced398
Carbody MaterialStainless Steel
Weight109,200 – 118,300 Lbs
Width10', 3⁄8"
Height14', 7"
Length

85' (RDC-1/2/3/9)

73', 10" (RDC-4)

Prime Mover

Detroit Diesel 110 (GM)/2 (RDC-1/2/3/4)

Detroit Diesel 110 (GM)/1 (RDC-9)

Horsepower

550 (RDC-1/2/3/4)

300 (RDC-9)

Transmission

Hydraulic Torque Converter

Top Speed

85 mph

Capacity

90 Passengers (RDC-1)

70 Passengers, Baggage Compartment (RDC-2)

48 Passengers, Railway Post Office, Baggage Compartment (RDC-3)

Railway Post Office, Baggage Compartment (RDC-4)

94 Passengers (RDC-9)

Since the Rail Diesel Car most often, particularly during its early years, operated singly this added feature came in extremely handy and resulted in few incidents of breakdown out on the main line (this was also quite an advantage to the earlier doodlebugs which offered no such setup).

Just as with the doodlebug, railroads came to embrace the RDC since basic passenger services in 1949 still had to be offered to every line a company operated.

Variants

The original RDC-1, which sold 239 units was essentially a basic coach. However, the next model to be released, the RDC-2 (which sold 67 examples), was a combination design with seating for only 70 passengers and the rest of the space designated for baggage or mail (and included a sliding freight door).

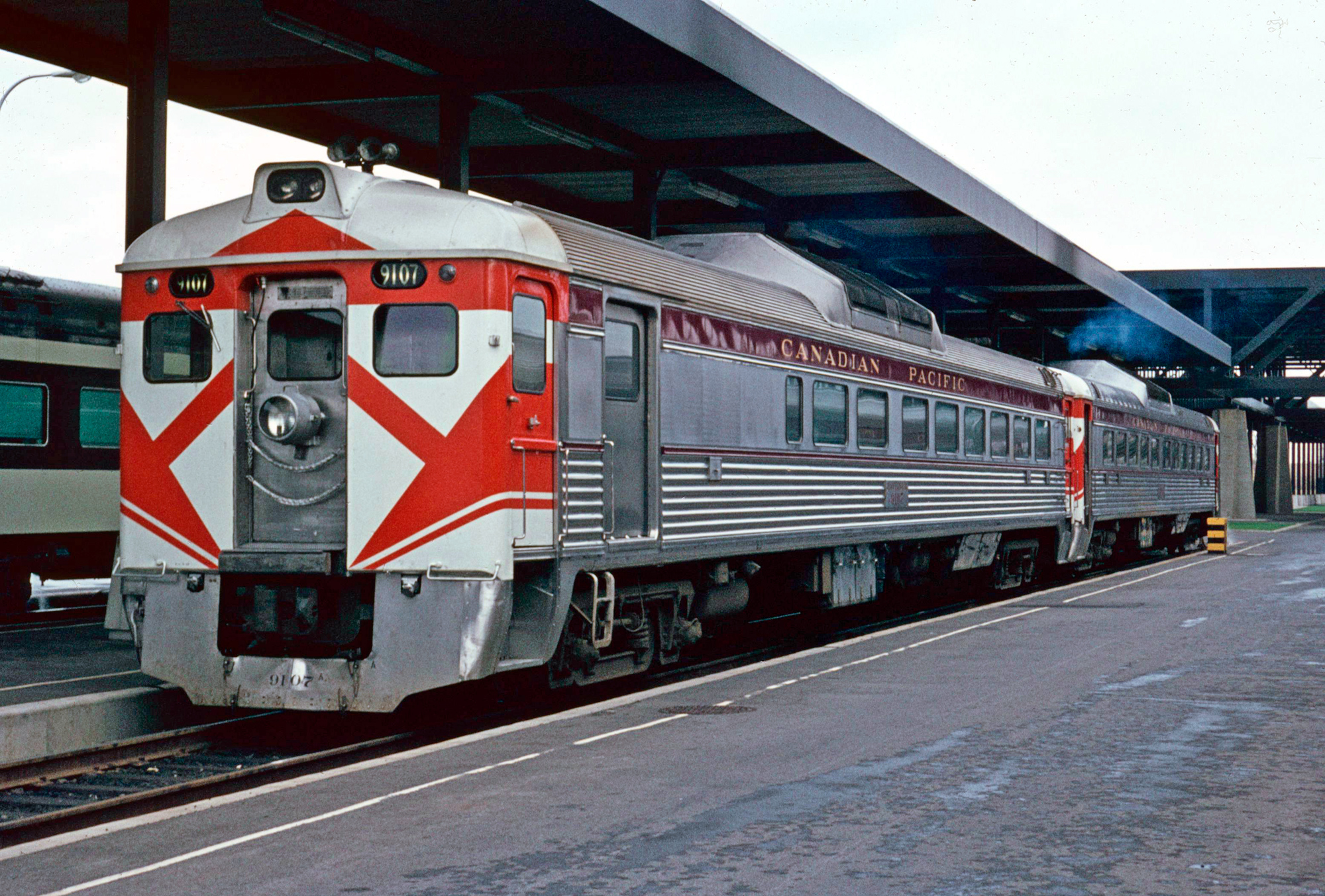

Canadian Pacific RDC-2 #9107 and a mate were photographed here at the station in Ottawa, Ontario during November of 1968. Author's collection.

The next model was the RDC-3, also 85 feet long which was a combination/Railway Post Office (RPO) and could seat 48 passengers (48 of these were ultimately purchased). Then there was the RDC-4 design.

Interestingly, this unit held no passengers at all and was meant only as a baggage/RPO. It sold just 14 units. Finally there was the RDC-9.

It could best be described as a "B" unit since there was no cab with seating only available (for 94) and was meant to operated in tandem with an early, cabbed model. Surprisingly, the original Rail Diesel Car was always Budd's bestselling design.

Success

Altogether the company sold 404 units to numerous Class Is, and other railroads, just as the doodlebug had done. Some of the largest buyers were in the Northeast and included the Boston & Maine and New Haven which both found the RDC quite useful in commuter service.

Other notable lines to find the car effective included:

  • Baltimore & Ohio
  • New York Central (which also had one designed with a jet engine, the M-497 or Black Beetle, that utilized a General Electric model J47-19)
  • Central Railroad of New Jersey
  • Northern Pacific
  • Reading
  • Canadian Pacific
  • BC Rail

Since Budd designed the car with its standard corrugated stainless steel, wherever the RDC was operated it looked the same save for some basic striping and/or logos of the individual railroads which owned it.

Just as with its early streamliners and later passenger car designs, Budd built its Rail Diesel Car to a very high standard of both performance and reliability. Unfortunately, the Transportation Act of 1958 cut short the RDCs potential of selling many more units.

This new piece of legislation decreased the power states had to regulate railroads in providing passenger services over lightly used branch and secondary lines.

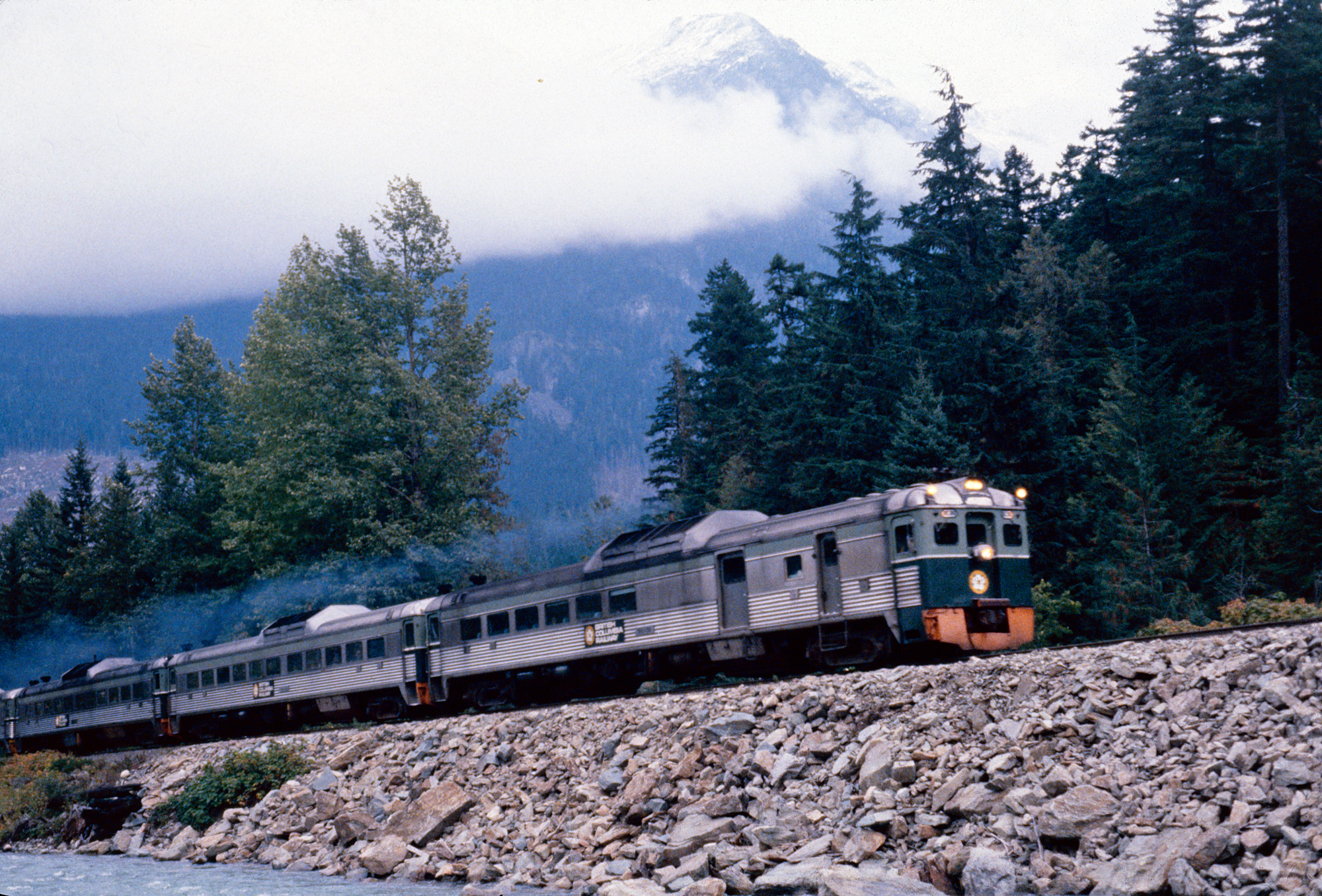

British Columbia Railway RDCs, led by an RDC-3 (ex-Pacific Great Eastern) are in service near Squamish, British Columbia during September of 1981. American-Rails.com collection.

As a result, companies quickly ended passenger trains on these routes or abandoned them altogether if sufficient freight traffic was not available. Naturally, there was no longer a need for Rail Diesel Cars (or doodlebugs) and sales plummeted.

This forced the Budd Company to end production of RDCS in 1962. Despite this, many cars soldiered of years in commuter service both in Canada and the United States.

For instance systems like Amtrak, BC Rail, VIA Rail, the Massachusetts Bay Transportation Authority (MBTA), and others all continued to use RDCs through the 1970s and 1980s.
