"Mallet" Steam Locomotives


The Mallet (pronounced “Ma-lay”) was a unique steam locomotive design that was a type of articulated design which used compound steam. The locomotive gets is name from the person who invented it, Anatole Mallet of Switzerland. The Mallet Type was essentially two engines housed under one frame and this, coupled with its six or more sets of axles, allowed it to produce awesome levels of adhesion and horsepower. Many railroads, particularly in mountainous regions, found the Mallet very beneficial in heavy drag service over the standard design used at the time the 2-8-0 Consolidation although true compounds never gained widespread use in the United States expect on a few roads.  Today, several are still preserved although only two are known to be operational.

Norfolk & Western's coaling tower at Shaffer’s Crossing, Virginia on December 12,1955. From left to right: Class S-1a 0-8-0 #243, Class Y6 (Mallet) 2-8-8-2 #2142, and streamlined J Class 4-8-4 #608. O. Winston Link photo








The 2-8-0 design was a significant technological leap from the American, 4-4-0 wheel arrangement. The Consolidation, with its two extra driving axles and front pilot truck could not only pull trains that were twice as heavy but also run at speeds fast enough to be used in any type of passenger service. Many railroads found the Consolidation perfect for all types of uses in main line service and as the years wore on it continued to be improved upon until the design's size limitations precluded further development. The Mallet was first introduced in the United States in 1904 when the venerable Baltimore & Ohio had a prototype built by the American Locomotive Company (Alco) in a 0-6-6-0 wheel arrangement.

One of Great Northern's interesting 2-6-8-0 articulateds (M-1), one of thirty-five the railroad owned. Manufactured by Baldwin in 1910 they were designed to provide the railroad with increased adhesion. It is said they were rough riding at speeds over 25 mph. As one engineer put it, "I couldn't even keep my shoelaces tied."

The B&O's main lines through the Allegheny Mountains in Maryland, Pennsylvania, and West Virginia were riddled with stiff grades such as Sand Patch, Cranberry, and 17-Mile. The railroad hoped for a more powerful and efficient locomotive to better scale these grades. So, with help from Alco it came up with the 0-6-6-0, #2400, which affectionately became known as the "Old Maude." The B&O listed the locomotive as Class DD-1 and while it was relatively small compared to later, Super Power steamers it was nevertheless much more powerful than anything the railroad had at that time. The Mallet ushered in the era of slow drag service and compared to its Consolidations of the day "Old Maude" could produce roughly twice the tractive effort.

Chesapeake & Ohio 2-8-8-2 #1564 (H-7), a 1923 product of Alco, is seen here in Richmond, Virginia. They were good machines that could pull 9,500-tons over the 113-mile run from Russell, Kentucky to Columbus, Ohio in 5 hours. They were later displaced by 2-10-4's and 2-6-6-6's.

Essentially how the Mallet worked was that a rigidly mounted engine nearest the cab produced high-pressure steam that was then pumped to a forward engine which was “hinged” and free to swivel (thus an “articulated” frame) so the locomotive could much more easily negotiate curves and less-than perfectly maintained track. A very economical means of using steam the Mallet Type, coupled with both engines being roughly center mounted over each set of driving axles, was able to produce very high horsepower and adhesion with two sets of cylinders (and because of the low pressure steam in the front engine its cylinders were substantially larger than the rear cylinders).

Norfolk & Western 2-8-8-2 #2042 (Y-3), one of many Mallet compounds the railroad rostered. This particular unit was acquired by the Santa Fe in 1943 to fulfill a wartime power shortage and renumbered 1797. It was scrapped afterwards.

Eventually, however, many of the “true” Mallets fell out of favor with railroads. While they were excellent at producing high horsepower and tractive effort (when production ended around 1,300 had been produced), the Mallet’s low gearing to accomplish such did not allow the locomotives to travel much faster than about 25 mph and thus, coupled with the coming of the diesel age, most were retired by the 1950s.  Additionally, most railroads found the compound expansion design too complicated to operate in service.  Instead, many found the simple expansion much easier to maintain while providing sufficient tractive effort and adhesion.

Western Maryland 2-8-8-2 #925 (L-2), a big Mallet compound built by Lima in 1917, waits to leave Port Covington (Baltimore) on August 20, 1936.

The two major railroads perhaps best remembered for their use of true Mallets in regular service included the Norfolk & Western, which operated a large fleet of 2-8-8-2s (listed as Class Y) as well as the Chesapeake & Ohio that owned a roster of 2-6-6-2s.  To learn more about the history and operation of the compound steam locomotive please click here.  Today, a handful of Mallet Types of different wheel arrangements have been preserved and two are operational; 2-6-6-2T #110 operating on the Black Hills Central Railroad based in Hills City, South Dakota and 2-6-6-2T #4 at the Niles Canyon Railway in Sunol, California.

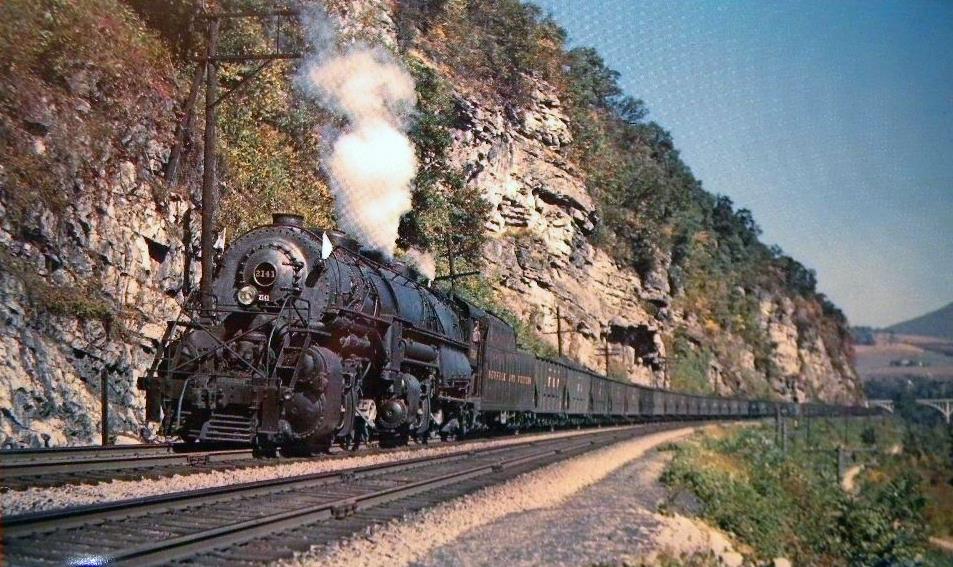

A Norfolk & Western publicity photo featuring 2-8-8-2 #2141 (Y-6 Mallet, a 1942 product of the Roanoke Shops), ahead of a long string of coal at Ripplemead, Virginia on September 1, 1949.

Of note, while technically incorrect most refer to the term Mallet interchangeably with articulated when describing large steam locomotives. The term articulated in relation to steam designs simply means any wheel arrangement that utilizes at least two sets of driving wheels with at least one set (usually the front) having the ability to swivel to more easily negotiate curves. In any event, over the years this really has become a non-issue although it is important in regards to the historical context of steamers, their development through the years, and what exactly each term meant in describing them.
