Railroad Tell-Tales: Protecting The Brakeman

Last revised: October 20, 2026

A tell-tale is a row of ropes hung over the track ahead of a low bridge, a tunnel mouth, a signal bridge, or any other obstruction that will not clear a man standing on a freight-car roof. The ropes tell the engineman nothing. They strike the man on the roof, a light blow if they are in order, so he drops flat before a girder does the same work. Roads also called the appliance a bridge warning, a bridge guard, a tickler, a whip-cord, a dangler, and a bridge alarm. The idea is the same in every name.

The device outlasted the air brake by decades. George Westinghouse patented the straight air brake on April 13, 1869, and the automatic brake, with a reservoir on each car, on March 5, 1872. Men were still walking running boards in 1943 to set retainer valves, and the photographs on this page show tell-tales in ordinary use in the 1960s. What took the ropes down was the end of the roof walk. The brake had already been on the cars for a long time by then.

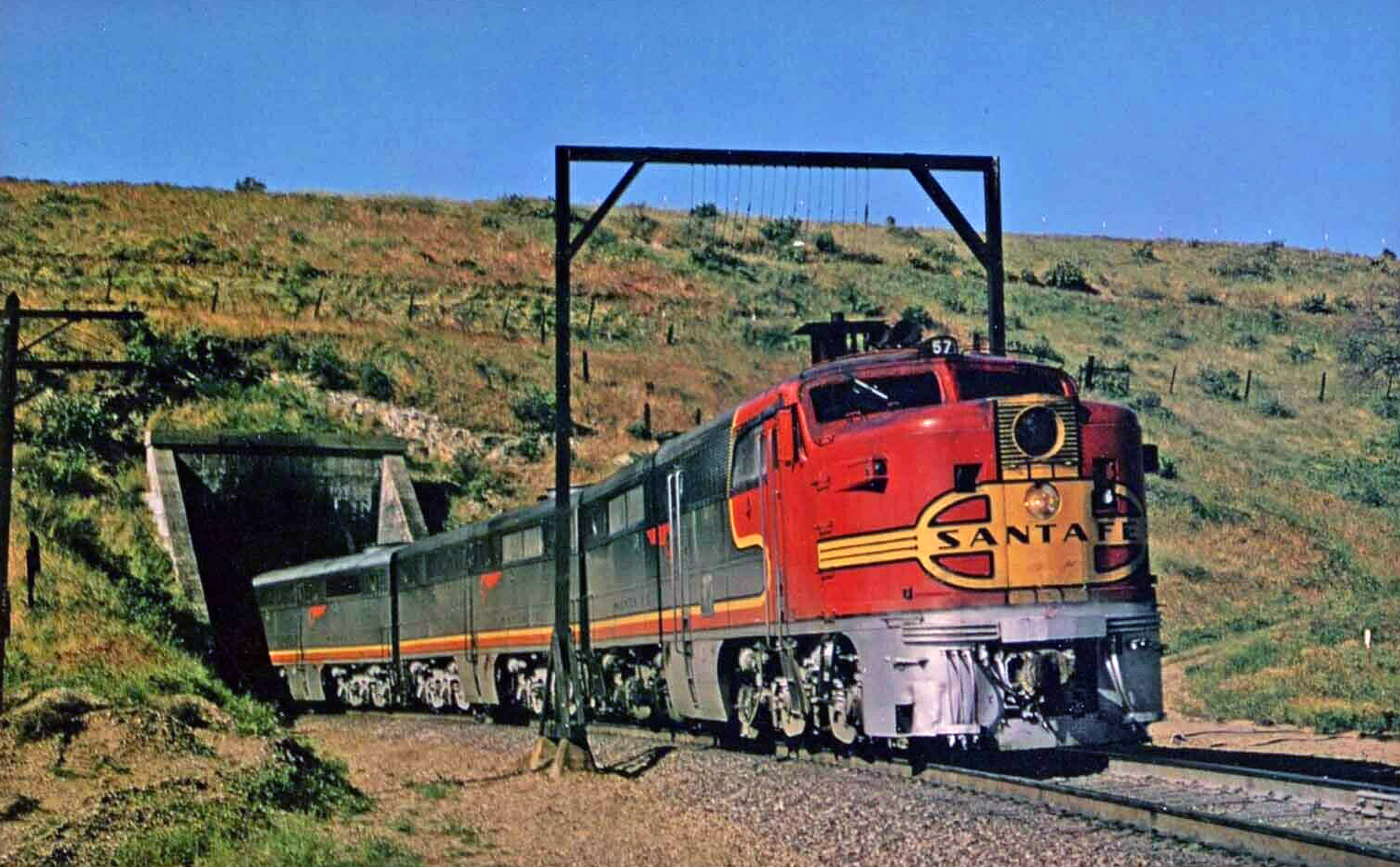

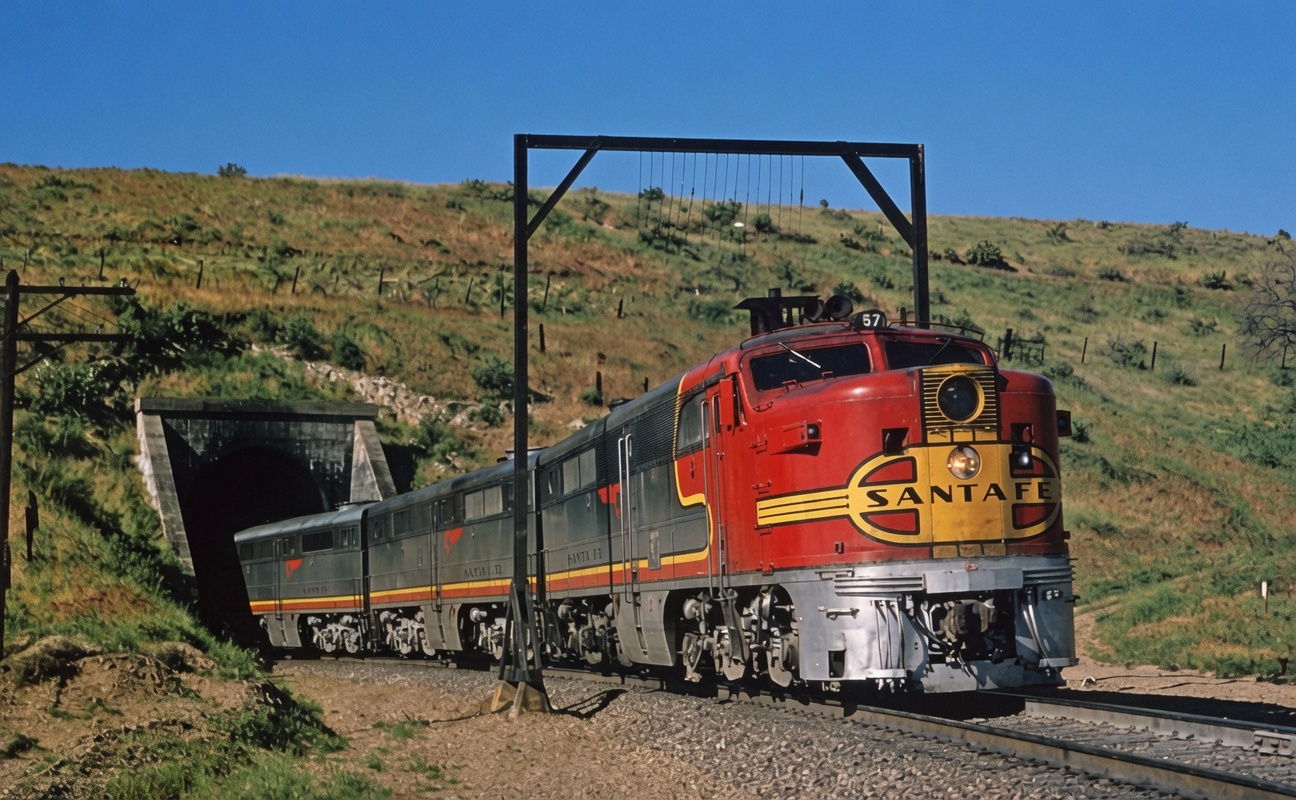

Santa Fe PA-1 57-L leads the San Francisco Chief out of Tunnel 2 on the Tehachapi Loop, May 2, 1965, with a two-post tell-tale at the tunnel mouth

Running almost two hours late, Santa Fe PA-1 57-L leads train No. 1, the westbound San Francisco Chief, out of Tunnel 2 on the Southern Pacific’s Tehachapi Loop in Kern County, California, on May 2, 1965. The two-post tell-tale stands at the mouth of the tunnel, and the locomotive has just come out from under it. Gordon Glattenberg photo.

On this page: At a glance · The man on the roof · Rope, post, and distance · What the law required · Retainers · The roof walk comes off · What is left

At a glance

Item	Detail
What it is	A row of hanging ropes, sometimes on short wire hangers, over the track ahead of a low clearance. A physical warning to a man on a car roof. It gives the engineman no aspect
Other names	Bridge warning, bridge guard, tickler, whip-cord, dangler, bridge alarm. A swinging arm, the Walling pattern, was the rival and lost
How the rope was made	Usually a quarter-inch to three-quarter-inch rope, knotted at the lower end, spaced about four to eight inches apart across five to eight feet of track. Half-inch rope was a common specification, on the Pennsylvania Company in the 1890s and again in a 1926 standard
How low it hung	The ends about six inches below the obstruction, or about 16 to 17 feet above the rail. The post stood higher than that, so the ropes could hang
How far ahead	In an 1897 survey, roads reported 200 to 300 feet, and one road a quarter of a mile. The committee wanted about 200 feet, and closer in a yard, so a man could not stand up again before the bridge. A 1926 standard, as Trains summarized it, used 100 to 300 feet on a main track or siding and 50 to 100 feet on a yard track
What clearance called for one	In that 1897 survey, most roads warned at an obstruction under 20 feet. The reported range was 18 feet 6 inches to 22 feet. The 21 feet in the 1926 summary is this trigger, the clearance of the bridge, and not the height of the tell-tale
A statute that named it	Wisconsin, chapter 348 of the Laws of 1905, approved June 12. An obstruction less than seven feet above the roof of a freight car. Ropes or cords not more than nine inches apart across eight feet, on both sides. The duty that used the name tell-tale was this state statute
Why it outlasted the air brake	Retainers on a mountain grade, a running board the safety-appliance standards still required, and a man who rode the roof while switching. House cars without roof hatches built after October 1, 1966, were specified without that running board

The man on the roof

Before compressed air, a freight train was stopped by hand. The engineer whistled for brakes. A brakeman climbed the end ladder and wound the brake wheel on each car he could reach. On a freight car that wheel sat on the roof. He ran the running board from car to car while the train was moving, often with his back to the direction of travel if he had started from the caboose and the man from the engine was coming the other way. A bridge he did not see was enough to kill him.

Passenger work was a different walk. A passenger car had end platforms and a diaphragm, so a man could pass through the train without going onto the roof, and the consist was short. The freight job was the one the tell-tale was built for. Between the cars, the same man coupled with link and pin, standing in the gauge while the cars came together. Eli Janney’s knuckle coupler is U.S. patent 138,405, issued April 29, 1873. An earlier coupler patent of his, No. 77,046, is April 21, 1868. Link and pin remained the ordinary freight coupler through the 1880s. The knuckle spread under the federal coupler rule, and link-and-pin hardware was still in trains through the 1890s.

Westinghouse filed a caveat for an air brake in July 1868. The patent that issued the next spring is the straight air brake, No. 88,929, April 13, 1869: a pump and a reservoir on the locomotive, a brake pipe the length of the train, and a brake cylinder on each car. Air in the pipe applied the brakes. A burst hose emptied the pipe and the brakes went off, which is the failure nobody wanted in a train that had just come apart. The automatic brake reverses that. Patents 124,404 and 124,405, issued March 5, 1872, put an auxiliary reservoir on each car and apply the brake when pipe pressure falls, including when a hose parts. The triple valve, the car-mounted valve that charges that reservoir, applies the brake, and releases it, takes its name in patent 138,827, issued May 13, 1873. The form the Supreme Court later treated as the completed plain triple valve is patent 220,556, of 1879. The straight-air patent and the automatic patent are two inventions, four years apart.

Rope, post, and distance

By the 1890s the appliance was ordinary enough that a committee of bridge and building superintendents could survey it. Their report, “Bridge Warnings for Low Overhead Structures,” was presented at the seventh annual convention of the Association of Railway Superintendents of Bridges and Buildings, at Denver in October 1897, and printed the next year in Walter G. Berg’s compilation of the association’s reports. The committee was W. E. Harwig of the Lehigh Valley, M. A. Martin of the Missouri, Kansas & Texas, and Joseph Doll of the Cleveland, Cincinnati, Chicago & St. Louis.

They found two families. The one in general use hung light vertical ropes, which they called tell-tales, whip-cords, ticklers, or danglers, from a wooden or iron bar or from a cable. Posts outside the tracks carried the bar, braced and backstayed. Any number of tracks could be crossed if the span was stiff enough. The other family was a light horizontal arm, often called the Walling system after its patentee, pivoted on a post so that it would strike a man and then swing out of his way. It needed an arm for every track. The Boston & Maine and the Lehigh Valley had used it, and the testimony was that it was not always safe. Hung lightly enough to be kind, the wind blew it out of position. In a northern winter the pivot froze. Trainmen struck it with brake sticks or grabbed it while passing under. The committee preferred the ropes.

The usual rope was a quarter-inch to three-quarters of an inch, knotted at the bottom so it would not unravel, and hung from a short piece of wire or flat iron so it could swing with the train. Some roads tied the rope straight to the bar. Old bell cord, sash cord, and a single strand untwisted from a heavy line were all in the returns. The Lehigh Valley unraveled condemned rope and used one strand, which made a softer blow. Wire and steel-tape danglers turned up on a few drawings. The committee disliked them: they rusted, and they hit harder. A big knot was its own hazard. In winter, ice built on the end until the “light blow” was no longer light.

Spacing was generally four to eight inches, across five to eight feet of the track, wide enough that a man could not slip between the strands. The lower ends were set about six inches below the lowest point of the obstruction they advertised, or to a standard height of 16 to 17 feet above the rail. That figure is the rope. The post and the crossbar stood higher, clear of equipment, with the strands hanging down into the path of a man on the roof.

Distance was argued, and the argument is the whole point of the device. Too far ahead, and a brakeman who has ducked stands up again before the bridge. The roads that answered specified anything from 200 to 300 feet. One specified a quarter of a mile. The committee wanted the warning held to about 200 feet, and closer where cars were being switched back and forth under an overhead bridge, or a second warning added. Most roads called for a warning at every overhead obstruction with less than 20 feet of clearance. The range in the returns ran from 18 feet 6 inches to 22 feet.

A single post would do where the foot could be buried and braced. Where it could not, the committee wanted a post on each side. A cable could span a yard full of tracks, at the price of sag and of heavier backstays. W. B. Mitchell of the Erie put a small windlass, locked in a box on the post, so the cable could be lowered for repairs instead of sending a man up from a car roof or a ladder. The Rock Island, on its lines west of the Missouri River, built a hood over the crossbar, 7 feet 8 inches long and 5 feet wide, so exhaust and a playful brakeman could not toss the ropes up onto the bar, where they stayed and warned nobody. The same hood kept some of the weather off the rope, which mattered when a wet rope froze stiff.

The prices in the returns put a single-track warning at about $8 to $25, and a double-track warning at about $20 to $30. The Erie’s one-post “bridge tell-tale” was given as $16.72. The Southern Pacific’s iron-tube frame, preferred because the material was standard stock and could be framed in batches, was $25 complete for one track. The Rock Island’s hooded warning was itemized at $12.26 for material, $6.67 for shop labor, and $7.50 to erect it, $26.43 in all. The Pennsylvania Company, the Pennsylvania Railroad’s lines west of Pittsburgh, used a one-post “bridge alarm” with half-inch ropes hung on quarter-inch rods run through the cross-arm.

A later published placement standard tightened the scatter. Trains, in its March 8, 2024, account of the device, summarizes a 1926 standard this way: tell-tales 100 to 300 feet ahead of a structure whose clearance was 21 feet or less, on a main track or a siding, and 50 to 100 feet ahead on a yard track. A single track took a mast and a bracket, or a U-shaped frame, with half-inch ropes. Two or more tracks took two masts and span wires, and the ropes hung from those. The 21 feet in that summary is the clearance that called for the warning, the same kind of figure as the 20 feet in the 1897 survey. The ropes hung from a higher post, down into the path of a man on the roof.

Benjamin J. Hastings of Taunton, Massachusetts, described the ordinary hanger in U.S. patent 1,467,156, filed April 7, 1923, and issued September 4, 1923. A wire about a foot long pivoted from the cross-arm so it could swing along the track. A rope on the lower end of the wire hung far enough to strike a man standing or sitting on a freight-car roof, in time for him to flatten himself. Hastings’s improvement was a socket that held the rope without a knot at the joint, so the hanger and the rope could both swing and the connection would not cinch itself shut. His specification says railroads were required to provide these warnings. The requirement behind that sentence is state law and railroad rule, of the Wisconsin kind below.

What the law required

States did legislate the device. Wisconsin’s chapter 348 of the Laws of 1905, published June 13 and approved June 12, is titled an act to promote the safety of railroad employees by compelling the erection of tell-tales. Wherever a bridge, crossing, viaduct, or other obstruction left less than seven feet above the roof of any freight car used on the road, or a transverse beam, girder, or rod hung that low, the railroad had to erect tell-tales and keep them in repair. The tell-tale was a rod, beam, or timber across the tracks, at a height and a distance the railroad commissioner directed. From it hung straps, ropes, or cords, of a size, length, and material the commissioner also directed, attached not more than nine inches apart across eight feet directly over the track, and placed on both sides of the obstruction.

A company that refused or neglected the work for sixty days after notice owed $50 to $100, recovered by the attorney general in the county where the bridge stood, and the same penalty again for every twenty days of further delay. Within sixty days of the act, and again by June 30 of each year, every railroad in the state filed a verified list of every such obstruction and said whether the act had been complied with. An employee hurt by an unprotected low structure was not held to have assumed the risk, even after he knew the structure was there. That is a tell-tale law, twenty-one years before the 1926 placement standard, and it measures the hazard from the car roof rather than from the rail.

The federal safety-appliance acts are a different subject, and they are the reason a man was still up there after the brake existed. The Act of March 2, 1893 (27 Stat. 531) made it unlawful for a railroad in interstate commerce to run a locomotive without a power driving-wheel brake and the means to operate the train brake, to run a train without enough power-braked cars that the engineer could control its speed without hand brakes, or to use a car without couplers that coupled by impact and could be uncoupled without a man going between the cars. Any power brake and any automatic coupler that met those tests would do. Hard times and the size of the fleet pushed full effect out to 1900. Until then a railroad in interstate commerce still moved cars that had no air brake.

The Act of March 2, 1903 (32 Stat. 943) extended the rules to the vehicles used on a railroad engaged in interstate commerce, set the minimum at 50 percent of the cars in a train, and let the Interstate Commerce Commission raise that share. The Commission raised it to 75 percent by an order of November 15, 1905, and to 85 percent by an order of June 6, 1910. A further amendment in 1910 added the appliances a man used with his hands and his feet: sill steps, hand brakes, ladders, running boards, and handholds. The safety-appliance standards that descend from that amendment still, in 49 CFR 231.1, specify a longitudinal running board the length of the roof on a boxcar or other house car built or placed in service before October 1, 1966. Congress had required the walkway that the tell-tale was invented to protect.

Retainers

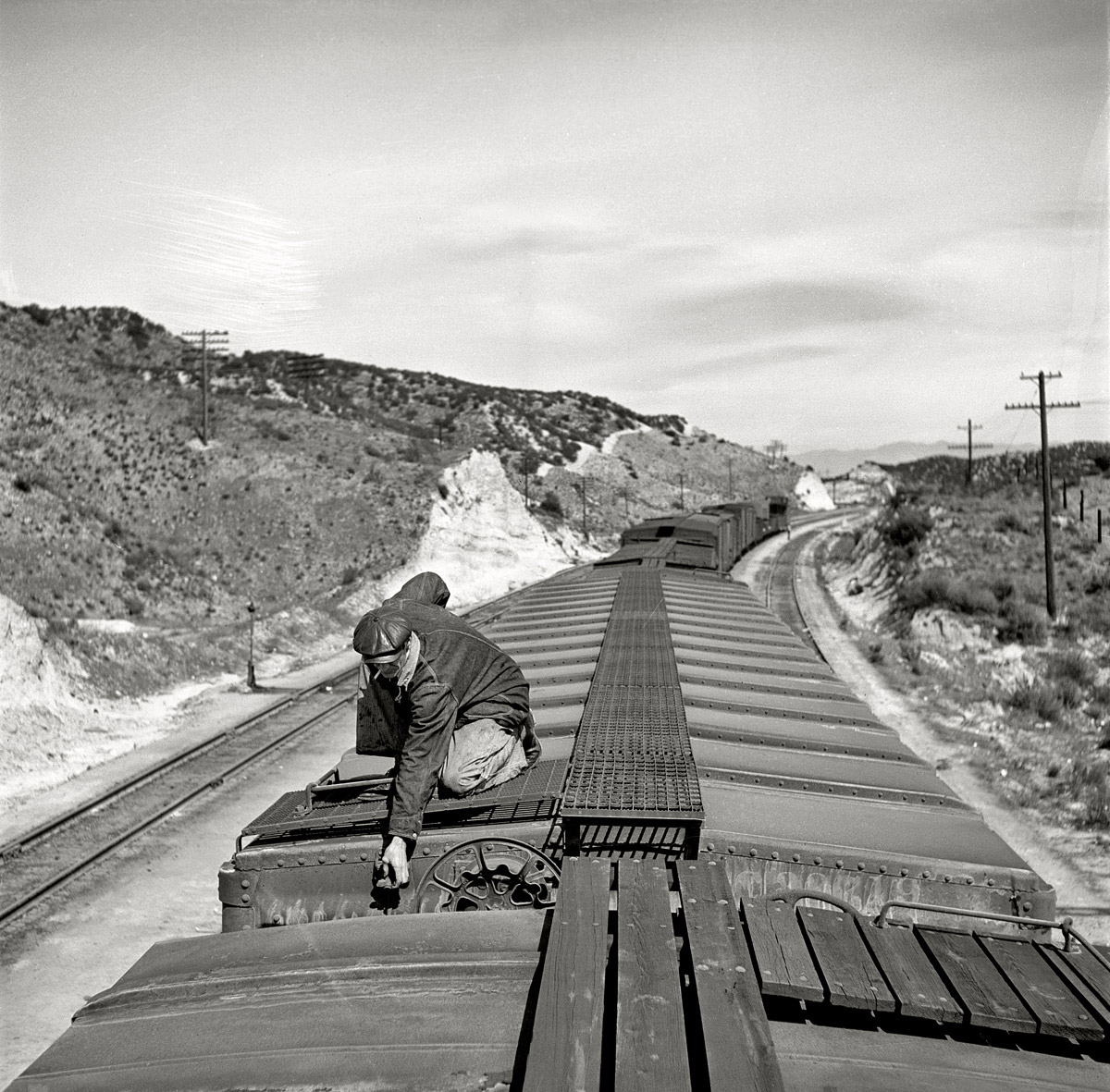

A Santa Fe brakeman at the retainer valve on a freight-car roof, Cajon Pass, March 1943

A Santa Fe brakeman at the retainer valve on a freight car, Cajon Pass, California, March 1943. The air brake is already on the train. The retainer is why he is still on the roof. Jack Delano photo.

On a long descending grade the engineer has to recharge the brake pipe. If he releases the brakes to do it, a heavy train starts to run. A pressure-retaining valve on each car holds a set pressure in the brake cylinder while the triple valve releases and the reservoirs charge again. Somebody had to walk the roofs and turn those retainers before the descent, and turn them back to direct exhaust at the bottom. Jack Delano photographed a Santa Fe brakeman at that valve on Cajon Pass in March 1943, seventy years after the automatic-brake patents. The tell-tale on a mountain railroad was for this man, and for the man who rode a roof during switching with his attention on the cars behind him.

The Glattenberg photograph at the top of the page is the same appliance, twenty-two years later, on a passenger train that had no one walking a boxcar. On May 2, 1965, Santa Fe PA-1 57-L was leaving Tunnel 2 on the Southern Pacific’s Tehachapi Loop with train No. 1, the westbound San Francisco Chief, nearly two hours late. The tell-tale is a two-post frame with its ropes still hanging, set at the mouth of the bore, and the PA has just come out from under it. That is much closer than the 200 feet the 1897 committee wanted on open line. At a restricted tunnel the warning can stand at the door, where a train is already moving slowly.

At Altoona the same arrangement guarded a city bridge. On July 18, 1956, the Pennsylvania Railroad’s Aerotrain ran west under the tell-tales for the Seventh Street bridge. That photograph is on the Pennsylvania Railroad page. The point for this one is only that a low street bridge in a terminal still carried the ropes in the middle of the 1950s, on a railroad that had used air brakes on passenger trains since the 1870s.

The roof walk comes off

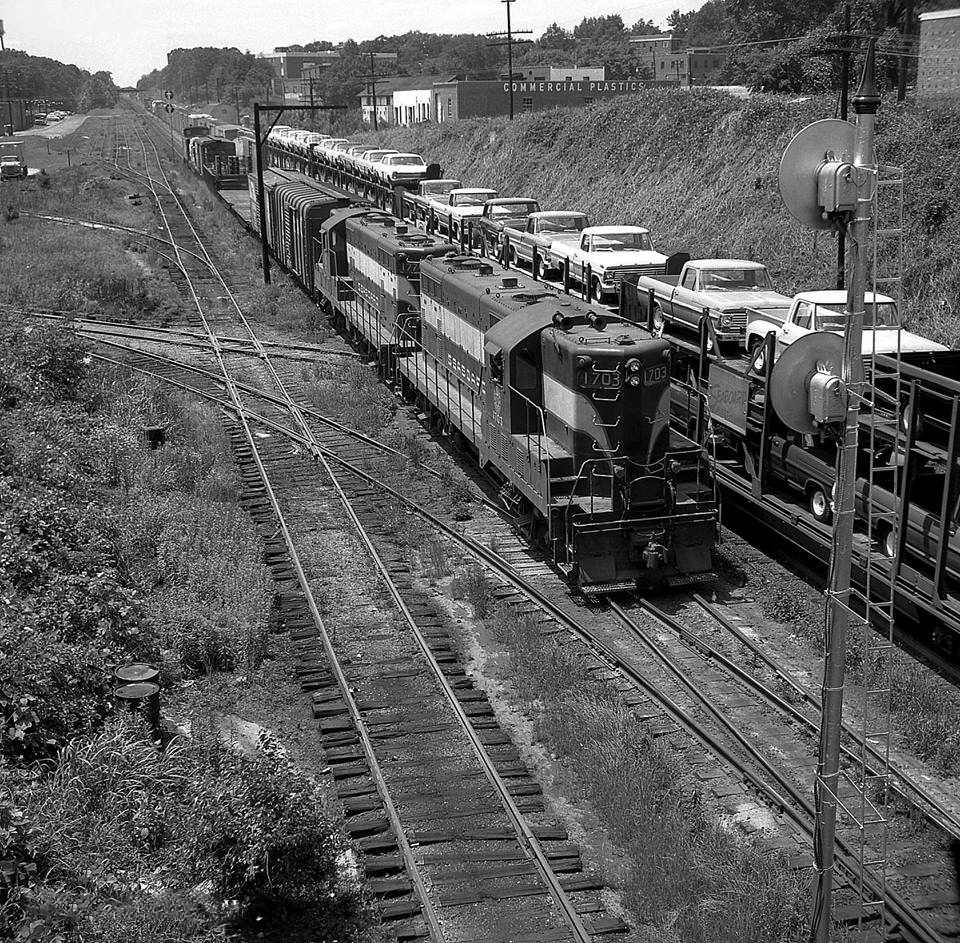

Seaboard Air Line GP7s pass a tell-tale at Boylan Junction in Raleigh, North Carolina, in the 1960s

Seaboard Air Line GP7 1703 and a second GP7 on a freight at Boylan Junction, Raleigh, North Carolina, in the 1960s. The tell-tale hangs over their track. The overpass it advertises is ahead of the train, where the photographer is standing. Warren Calloway photo.

Warren Calloway’s photograph at Boylan Junction shows the device still doing its job on the Seaboard Air Line in Raleigh in the 1960s. GP7 1703, one of the railroad’s May 1950 Geeps, leads a second unit on a freight of open automobile racks. The ropes hang from a lineside arm over the track the train is about to pass. The overpass they advertise is ahead of the train, at the photographer’s feet. Open racks have no roof. The ropes are there for a man on a house car using the same track.

The roof walk left the new boxcar by a change in the safety-appliance standards, not by a single order that told every brakeman to stay down. Under 49 CFR 231.27, a boxcar or other house car without roof hatches, built or placed in service after October 1, 1966, carries its hand brake where a man can work it from an end platform while the car is moving. The section specifies that platform, the sill steps, and the handholds. The roof of that new car has no running board in the specification. A car built on or before April 1, 1966, or then under construction and placed in service before October 1, 1966, is treated as meeting the new standard when the running board comes off, along with the roof handholds and the upper ladder treads at the A end. If the hand brake stays up near the roof, the side sill near the B end is lettered, on a yellow patch, “Keep Off Roof—No Running Board.” If the hand brake is brought down to the end sill, the upper ladder treads at the B end come off as well.

Cars that kept their running boards remained under the older specification, 49 CFR 231.1, which still requires the longitudinal board. Cars with roof hatches, the ice-bunker refrigerator among them, kept a running board under 49 CFR 231.28 even when built after that October. October 1, 1966, is a dividing line for new house cars without hatches. Older cars kept a legal running board until it was taken off. The tell-tale standards never received a repeal date of their own.

Railroads went on drawing the warning after that line. The Atchison, Topeka & Santa Fe’s engineering plan book for 1978 still included a standard telltale. Steven Otte, writing up the sheet on December 11, 2022, notes that a span of two or more tracks used two posts, with a tie bar linking the arms. Old cars with running boards were still in trains. Refrigerator cars still had a reason to put a man on the roof at an ice dock. A railroad that had not spent the money to take the frame down still had the frame.

What is left

Once operating rules kept employees off the roof of a moving car, the ropes had nothing to tell. Trains, on March 8, 2024, put the present tense in one sentence: crews are no longer required or permitted to be atop cars in trains, and tell-tales have either been removed or are no longer maintained. A bare mast is sometimes left where the ropes used to hang. A frame without ropes is the support, not the warning.

Wisconsin’s own statute shows the change. After December 31, 1993, an overhead structure built or reconstructed in the state, ordinary repairs aside, needs 23 feet of clearance above the top of rail unless the state office exempts it. In 2005 the legislature repealed the general telltale command. Wis. Stat. 192.31 now calls for a telltale only to the extent federal law requires one, and it lets the state office order one where the absence would create an unreasonable risk on a railroad outside the Federal Railroad Administration’s jurisdiction. The 1905 rope curtain, on both sides of every low bridge, gave way to the 23-foot clearance and to cars that no longer carry a man on the roof.

The word outlived the hardware. In ordinary English a tell-tale is anything that gives a secret away. On the railroad it was literal. The man on the roof was looking at his work, or back along his train, and the rope told him what his eyes had missed. The glossary entry is the short form of that sentence. The photographs on this page are the long form: Cajon in 1943, Tehachapi in 1965, and a Seaboard freight at Boylan Junction in the 1960s.

Sources

Berg, Walter G., ed. American Railway Bridges and Buildings. Chicago: Roadmaster and Foreman, 1898. Pages 593–597 print the committee report “Bridge Warnings for Low Overhead Structures,” presented at the seventh annual convention of the Association of Railway Superintendents of Bridges and Buildings, Denver, October 1897. Harwig, Martin, and Doll. Vertical ropes preferred to the Walling swinging arm. Rope size, spacing, height, distance, the 20-foot clearance practice, and the Erie, Rock Island, Southern Pacific, and Pennsylvania Company examples.
U.S. patent 88,929. George Westinghouse, Jr. Straight air brake. Issued April 13, 1869. Distinguished from the automatic brake in Westinghouse v. Boyden Power Brake Co., 170 U.S. 537 (1898). That opinion traces the automatic brake from patent 124,404 to patent 220,556 (1879).
U.S. patents 124,404 and 124,405. George Westinghouse, Jr. Issued March 5, 1872. Auxiliary reservoir on each car. Henry G. Prout, A Life of George Westinghouse, records the July 1868 caveat and the first use of the name “triple valve” in patent 138,827, issued May 13, 1873.
U.S. patent 138,405. Eli H. Janney. Improvement in car-couplings. Issued April 29, 1873. Earlier coupler patent 77,046, April 21, 1868.
U.S. patent 1,467,156. Benjamin J. Hastings, Taunton, Mass. Railroad bridge warning. Filed April 7, 1923. Issued September 4, 1923. Wire hanger of about a foot, rope below, socket in place of a knot.
Act of March 2, 1893, ch. 196, 27 Stat. 531. Power driving-wheel brake, enough power-braked cars for the engineer to control the train without hand brakes, and couplers that couple by impact and uncouple without a man between the cars. Full effect in 1900.
Act of March 2, 1903, ch. 976, 32 Stat. 943. Fifty percent of the cars in a train. The Interstate Commerce Commission could raise the share. Federal Railroad Administration, “Milestones in U.S. Railroad History”: raised to 75 percent by order of November 15, 1905, and to 85 percent by order of June 6, 1910. A 1910 amendment added sill steps, hand brakes, ladders, running boards, and handholds.
49 CFR 231.1. Box and other house cars built or placed in service before October 1, 1966: longitudinal running board, unless the car meets 231.27 or 231.28. 49 CFR 231.27: box and other house cars without roof hatches built or placed in service after October 1, 1966, hand brake worked from an end platform, and the path by which an older car loses its running board, including the legend “Keep Off Roof—No Running Board.” 49 CFR 231.28: cars with roof hatches keep a running board. Cornell notes the section to 33 FR 19663, December 25, 1968, as later amended.
Wisconsin. Laws of 1905, chapter 348. Approved June 12, 1905. Published June 13, 1905. Tell-tales where an obstruction left less than seven feet above a freight-car roof. Current Wis. Stat. 192.31, as amended by 2005 Wisconsin Act 179: the general 1905 duty repealed. A telltale remains only to the extent federal law requires one, or by state order where its absence would create an unreasonable risk on a railroad outside FRA jurisdiction. An overhead structure built or reconstructed after December 31, 1993, needs 23 feet above top of rail unless exempted.
Trains staff. “Warning: Railroad tell-tales ahead.” Trains, March 8, 2024, updated July 18, 2024. The 1926 placement summary: 100 to 300 feet, or 50 to 100 feet in a yard; 21 feet or less of clearance; half-inch rope; mast and bracket, or two masts and span wires. Crews no longer permitted atop cars; tell-tales removed or no longer maintained.
Otte, Steven. “How are railroad telltales made?” December 11, 2022. Atchison, Topeka & Santa Fe engineering plan book, 1978: a standard telltale was still being drawn, two posts and a tie bar when the arms spanned more than one track.
