"William Mason" Steam Locomotive: Specs, Background, Preservation

Published: February 22, 2025

The 4-4-0 William Mason steam locomotive is an exemplary model of 19th-century American railway engineering. Conceived during a time of expansive railroad growth across the United States, the William Mason reflects both a technological evolution in steam locomotive design and the industrial spirit of its era.

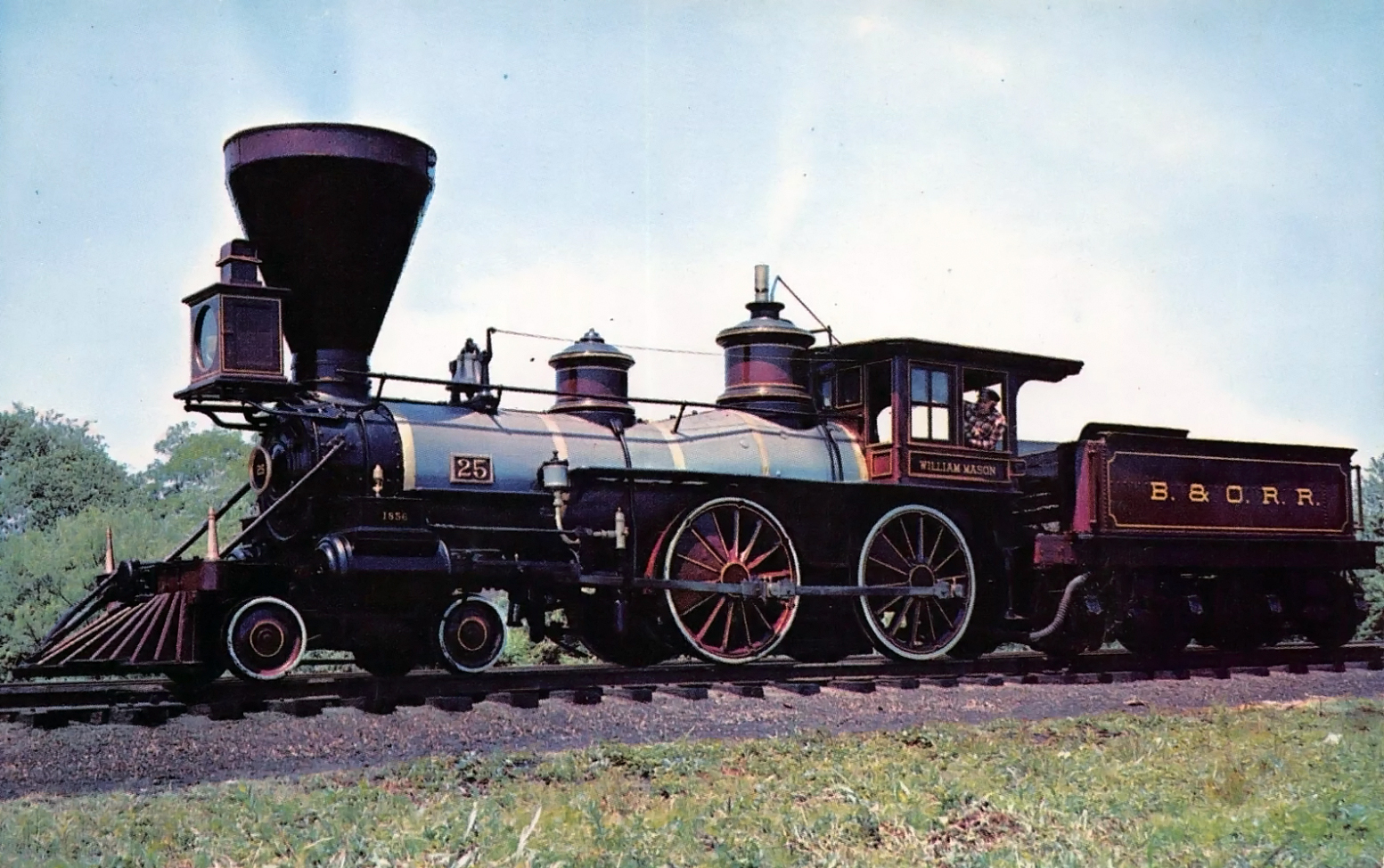

A postcard of the "William Mason" at the B&O Railroad Museum. The locomotive transported Abraham Lincoln from Baltimore to Washington on February 23, 1861.

Historical Context and Development

The era of the 19th century was transformative for American railroads. As rails pushed westward, linking the nation's vast landscapes, there was a persistent demand for better, more reliable locomotives. The 4-4-0 type, known as the "American" type, became a pivotal design that dominated this period due to its balance of speed, power, and adaptability.

The 4-4-0 wheel arrangement consists of four leading wheels on a leading truck for stability and four driving wheels for traction. This design was particularly well-suited to the varied and sometimes rugged rail conditions found throughout the United States.

The William Mason locomotive, named after its designer and constructed in 1856 by Mason Machine Works in Taunton, Massachusetts, stands out as a quintessential representation of this configuration. William Mason (1808-1883), the man behind the Mason Machine Works, was a distinguished inventor and industrialist. His contributions to the textile industry were significant; however, it was his venture into locomotive construction that made a notable impact on American railroading.

Design and Engineering Features

The William Mason locomotive was designed with several critical engineering attributes that defined the 4-4-0 type. At its core, the locomotive featured a vertical boiler and outside connected cylinders, with a frame that linked the four large driving wheels. The locomotive's symmetrical design not only provided aesthetic appeal but also ensured steady and dependable performance across various rail conditions.

One key engineering feature of the William Mason was its wooden cab and brass fittings. These materials, while seemingly archaic by modern standards, were standard for the period and provided the necessary functional and aesthetic appeal. The use of polished brass for many components added to its elegant appearance and was indicative of the pride that manufacturers and railroads took in their rolling stock.

The original William Mason had a distinctive "balloon" smoke stack, which was common among early American locomotives and served the purpose of a spark arrester—important for preventing line-side fires in areas with wooden ties and structures. Over time, modifications and technological advancements would see changes to such features, underscoring the evolution of steam locomotive technology.

The Role and Impact of 4-4-0 Locomotives

The 4-4-0 configuration was not unique to Mason, but his locomotives became renowned for their durability and reliability. These engines could tackle the hilly and uneven tracks where lesser locomotives struggled, making them invaluable to the rapidly expanding rail network.

The William Mason, like other 4-4-0s, was used to pull both passenger and freight trains. The flexible utility of these locomotives allowed them to become the backbone of many rail lines, balancing power and speed across diverse tasks. Their versatility helped pave the way for both economic growth and societal change, driving industrial expansion and enabling the settlement of western territories.

Preservation and Legacy

Unlike many of its contemporaries, which were scrapped or lost to history, the William Mason locomotive was preserved and eventually restored, thanks to its historical significance. Today, it survives as a cherished example of mid-19th century steam engineering.

William Mason is part of the B&O Railroad Museum’s collection in Baltimore, Maryland, a fitting location given the B&O's historical significance as America's first commercial railroad. The museum, through static displays and occasional operational demonstrations, exhibits this classic locomotive to the public, providing an immersive glimpse into the past.

The legacy of the William Mason and the 4-4-0 locomotives can also be seen in cultural representations. They have been immortalized in paintings, photographs, and model railroads, serving as icons of the romanticized steam era.

Technological Significance

The broader significance of the William Mason lies in its representation of a pivotal moment in technological progress. It serves as a bridge between early rudimentary steam engines and the more complex, power-oriented designs that would dominate the late 19th and early 20th centuries. The advancements seen in these locomotives laid foundational principles for later engineering feats, influencing both American and global locomotive design.

Data Sheet

Category	Details
Builder	Mason Machine Works
Serial Number	46
Build Date	August 1856
Specifications
Configuration (Whyte)	4-4-0
Gauge	4 ft 8½ in
Driver Diameter	60 in
Adhesive Weight	40,500 lb
Locomotive Weight	56,000 lb
Fuel Type	Wood
Boiler Pressure	75 lbf/in²
Cylinders	Two, outside
Cylinder Size	15 in × 22 in
Valve Gear	Stephenson
Valve Type	Slide Valves
Performance Figures
Tractive Effort	6,225 lbf

Conclusion

The 4-4-0 William Mason is a quintessential symbol of its time. It encapsulates the curiosity, ingenuity, and relentless pursuit of progress that defined the age of steam. Through its design and operational success, it not only served the practical needs of an expanding nation but also contributed to the cultural and technological heritage that continues to be celebrated. Today, with its preserved form standing as a testament to its era, the William Mason remains a bridge between past innovations and contemporary admiration for historical engineering marvels.
