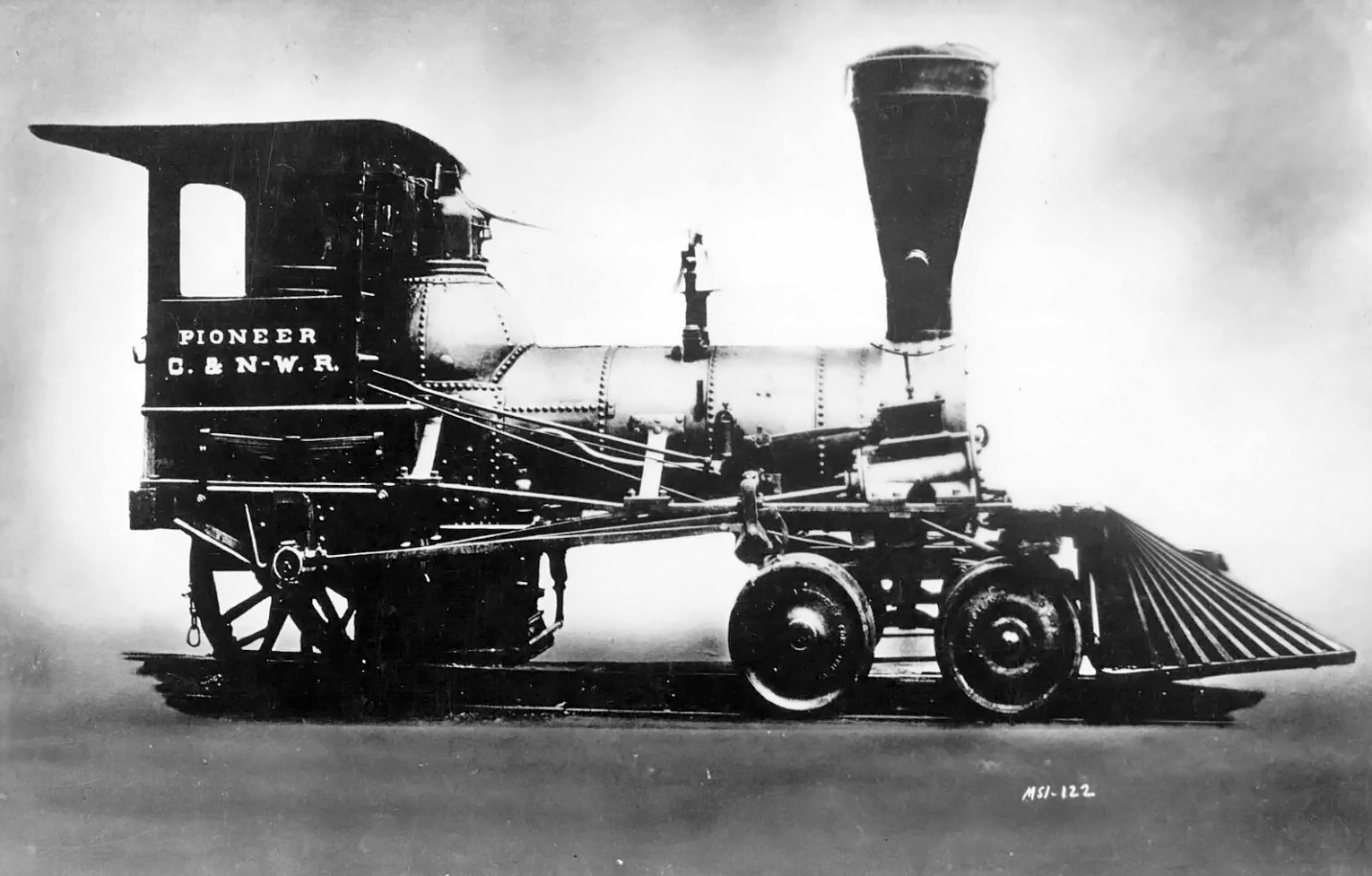

4-2-0 "Pioneer" Locomotive: History, Specs, Legacy

Published: February 18, 2025

The 4-2-0 "Pioneer" locomotive holds a celebrated place in the chronicles of American railroading and the industrious expansion of Chicago.

This historic steam engine was not just a technological marvel of the 19th century but also a symbol of the transition from wild prairie to pulsing metropolis.

Operated by the Galena and Chicago Union Railroad (G&CU) - precursor to the modern Chicago & North Western system - the "Pioneer" was the pivotal machine that laid down the metallic arteries of commerce throughout the burgeoning Midwest.

Today, the locomotive - on display at the Chicago History Museum - is the original only surviving example of the 4-2-0 wheel arrangement which found widespread use during the industry's transformative years. In addition, a few replicas of this arrangement are also preserved,

Beginnings of the Iron Horse

The story of the "Pioneer" begins with its construction in 1837 by the Baldwin Locomotive Works, one of America's most prolific locomotive manufacturers based in Philadelphia, for the Utica & Schenectady Railroad (U&S), which named the engine "Alert."

The U&S was one of New York's earliest railroad. It was originally chartered in 1833 and had opened a 78-mile line linking its namesake towns by 1836. Its opening shortened the arduous Mohawk Valley journey and it became an essential segment of the the New York Central Railroad in 1853, under the leadership of Erastus Corning.

As part of this larger network, it facilitated freight and passenger transport across the state, significantly advancing the region's economic development and paving the way for future rail expansions. After nearly a decade of service in New York, "Alert" was sold in 1848 to the Galena & Chicago Union Railroad (G&CU), where it was rechristened "Pioneer."

Entering Chicago

In the mid-19th century, Chicago was on the cusp of explosive growth spurred by strategic location and ambitious infrastructure projects. The earliest predecessor of the Chicago & North Western, the G&CU was established by charter in 1836. It holds the distinction of being not only the inaugural railroad to serve Chicago but also the first to deploy a steam locomotive departing from the city.

Initially aimed at linking its namesake cities and extending its reach to the Mississippi River, the railroad faced obstacles from its inception. Although surveys were conducted, construction failed to commence, causing the project to stagnate. In 1846, a new group of investors, equipped with the necessary financial resources and resolve, took control of the initiative and committed to its completion.

Construction commenced in June 1848, and by January 22, 1850, a total of 42 miles had been completed, extending as far as Elgin. Mere months into the endeavor, the first locomotive—named "Pioneer," a 4-2-0 type—arrived via schooner on October 10th. This locomotive began operations on October 24th, thereby earning its place as the first steam locomotive to function out of Chicago.

Aurora Branch Railraod

During the summer of 1850 the locomotive was temporarily loaned to the Aurora Branch Railroad (predecessor of the Chicago, Burlington & Quincy) to assist in its construction out of Chicago that summer. Subsequently returned to the G&CU, the locomotive continued its service as their road work engine.

Impact on Chicago’s Expansion

The "Pioneer" and the railroads it facilitated played a catalytic role in Chicago's rapid growth. The city, with its geographical advantage on the southwestern shore of Lake Michigan, became a conduit for the raw materials of the West and the finished goods of the East. By the time the Civil War erupted, Chicago's railroads had become essential to the Union's logistics network, forever tying the city to industrial progress and warfare economics.

The arrival of the "Pioneer" and subsequent locomotives made possible the swift movement of agricultural produce, such as wheat and corn, while also providing an avenue for settlers moving westward.

The ability to quickly reach broader markets meant an economic boon for early settler businesses and farmers. It also facilitated the movement of cattle from the Great Plains to Chicago's stockyards, a factor that would soon make Chicago the meatpacking capital of the world.

Data Sheet

Specification	Details
Whyte Notation	4-2-0
Builder	Matthias Baldwin
Completion Date	1836
Valve Gear	V-hook
Locomotive Length and Weight
Engine Wheelbase (ft)	24.45
Weight on Drivers (lbs)	24,120
Engine Weight (lbs)	24,120
Minimum Weight of Rail (lb/yd)	40
Driver Diameter (inches)	54
Boiler Pressure (psi)	100
High Pressure Cylinders (diameter x stroke) (in)	10" x 18"
Tractive Effort	2833 lbs
Factor of Adhesion (Weight on Drivers/Tractive Effort)	8.51

Legacy

Following the G&CU's integration into the C&NW, the locomotive remained operational until it was retired in 1875 in West Chicago, Illinois. While trains and locomotives evolved rapidly, the "Pioneer" continued service for several years before being retired and nearly forgotten.

However, its historical significance ensured its conservation and later restoration. Today, the "Pioneer" rests in Chicago's Museum of Science and Industry, offering a tangible link to a time when brave innovators and sturdy machines brought boundless potential to what was once the American frontier.

The "Pioneer" is more than a relic. It embodies the transformative power of the Industrial Revolution on American soil. For Chicago, it represents a vehicle of change and progress, marking the city’s trajectory from a modest settlement to a thriving metropolis. This locomotive was indeed a pioneer—an apt name for a machine that paved the way for countless successors that would deepen the iron network across the continent.

Conclusion

The "Pioneer" remains a testimony to a defining era where engineering ingenuity and adventurous spirit drove America toward modernity. Its tracks laid the groundwork for a century of growth, expansion, and industrial power that would shape not just Chicago, but the entire nation. As Chicago remembers its storied past, the “Pioneer” stands as a proud symbol of human innovation and the relentless pursuit of progress in the face of vast, untamed wilderness.
