Sanding Tower (Railroad): Purpose, History, Photos

Last revised: September 5, 2024

Railroads have been at the core of industrial progress for over two centuries, providing a reliable and efficient means of transporting goods and people across vast distances.

One of the critical challenges faced by railroads, especially during inclement weather, is maintaining traction between the train wheels and the rails. The solution to this problem lies in a humble but vital piece of equipment: the sanding tower.

This article delves into the history and functionality of sanding towers in railroad applications, highlighting their significance in ensuring safe and efficient train operations.

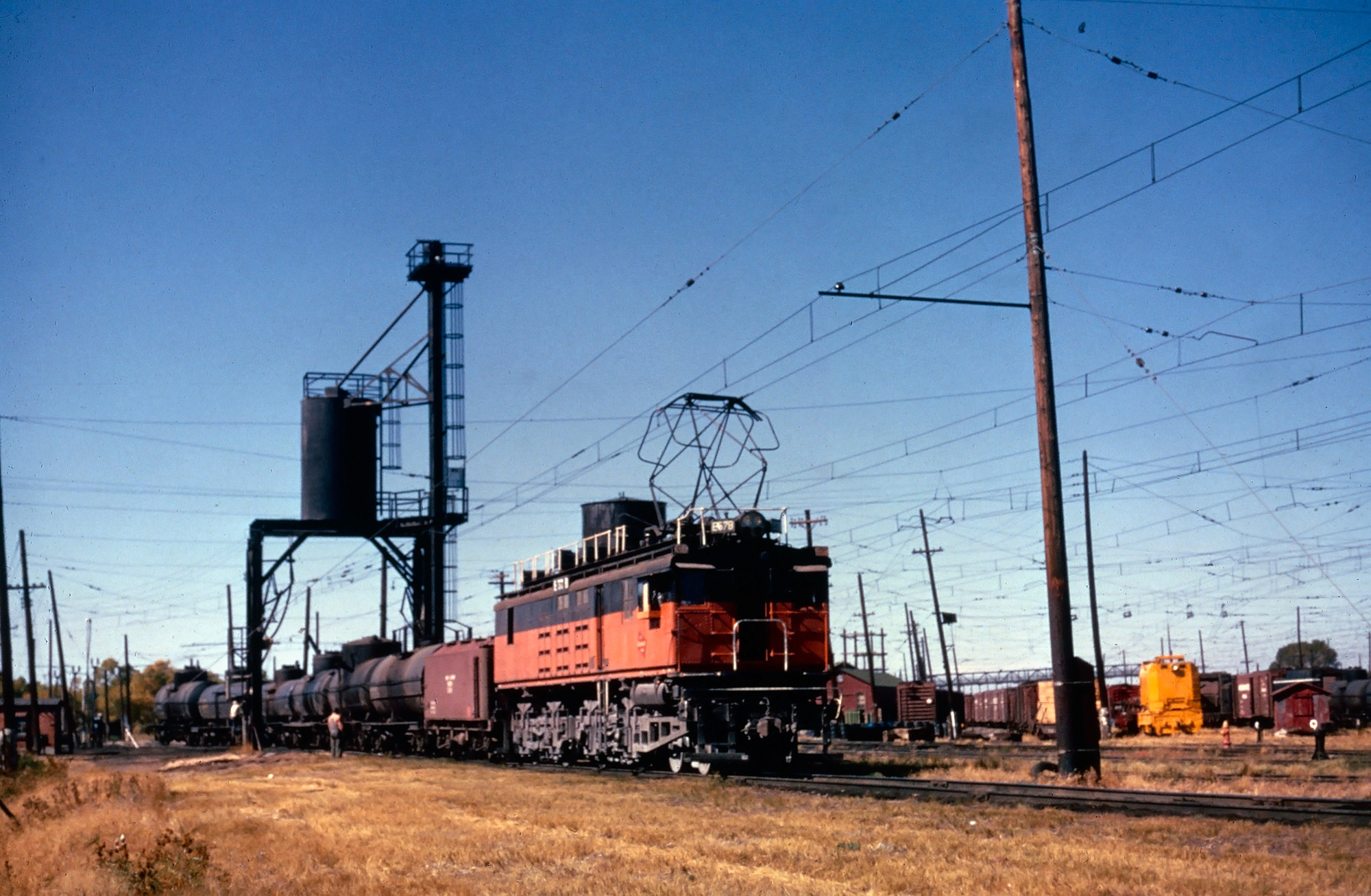

Milwaukee Road switcher E57-B (Class ES-3) has a string of sand cars for the sanding tower at Harlowton, Montana in October of 1967. Today, this locomotive is preserved and on display in Harlowton. American-Rails.com collection.

History

The use of sand on railroads dates back to the early days of steam locomotives. The idea of using sand to improve traction likely originated from the observation that locomotive wheels would slip on the rails, particularly in wet or icy conditions.

Originally, locomotive crews would manually apply sand to the rails by shoveling it from a storage bin. However, this approach was inefficient and inconsistent, prompting railroads to seek more effective methods.

Early Development

The first significant advancement in sand application came with the invention of mechanical sanding systems in the late 19th century.

These early systems integrated sandboxes on locomotives, allowing crews to release sand through pipes directly onto the rails in front of the driving wheels. This innovation significantly improved traction control, especially on heavy grades and slippery tracks.

Emergence

As railroads evolved and train operations became more complex, the need for a more efficient means of replenishing sand on locomotives became apparent.

The concept of the sanding tower emerged as a solution. Sanding towers are tall, vertical structures designed to store large quantities of sand and facilitate easy and rapid refilling of either steam locomotive sand domes or diesel locomotive sandboxes.

By the early 20th century, sanding towers had become a standard feature in rail yards and maintenance facilities.

These towers allowed railroads to store dry sand in elevated bins, using gravity or pneumatic systems to quickly transfer sand into locomotives. This development marked a significant improvement over manual methods, enhancing efficiency and consistency in sand application.

Functionality

Sanding towers play a crucial role in railway operations by ensuring that locomotives have a consistent supply of dry sand available for traction control. The design and functionality of sanding towers have evolved over the years, incorporating advanced technologies to enhance their efficiency and reliability.

Basic Structure and Components

A typical sanding tower consists of several key components:

1. **Storage Bins or Silos**: The main body of the tower, these bins or silos store large quantities of sand. They are often constructed from steel or reinforced concrete to withstand the weight and pressure of the stored material.

2. **Elevated Platform**: An elevated platform is often integrated into the tower design to facilitate the gravity-fed transfer of sand. The platform is typically accessed by stairs or ladders and may include safety railings and other measures to protect workers.

3. **Sand Delivery System**: The delivery system is responsible for transferring sand from the storage bins to the locomotives. Early systems relied on simple gravity chutes, while modern designs often incorporate pneumatic systems that use compressed air to blow dry sand through hoses and pipes.

4. **Drying Equipment**: To ensure that the sand remains dry and free-flowing, many sanding towers are equipped with drying equipment. This equipment may include heaters, blowers, and ventilation systems to remove any moisture from the sand.

Sand Delivery Process

The process of delivering sand from the tower to the locomotive typically follows these steps:

1. **Preparation and Drying**: Sand is initially delivered to the sanding tower in bulk, often by trucks or railcars. Before storing the sand in the bins, it may undergo a drying process to remove moisture, preventing clumping and ensuring smooth flow through the delivery system.

2. **Storage**: The dried sand is then stored in the bins or silos of the sanding tower. These storage units are designed to keep the sand dry and ready for use.

3. **Transfer to Locomotives**: When a locomotive requires sand, crew members position it adjacent to the sanding tower. The delivery system, whether gravity-fed or pneumatic, is activated to transfer sand from the storage bins into the locomotive's sandboxes.

Pneumatic systems, which use compressed air to move the sand through hoses, are particularly effective in ensuring a rapid and consistent transfer.

4. **Application**: Once onboard the locomotive, the sand is dispensed onto the rails through strategically placed delivery pipes located just ahead of the driving wheels. The crew can control the flow of sand from the cab, applying it as needed to improve wheel-rail adhesion.

Technological Advancements

Advancements in technology have significantly enhanced the functionality of sanding towers over the years. Modern sanding systems incorporate automated controls, sensors, and monitoring equipment to optimize the sand delivery process. These innovations ensure that sand is applied efficiently and effectively, further enhancing the safety and performance of train operations.

Importance and Benefits

The use of sanding towers and systems contributes significantly to the safety, efficiency, and reliability of rail operations. Some of the key benefits include:

Improved Traction Control

The primary purpose of sanding towers is to improve traction control for locomotives. By applying sand to the rails, the coefficient of friction between the train wheels and the tracks is increased, reducing wheel slip and preventing the locomotive from losing traction.

This is particularly important in adverse weather conditions, steep gradients, and when starting a heavy train from a standstill.

Enhanced Safety

Sanding systems enhance the safety of train operations by reducing the risk of wheel slip and related accidents. Improved traction control allows for better braking performance and smoother acceleration, minimizing the likelihood of derailments and collisions caused by uncontrolled wheel movements.

Operational Efficiency

Efficient and reliable sanding systems contribute to the overall operational efficiency of railroads. By ensuring that locomotives have a consistent supply of sand, railroads can maintain optimal traction control, reducing delays and disruptions caused by wheel slip. This efficiency is particularly important for freight and passenger rail operations, where schedule adherence is crucial.

Reduced Maintenance Costs

Proper traction control reduces wear and tear on train wheels and rails, extending their service life and reducing maintenance costs. Sanding systems help mitigate the damaging effects of wheel slip, such as flat spots on wheels and rail head damage, ultimately leading to cost savings for railroads.

Versatility and Adaptability

Sanding towers and systems are versatile and adaptable to various rail environments. Whether in large rail yards, remote maintenance facilities, or along mainline routes, sanding towers provide a reliable means of maintaining traction control. Their adaptability makes them an essential component of modern rail infrastructure.

Conclusion

The sanding tower is an often overlooked but essential element of railway operations. From its early days as a manual sand-shoveling practice to the modern, technologically advanced systems of today, sanding towers have played a critical role in ensuring the safety, efficiency, and reliability of trains.

By providing improved traction control, enhanced safety, operational efficiency, and reduced maintenance costs, sanding towers continue to be a vital piece of equipment in the rail industry.

As railroads evolve and technology advances, the design and functionality of sanding towers will likely continue to improve, further enhancing their contribution to the world of rail transportation.

Whether in bustling urban rail yards or remote rural tracks, the sanding tower stands as a testament to the ingenuity and innovation that have driven the rail industry forward for centuries.
