4-2-0 "Jervis" Locomotives: Specs, Photos, Survivors

Published: February 18, 2025

The 4-2-0 locomotive represents a significant chapter in the early railroad history in the U.S. Also known as the "Jervis" its evolution marked a period of innovation and early expansion during the early/mid 19th century.

As one of the notable configurations in steam locomotive development, the 4-2-0 was an expansion of the 2-2-0 "Planet" and preceded the very popular 4-4-0 "American." It was widely used from the 1830s-1850s. Today, one original example survives, Chicago & North Western #7, the "Pioneer."

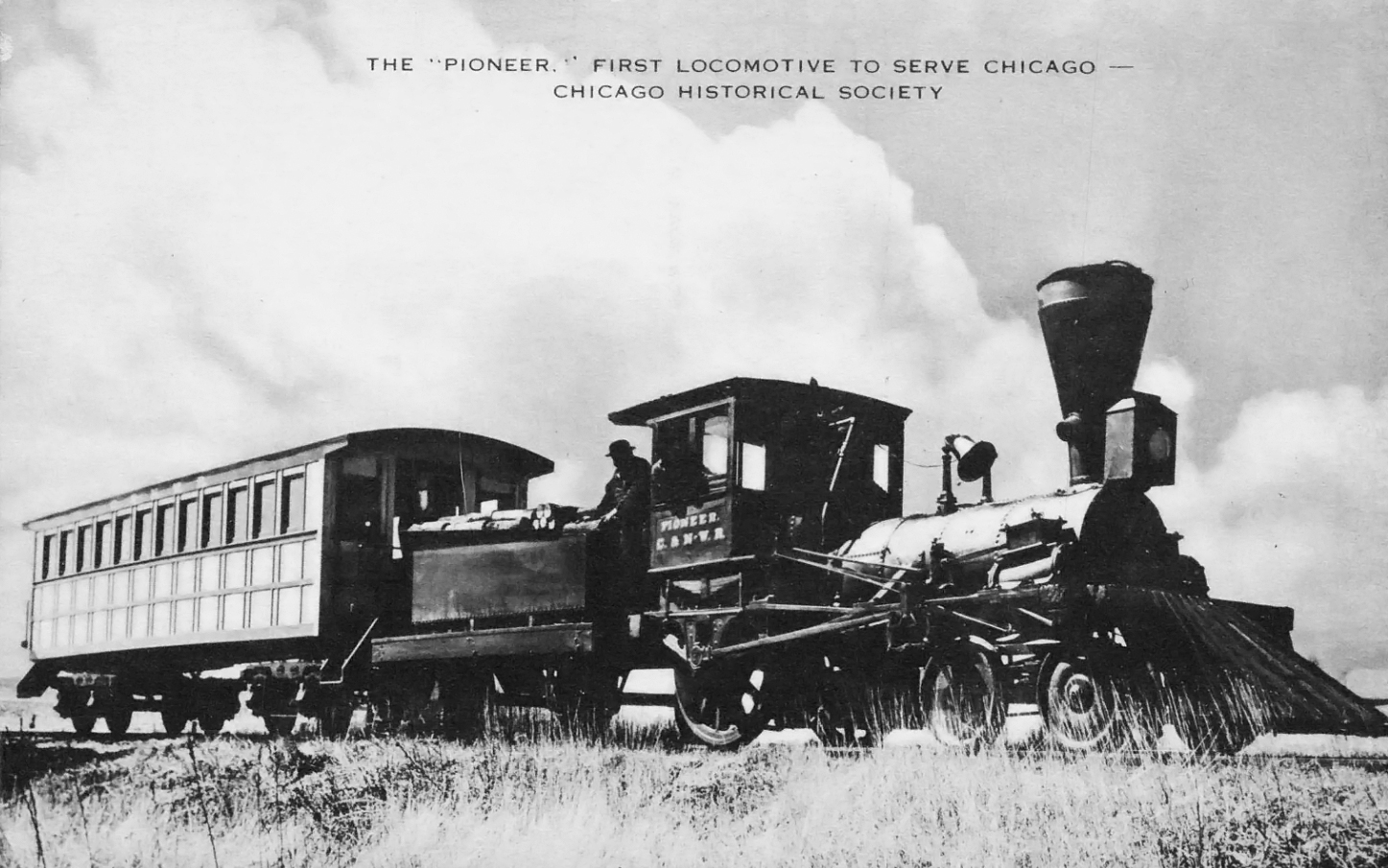

Chicago & North Western 4-2-0 #7, the "Pioneer," the first steam locomotive to operate in Chicago in 1837.

Development

The 4-2-0, characterized by its wheel arrangement with four leading wheels on two axles, two driving wheels on a single axle, and no trailing wheels, was an outcome of experimentation during the early years of steam locomotives.

The classification system used to describe this wheel arrangement, known as Whyte notation, distinguishes it clearly and helps in understanding its mechanical balance and performance capabilities.

The 4-2-0 wheel configuration was prevalent on American railways from the 1830s to the 1850s. The inaugural locomotive of this type, initially called the Experiment and later renamed Brother Jonathan, was constructed for the Mohawk & Hudson Railroad in 1832. The West Point Foundry undertook its production, following a design conceived by John B. Jervis.

Lacking extensive precedents, the manufacturers modeled the boiler and valve mechanism after locomotives crafted by Robert Stephenson in England. Given that several Stephenson locomotives were already operational in the United States, engineers did not need to look far to gather their initial inspiration.

Early Developments and Design

The 4-2-0 locomotive emerged during the first half of the 19th century as engineers sought to improve upon the limitations of earlier locomotive designs. The driving force behind this development was primarily the need for greater stability and smoother operation at higher speeds.

The addition of leading wheels improved balancing, enabling locomotives to negotiate curves more efficiently. This design, subsequently achieved better stability and smoother rides, setting the stage for its growing popularity.

The design evolved from the then-prevalent 0-4-0 model, which frequently encountered issues due to its rigidity, often derailing on the tight curves and steep gradients characteristic of early American railway systems.

Technical Innovations and Design Features

The development of the 4-2-0 brought technical advancements that influenced subsequent locomotive designs. The increase in leading wheels provided greater stability and set the foundation for higher speed capabilities. This advancement permitted the locomotive to better handle the relatively rough and undeveloped tracks of the time.

Other refinements included improved suspension systems, which significantly enhanced ride quality. The 4-2-0 often incorporated a flanged driving wheel system that improved traction and reliability. The use of horizontal inside cylinders was standard, promoting even weight distribution and ease of repair and maintenance.

Operational Significance and Adoption

The 4-2-0 gained traction both in Europe and North America, becoming a staple during the early to mid-19th century. In the United States, the Baltimore & Ohio - the nation's pioneering common-carrier - adopted the 4-2-0 for its Main Line from Baltimore to Washington, D.C., making it one of the first American railroads to utilize this design extensively.

The configuration also found favor with railway companies in the United Kingdom, Germany, and other parts of Europe, where the need for faster and more reliable passenger services was increasing. The 4-2-0 closed the gap between earlier, slower engines and the more modern, faster locomotives that would follow.

Cultural and Economic Impact

The introduction of the 4-2-0 coincided with a period of industrial expansion and societal transformation. Railways were becoming the backbone of commerce and communication.

They reduced travel times drastically and created cohesive, interconnected economies. The 4-2-0 locomotives played a key role in this process by providing a more reliable and efficient means of transporting goods and passengers.

Beyond its economic impact, the 4-2-0 locomotives were a symbol of modernity. They represented progress and innovation, capturing public imagination and sparking further interest in railway travel and transportation technology.

Transition and Decline

Despite their significant contributions, the 4-2-0 locomotives eventually gave way to more efficient configurations as railroads required engines capable of hauling heavier loads and dealing with steeper grades and longer trains.

The inaugural - and more powerful - 4-4-0, conceived by Henry R. Campbell, who was at that time the chief engineer for the Philadelphia, Germantown and Norristown Railway, marked a significant milestone in railroad engineering.

Campbell secured a patent for his innovative design in February 1836 and promptly commenced the construction of the first 4-4-0 model. This locomotive was considered a behemoth among its contemporaries. It featured cylinders measuring 14 inches by 16 inches, driving wheels with a 54-inch diameter, a boiler pressure of 90 psi, and a total weight of 12 short tons.

It was estimated that Campbell's 4-4-0 possessed the capability to haul a load of 450 short tons at a speed of 15 mph on flat terrain, surpassing the Baldwin 4-2-0 in tractive effort by approximately 63%. However, the rigid design of its frame and driving mechanism rendered it prone to derailment on contemporary rail tracks, thus limiting its practical efficacy. These issues were later rectified, however.

Legacy

Although the 4-2-0 gradually disappeared from regular service, their legacy lived on, influencing later locomotive designs and the direction of railway engineering. The focus on improved balance and stability set a precedent for prioritizing ride comfort and operational efficiency in locomotive design.

Today, the design is celebrated as an important step in the evolution of train technology. They serve as a historic reminder of the ingenuity that characterized the early days of railway development and the rapid changes that defined the Industrial Revolution.

Preserving History

One original 4-2-0 survives, Chicago & Northern's Pioneer at the Chicago History Museum, along with a few replicas and replicas, offering a glimpse into the past for train enthusiasts and historians.

Number	Whyte Notation	Gauge	Original Owner	Location	Status	Builder Info	Notes
13 ("Lafayette")	4-2-0	4' 8 ½"	Baltimore & Ohio	B&O Railroad Museum	Display	Mount Clare Shops (B&O), 1927	Replica. Named "Lafayette".
"Sandusky"	4-2-0	4' 8 ½"	New Jersey Railroad & Transportation Company	Mad River & NKP Railroad Museum, Bellevue, OH	Display	Mount Clare Shops (B&O), 1904	Replica. Named "Sandusky". First locomotive to operate in Ohio built by the Rogers Locomotive & Machine Works.
7 ("Pioneer")	4-2-0	4' 8 ½"	Chicago & North Western	Chicago History Museum	Display	Baldwin #37, 1837	Named "Pioneer." Oldest surviving C&NW steam locomotive and first to operate in Chicago. Originally built for Utica & Schenectady.
"Tornado"	4-2-0	4'8 ½"	Raleigh & Gaston	Tornado Locomotive Building (Hamlet, NC)	Display	-	Named "Tornado." Replica.

Conclusion

The 4-2-0 holds a unique place in the annals of railway history, representing a time of trial and innovation. While its operational lifespan was relatively short in the grand scheme of railway technology, its impact on the development of more stable and efficient train designs was profound. This locomotive type not only supported the burgeoning railway networks of the 19th century but also left an indelible mark on the future of locomotive engineering.
