Amtrak's Testbed French-Built CC 21003, X996

Published: August 15, 2026

Amtrak X996 (SNCF CC 21003), the “French Fry,” was a dual-voltage Alsthom “Nez Cassé” (broken-nose) Co-Co electric locomotive tested on the Northeast Corridor in 1977 as a potential high-speed replacement for the aging PRR GG1 fleet (and the troublesome GE E60s).

It was one of only four dual-voltage members of the broader CC 6500 family and the sole example evaluated in the United States. Amtrak ultimately rejected it in favor of the Swedish Rc4 design that became the basis for the EMD AEM-7.

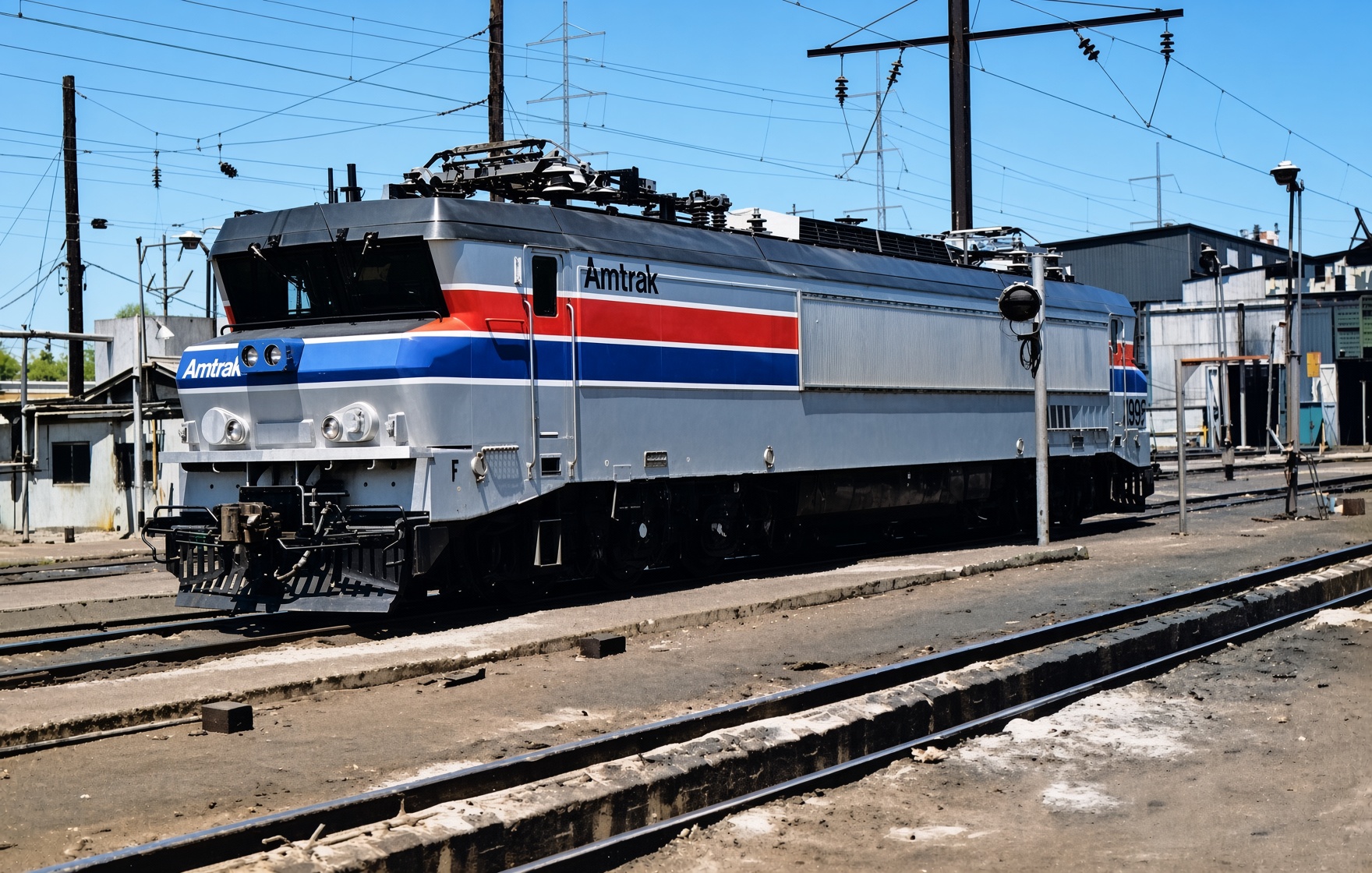

Amtrak X996 (CC 21003), a French-built electric, is seen here at Wilmington, Delaware on May 14, 1977. William Rosenberg photo.

Origins and French Service

The CC 21000 class was a dual-voltage (1,500 V DC / 25 kV 50 Hz AC) development of Alsthom’s successful monomotor-bogie CC 6500 series. Four locomotives were built: CC 21001–21002 in 1969 and CC 21003–21004 in 1974. They featured the distinctive Paul Arzens “Nez Cassé” styling shared with many contemporary French electrics and diesels.

These machines were powerful mixed-traffic units with a one-hour rating of 5,900 kW (approximately 7,900 hp) and a continuous rating near 5,520 kW. A dual-gear monomotor bogie arrangement allowed a maximum speed of 220 km/h (137 mph) in the high-speed (GV) ratio or 100 km/h (62 mph) in the low-speed (PV) freight ratio. Starting tractive effort was about 288 kN (65,000 lbf), with continuous effort around 131 kN. Service weight was roughly 124–128 tonnes depending on exact configuration.

CC 21001 and 21002 participated in high-speed testing (one reached 285 km/h under 25 kV) and early TGV-related work. The later pair, including 21003, entered regular service, notably on Paris–Switzerland TEE duties such as the Cisalpin. By the mid-1970s the class had proven capable of sustained 200+ km/h running on French main lines.

Conversion to Amtrak X996

In mid-1976 SNCF returned CC 21003 to Alsthom at Belfort for conversion into an Amtrak demonstrator. The extensive modifications required for Northeast Corridor operation (11 kV 25 Hz rather than 25 kV 50 Hz, plus AAR standards) included:

A new, larger, heavier transformer (approximately 13.5 tonnes) suited to 25 Hz.
Revised control and thyristor logic for the lower frequency.
Taller pantographs with greater vertical reach.
Reinforced pilot beams and new coupler pockets for standard AAR knuckle couplers (replacing European buffers and screw links).
AAR-compliant pilots, second air compressor, headlights, bell, and Nathan air horn.
Amtrak cab signaling and automatic speed control equipment.
English cab labeling and manuals.
Amtrak Phase I silver livery with the contemporary red/blue striping.

Weight rose to about 133 metric tons (293,000 lb). The locomotive left Le Havre by ship on 10 January 1977, arrived in New York later that month, and received final American equipment at Wilmington. It was numbered X996 and nicknamed the “French Fry.”

Testing on the Northeast Corridor

Testing ran from late February through mid-May 1977, primarily between New York and Washington (with limited running toward New Haven). The locomotive was based at Philadelphia and used for both light tests and some revenue Metroliner consists. It successfully reached the required 120 mph (193 km/h) speeds.

Ride quality, however, proved unacceptable. Each three-axle bogie used a single large DC traction motor driving all three axles through a gear train and quill (hollow-shaft) arrangement with limited primary-suspension travel. The primary springs were therefore relatively stiff—optimized for the superior geometry and maintenance standards of French high-speed track. On the rougher Northeast Corridor of the 1970s the locomotive transmitted severe vertical and lateral motions into the carbody. In one test the pantographs were damaged by the resulting oscillations. Attempts to stiffen the suspension further were limited by the bogie design itself and did not solve the problem under all conditions.

By contrast, the Swedish Rc4 (Amtrak X995 / “Swedish Meatball”), tested under the same conditions, rode acceptably and demonstrated superior compatibility with American track. Amtrak therefore selected the Rc4 architecture as the basis for the domestically produced AEM-7 fleet that entered service in 1979–80.

Why Amtrak Did Not Purchase It

The decisive factor was suspension and ride quality on existing Northeast Corridor track. American observers viewed the French design as insufficiently robust for U.S. conditions; French personnel attributed the issues primarily to track quality that fell short of the standards the locomotive had been designed around. Both perspectives contained truth: the quill-drive monomotor trucks simply could not be adjusted enough to cope with the geometry and maintenance levels then typical of the Corridor. Secondary considerations included the higher axle loads after modification and the logistical complications of supporting a unique foreign design. The Swedish alternative offered a clearer path to a reliable, license-built American locomotive.

Return and Later Career

Testing ended on 11 May 1977. After removal of U.S.-specific equipment at Wilmington, X996 was shipped back to France in June 1977 and restored to its original dual-voltage CC 21000 configuration. In 1995–96 the four CC 21000s were converted to pure 1,500 V DC machines and renumbered into the CC 6500 series as CC 6575–6578 (CC 21003 became CC 6577). They continued in secondary service until withdrawal around 2005; most were scrapped. (CC 6575, the former 21001, survives in preservation.)

Key Specifications (Original SNCF Configuration)

Builder: Alsthom / MTE, Belfort

Axle arrangement: Co-Co (AAR C-C)
Length: 20.19 m (66.2 ft)
Wheel diameter: 1,140 mm
Weight: ~124–128 t (modified for Amtrak ~133 t)
Power: 5,900 kW (1-hour) / ~5,520 kW continuous (~7,900 / 7,400 hp)
Maximum speed: 220 km/h (passenger) / 100 km/h (freight)
Starting tractive effort: 288 kN
Continuous tractive effort: ~131 kN
Voltages (original): 1,500 V DC and 25 kV 50 Hz AC
Traction: Two double DC motors (TTB 665 A1 type), monomotor bogies with dual gear ratios and quill drive

X996 remains a footnote in Amtrak motive-power history—an impressive high-horsepower European design that simply could not adapt to the track realities of the 1970s Northeast Corridor. The successful Swedish alternative shaped electric passenger operations on the Corridor for the next three decades.
